Supermicro H13SRA-TF Manuel utilisateur
H13SRA-TF
H13SRA-F
ENGLISH
繁體中文
简体中文
日本語
한국어
QUICK REFERENCE GUIDE
Revision 1.00
Standardized Warning Statements
Motherboards
About Standardized Warning Statements
The following statements are industry standard warnings, provided to warn the user of situations where bodily injury
might occur. Should you have questions or experience diculty, contact Supermicro's Technical Support Department
for assistance. Only certied technicians should attempt to install or congure components.
Read this section in its entirety before installing or conguring components in the Supermicro chassis.
Battery Handling
Warning!
There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or an equiva-
lent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
警告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理
廢棄舊電池。
警告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理
废旧电池。
電池の取り扱い
電池交換が正しく行われなかった場合、破裂の危険性があります。 交換する電池はメーカーが推奨する型、または同等のもの
を使用下さい。 使用済電池は製造元の指示に従って処分して下さい。
경고!
배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조사에서 권장하는 동등한
종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.
Note: For complete product safety information, refer to https://www.supermicro.com/about/policies/safety_information.cfm.
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE Product Safety Information
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE 限用物質含有情況標示聲明書
限
限
用
用
物
物
質
質
含
含
有
有
情
情
況
況
標
標
示
示
聲
聲
明
明
書
書
設備名稱：主機板 /
Motherboard
型號（型式）：H13SRA-F, H13SRA-TF
單元Ｕnit
限用物質及其化學符號
鉛Lead
(Pb) 汞Mercury
(Hg) 鎘Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
電路板組件
(PCBA) －○○○○○
連接器
(Connector)
－○○○○○
備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準
值。
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3.〝－〞係指該項限用物質為排除項目。
Equipment name
Type designation (Type)
Restricted substances and its chemical symbols
Declaration of the Presence Condition of the Restricted Substances Marking
Note 1
：
“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the
reference percentage value of presence condition.
Note 2
：
“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
Note 3
：
The “−” indicates that the restricted substance corresponds to the exemption.
AMI BIOS POST Codes
About AMI BIOS POST Codes
The table below lists some of AMI BIOS POST codes for this motherboard. For more information, refer to https://www.
supermicro.com/manuals/other/AMI_AptioV_BIOS_POST_Codes_for_SM_Motherboards.pdf.
Code Description
0x32 CPU post-memory initialization is started
0x55 No Memory detected or memory failed
0x63 CPU DXE initialization is started
0x69 North Bridge DXE initialization is started
0x70 South Bridge DXE initialization is started
0x92 PCI Bus initialization is started
0x99 Super IO Initialization
0x9A USB initialization is started
0xA0 IDE initialization is started
0xA9 Boot into BIOS setup menu
0xB4 USB hot plug
0xD6 No console output devices are found
0xD7 No console input devices are found
0xF2 Recovery process started
0xF9 Recovery capsule is not found
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE BIOS POST Codes
M.2 Device Installation
M.2 Device Installation
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE
Note : It is strongly recommended that you install a heatsink on the M.2 device or use a M.2 device
with a built-in heatsink.
This motherboard has two M.2 M-key sockets that support the 2280 and 22110 M.2 devices.
One stando and a screw are pre-installed into the position of each 22110 mounting hole.

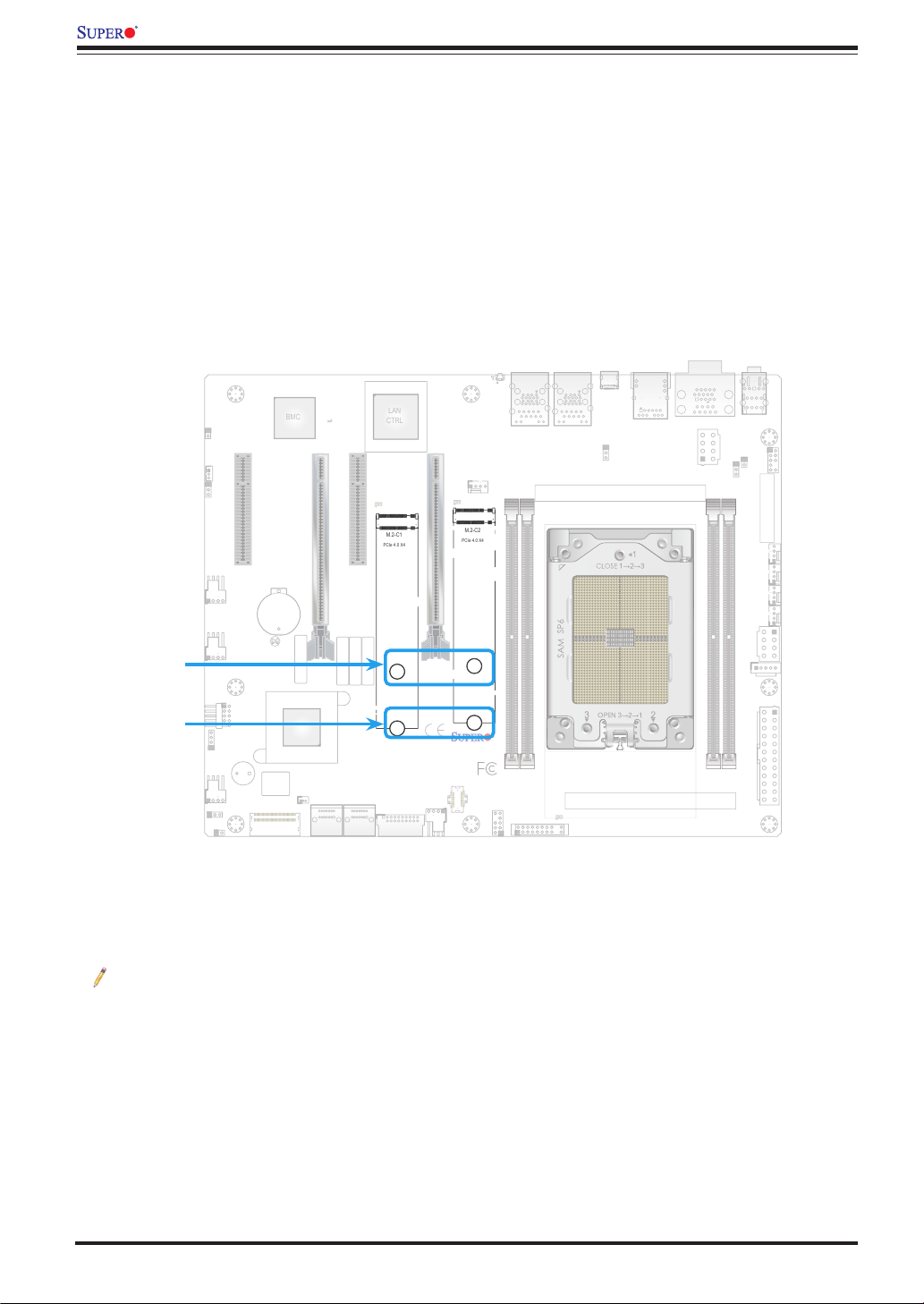

Refer to the illustration below for the locations of M.2 sockets and mounting holes. Follow the
steps on the next two pages to install the M.2 device.
BMC
LAN
CTRL
DESIGNED IN USA
H13SRA-TF
REV:1.01
PCIe 4.0 X4
M.2-C2
M.2-C1
PCIe 4.0 X4
22110
2280

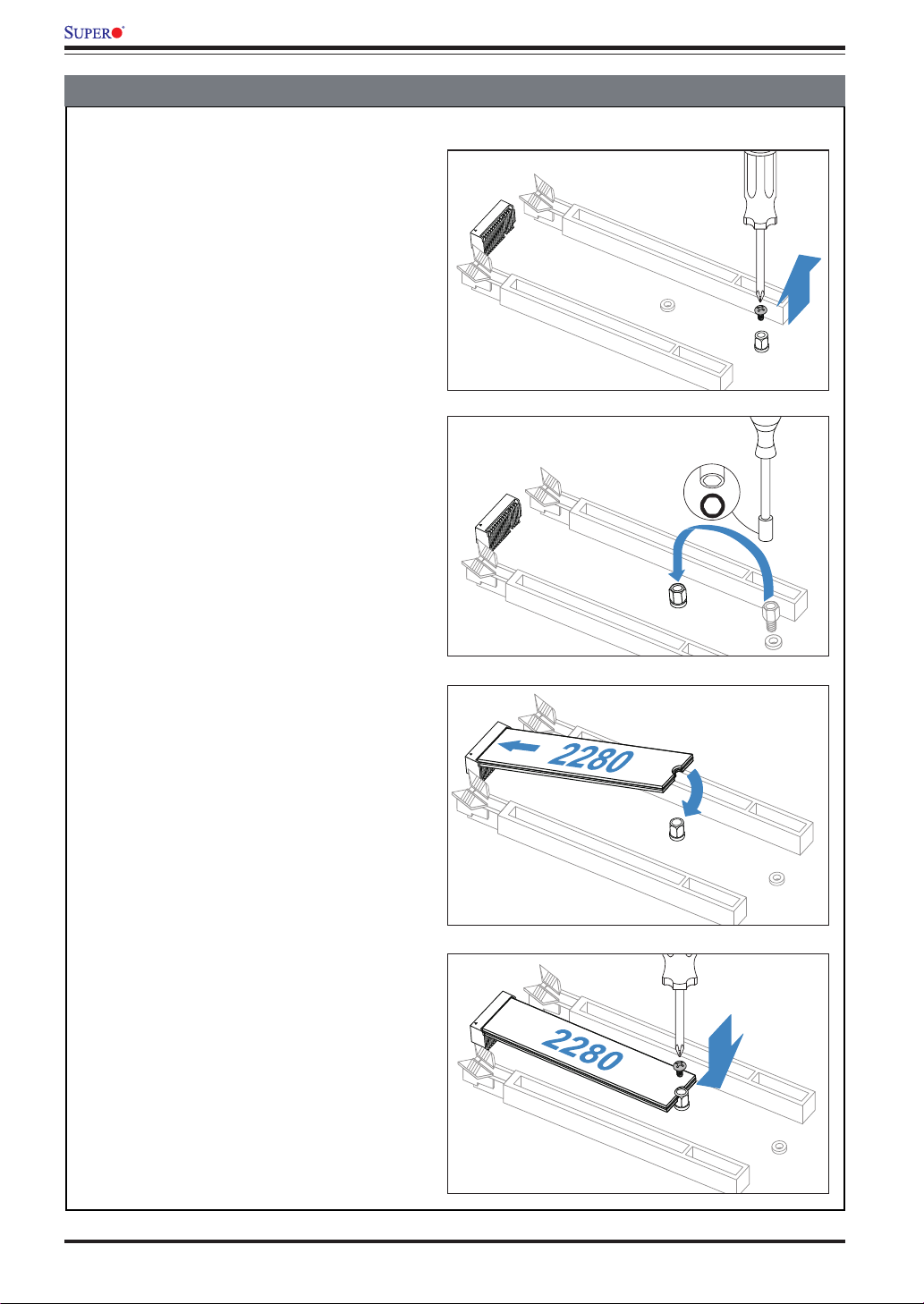

2280 M.2 Device Installation
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE 2280 M.2 Device Installation
1. Locate the pre-installed stando and
screw. Remove the screw and set it
aside.
2. Using a hex socket screwdriver, remove
and then reinstall the stando to the posi-
tion of the 2280 mounting hole.
3. Insert the M.2 device into the M.2 socket
at a 30-degree angle and press it down.
4. Tighten the screw to secure the M.2 device
into place. Do not overtighten so as to
avoid damaging the M.2 device.

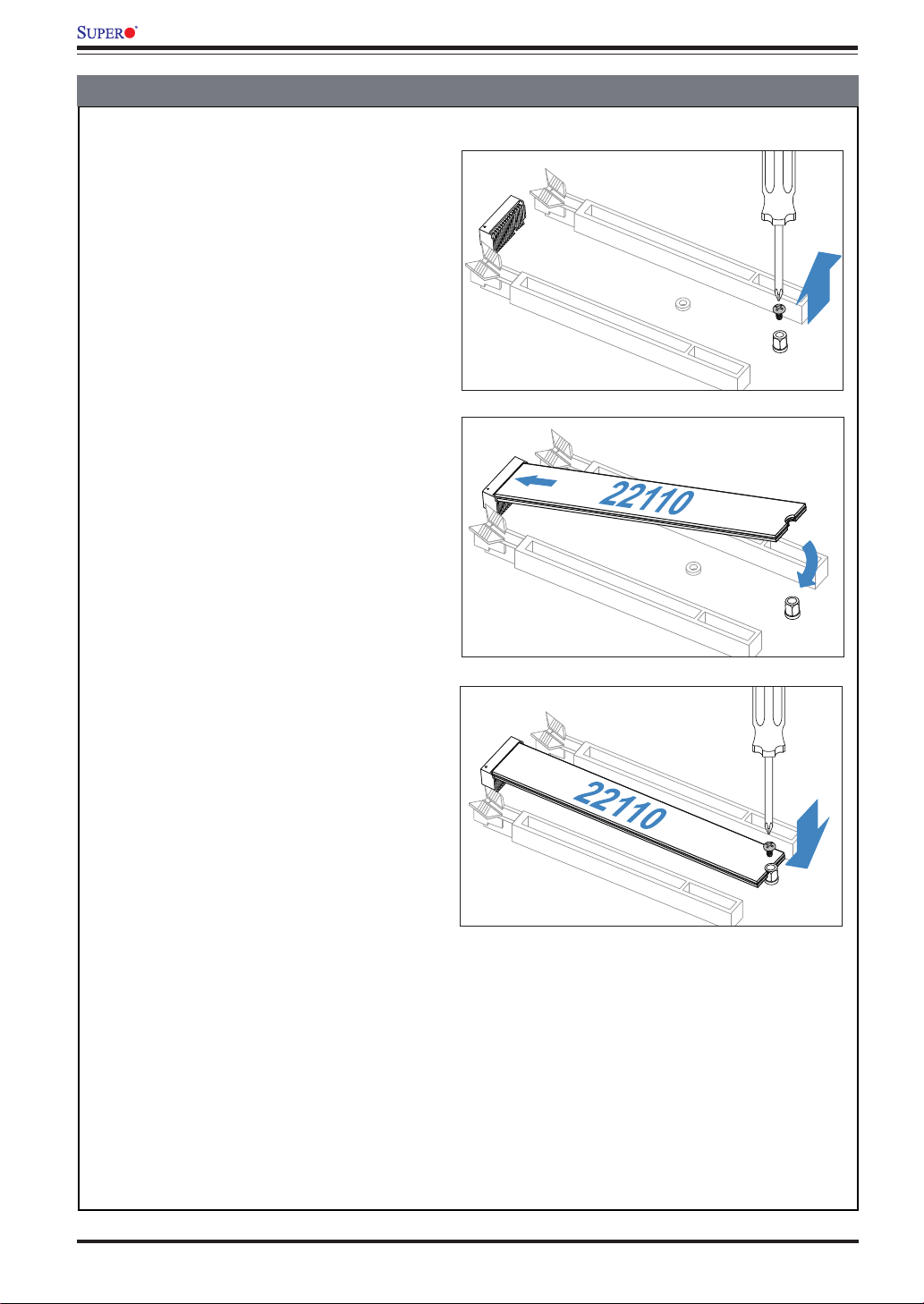

22110 M.2 Device Installation
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE 22110 M.2 Device Installation
1. Locate the pre-installed screw. Remove
the screw and set it aside.
2. Insert the M.2 device into the M.2 socket
at a 30-degree angle and press it down.
3. Tighten the screw to secure the M.2 device
into place. Do not overtighten so as to
avoid damaging the M.2 device.
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE GPU Cards and the Required Connectors
GPU Cards and the Required Connectors
Important: To provide adequate power supply to the motherboard, be sure to connect the 24-pin ATX
power connector and the required 8-pin power connectors to the power supply. Failure to do so may void
the manufacturer warranty on your power supply and motherboard.
When installing GPU card(s), it is strongly recommended that you connect the power supplies to the 24-
pin ATX power connector and the 8-pin power connectors as shown in the table below.
GPU Cards and the Required Connectors
Type of GPU Number of GPU Cards JPW1 JPW2 JPW3
Single-Width GPU x1 V V V
GPU x2 V V V
Double-Width GPU x1 V V V
GPU x2 V V V
Triple-Width GPU x1 V V V
GPU x2 V V V
Note 1: When using heavy loading devices, it is strongly recommended that you connect the power
supplies to the 24-pin ATX power connector and all the 8-pin power connectors.
Note 2: To use the CPU/memory overclocking feature, be sure to connect the power supplies to the 24-
pin ATX power connector and all the 8-pin power connectors.
Note 3: To avoid possible system overheating, be sure to provide adequate airow to your system.
H13SRA-TF/H13SRA-F
Quick RefeRence Guide Rev. 1.00
SUPERMICR R

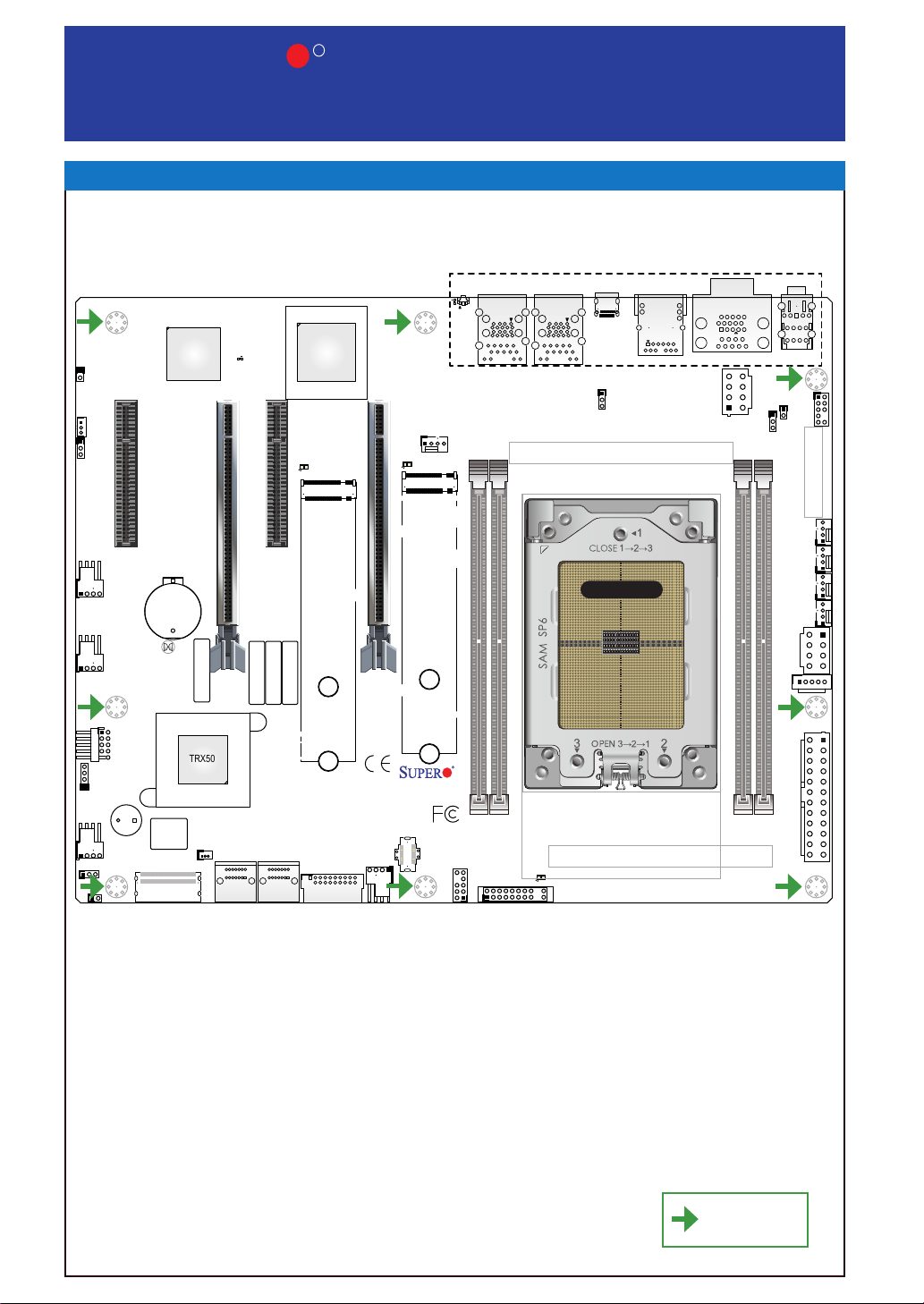

Motherboard Layout and Features
=mounting hole
BACK PANEL I/O
BMC LAN
CTRL
TRX50
BIOS
LICENSE
BMC CODE
MAC CODE
BAR CODE
BAR CODE
DESIGNED IN USA
H13SRA-TF
REV:1.01
+
+
LAN2
BMC_LAN
VGA
COM1
SATA3
SATA2
JMCIO-1/2
PCIe 4.0 X4
M.2-C2
2280
CPU SLOT6 PCIe 5.0 X16
CPU SLOT4 PCIe 5.0 X8
CPU SLOT3 PCIe 5.0 X16
JAFP1
JPI2C1
JPUSB1
JUIDB1
(UID)
JL1
JPL1
JD1
JBT1
BT1
FAN3
FAN2
FAN1
FAN4
FANC
FANB
12V_PUMP_PWR2
LED3601
(M.2-C1 LED)
LEDBMC
LED1
(UID-LED)
JPW3
LED7
(Power LED)
2280
22110
JPAC1
JSPDIF_OUT
JAUDIO1
USB9
(3.2 GEN2X2)
LAN1
JSD1
JTPM1
JOH1
JWD1
SATA1
SATA0
USB2/3
(3.2 GEN1)
M.2-C1
PCIe 4.0 X4
JPW2
FANA
JSTBY1
JF1
22110
12V_PUMP_PWR1
USB0/1
(2.0)
CPU SLOT1 PCIe 5.0 X8
JPW1
CPU
DIMME1
DIMMG1
DIMMC1
DIMMA1
SP1
USB8
(3.2 GEN2)
USB4/5
(3.2 GEN2)
USB6/7
(3.2 GEN2)
LED3602
(M.2-C2 LED)
LGA-4844
