Supermicro SuperServer SYS-E100-12T-H Manuel utilisateur

SYS-E100-12T-H

Getting Started Guide for AWS IoT Greengrass

SYS-E100-12T-H: Getting Started Guide for AWS IoT Greengrass

The information in this USER’S GUIDE has been carefully reviewed and is believed to be accurate. The

vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes

no commitment to update or to keep current the information in this manual, or to notify any person

organization of the updates. Please Note: For the most up-to-date version of this manual, please see our

web site at www.supermicro.com.

Super Micro Computer, Inc. (“Supermicro”) reserves the right to make changes to the product described

in this manual at any time and without notice. This product, including software, if any, and

documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced

to any medium or machine without prior written consent.

DISCLAIMER OF WARRANTY ON SOFTWARE AND MATERIALS. You expressly acknowledge and agree that

use of the Software and Materials is at your sole risk. FURTHERMORE, SUPER MICRO COMPUTER INC.

DOES NOT WARRANT OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE

USE OF THE SOFTWARE OR MATERIALS IN TERMS OF THEIR CORRECTNESS, ACCURACY, RELIABILITY, OR

OTHERWISE. NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY SUPER MICRO COMPUTER INC.

OR SUPER MICRO COMPUTER INC. AUTHORIZED REPRESENTATIVE SHALL CREATE A WARRANTY OR IN

ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. SHOULD THE SOFTWARE AND/OR MATERIALS

PROVE DEFECTIVE, YOU (AND NOT SUPER MICRO COMPUTER INC. OR A SUPER MICRO COMPUTER INC.

AUTHORIZED REPRESENTATIVE) ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICE, REPAIR, OR

CORRECTION.

LIMITATION OF LIABILITY. UNDER NO CIRCUMSTANCES INCLUDING NEGLIGENCE, SHALL SUPER MICRO

COMPUTER INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES THAT RESULT

FROM THE USE OR INABILITY TO USE THE SOFTWARE OR MATERIALS, EVEN IF SUPER MICRO COMPUTER

INC. OR A SUPER MICRO COMPUTER INC. AUTHORIZED REPRESENTATIVE HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara

County in the State of California, USA. The State of California, County of Santa Clara shall be the

exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not

exceed the price paid for the hardware product.

Manual Revision 1.0

Release Date: 9/12/2023

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of

this document.

Information in this document is subject to change without notice. Other products and companies referred to

herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

SYS-E100-12T-H: Getting Started Guide for AWS IoT Greengrass

Document Revision History

Date

Revision

Description

09/12/2023

1.0

Initial release.

SYS-E100-12T-H: Getting Started Guide for AWS IoT Greengrass

Table of Contents

1Document information....................................................................................................... 4

2Overview............................................................................................................................. 4

3Hardware description......................................................................................................... 4

4Set up your development environment.............................................................................. 5

5Set up device hardware...................................................................................................... 6

6Solid State Storage............................................................................................................ 12

7Driver Installation............................................................................................................ 13

8About AWS IoT Greengrass............................................................................................ 14

9Greengrass prerequisites.................................................................................................. 14

10 Install AWS IoT Greengrass ........................................................................................... 14

11 Create a “Hello World” component ................................................................................ 14

12 Debugging ........................................................................................................................ 15

13 Troubleshooting............................................................................................................... 15

14 Contacting Supermicro .................................................................................................... 16

1Document information

1.1 Document revision history

[Mandatory section]

1.2 Applicable operating systems for this guide

[Mandatory section] Clearly define which host and device operating systems this guide is applicable

to.

2Overview

The Supermicro SuperServer E100-12T is a compact edge server comprised of the CSE-E101 chassis and

the X12STN-H-WOHS motherboard with Intel® Core™ i7-1185GRE processors to support a wide range of

performance requirements and use-cases.

It is specifically suited for applications such as IoT Edge computing, IoT gateway, Smart Building,

machine automation, digital signage, and medical/healthcare.

3Hardware description

3.1 Datasheet

Datasheet link:

https://www.supermicro.com/en/products/system/Box_PC/SYS-E100-12T-H.cfm

SYS-E100-12T-H: Getting Started Guide for AWS IoT Greengrass

Quick Start Guide:

https://www.supermicro.com/QuickRefs/superserver/Box_PC/QRG-2459.pdf

3.2 Standard kit contents

Unit consists of the SYS-E100-12T-H (a single-piece device, motherboard with CPU/chassis are

assembled).

The AC Power adapter MCP-250-10137-0N with AC cable is also included.

It is recommended to order the system with DRAM and SSD pre-installed.

For purchase requests, please follow the web link and click “Get pricing”

https://www.supermicro.com/en/products/system/Box_PC/SYS-E100-12T-H.cfm

3.3 User provided items



Keyboard, mouse, monitor and related cable (HMDI, USB-A or USB-C)



Network connection via RJ45 Ethernet cable

If not pre-installed, the user also needs to provide and install DRAM and SSD storage (please refer the

datasheet and quick start guide for tested material lists).

https://www.supermicro.com/en/products/system/Box_PC/SYS-E100-12T-H.cfm

3.4 3rd party purchasable items

N/A

3.5 Additional hardware references

https://www.supermicro.com/en/products/system/Box_PC/SYS-E100-12T-H.cfm

4Set up your development environment

4.1 Tools installation (IDEs, Toolchains, SDKs)

AWS SDK

The AWS SDK helps take the complexity out of coding by providing APIs for many AWS

services including AWS IoT Core. All AWS SDKs are enabled for IoT Core. The single,

downloadable package includes the code library, code samples, and documentation.

AWS IoT Device SDK

The AWS IoT Device SDK helps you to easily and quickly connect your hardware device or

your mobile device to AWS IoT Core. It offers enhanced features so that you can seamlessly

interact with the device gateway and the device shadow that will enable you to quick start

your development. The Device SDK supports a variety types of devices, from basic to

industrial hardware devices.

SYS-E100-12T-H: Getting Started Guide for AWS IoT Greengrass

The AWS IoT Device Client is a free, open-source, and modular device-side reference

implementation. It allows you to easily connect your devices to AWS IoT Core, and access

AWS IoT Device Management and AWS IoT Device Defender features by default. It is

written in C++ and can be compiled and installed on Embedded Linux-based IoT devices.

To get started on your device, download the AWS IoT Device Client source code from

GitHub and learn more using the readme.

4.2 Other software required to develop and debug applications for the device

N/A

4.3 Additional software references

N/A

5Set up device hardware

User Manual: MNL-2459.pdf (supermicro.com)

SYS-E100-12T-H: Getting Started Guide for AWS IoT Greengrass

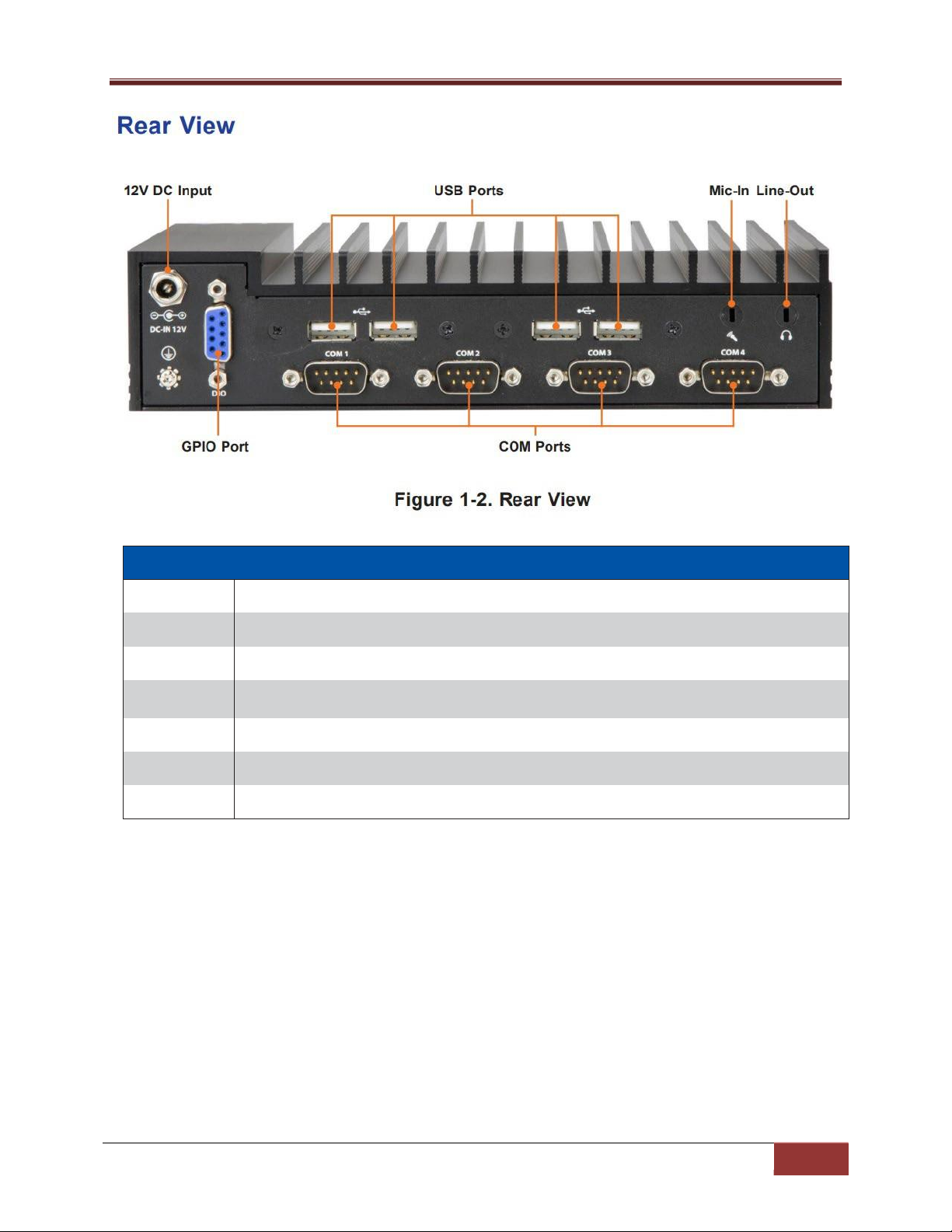

System Features: Rear

Item

Description

12VDC Input

Power input for system

GPIO Port

General Purpose Digital Input/Output port

COM Ports

COM1 and COM2: RS232/422/485 serial ports

COM3 and COM4: RS232 serial ports

USB Ports

USB 2.0 ports

Mic-In

Microphone jack (optional)

Line-Out

Line out jack for audio (optional)

SYS-E100-12T-H: Getting Started Guide for AWS IoT Greengrass

Quick Reference Table

Jumper

Description

Default Setting

JLCDPWR1

LVDS Panel VCC Power Source Selection

Pins 1-3 (3.3V)

JPME2

CMOS

Pins 1-3

JPME2

Manufacturing Mode

Pins 4-6 (Normal)

JPT1

TPM Enable

Pins 1-3 (Enable)

JPT1

Force Power On

Pins 2-4 (Force power on)

JSIM1_OPT

SIM Detect Option

Pins 2-4 (Normal)

LED

Description

Status

LED1

Onboard Power LED

Green: System On

Off: System Off (power cable not connected)

Connector

Description

AUDIO FP

Front Panel Audio Header (Mic-In/Line-Out)

BT1

Battery Connector

FAN1

System Fan Header

I-SATA0

SATA 3.0 Port

JCOM1: COM1/COM2

COM Header (two RS232/RS422/RS485 ports)

JCOM2: COM3/COM4

COM Header (two RS232 ports)

JF1

Front Control Panel Header (Power/HDD LED, Reset, Power button)

JGP1

8-bit General Purpose I/O Header

JHDMI1

Back Panel HDMI 2.0b Port

JHDMI2

Back Panel HDMI 1.4b Port

JMD1

M.2 Slot B-Key 2280/2242/3042 (SATA 3.0 or PCIe / USB 3.1 /USB 2.0)

JMD2

M.2 Slot E-Key 2230 (PCIe / USB 2.0 / CVNi)

JMD3

M.2 Slot M-Key 2280/2242 (Gen4 PCIe x4)

JPH1

4-pin HDD Power Connector

JPW1

8-pin 12-24V Power Connector

JSIM1

JSIM1 Nano SIM Card Slot (bottom side)

JSMBUS1

System Management Bus Header

JSPKR1

Audio Speaker Output with 3W Amplifier

LAN1, LAN2

2.5 GbE Ethernet Ports

LVDS1

Dual Channel 48-bit LVDS Connector

SRW1 ~ SRW5

M.2 Mounting Holes

USB0/1

Front Accessible USB 2.0 Headers

USB2/3

Front Accessible USB 2.0 Headers

USB5

Front Panel USB 3.1 Type C Port (supports DP1.4a with alt. mode)

USB4/6/7

Front Panel USB 3.1 Type A Ports

SYS-E100-12T-H: Getting Started Guide for AWS IoT Greengrass

Supported Drivers: https://www.supermicro.com/wdl/driver/

5.1 Accessing the System

The CSE-E101-03 features a removable bottom cover to access the inside of the chassis.

5.2 Removing the Bottom Cover

Remove power from the system.

Remove the eight screws that hold the cover in place.

Lift the cover up and off the chassis.

Caution: Except for short periods of time, do not operate the server without the cover in place. The

chassis cover must be in place to prevent misuse.
