PCI Express Powered USB Card

User’s Manual

No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language,

or transmitted in any from or by any means, photocopying, manual, or otherwise, without prior written permission from

SUNIX.

Disclaimer

SUNIX shall not be liable for any incidental or consequential damages resulting from the performance or use of this

equipment.

SUNIX makes no representations or warranties regarding the contents of this manual. Information in this manual has

been carefully checked for reliability; however, no guarantee is given as to the correctness of this content. In the

interest of continued product improvement, this company reserves the right to revise the manual or include change in

the specifications of the product described within it at any time without notice and without obligation to notify any

person of such revision or changes. The information contained in this manual is provided for general use by the

customers.

Trademarks

SUNIX is a registered trademark of SUNIX Group.

All other trademarks or registered marks in this manual belong to their respective owners.

Safety Information

1. Keep this User’s Manual for future reference.

2. Always read the safety information carefully.

3. Keep this equipment away from direct sunlight, or in humid or damp places.

4. Do not place this equipment in an unstable position, or on vibrating surface before setting it up.

5. Do not use or place this equipment near magnetic fields, televisions, or radios to avoid electronic

interface that affects device performance.

___________________________________________________________________________________

Regulatory Compliance

FCC Conditions

This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation

is subject to the following two conditions:

(1) This equipment may not cause harmful interference

(2) This equipment must accept any interference received, including interference that may

cause undesired operation.

Important! Changes or modifications not expressly approved by the manufacturer responsible

for compliance could void the user’s authority to operate the equipment. Use an approved

phone set.

This equipment is in compliance with the requirements of the following regulations: EN 55022:

CLASS B

WEEE Information

For EU (European Union) member users: According to the WEEE (Waste electrical and

electronic equipment) Directive, do not dispose of this product as household waste or

commercial waste. Waste electrical and electronic equipment should be appropriately

collected and recycled as required by practices established for your country. For information

on recycling of this product, please contact your local authorities, your household waste

disposal service or the shop where you purchased the product.

___________________________________________________________________________________

Table of Contents

Chapter 1

Introduction

1.1 Overview.............................................................................................................................. 5

1.2 Package Checklist ............................................................................................................... 6

1.3 Product Features ................................................................................................................. 6

1.4 Product Specifications ......................................................................................................... 7

Chapter 2

Hardware Installation

2.1 Hardware Installation ......................................................................................................... 10

2.2 Product Configuration Options .......................................................................................... 12

2.3 Pin Assignments ................................................................................................................ 13

Chapter 3

Driver Installation

3.1 Driver Installation ............................................................................................................... 16

3.2 Powered Usb Card Operation ........................................................................................... 17

Chapter 4

Troubleshooting

4.1 Troubleshooting ................................................................................................................. 19

Chapter 5

Appendix

5.1 Contact Information ........................................................................................................... 21

___________________________________________________________________________________

Introduction

______________________________________________

Thank you for purchasing SUNIX Powered USB PCI Express Card, which is

designed to enable users accessing USB devices without additional external

power supply connection. Powered USB provides the necessary power as well

as the communication signals over a hot pluggable cable. SUNIX Powered

USB PCI Express Add-On card, carrying the latest power switching technology

provides +12V and 24VDC, through the PC power supply directly to its

Powered USB ports. Powered USB PCI Express Add-On card is backward

compatible to regular USB 1.1 and USB 2.0 devices.

The following topics are covered in this chapter:

1.1 Overview

1.2 Package Checklist

1.3 Product Features

1.4 Product Specifications

___________________________________________________________________________________

1.1 Overview

USB allows peripheral devices to exchange data with a PC and also to receive

power over the USB bus. Unfortunately, the bus supplied power is limit to 2.5

Watts (0.5A @ +5V) per port, sufficient to provide enough power to input

devices, web cameras among other low power devices. Other devices like

printer, displays, pin pads, external CD-ROM and hard drives still require an

external power supply. Here comes Powered USB, it eliminates the need for

additional power supplies. Powered USB provides the necessary power as

well as the communication signals over a hot pluggable cable. In addition, the

Powered USB solves the physical host side cable locking problem associated

with the standard USB connector by providing a host cable locking

mechanism.

The Powered USB PCI Express Add-On card provides a convenient and

affordable way to add up to 3 Powered USB 2.0 ports to a PC. Devices which

require more power than provided by the regular USB interface can be easily

installed and used with no need for an additional power supply. SUNIX

Powered USB PCI Express Add-On card, carrying the latest power switching

technology provides +12V and +24VDC, through the PC power supply directly

to its 3 Powered USB ports. Powered USB PCI Express Add-On card is

backward compatible to regular USB 1.1 and USB 2.0 devices.

Retail POS systems become more and more stylish now days, with limited

space for the terminal and all peripherals inside. Safe your valuable space and

get rid of the peripherals’ power supplies using the Powered USB PCI Express

Add-On card. This Add-On card is the ideal solution for today’s point of service

retail systems.

___________________________________________________________________________________

1.2 Package Checklist

Please check if the following items are present and in good condition upon

opening your package. Contact your vendor if any item is damaged or missing.

1. Powered USB PCI Express Card

2. User's Manual (This document)

1.3 Product Features

Compliant with PCI Bus Power Management Interface Specification

Revision 1.2

Compliance with PCI Express Base Specification Reversion 1.1.

Compliant with the Universal Serial Bus (USB) Specification Revision 2.0

High performance USB2.0 PCI Express host controller on board.

Support 3 external Powered USB ports.

Powered USB port supports +24 and +12VDC power output with maximum

3A / per port.

Each Powered USB ports built-in over current protection.

Plug-n-Play, I/O address and IRQ assigned by operating system.

Support USB device Hot-Swapping and Plug-n-Play function.

Compatible with modern standby runtime D3 (RTD3) cold power saving

requirement.

Low profile bracket design idea for slim or portable PC.

Support Linux, Microsoft Windows 10 (x86/x64) and 11 operation system.

___________________________________________________________________________________

1.4 Product Specifications

Hardware

Serial Communication

Power

Driver Support

BUS

PCI Express Spec 1.1, Single-Lane (x1)

Controller

PCI Express USB3.0 Host controller, ASM3042

USB Standard Enhanced Host Controller Interface (EHCI) and

Open Host Controller Interface (OHCI)

IRQ & IO

Assigned by System

Interface

Universal Serial Bus 2.0

Speed High-Speed (HS), Full-Speed(FS) and Low-Speed(LS)

Data Transfer rate of 1.5, 12, and 480Mbps

No. of Port

3-port

Protection

15KV ESD protection for each signal Human Body Model (HBM)

±15KV IEC61000-4-2 Air Gap Discharge

8KV IEC61000-4-2 Contact Discharge

PCB Connector

Powered USB Connector

Source

+12VDC / PCIe GFx power connector 2x3 Type

Output Capacity

Standard USB2.0 Port:

+5VDC / Maximum 0.5A / each port

Powered USB Port:

+24VDC / Maximum 3.0A / each port

+12VDC / Maximum 3.0A / each port

Note: Total power output capacity will be limited by system power supply.

Over Current

Protection

Standard USB2.0 Port:

+5VDC / Share Maximum 2.0A / 3-port total

Powered USB Port:

+24VDC / 3.0A@30V PTC fuse / each port

+12VDC / 3.0A@16V PTC fuse / each port

Power

Consumption

1.1W @ 3.3V (board only without power output to device)

___________________________________________________________________________________

Environment

Standards and Certifications

Physical Characteristics

Microsoft Client

Windows 10 (x86/x64)/ 11

Microsoft Server

2012 R2 /2016 /2019 (x86/x64) and above

Linux

Linux 2.6 and above

Operation Temperature

0 to 60°C (32 to 140°F)

Operation Humidity

5 to 95% RH

Storage Temperature

-20 to 70°C (-4 to 158°F)

EMC CE, FCC, VCCI, BSMI

Green RoHS, WEEE

PCB Dimension 130 x 68 mm

Bracket Low profile 80 mm

Bracket Space 1

___________________________________________________________________________________

Hardware Installation

______________________________________________

This chapter includes information about hardware installation for PCI Express

Powered USB PCI Express Card. The following topics are covered:

2.1 Hardware Installation

2.2 Product Configuration Options

2.3 Pin Assignments

___________________________________________________________________________________

2.1 Hardware Installation

Follow the instruction given below to install the Powered USB PCI Express

Card.

1. Turn your computer off

2. Remove the power plug from the plug socket.

3. Remove the cover from the computer case.

4. If fitted. Remove the metal cover plate on the rear of a free PCIe slot.

5. Insert USB 2.0 PCI Express Card into the free PCI Express slot and

screw it firmly on the bracket side.

6. Plug the PCIe GFX 6-pin power male connector from power supply

into the 6-pin power female connector on board.

7. Place the cover back onto the computer.

8. Insert the plug into the plug socket.

Table des matières

Autres manuels Sunix Matériel informatique

Sunix

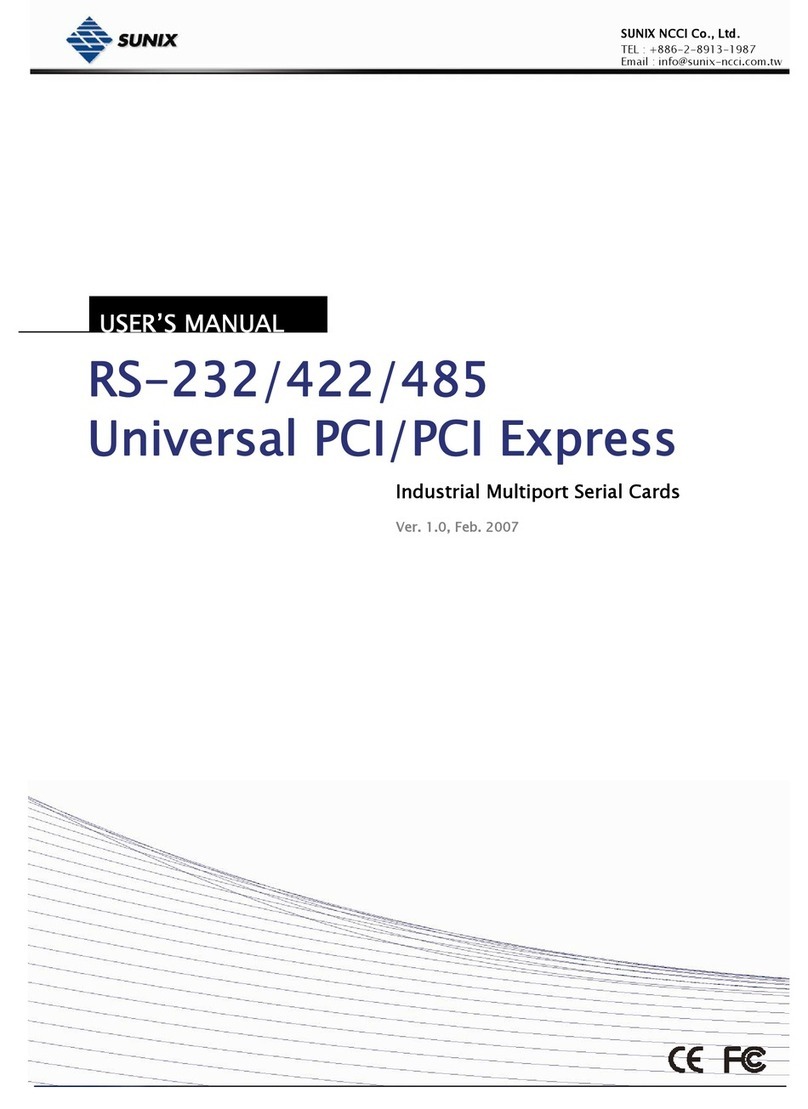

Sunix Universal PCI ExpressMulti-IORS-232 / ParallelCommunication... Manuel utilisateur
