SUMAKE PNEUMATIC TOOLS

Gravity Type High Pressure Air Spray Gun

SS-1232

SUMAKE INDUSTRIAL CO., LTD

4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

Specification:

Free Type Gravity

Standard Nozzle 1.5 mm

Capacity Of Cup 0.6 L

Air Consumption 11.7 CFM (331 L/min)

Air Inlet (NPS) 1/4” (6.35 mm)

Air Hose (NPS) 3/8” (10 mm)

Air Pressure 60psi (4.2kg/cm²) (4.2Bar)

Net Weight 1.43 lbs (0.65 kg)

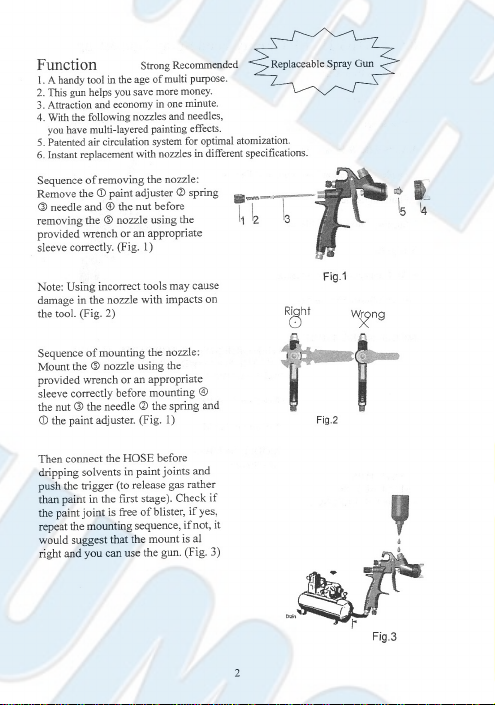

Noise and Vibration:

Vibration Noise Remark

Sound Pressure Level

: 85 dB(A)

0.2 m/s²

Sound power level

: 96 dB(A)

Uncertainty

K= 1.5 m/s²Uncertainty

K= 3dB

Please always

wear ear

protector at

environment

noise level > 80

dB(A) due to

risk of impaired

hearing!

SS-1232-S-1302A-GWF

EC DECLARATION OF CONFORMITY

We: SUMAKE INDUSTRIAL CO., LTD.

4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan

declare in sole responsibility that the equipment

Equipment：GRAVITY TYPE HIGH PRESSURE AIR SPARY GUN

Model/ Serial No.：SS-1232

to which this declaration applies, complies with these normative documents:

Machinery Directive: 2006/42/EC

and conforms to the following EN standard,

EN ISO 12100: 2010

EN 1953:2013

Name and Signature/Position Date and Place

2022/12/1

Mike Su –Managing Director Taipei, Taiwan

SS-1232-D-2310B-GWF

SS-1232

(

A

)

PARTS LIST

No. Part No. Description Q'ty No. Part No. Description Q'ty

1 1232-01 Air Cap 1 15 1232-15 Fluid Adj. Guide Set 1

1232-02A Fluid Nozzle 1.3 1 1232-16A Fluid Needle 1.3 1

1232-02B Fluid Nozzle 1.4 1 1232-16B Fluid Needle 1.4 1

1232-02C Fluid Nozzle 1.5 1 1232-16C Fluid Needle 1.5 1

1232-02D Fluid Nozzle 1.8 1 1232-16D Fluid Needle 1.8 1

1232-02E Fluid Nozzle 2.0 1 1232-16E Fluid Needle 2.0 1

1232-02F Fluid Nozzle 2.5 1 1232-16F Fluid Needle 2.5 1

17 1232-17 Needle Spring 1

18 1232-18 Fluid Adj. Knob 1

5 1232-05 Body Set 1 19 1232-19 Air Inlet Nipple 1

6 1232-06 Fluid Nipple 1 20 1232-20 Air Adj. Set 1

7 1232-07 Pattern Adj. Set 1 21 1232-21 Trigger 1

8 1232-08 Air Valve Shaft 1 22 1232-22 Gasket 1

9 1232-09 Packing Holder 1 23 1232-23 Trigger Stud 1

10 1232-10 O-Ring 1 24 1232-24 E-Ring 1

11 1232-11 Gasket 1 25 1232-25 Spanner 1

12 1232-12 Air Valve Seat Set 1 26 1232-26 Plastic Grip Brush 1

12-1 1232-12-1 O-Ring 1 27 1232-27 Filter 1

13 1232-13 Air Valve Seat Set 1 28 1232-28 Plastic Cup 1

13-1 1232-13A O-Ring 1 29 1232-29 Cover 1

14 1232-14 Air Valve Spring 1 30 1232-30 Non-Drip Control Device 1

SS-1232(A)-P-1503E-GW

216

GRAVITY TYPE HIGH PRESSURE AIR SPARY GUN

3S 1232-03S Needle Packing Set [Incl. 3A,

3A-1, 4] 1
