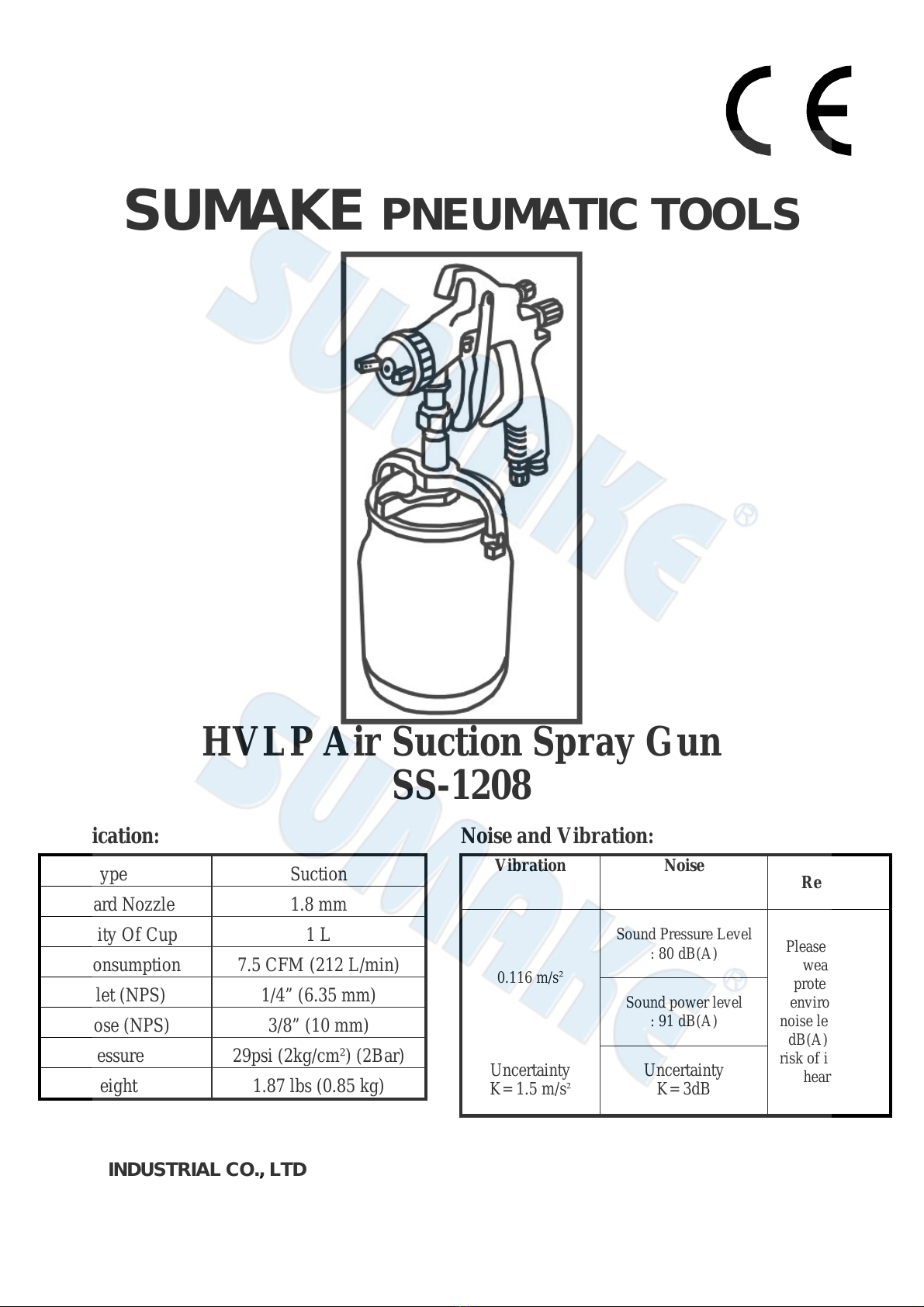

SUMAKE PNEUMATIC TOOLS

HVLP Air Suction Spray Gun

SS-1208

SUMAKE INDUSTRIAL CO., LTD

4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

Specification:

Free Type Suction

Standard Nozzle 1.8 mm

Capacity Of Cup 1 L

Air Consumption 7.5 CFM (212 L/min)

Air Inlet (NPS) 1/4” (6.35 mm)

Air Hose (NPS) 3/8” (10 mm)

Air Pressure 29psi (2kg/cm²) (2Bar)

Net Weight 1.87 lbs (0.85 kg)

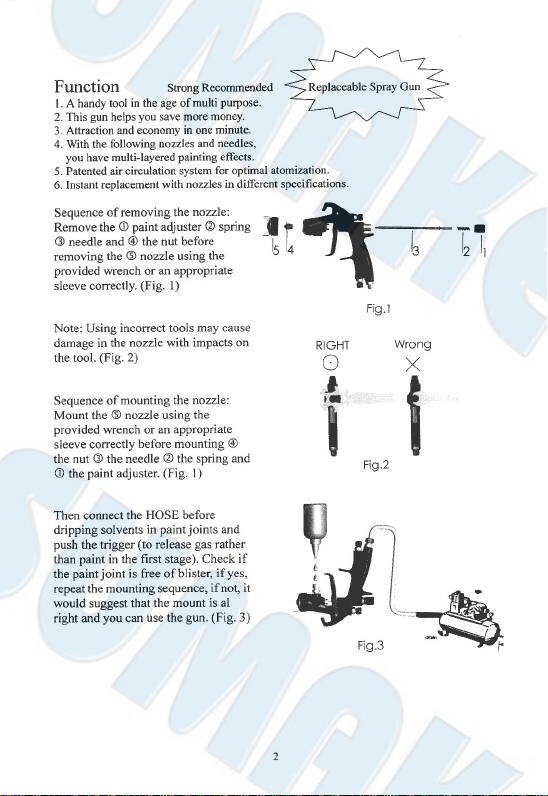

Noise and Vibration:

Vibration Noise Remark

Sound Pressure Level

: 80 dB(A)

0.116 m/s²

Sound power level

: 91 dB(A)

Uncertainty

K= 1.5 m/s²Uncertainty

K= 3dB

Please always

wear ear

protector at

environment

noise level > 80

dB(A) due to

risk of impaired

hearing!

SS-1208-S-1302A-GWF

EC DECLARATION OF CONFORMITY

We: SUMAKE INDUSTRIAL CO., LTD.

4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan

declare in sole responsibility that the equipment

Equipment：HVLP AIR SUCTION SPRAY GUN

Model/ Serial No.：SS-1208

to which this declaration applies, complies with these normative documents:

Machinery Directive: 2006/42/EC

and conforms to the following EN standard,

EN ISO 12100: 2010

EN 1953:2013

Name and Signature/Position Date and Place

2022/12/1

Mike Su –Managing Director Taipei, Taiwan

SS-1208-D-2305B-GWF

SS-1208

PARTS LIST

No. Parts No. Description Q'ty No. Parts No. Description Q'ty

1 1208-01 Air Cap 1 15 1208-15 Fluid Adj. Guide Set 1

2-2 1208-02-2 Fluid Tip 1 1208-16A Fluid Needle 1.3 1

1208-02A Fluid Nozzle 1.3 1 1208-16B Fluid Needle 1.4 1

1208-02B Fluid Nozzle 1.4 1 1208-16C Fluid Needle 1.5 1

1208-02C Fluid Nozzle 1.5 1 1208-16D Fluid Needle 1.8 1

1208-02D Fluid Nozzle 1.8 1 1208-16E Fluid Needle 2.0 1

1208-02E Fluid Nozzle 2.0 1 1208-16F Fluid Needle 2.5 1

1208-02F Fluid Nozzle 2.5 1 17 1208-17 Needle Spring 1

18 1208-18 Fluid Adj. Knob 1

19 1208-19 Air Inlet Nipple 1

5 1208-05 Body Set 1 20 1208-20 Air Adj. Set 1

6 1208-06 Fluid Nipple 1 21 1208-21 Trigger 1

7 1208-07 Pattern Adj. Set 1 22 1208-22 Gasket 1

8 1208-08 Air Valve Shaft 1 23 1208-23 Trigger Stud 1

9 1208-09 Packing Holder 1 24 1208-24 E-Ring 1

10 1208-10 O-Ring 1 25 1208-25 Spanner 1

11 1208-11 Gasket 1 26 1208-26 Plastic Grip Brush 1

1208-12 Air Valve Seat Set 1 28 1208-28 Complete Lid Ass'y 1

1208-12A O-Ring 1 29 1208-29 Gasket 1

13 1208-13 Air Valve Seat Set 1 30 1208-30 Cannister 1

14 1208-14 Air Valve Spring 1 SS-1208-P-1504F-GW

HVLP AIR SUCTION SPRAY GUN (REPLACEABLE SPRAY GUN)

2-1

12

16

Needle Packing Set [Incl. 3A,

3A-1, 4A]

3S 1208-03S 1
