Sumake SS-1102SW Manuel utilisateur

SUMAKE PNEUMATIC TOOLS

Gravity Air Spray Gun

W/600cc Swivel Cup

SS-1102SW

SUMAKE INDUSTRIAL CO., LTD

4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

Specification:

Free Type Gravity

Standard Nozzle 1.4 mm

Option Nozzle 1.7mm, 2.0mm, 2.5mm

Capacity Of Cup 0.6 L

Air Consumption 7.78 CFM (220 L/min)

Air Inlet (NPS) 1/4” (6.35 mm)

Air Hose (NPS) 3/8” (10 mm)

Air Pressure 30-45psi (2.1-3.0 kg/cm²)

Net Weight 1.13 lbs (0.51 kg)

Noise and Vibration:

Vibration Noise Remark

0.195 m/s²

Sound Pressure Level

: 74 dB(A) Please always

wear ear

protector at

environment

noise level > 80

dB(A) due to

risk of impaired

hearing!

Sound power level

: 85 dB(A)

Uncertainty

K= 1.5 m/s²Uncertainty

K= 3dB

SS-1102SW-S-1808C-GWF

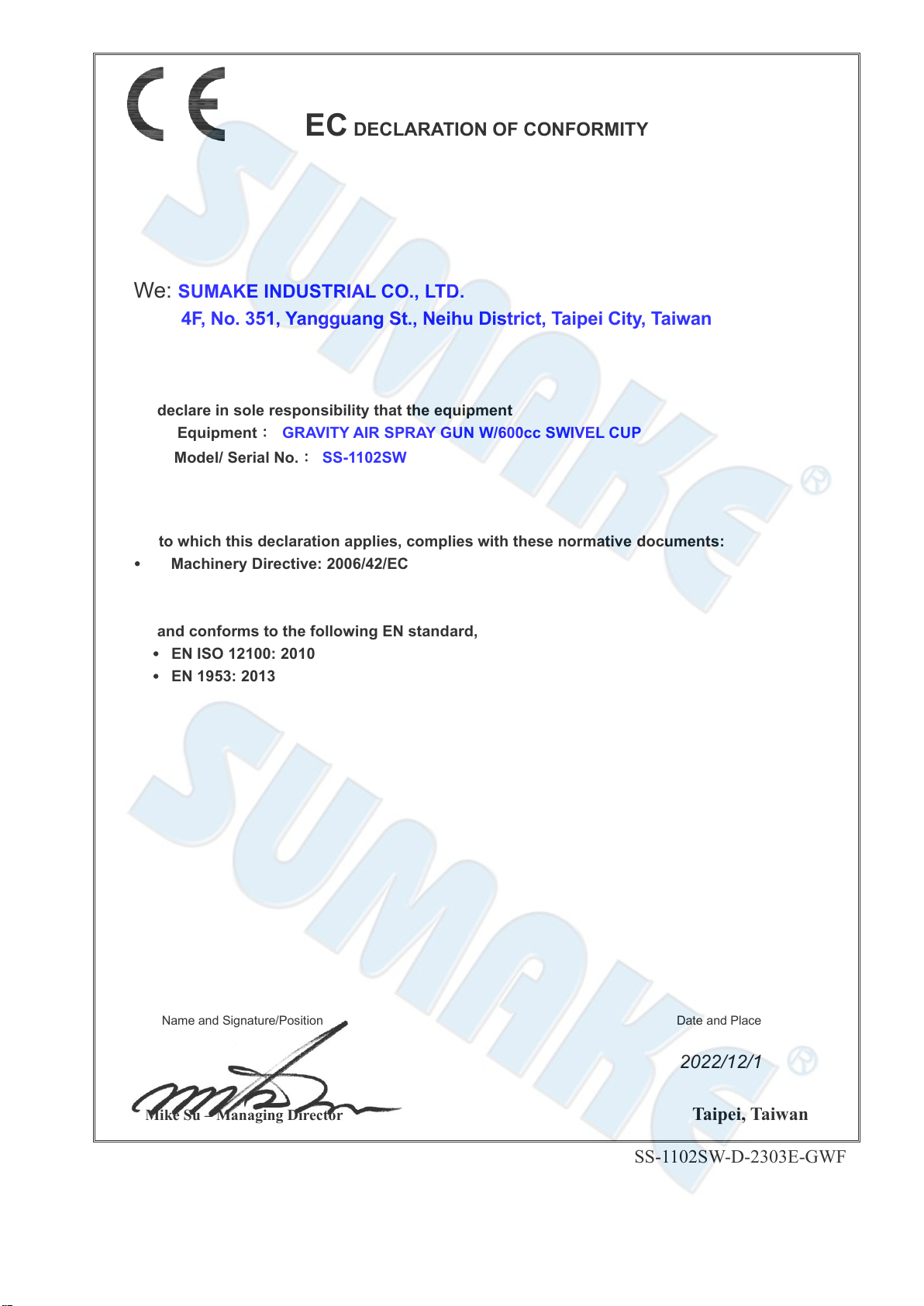

EC DECLARATION OF CONFORMITY

We: SUMAKE INDUSTRIAL CO., LTD.

4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan

declare in sole responsibility that the equipment

Equipment： GRAVITY AIR SPRAY GUN W/600cc SWIVEL CUP

Model/ Serial No.： SS-1102SW

to which this declaration applies, complies with these normative documents:

Machinery Directive: 2006/42/EC

and conforms to the following EN standard,

EN ISO 12100: 2010

EN 1953: 2013

Name and Signature/Position Date and Place

2022/12/1

Mike Su – Managing Director Taipei, Taiwan

SS-1102SW-D-2303E-GWF

SS-1102

GRAVITY AIR SPRAY GUN

PARTS LIST

No. Parts No. Description Q'ty No. Parts No. Description Q'ty

1102A-01A Air Cap For 1.4 1 15 1102A-15 Air Piston [Incl. 16, 17] 1

1102A-01B Air Cap For 2.0 1 18 1102A-18 Fan Control 1

1102A-01C Air Cap For 2.5 1 18-1 1102A-18-1 Gasket 1

1102A-01D Air Cap For 1.7 1 19 1102A-19 Knob, Fan Control 1

1102A-02A Fluid Nozzle 1.4 1 20 1102A-20 Fan Control Screw 1

1102A

02B

Fluid Nozzle 1 7

1102A

Air Inlet Fitting

1102A-02B

Fluid Nozzle 1

1102A-21

Air Inlet Fitting

1102A-02C Fluid Nozzle 2.0 1 22 1102A-22 Air Control 1

1102A-02D Fluid Nozzle 2.5 1 23 1102A-23 Trigger 1

3 1102A-03 Needle Packing Holder 1 24 1102A-24 Gasket 2

4 1102A-04 Needle Packing 1 25 1102A-25 Pin, Upper Trigger 1

5 1102A-05 Packing Washer 1 26 1102A-26 E-Ring 2

6 1102A-06 Needle Packing Spring 1 27 1102A-27 Pin, Lower Trigger 1

1102A 07

Brass Ring

1102A 28

Spanner

1102A

rass

1102A

panner

8 1102A-08 Air Distribution Ring 1 29 1102A-29 Brush 1

9 1102A-09 Body 1 30 1102A-30 Material Sleeve 1

10 1102A-10 Fluid Nipple 1 31 1102A-31 Socket Spanner 1

1102A-11A Paint Needle 1.4 1

1102A-11B Paint Needle 1.7 1

1102A-11C Paint Needle 2.0 1 1

11 32 1102A-32 Plastic Cup [Incl. 32A(Adaptor),

33(Cover)]

1102A-11D Paint Needle 2.5 1

12 1102A-12 Needle Spring 1

14 1102A-14 Knob, Fluid Control [Incl. 13] 1 SS-1102-P-1908E-GW

1102A-33 1

Cover of 0.6l Plastic Cup & Non-

Drip Control Device
