2
Remote Keyless Entry
Lock/Arm
• Press to lock all doors
and rear gate.
• If any of the doors or the
rear gate are not fully closed,
an electronic chirp will
sound ve times and the
hazard lights will ash ve
times to alert you that the
doors or the rear gate are
not properly closed.
• To activate the vehicle nder
function, press three times
(within ve seconds). If you
are within 30 feet of the
vehicle, the horn will sound
one time and the hazard
lights will ash three times.
Unlock/Disarm
• Press once to unlock
the driver’s door.
• Press twice (within ve
seconds) to unlock all doors.
• When the “Unlock/Disarm”
button is pressed, the dome
and map lights will illuminate
if the dome light switch is in
the middle position.
Unlocking the
Rear Gate
Press to unlock the rear gate.
An electronic chirp will sound
twice and the hazard lights will
ash twice.
Panic Alarm
• Press once and the horn
will sound and the hazard
lights will ash.
• Press any button on the
remote to deactivate.
Immobilizer
When the security alarm is
activated, the immobilizer
interrupts the starter motor
to prevent an intruder from
starting your vehicle without
a registered key.
776810_11a_Subaru_Outback_QRG_051210.indd 2 5/17/10 10:57 AM
3
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety / In Case
of Emergency
Additional
Information
3
Getting
Started
Seating
10-Way Power Driver’s Seat
(if equipped)
1. Forward/Backward, Angle and Height
Move the switch toward the front or rear to move
the seat forward or backward. Pull the switch up
or push down on the front of the switch to adjust
the angle of the seat cushion. Pulling the switch
up or pushing down on the rear of the switch will
adjust the height of the seat cushion.
2. Seatback
Move the switch in the corresponding direction
to adjust the angle of the seatback.
3. Lumbar
Press the front part of the switch to increase
lumbar support; press the rear part of the switch
to decrease lumbar support.
Heated Seats
(if equipped)
Press the switch in the
corresponding direction for
the desired seat temperature.
To turn off the seat heater,
slightly press in the opposite
direction of the current position.
Folding the Rear Seat
Pull up on the release lever on the
seat side that you want to fold
down. To return the seatback to its
original position, raise the seatback
until it locks into place and make
sure that it is securely locked.
1
2
3
Getting
Started
776810_11a_Subaru_Outback_QRG_051210.indd 3 5/17/10 10:57 AM
4
Instrument Panel
pg. 10 pg. 6-7pg. 22 pg. 8pg. 20
776810_11a_Subaru_Outback_QRG_051210.indd 4 5/17/10 10:57 AM
5
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety / In Case
of Emergency
Additional
Information
5

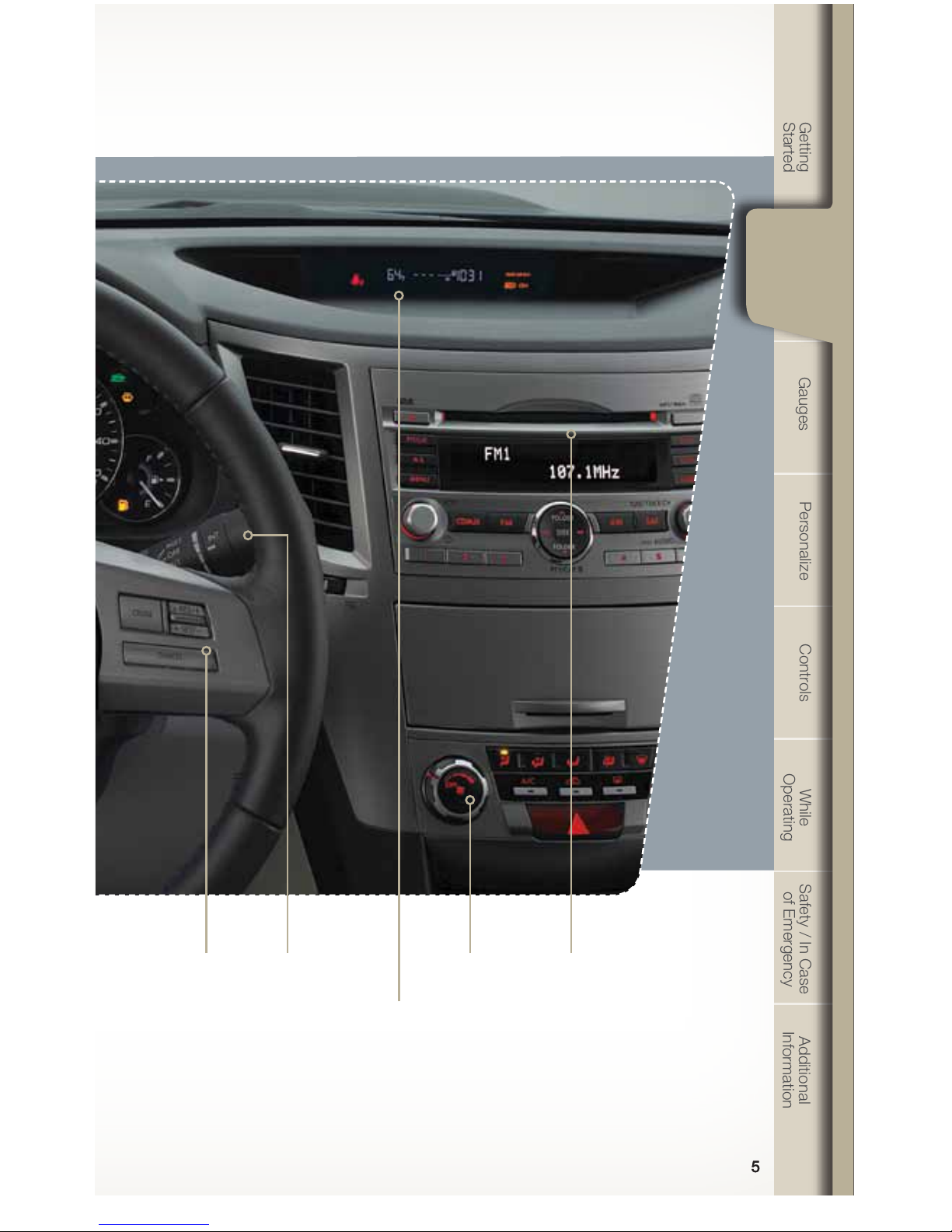

pg. 12-15 pg. 16-19pg. 21 pg. 11
Clock
Press the “+” button to advance time or the
“–” button to reverse the time. Vehicles with a
navigation system please refer to the separate
“Operating Instructions for Navigation System.”
Instrument
Panel
776810_11a_Subaru_Outback_QRG_051210.indd 5 5/17/10 10:57 AM
6
Gauges Immediate Attention
Trip meter A/B selection and trip
meter reset knob
Tachometer
Trip meter and odometer
ECO Gauge
Caution Informational
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Door open
Charge warning
Oil pressure warning
Brake system
Hot coolant temperature /
Cold coolant temperature
High beam indicator light
Engine oil level warning
AT OIL TEMP (AT and
CVT models)
ABS warning
Low fuel
776810_11a_Subaru_Outback_QRG_051210.indd 6 5/17/10 10:58 AM
7
Getting
Started
Instrument
Panel
Gauges Personalize Controls While
Operating
Safety / In Case
of Emergency
Additional
Information
Gauges
Trip meter and odometer
Speedometer
Fuel Gauge
Informational
Multi-function display
switching knob
All-Wheel Drive (AT and
CVT models)
Vehicle Dynamics
Control/Vehicle Dynamics
Control operation
Vehicle Dynamics Control OFF
CHECK ENGINE /
Malfunction indicator
Tire pressure warning light
Front passenger frontal
airbag ON
Front passenger frontal
airbag OFF
Low windshield
washer uid
Hill Holder
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
776810_11a_Subaru_Outback_QRG_051210.indd 7 5/17/10 10:58 AM
