IGNITION

IG(H4SO)

Page

1. General Description ....................................................................................2

2. Spark Plug...................................................................................................5

3. Ignition Coil & Ignitor ASSY ........................................................................8

4. Spark Plug Cord........................................................................................10

IG(H4SO)-2

IGNITION

General Description

1. General Description

A: SPECIFICATIONS

*: Without catalytic converter

**: With catalytic converter

Item Designation

Ignition coil & ignitor

ASSY

Model

1.6 L CM12 —100C

2.0 L FH0137

2.5 L

Manufacturer

1.6 L HITACHI

2.0 L DIAMOND

2.5 L

Primary coil resistance

1.6 L 0.7 Ω±10%

2.0 L 0.73 Ω±10%

2.5 L

Secondary coil resistance

1.6 L 18.0 kΩ±20%

2.0 L 12.8 kΩ±15%

2.5 L

Insulation resistance between primary terminal

and case More than 100 MΩ

Spark plug

Type and manufacturer

1.6 L

NGK: BKR6E*

CHAMPION: RC8YC4**

NGK: BKR6E-11** (Alternate)

2.0 L NGK: BKR6E*

CHAMPION: RC10YC4**

NGK: BKR5E-11** (Alternate)

2.5 L

Thread size mm 14, P = 1.25

Spark plug gap mm (in) 0.7 —0.8 (0.028 —0.031)*

1.0 —1.1 (0.039 —0.043)**

IG(H4SO)-3

IGNITION

General Description

B: COMPONENT

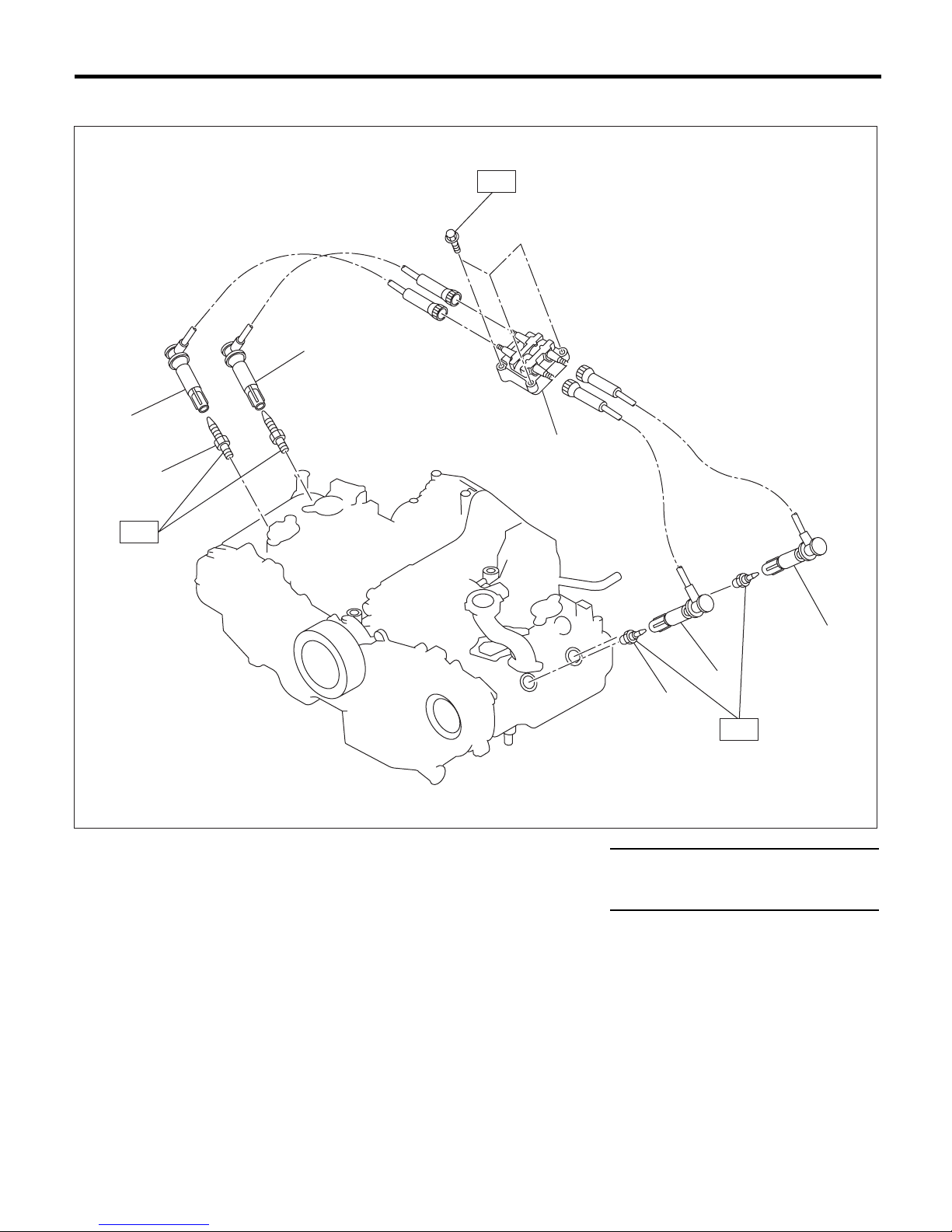

1. 1.6 L MODEL

(1) Spark plug (4) Spark plug cord (#2, #4) Tightening torque: N·m (kgf-m, ft-lb)

(2) Spark plug cord (#1, #3) T1: 6.4 (0.65, 4.7)

(3) Ignition coil & ignitor ASSY T2: 21 (2.1, 15.5)

IG-00016

(1)

(2)

(3)

(4)

IG(H4SO)-4

IGNITION

General Description

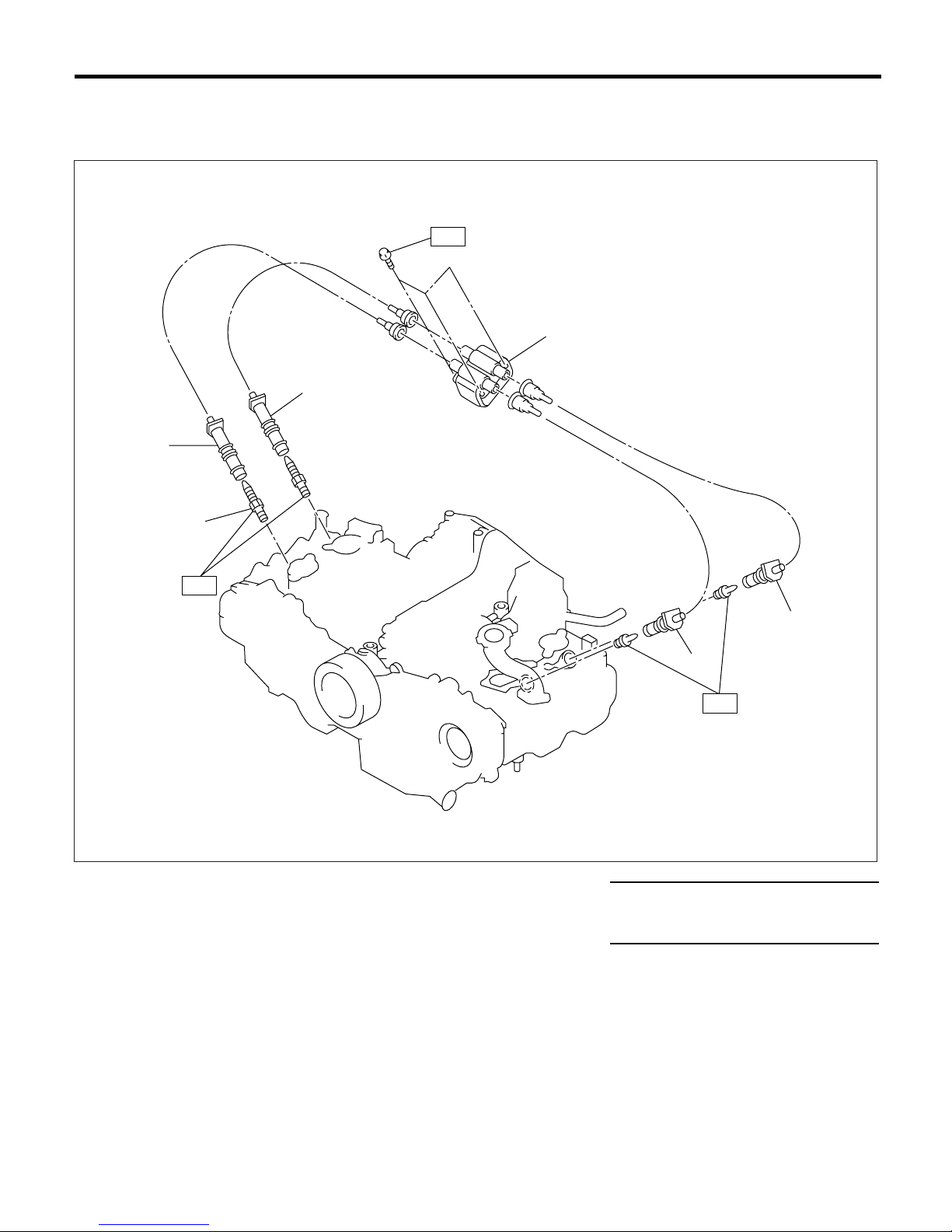

2. 2.0 L AND 2.5 L MODEL

C: CAUTION

•Wear working clothing, including a cap, protec-

tive goggles, and protective shoes during opera-

tion.

•Remove contamination including dirt and corro-

sion before removal, installation or disassembly.

•Keep the disassembled parts in order and pro-

tect them from dust or dirt.

•Before removal, installation or disassembly, be

sure to clarify the failure. Avoid unnecessary re-

moval, installation, disassembly, and replacement.

•Be careful not to burn your hands, because each

part on the vehicle is hot after running.

•Be sure to tighten fasteners including bolts and

nuts to the specified torque.

•Place shop jacks or rigid racks at the specified

points.

•Before disconnecting electrical connectors of

sensors or units, be sure to disconnect the ground

cable from battery.

(1) Spark plug (4) Spark plug cord (#2, #4) Tightening torque: N·m (kgf-m, ft-lb)

(2) Spark plug cord (#1, #3) T1: 6.4 (0.65, 4.7)

(3) Ignition coil & ignitor ASSY T2: 21 (2.1, 15.5)

IG-00088

(4)

(1)

(2)

(1)

(3)

IG(H4SO)-5

IGNITION

Spark Plug

2. Spark Plug

A: REMOVAL

CAUTION:

All spark plugs installed on an engine, must be

of the same heat range.

*: Without catalytic converter

**: With catalytic converter

1. RH SIDE

1) Disconnect the ground cable from battery.

2) Remove the resonator chamber. <Ref. to

IN(H4SO)-7, REMOVAL, Resonator Chamber.>

3) Remove the spark plug cords by pulling the boot,

not cord itself.

4) Remove the spark plugs using spark plug sock-

ets.

2. LH SIDE

1) Disconnect the ground cable from battery.

2) Disconnect the washer motor connector.

3) Disconnect the rear window glass washer hose

from washer motor, then plug the connection with a

suitable cap.

4) Remove the two bolts which hold the washer

tank, then take the tank away from working area.

Spark plug

1.6 L

NGK: BKR6E*

CHAMPION: RC8YC4**

NGK: BKR6E-11** (Alternate)

2.0 L NGK: BKR6E*

CHAMPION: RC10YC4**

NGK: BKR5E-11** (Alternate)

2.5 L

FU-00009

IG-00017

IG-00018

FU-00009

IG-00019

IG-00020

IG(H4SO)-6

IGNITION

Spark Plug

5) Remove the spark plug cords by pulling the boot,

not cord itself.

6) Remove the spark plugs with spark plug sock-

ets.

B: INSTALLATION

1. RH SIDE

Install in the reverse order of removal.

NOTE:

•For tightening torque, refer to “COMPONENT”.

<Ref. to IG(H4SO)-3, COMPONENT, General De-

scription.>

•The above torque should be only applied to new

spark plugs without oil on their threads.

In case their threads are lubricated, the torque

should be reduced by approx. 1/3 of the specified

torque in order to avoid over-stressing.

2. LH SIDE

Install in the reverse order of removal.

NOTE:

•For tightening torque, refer to “COMPONENT”.

<Ref. to IG(H4SO)-3, COMPONENT, General De-

scription.>

•The above torque should be only applied to new

spark plugs without oil on their threads.

In case their threads are lubricated, the torque

should be reduced by approx. 1/3 of the specified

torque in order to avoid over-stressing.

C: INSPECTION

Check the electrodes and inner and outer ceramic

insulator of plugs, noting the type of deposits and

the degree of electrode erosion.

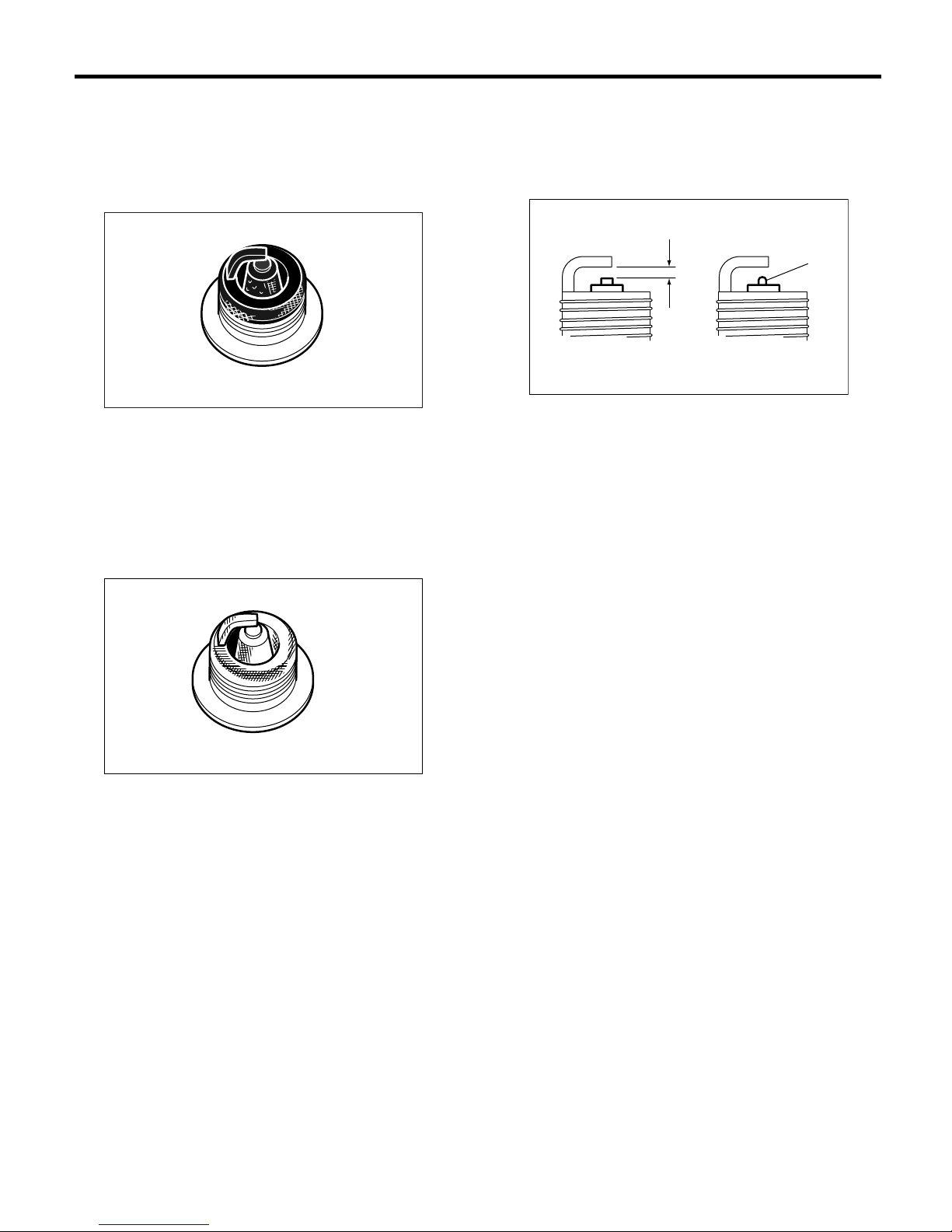

1) Normal:

Brown to grayish-tan deposits and slight electrode

wear indicates correct spark plug heat range.

2) Carbon fouled:

Dry fluffy carbon deposits on insulator and elec-

trode are mostly caused by slow speed driving in

city, weak ignition, too rich fuel mixture, dirty air

cleaner, etc.

It is advisable to replace with plugs having hotter

heat range.

IG-00021

IG-00022

(A) Spark plug gap

(B) Carbon accumulation or wear

(D) Damage

(E) Damaged gasket

IG-00023

(A)

(B) (C)

(D)

(E)

IG-00024

IG-00025

IG(H4SO)-7

IGNITION

Spark Plug

3) Oil fouled:

Wet black deposits show excessive oil entrance

into combustion chamber through worn rings and

pistons or excessive clearance between valve

guides and stems. If the same condition remains

after repair, use a hotter plug.

4) Overheating:

White or light gray insulator with black or gray

brown spots and bluish burnt electrodes indicates

engine overheating. Moreover, the appearance re-

sults from incorrect ignition timing, loose spark

plugs, wrong selection of fuel, hotter range plug,

etc. It is advisable to replace with plugs having

colder heat range.

D: CLEANING

Clean the spark plugs in a sand blast type cleaner.

Avoid excessive blasting. Clean and remove the

carbon or oxide deposits, but do not wear away ce-

ramic insulator.

If deposits are too stubborn, replace the plugs.

E: ADJUSTMENT

Correct it if the spark plug gap is measured with a

gap gauge, and it is necessary.

Spark plug gap: L

With catalyst:

1.0 —1.1 mm (0.039 —0.043 in)

Without catalyst:

0.7 —0.8 mm (0.028 —0.031 in)

NOTE:

Replace with a new spark plug if this area (A) is

worn to “ball”shape.

IG-00026

IG-00027

IG-00028

L(A)

IG(H4SO)-8

IGNITION

Ignition Coil & Ignitor ASSY

3. Ignition Coil & Ignitor ASSY

A: REMOVAL

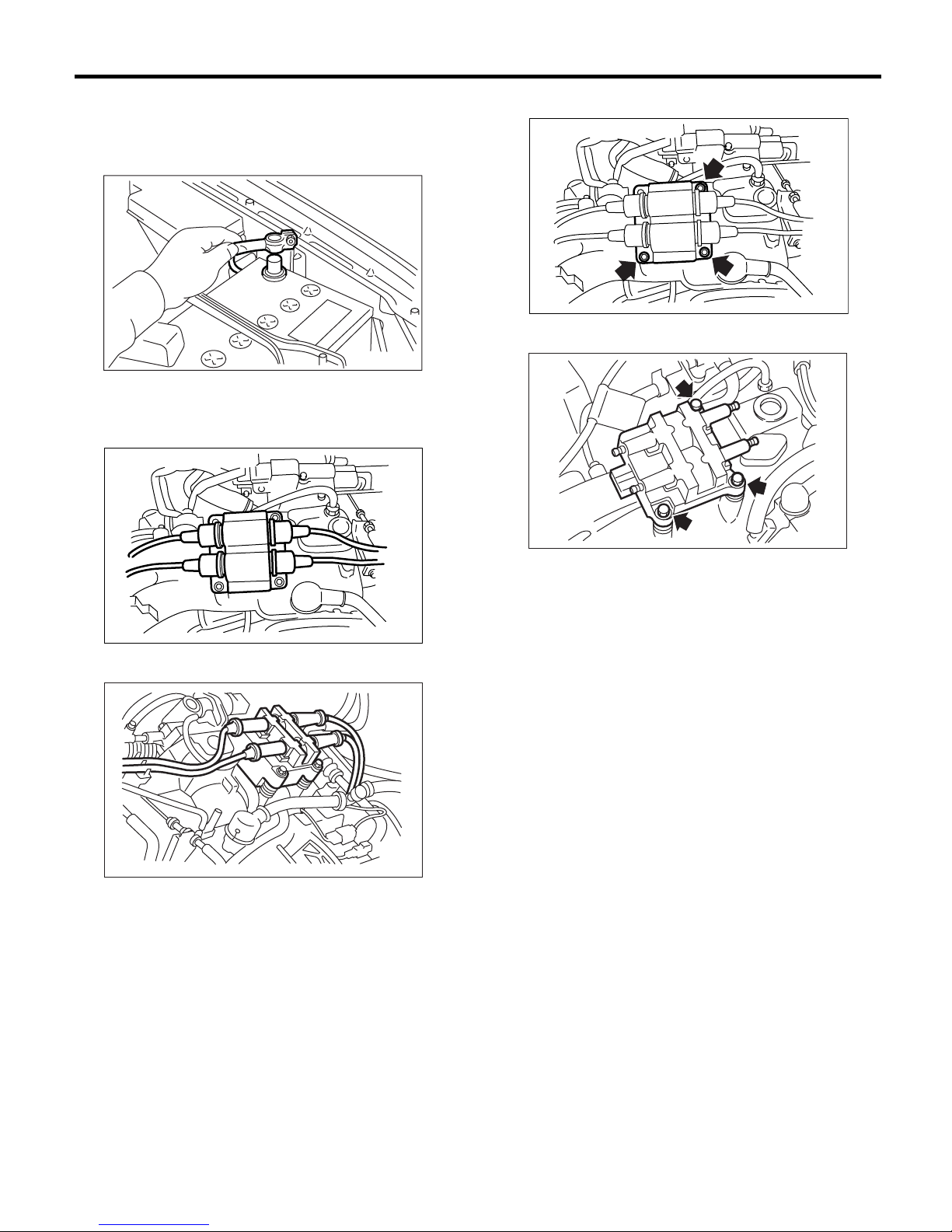

1) Disconnect the ground cable from battery.

2) Disconnect the spark plug cords from ignition

coil and ignitor ASSY.

•1.6 L MODEL

•2.0 L and 2.5 L MODEL

3) Disconnect the connector from ignition coil and

ignitor ASSY.

4) Remove the ignition coil and ignitor ASSY.

•1.6 L MODEL

•2.0 L and 2.5 L MODEL

B: INSTALLATION

Install in the reverse order of removal.

NOTE:

For tightening torque, refer to “COMPONENT”.

<Ref. to IG(H4SO)-3, COMPONENT, General De-

scription.>

CAUTION:

Connect the spark plugs to correct position.

Misconnection may damage the unit.

C: INSPECTION

Using the accurate tester, inspect the secondary

coil resistance, and replace if defective.

CAUTION:

If the resistance is extremely low, this indicates

the presence of a short-circuit.

FU-00009

IG-00082

IG-00043

IG-00083

IG-00044

Autres manuels pour Impreza 2004

Table des matières

Autres manuels Subaru Automobile

Subaru

Subaru Outback 2019 Manuel utilisateur

Subaru

Subaru 2002 Impreza Manuel utilisateur

Subaru

Subaru 2012 Impreza Manuel de référence

Subaru

Subaru 2002 Impreza Manuel utilisateur

Subaru

Subaru Legacy 2011 Manuel utilisateur

Subaru

Subaru BRZ Eyesight 2022 Manuel utilisateur

Subaru

Subaru 2013 Forester Guide d'installation

Subaru

Subaru Tribeca Tribeca Limited Manuel utilisateur

Subaru

Subaru Legacy 2018 Manuel utilisateur

Subaru

Subaru 2003 Forester Manuel utilisateur

Subaru

Subaru Impreza 2003 Manuel utilisateur

Subaru

Subaru 2001 IMPREZA Manuel utilisateur

Subaru

Subaru 2001 Forester Manuel utilisateur

Subaru

Subaru 1998 Legacy Manuel utilisateur

Subaru

Subaru 2000 Legacy Manuel

Subaru

Subaru Forester 2.5 XS L.L.BEAN Manuel utilisateur

Subaru

Subaru Impreza Manuel utilisateur

Subaru

Subaru 2008 IMPREZA Manuel utilisateur

Subaru

Subaru 2004 LEGACY Manuel utilisateur

Subaru

Subaru 2014 BRZ Manuel utilisateur

Subaru

Subaru 2002 Legacy Manuel utilisateur

Subaru

Subaru 2005 Impreza Manuel utilisateur

Subaru

Subaru Legacy 2.5GT Limited Manuel utilisateur

Subaru

Subaru Impreza WRX STI Manuel utilisateur

Manuels Automobile populaires d'autres marques

Toyota

Toyota 2000 Tundra Manuel utilisateur

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur
