2004 LEGACY SERVICE MANUAL QUICK REFERENCE INDEX

BODY SECTION

This service manual has been prepared

to provide SUBARU service personnel

with the necessary information and data

for the correct maintenance and repair

of SUBARU vehicles.

This manual includes the procedures

for maintenance, disassembling, reas-

sembling, inspection and adjustment of

components and diagnostics for guid-

ance of experienced mechanics.

Please peruse and utilize this manual

fully to ensure complete repair work for

satisfying our customers by keeping

their vehicle in optimum condition.

When replacement of parts during

repair work is needed, be sure to use

SUBARU genuine parts.

All information, illustration and specifi-

cations contained in this manual are

based on the latest product information

available at the time of publication

approval.

HVAC SYSTEM

(HEATER, VENTILATOR AND A/C) AC

HVAC SYSTEM (AUTO A/C)

(DIAGNOSTICS) AC(diag)

AIRBAG SYSTEM AB

AIRBAG SYSTEM (DIAGNOSTICS) AB(diag)

SEAT BELT SYSTEM SB

LIGHTING SYSTEM LI

WIPER AND WASHER SYSTEMS WW

ENTERTAINMENT ET

COMMUNICATION SYSTEM COM

GLASS/WINDOWS/MIRRORS GW

BODY STRUCTURE BS

INSTRUMENTATION/DRIVER INFO IDI

SEATS SE

SECURITY AND LOCKS SL

SUNROOF/T-TOP/CONVERTIBLE TOP

(SUNROOF) SR

EXTERIOR/INTERIOR TRIM EI

EXTERIOR BODY PANELS EB

2003 LEGACY SERVICE MANUAL QUICK REFERENCE INDEX

BODY SECTION

G2320GE7

CRUISE CONTROL SYSTEM CC

CRUISE CONTROL SYSTEM

(DIAGNOSTICS) CC(diag)

IMMOBILIZER (DIAGNOSTICS) IM(diag)

LAN SYSTEM (DIAGNOSTICS) LAN(diag)

ENTERTAINMENT ET

Page

1. General Description ....................................................................................2

2. Audio System..............................................................................................3

3. Front Accessory Power Supply Socket System..........................................4

4. Audio...........................................................................................................5

5. Front Speaker .............................................................................................6

6. Tweeter.......................................................................................................7

7. Squawker ....................................................................................................8

8. Rear Speaker..............................................................................................9

9. Woofer.......................................................................................................10

10. Power Amplifier.........................................................................................11

11. Antenna.....................................................................................................12

12. Antenna Amplifier......................................................................................13

13. Noise Suppressor......................................................................................14

14. Navigation Display ....................................................................................15

15. GPS Antenna............................................................................................16

16. Navigation Body........................................................................................17

17. Front Accessory Power Supply Socket.....................................................18

18. Steering Satellite Switch ...........................................................................19

ET-2

ENTERTAINMENT General Description

1. General Description

A: CAUTION

• Before disassembling or reassembling parts, al-

ways disconnect the battery ground cable. When

replacing the audio, control unit, and other parts

provided with memory functions, record the memo-

ry contents before disconnecting the battery

ground cable. Otherwise, the memory will be

erased.

• Reassemble the parts in the reverse order of dis-

assembly unless otherwise indicated.

• Adjust parts to the given specifications.

• Connect the connectors securely during reas-

sembly.

• After reassembly, make sure the functional parts

operate smoothly.

B: PREPARATION TOOL

1. GENERAL TOOL

TOOL NAME REMARKS

Circuit tester Used for measuring resis-

tance and voltage.

Conductive silver composi-

tion

(DUPONT No. 4817 or

equivalent)

Used for repairing antenna

wire.

ET-3

ENTERTAINMENT

Audio System

2. Audio System

A: WIRING DIAGRAM

<Ref. to WI-116, WIRING DIAGRAM, Audio System.>

B: INSPECTION

Symptom Repair order

No power coming in. (No display and no sound from speakers) (1) Check the fuse and power supply for audio.

(2) Check the audio ground.

(3) Remove the audio and repair it.

A specific speaker does not operate. (1) Check the speaker.

(2) Check the output circuit between audio and speaker.

Audio generates noise with engine running. (1) Check the audio ground.

(2) Check the generator.

(3) Check the ignition coil.

(4) Remove the audio and repair it.

AM (MW, LW: Europe only) and FM modes are weak or noisy. (1) Check the antenna.

(2) Check the antenna amplifier.

(3) Check the noise suppressor.

(4) Check the audio ground.

(5) Remove the audio and repair it.

ET-4

ENTERTAINMENT Front Accessory Power Supply Socket System

3. Front Accessory Power Sup-

ply Socket System

A: WIRING DIAGRAM

<Ref. to WI-242, WIRING DIAGRAM, Front Acces-

sory Power Supply Socket System.>

ET-5

ENTERTAINMENT

Audio

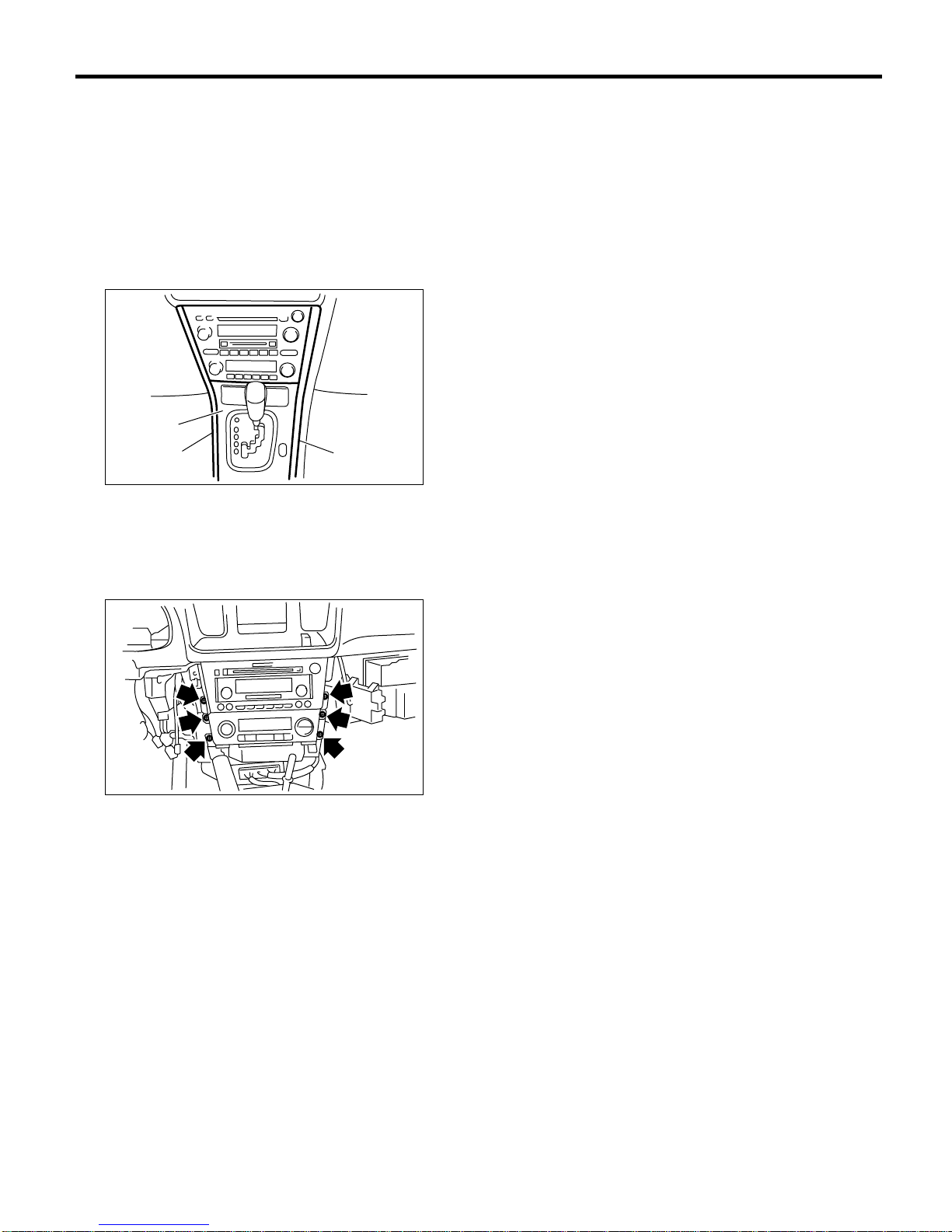

4. Audio

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the console box. <Ref. to EI-53, RE-

MOVAL, Console Box.>

3) Remove the console front panel. <Ref. to EI-54,

REMOVAL, Center Console.>

4) Remove the console side garnish. <Ref. to EI-

54, REMOVAL, Center Console.>

5) Remove the screws, and slightly pull the audio

out from center console.

6) Disconnect the harness connector and antenna

feeder cord, and then remove the audio.

B: INSTALLATION

Install in the reverse order of removal.

(A) Console front panel

(B) Console side garnish

(B) (B)

ET-00113

(A)

ET-00114

ET-6

ENTERTAINMENT Front Speaker

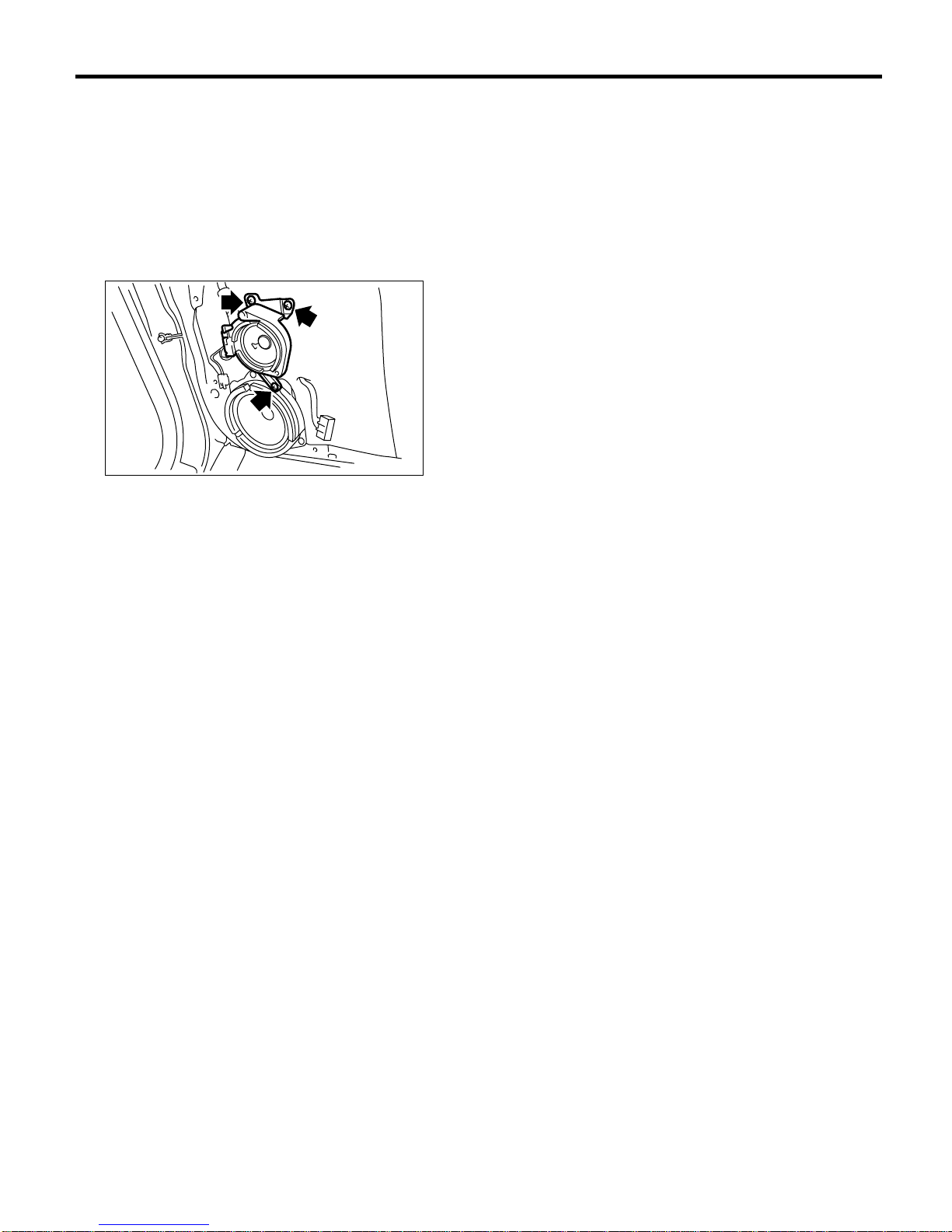

5. Front Speaker

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the front door trim. <Ref. to EI-48, RE-

MOVAL, Door Trim.>

3) Remove the front speaker mounting screws.

4) Disconnect the harness connector and remove

front speaker.

B: INSTALLATION

Install in the reverse order of removal.

ET-00080

ET-7

ENTERTAINMENT

Tweeter

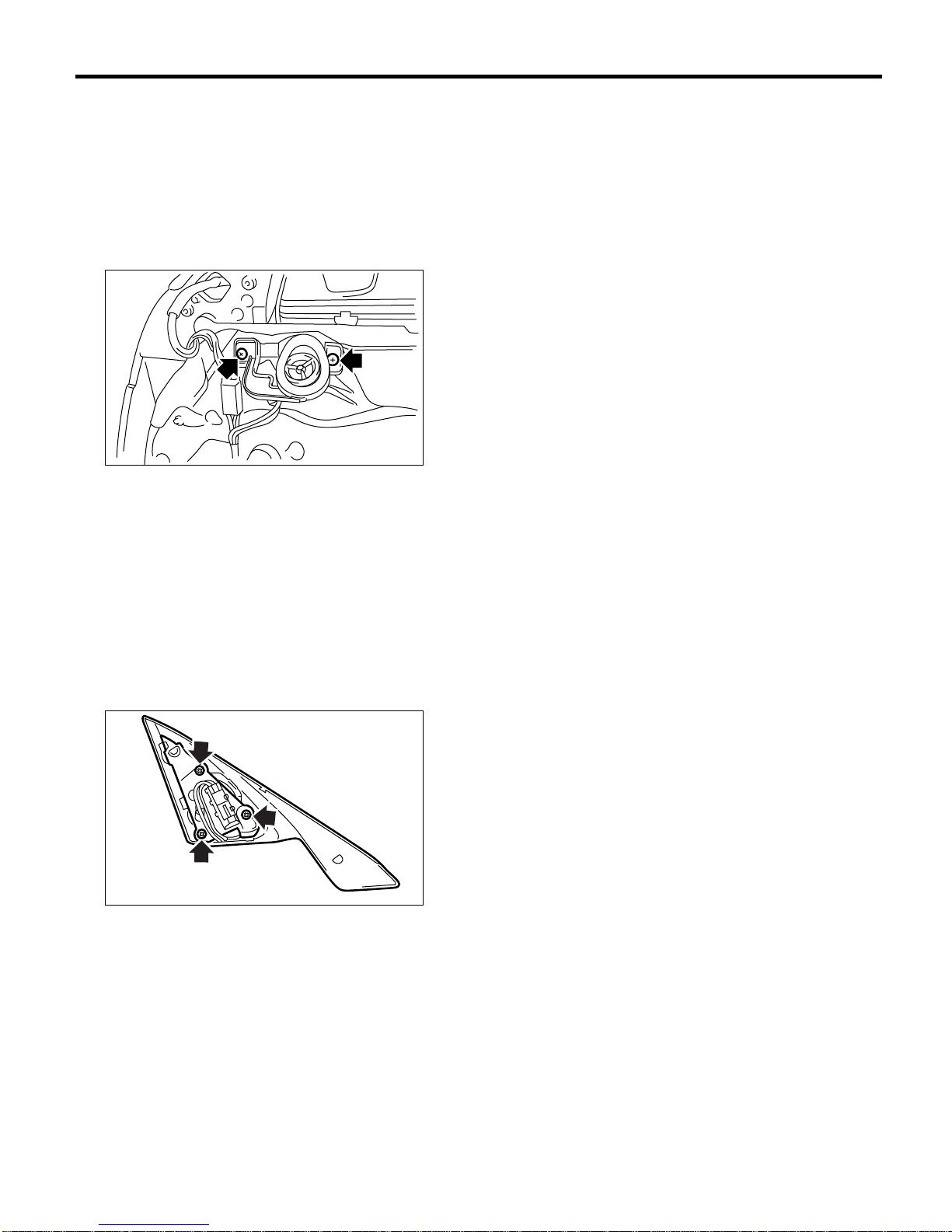

6. Tweeter

A: REMOVAL

1. MODEL WITH TWEETER

1) Disconnect the ground cable from battery.

2) Remove the front door trim. <Ref. to EI-48, RE-

MOVAL, Door Trim.>

3) Remove the tweeter mounting screws.

4) Disconnect the harness connector and remove

tweeter.

2. MODEL WITH MCINTOSH AUDIO SYS-

TEM

1) Disconnect the ground cable from battery.

2) Remove the front door trim. <Ref. to EI-48, RE-

MOVAL, Door Trim.>

3) Remove the gusset cover. <Ref. to GW-18, RE-

MOVAL, Outer Mirror Assembly.>

4) Disconnect the harness connector and remove

tweeter.

B: INSTALLATION

Install in the reverse order of removal.

ET-00081

ET-00082

ET-8

ENTERTAINMENT Squawker

7. Squawker

A: REMOVAL

NOTE:

Model with McIntosh audio system only.

1) Disconnect the ground cable from battery.

2) Remove the front door trim. <Ref. to EI-48, RE-

MOVAL, Door Trim.>

3) Remove the squawker mounting screws.

4) Disconnect the harness connectors and remove

squawker.

B: INSTALLATION

Install in the reverse order of removal.

ET-00083
