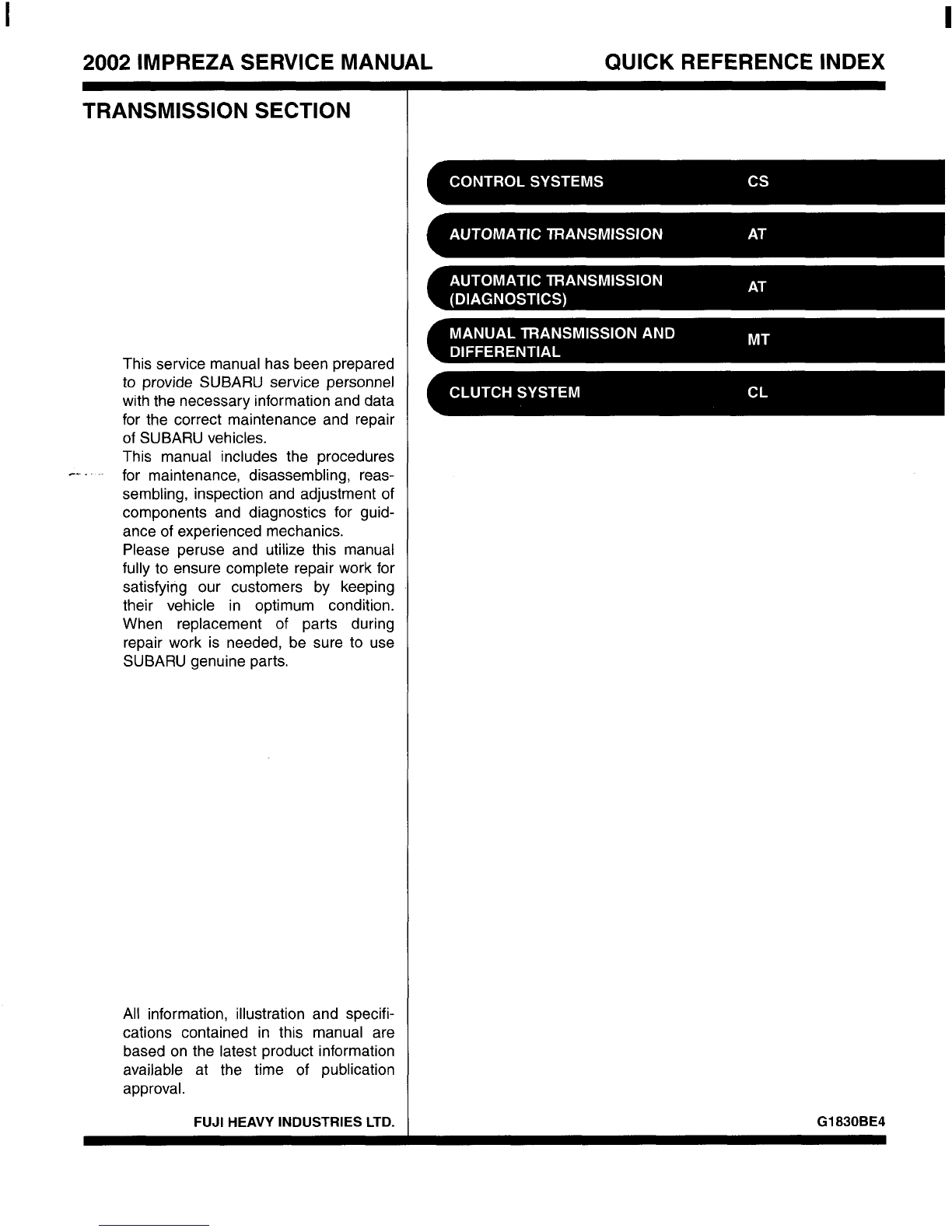

IMPREZA SERVICE MANUAL QUICK REFERENCE INDEX

TRANSMISSION SECTION

This service manual has been prepared

to provide SUBARU service personnel

with the necessary informationand data

for the correct maintenance and repair

of SUBARU vehicles.

This manual includes the procedures

for maintenance, disassembling, reas-

sembling, inspection and adjustment of

components and diagnostics for guid-

ance of experiencedmechanics.

Please peruse and utilize this manual

fully to ensure complete repair work for

satisfying our customers by keeping

their vehicle in optimum condition.

When replacement of parts during

repair work is needed, be sure to use

SUBARU genuine parts.

All information, illustration and specifi-

cations contained in this manual are

based on the latest product information

available at the time of publication

approval.

FUJI HEAVY INDUSTRIESLTD.

G1830BE4

CONTROL

SYSTEMS

CSr

Page

General Description

....................................................................................

ElectricalComponent

..................................................................................

AT Shift Lock System

..................................................................................

Select Lever

..............................................................................................

Select Cable

..............................................................................................

AT Shift Lock Solenoid and “P” Position Switch

........................................

Integrated Module

.....................................................................................

Gear Shift Lever

..................................................................................

. General Diagostic

......................................................................................

GENERAL DESCRIPTION

CONTROL

SYSTEMS

General

Description

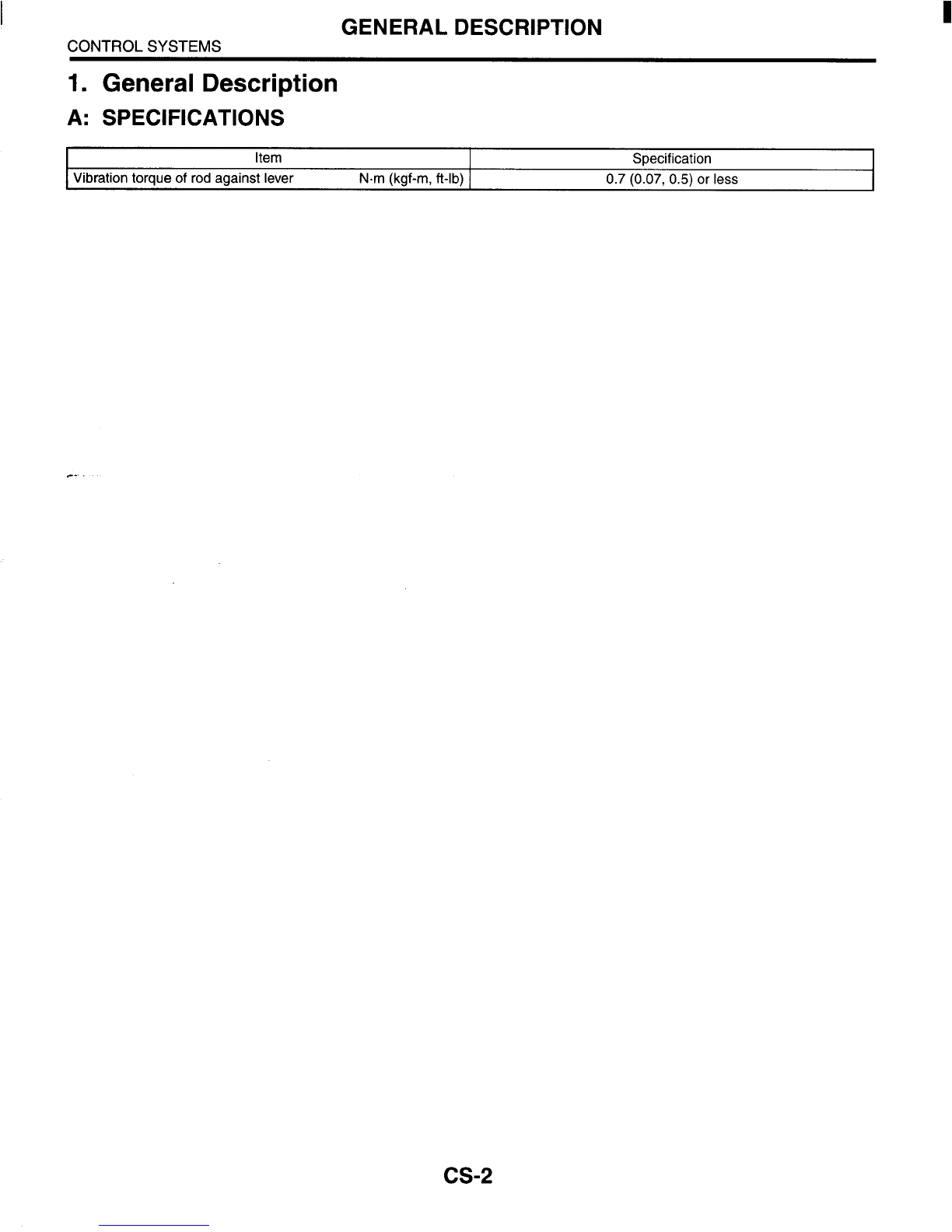

SPECIFICATIONS

Item

Specification

-1

Vibration

torque

of rodagainst lever N.m (kgf-m,ft-lb)

0.7

(0.07,

0.5)

less

cs-2

GENERAL DESCRIPTION

CONTROL

SYSTEMS

COMPONENT

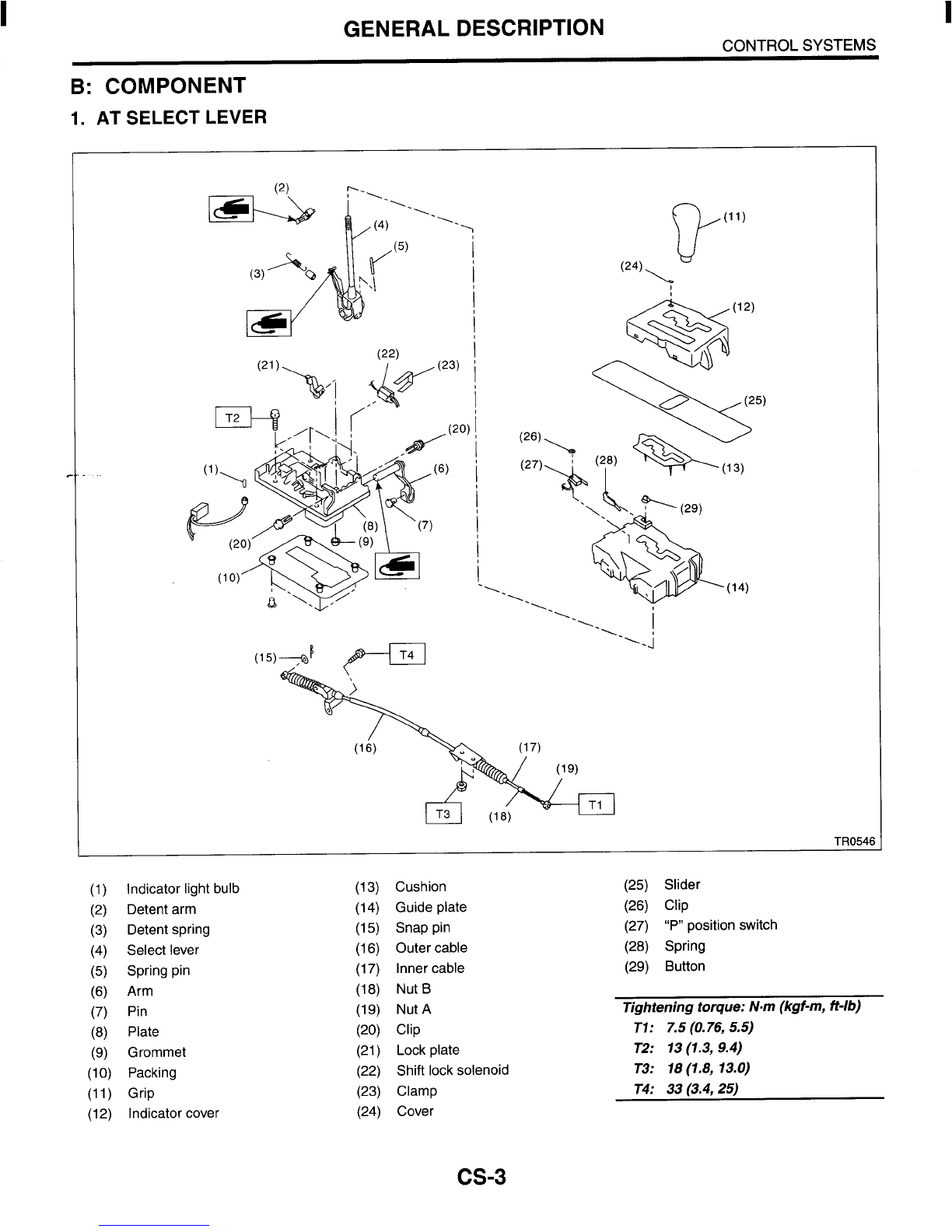

SELECT LEVER

‘.

‘-‘

‘.

‘

‘-A

TR054t

Indicatorlight bulb

Detentarm

Detentspring

Select lever

Springpin

Arm

Plate

Grommet

Packing

Grip

Indicatorcover

Cushion

Guideplate

Snap pin

Outercable

Innercable

Nut

NutA

Clip

Lock plate

Shift lock solenoid

Clamp

Cover

(25) Slider

(26) Clip

(27) “P” positionswitch

(28) Spring

(29) Button

Tighteningtorque:N.m (kgf-m,

fi-lb)

T1:

7.5

(0.76,

5.5)

T2: 13 (1.3,9.4)

T3:

lS(1.8,

13.0)

T4: 33 (3.4,25)

cs-3

GENERAL DESCRIPTION

CONTROL

SYSTEMS

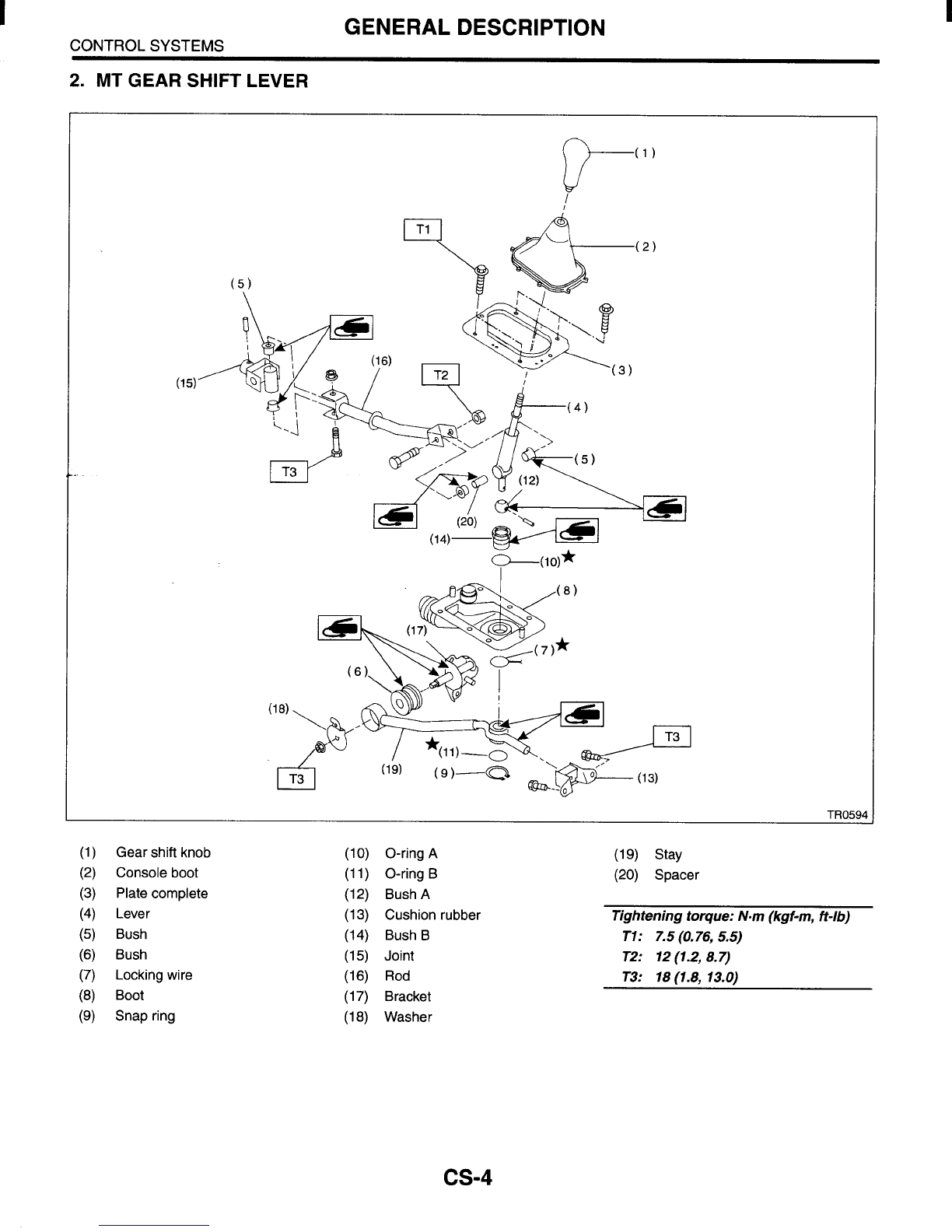

GEAR

SHIFT

LEVER

TI30594

(1)

Gear shift knob

(2)

Console

boot

(3)

Plate complete

(4)

Lever

(5)

Bush

(6)

Bush

(7)

Lockingwire

(8) Boot

(9)

Snap ring

(IO)

O-ringA

(11)

O-ringB

(12)

BushA

(13)

Cushionrubber

(14)

Bush6

Joint

(16)

Rod

(17)

Bracket

(18)

Washer

(19)

Stay

(20)

Spacer

Tighteningtorque: N-m(kgf-m,ft-lb)

T1: 7.5

(0.76,

5.5)

T2: 12

(1.2,

8.7)

T3: lS(1.8, 13.0)

cs-4

CONTROL

SYSTEMS

GENERAL DESCRIPTION

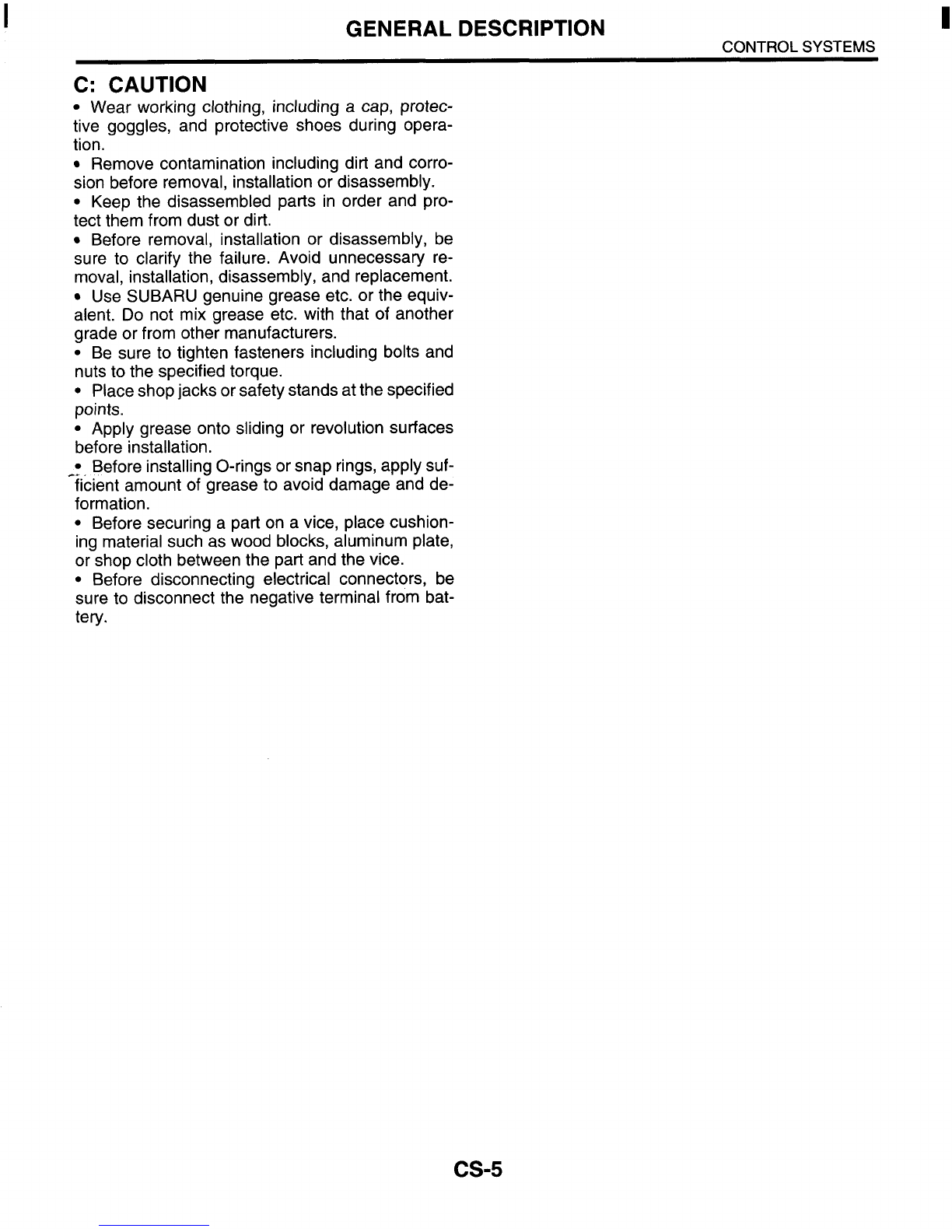

C: CAUTION

Wear working clothing, including a cap, protec-

tive goggles, and protective shoes during opera-

tion.

Remove contamination including dirt and corro-

sion before removal, installation or disassembly.

Keep the disassembled parts in order and pro-

tect them from dust or dirt.

Before removal, installation or disassembly, be

sure to clarify the failure. Avoid unnecessary re-

moval, installation, disassembly, and replacement.

Use SUBARU genuine grease etc. or the equiv-

alent.

not mix grease etc. with that

another

grade or from other manufacturers.

Be sure to tighten fasteners including bolts and

nuts to the specified torque.

Placeshopjacks or safety stands at the specified

points.

Apply grease

onto

sliding or revolution surfaces

before installation.

BeforeinstallingO-rings or snap rings,apply suf-

ficient amount of grease to avoid damage and de-

formation.

Before securing a part on a vice, place cushion-

ing material such as wood blocks, aluminum plate,

or shop cloth between the part and the vice.

Before disconnecting electrical connectors, be

sure to disconnect the negative terminal from bat-

tery.

cs-5

ELECTRICALCOMPONENT

CONTROL

SYSTEMS

Electrical

Component

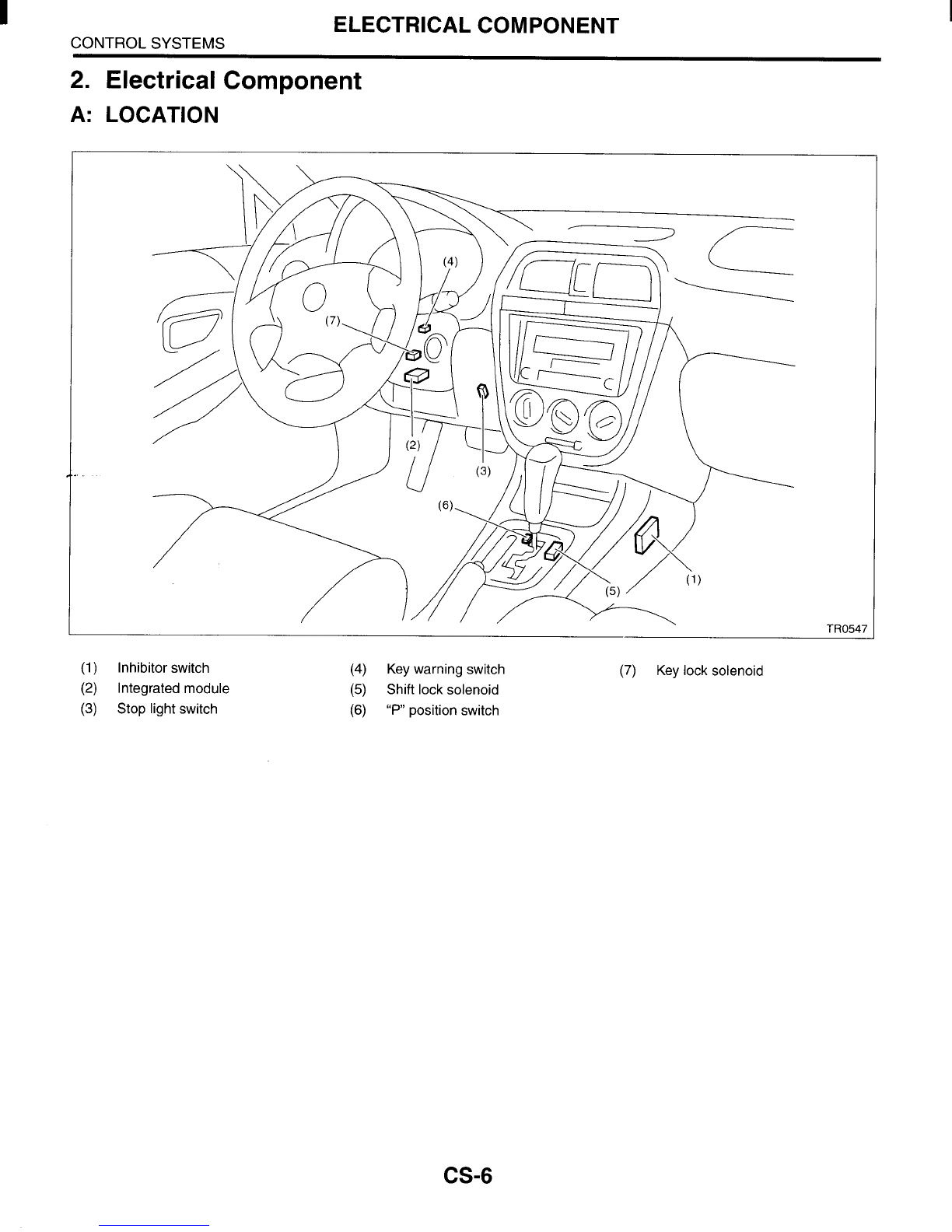

LOCATION

(1)

Inhibitorswitch

(2)

Integratedmodule

(3)

Stop lightswitch

(4)

Key warning switch

(5)

Shift locksolenoid

(6)

“P”

positionswitch

(7)

Key lock solenoid

CS-6

ELECTRICALCOMPONENT

CONTROL

SYSTEMS

\o\

B2M2246E

(2)

TR0548

TR0549

cs-7

AT SHIFT LOCK SYSTEM

CONTROL

SYSTEMS

BO031

16 15 14 13 12 11 10

Shift

Lock

System

ELECTRICAL SPECIFICATION

Contents InpuVOutputsignal

Measuredvalue and measuringconditions

Connector

No.

Terminal

No.

10 9 8

6 5

2 1

20 19 18

16 15 14

Batterypower supply

Ignitionpowersupply

Ignitionpower supply

InhibitorSwitch

(“P”

position)

8281 2 9-16V

B280 19

8280 10

8280

when ignitionswitch is at

or START.

when ignitionswitch is at ACC.

when select lever is in“Pposition.

when select lever is inother positionsthan “P

oosition.

Shift lock solenoidsignal

position.

8.5

when shift lock is released.

when shift lock is oPeratina.

8281 9

Stop lightswitch

Key warningswitchsignal

B280

when key is inserted.

when key is removed.

7.5

when turning ignitionswitchto

ON,

select

6280 20

“P”

positionswitch

B280

Key lock solenoidsignal

Ground

when stop lightswitch

ON.

when stop lightswitch is

OFF.

when select lever is in“Pposition.

when select lever is inother positionsthan

“P”

8281 3

B281

B281 13

lever is in

“P”

positionand brakeswitch is

ON.

at other conditionsthan above. .

CS-8
