Wine Storage Installation Guide

WINE STORAGE

Contents

3Wine Storage

4Opening Dimensions

5Electrical

6Preparation

6Anti-Tip Bracket

8Placement

8Alignment

10 Custom Panels

12 Panel Installation

14 Completion

Features and specications are subject to change at any

time without notice. Visit subzero.com/specs for the most

up-to-date information.

Important Note

To ensure this product is installed and operated as safely

and efciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

IMPORTANT NOTE: Save these instructions for the local

electrical inspector.

subzero.com

Product Information

Important product information including the model and

serial number are listed on the product rating plate. The

rating plate is located on the handle side wall, directly below

the control panel. Refer to the illustration below.

If service is necessary, contact Sub-Zero factory certied

service with the model and serial number. For the name

of the nearest Sub-Zero factory certied service or for

questions regarding the installation, visit the contact & sup-

port section of our website, subzero.com or call Sub-Zero

customer care at 800-222-7820.

WINE STORAGE

Tools and Materials

•Screwdrivers—standard, Phillips and Torx.

•Power drill.

•Drill bits (masonry bits required for concrete installation).

•Standard socket and wrench set.

•2' and 4' levels.

•Material to protect home, ooring and cabinetry during

installation.

Rating plate location.

RATING PLATE

Sub-Zero Customer Care 800.222.7820

SITE PREPARATION

Opening Dimensions

WINE STORAGE OPENING DIMENSIONS

COLUMN W H

IW-18 18" (457) 84" (2134)

IW-24 24" (610) 84" (2134)

IW-30 30" (762) 84" (2134)

TALL W H

IW-30R 30" (762) 84" (2134)

The depth of each wine storage model is 24" (610). Allow for

panel thickness when planning the nished opening depth.

A minimum 31/2"(89) nished return is required on all sides

of the opening. Framed cabinets will require additional

nished ller material behind the face frame for a proper

installation. Refer to the illustration.

DUAL INSTALLATION

When installing two units side by side in a dual installa-

tion, the opening width is the width of the two units added

together. A dual installation kit will be required for this instal-

lation. If a dual installation kit is not specied, a minimum

2" (51) ller strip is required between units.

Dual installation kits are available through an authorized

Sub-Zero dealer. For local dealer information, visit the nd a

showroom section of our website, subzero.com. For ques-

tions regarding the installation, call Sub-Zero customer care

at 800-222-7820.

25" (635)

OPENING

DEPTH

OPENING WIDTH

OPENING

HEIGHT

NOTE:

31/2"(89) finished returns will be visible and should be finished to match cabinetry.

SIDE

VIEW

TOP VIEW

FRONT VIEW

31/2"(89)

FINISHED

RETURN

FRAMELESS CABINETRY

3/4"

(19)

TYPICAL 31/2"(89)

FINISHED

RETURN

FILLER

FRAMED CABINETRY

W W

subzero.com

SITE PREPARATION

HOME SECURITY CONNECTION

If the unit will be connected to a home security system, low-

voltage leads must be provided to the unit. Two connectors

are located behind the top trim. Provide 10' (3 m) minimum

lead wires for each connector, exiting the back wall near the

electrical receptacle.

Remove the top trim by disengaging the trim from the hinge

side of the unit. Rotate the trim and remove the trim pin from

the handle side vertical support. Refer to the illustrations

below. Use spade terminals or wire nuts to make proper

wiring connections. Refer to the following color codes:

•Normally open contacts—white with red stripe wire.

•Common—gray with white stripe wire.

CAUTION

The alarm circuit in the unit is intended as a low-

voltage, low-current device only. It should not be used

to switch line power. Any unused terminals should be

completely insulated and all wires should be secured

away from conductive or moving components.

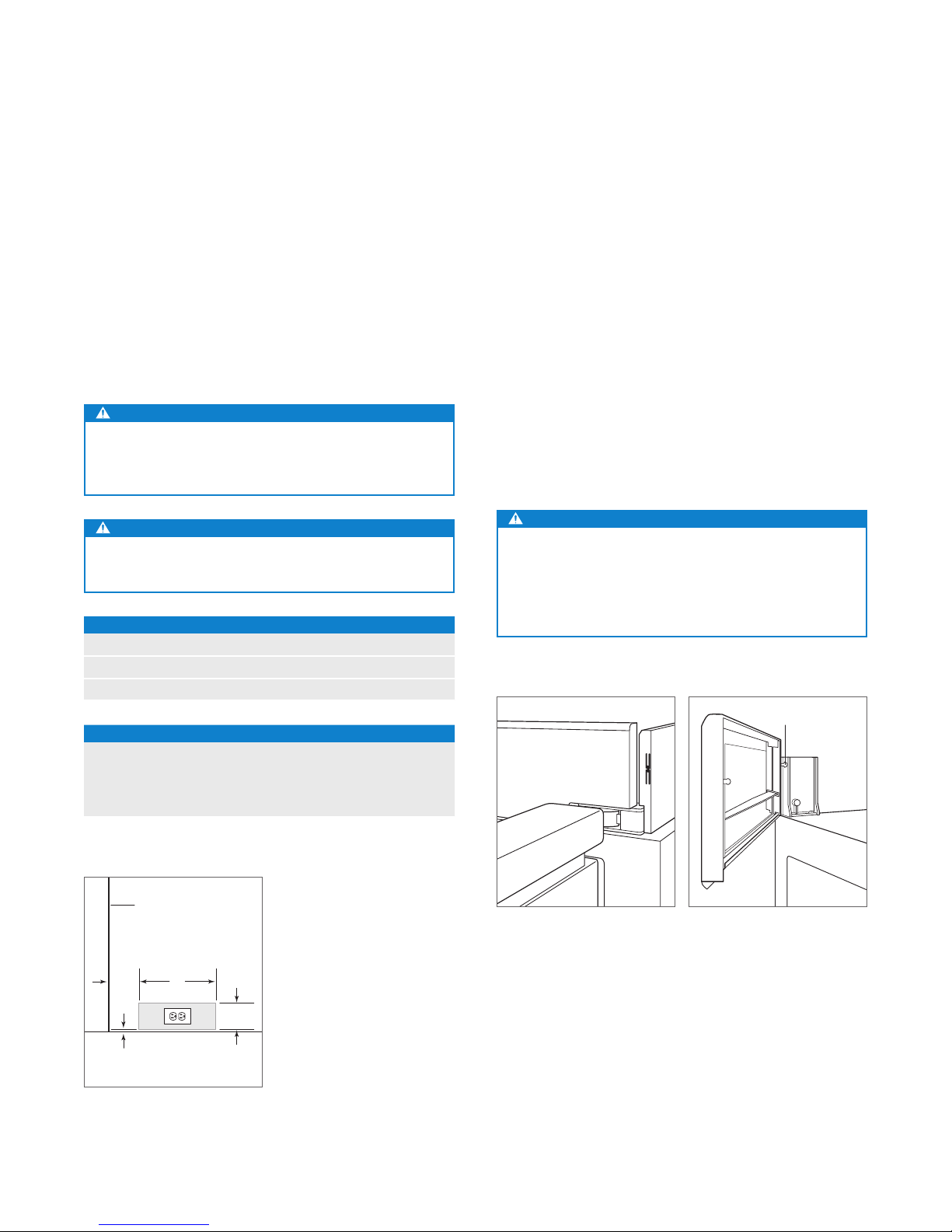

Electrical

Installation must comply with all applicable electrical codes.

The electrical supply must be located within the shaded

area shown in the illustration and chart below. A separate

circuit, servicing only this appliance is required. A ground

fault circuit interrupter (GFCI) is not recommended and may

cause interruption of operation.

The electrical outlet must be positioned with the grounding

prong to the right of the thinner blades.

CAUTION

The outlet must be checked by a qualied electrician to

be sure that it is wired with the correct polarity. Verify

that the outlet is properly grounded.

WARNING

Do not use an extension cord, two-prong adapter or

remove the power cord ground prong.

ELECTRICAL REQUIREMENTS

Electrical Supply 115 VAC, 60 Hz

Service 15 amp

Receptacle 3-prong grounding-type

ELECTRICAL SUPPLY LOCATION

WIDTH A

18" Models 6" (152)

24" Models 91/2"(241)

30" Models 121/2"(318)

1/4" (6)

41/4"

(108)

41/2"

(114)

FLOOR

LEFT SIDE

OF OPENING

Electrical supply location.

Top trim—hinge side.

Top trim—handle side.

Sub-Zero Customer Care 800.222.7820

SITE PREPARATION

Preparation

Uncrate the unit and inspect for damage. Remove the wood

base and discard shipping bolts and brackets. Remove and

recycle packing materials. Do not discard the kickplate, anti-

tip bracket and hardware.

Remove the kickplate by extracting the two mounting

screws. Refer to the illustration below.

SCREW

Kickplate removal.

Anti-Tip Bracket

WARNING

To prevent the unit from tipping forward, the anti-tip

bracket must be installed.

The back of the anti-tip bracket must be installed 24" (610)

from the front of the unit (without panels).

Use all anti-tip bracket hardware as instructed for wood or

concrete oors.

IMPORTANT NOTE: For wood or concrete oor applications,

if the #12 screws do not hit a wall stud or wall plate, use the

#8 screws and #12 washers with the wall anchors.

IMPORTANT NOTE: In some installations the subooring or

nished oor may necessitate angling the screws used to

fasten the anti-tip bracket to the back wall.

ANTI-TIP HARDWARE

1 Anti-tip bracket

6 #12 x 21/2" pan head screws

23/8"–16 x 33/4" wedge anchors

6 #12 at washers

subzero.com

SITE PREPARATION

CONCRETE WEDGE ANCHOR INSTALLATION:

1Drill a 3/8"(10) diameter hole any depth exceeding the

minimum embedment. Clean the hole or drill additional

depth to accommodate drill nes.

2Assemble the washer and nut ush with the end of

anchor to protect threads. Drive the anchor through the

material to be fastened until the washer is ush with the

surface material.

3Expand the anchor by tightening the nut 3–5 turns past

hand-tight position or to 25 foot-pounds of torque.

WARNING

Verify there are no electrical wires or plumbing in the

area which the screws could penetrate.

CAUTION

Always wear safety glasses and use other neces-

sary protective devices or apparel when installing or

working with anchors.

Anchors are not recommended for use in lightweight

masonry material such as block or brick, or for use in

new concrete which has not had sufcient time to cure.

The use of core drills is not recommended to drill holes

for the anchors.

Anti-Tip Bracket

WOOD FLOOR APPLICATION

After properly locating the anti-tip bracket in the opening,

drill pilot holes 3/16"(5) diameter maximum in the wall studs

or wall plate. Use the #12 screws and washers to secure the

brackets. Verify the screws penetrate through the ooring

material and into wall studs or wall plate a minimum of 3/4"

(19). Refer to the illustration and chart below.

CONCRETE FLOOR APPLICATION

After properly locating the anti-tip bracket in the opening,

drill pilot holes 3/16"(5) diameter maximum in the wall studs

or wall plate. Drill 3/8"(10) diameter holes into the concrete

a minimum of 11/2"(38) deep. Use the #12 screws and

washers to secure the brackets to the wall, and use the 3/8"

wedge anchors to secure the brackets to the oor. Verify the

screws penetrate wall studs or wall plate a minimum of 3/4"

(19). Refer to the illustration and chart below.

ANTI-TIP BRACKET PLACEMENT

WIDTH A

18" Models 9" (229)

24" Models 12" (305)

30" Models 15" (381)

SUBFLOORING

WOOD FLOOR

WALL PLATE

FINISHED

FLOORING

SUBFLOORING

CONCRETE

FLOOR

WALL PLATE

FINISHED

FLOORING

11/2"(38)

min

Wood oor.

Concrete oor.

Sub-Zero Customer Care 800.222.7820

INSTALLATION

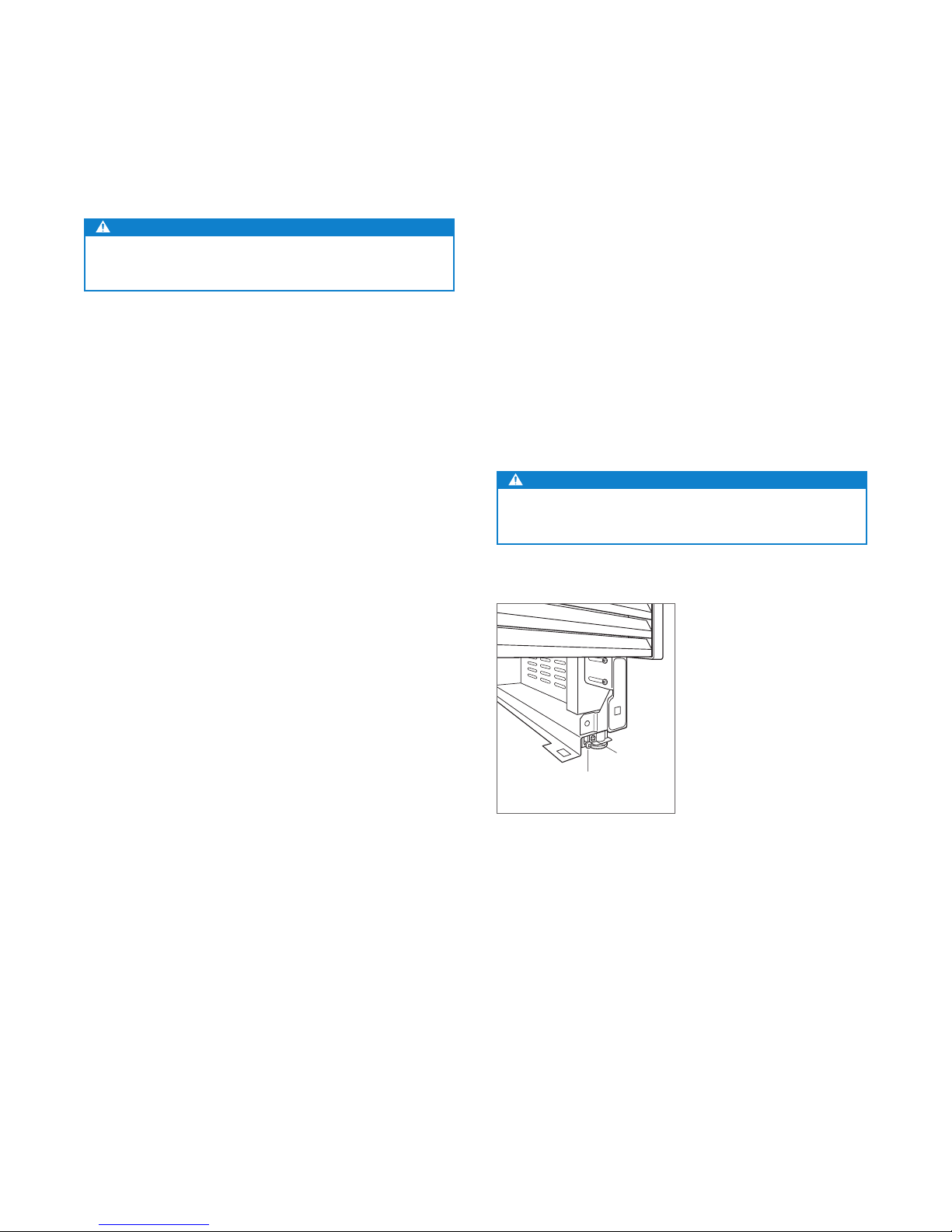

Placement

CAUTION

Before moving the unit into position, secure the door/

drawers closed and protect any nished ooring.

Use an appliance dolly to move the unit near the opening.

The front leveling legs are extended below the front rollers to

improve stability during placement. Once the unit is placed

in front of the opening, completely retract the front leveling

legs to allow the unit to be rolled into position. Front and

rear leveling legs can be adjusted from the front once the

unit is positioned.

If the unit has been on its back or side, it must stand upright

for a minimum of 24 hours before connecting power.

Plug the power cord into the grounded outlet and roll the

unit into position. Verify the anti-tip bracket is properly

engaged.

Alignment

LEVELING

Once the unit is in position, height adjustment can be made

from the front. Using a Phillips drive, turn clockwise to raise

the unit or counterclockwise to lower. Use the lowest torque

setting when using a power drill. Do not turn the leveling

legs by hand. Refer to the illustration below.

When the unit is properly leveled, door/drawer adjustments

are less likely to be necessary.

IMPORTANT NOTE: Level the unit to the oor, not sur-

rounding cabinetry. This could affect the operation of the

unit, such as door closing.

WARNING

To reduce the possibility of the unit tipping forward,

the front leveling legs must be in contact with the oor.

REAR

ADJUSTMENT

FRONT

ADJUSTMENT

Leveling.

subzero.com

INSTALLATION

Alignment

DEPTH ADJUSTMENT

Adjust the depth of the unit to t ush with surrounding

cabinetry. Follow these steps for a precision t:

1Place decorative panel on a protected work surface.

Place the panel thickness gauge next to the panel to

determine which notch corresponds with the panel thick-

ness. Refer to the illustration below. Once the proper

notch has been determined, mark that notch with a

marker.

2With the door closed, position the top of the unit using

the panel thickness gauge. Refer to the illustration

below. Insert a #8 x 1/2" stainless steel screw above the

hinge, then insert a #8 x 1/2" pan head screw on the

handle side of the unit. For narrower units, the door may

need to be opened to access the handle side screw

location. Repeat the process to align the bottom.

PANEL THICKNESS

GAUGE

FRONT OF

UNIT

CABINETRY

FACE

FRAME

SCREW

SIDE TRIM

Panel thickness.

Unit depth.

ANCHORING

Once the top and bottom are aligned, verify the door/

drawers open properly, then install remaining screws in each

side trim.

Sub-Zero Customer Care 800.222.7820

Custom Panels

Custom door/drawer panels and handle hardware must

be installed. Stainless steel panels are available through an

authorized Sub-Zero dealer. For local dealer information,

visit the nd a showroom section of our website,

subzero.com.

The thickness of the custom panel can vary. A minimum

5/8"(16) thick panel is required, but the thickness can be

increased provided it does not exceed the maximum panel

weight indicated in the chart below. The depth of each

model is 24" (610). Allow for panel thickness when planning

the nished opening depth.

PANEL REQUIREMENTS

PANEL WEIGHT MAX

Door 35 lb (16 kg)

Door (IW-30R) 25 lb (11 kg)

Drawer 15 lb (7 kg)

PANEL THICKNESS MIN

All Panels 5/8"(16)

Reveals between panels can vary, 1/8"(3) reveals are typical.

CAUTION

When installing a panel thicker than 1" (25), the 90° stop

may be required to prevent damage to the unit and

adjacent cabinetry.

CAUTION

As reveals between cabinetry and the unit decrease,

severe nger pinching can occur while door is closing.

Finish all sides of custom panels. They will be visible when

the door is open.

D-style handles are recommended. Stainless steel tubular

and pro handles are available through an authorized

Sub-Zero dealer. For local dealer information, visit the nd

a showroom section of our website, subzero.com. Door

handles must be located near the edge of the panel oppo-

site the hinge and should be centered top to bottom. Drawer

handles must be located near the top edge of each panel.

PANEL INSTALLATION

Autres manuels pour IW-18

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Sub-Zero Refroidisseur de vin

Sub-Zero

Sub-Zero ICB400 Series Manuel utilisateur

Sub-Zero

Sub-Zero Classic CL3050W/O/L Manuel utilisateur

Sub-Zero

Sub-Zero 424 Manuel utilisateur

Sub-Zero

Sub-Zero ICB424 Manuel du propriétaire

Sub-Zero

Sub-Zero Wolf IW Series Manuel utilisateur

Sub-Zero

Sub-Zero Wolf 400 Series Manuel utilisateur

Sub-Zero

Sub-Zero 18" Manuel utilisateur

Sub-Zero

Sub-Zero 424 Manuel utilisateur

Sub-Zero

Sub-Zero UW24ORH Manuel utilisateur

Sub-Zero

Sub-Zero 427R Manuel utilisateur

Sub-Zero

Sub-Zero Designer Series Manuel utilisateur

Sub-Zero

Sub-Zero 427G Manuel utilisateur

Sub-Zero

Sub-Zero ICB424 Manuel utilisateur

Sub-Zero

Sub-Zero Classic Series Manuel utilisateur

Sub-Zero

Sub-Zero IW-30CI Manuel utilisateur

Sub-Zero

Sub-Zero 427 Manuel utilisateur

Sub-Zero

Sub-Zero 315W Mode d’emploi

Sub-Zero

Sub-Zero Designer Series Manuel utilisateur

Sub-Zero

Sub-Zero Designer Series Manuel utilisateur

Sub-Zero

Sub-Zero IW-30-LH Manuel utilisateur

Sub-Zero

Sub-Zero 427RB Manuel utilisateur

Sub-Zero

Sub-Zero 315W Mode d’emploi

Sub-Zero

Sub-Zero 427R Instructions d'utilisation

Sub-Zero

Sub-Zero 424FS Instructions d'utilisation

Manuels Refroidisseur de vin populaires d'autres marques

U-Line

U-Line Echelon Wine Captain 2075WC Manuel du propriétaire

Haier

Haier WS50GA Manuel utilisateur

Cavist

Cavist 62 Manuel utilisateur

Kenmore

Kenmore 461.99130 Manuel utilisateur

Miele

Miele KWT 6422 iG Manuel utilisateur

Danby

Danby DWC113BLSDB Manuel utilisateur

Caple

Caple Wi6128 Manuel utilisateur

Avanti

Avanti WC1001 Manuel utilisateur

Frigidaire

Frigidaire FFWC38F6LS Manuel utilisateur

Titan

Titan TT-W2454SZ Manuel d'installation

Klarstein

Klarstein Botella 166 Uno Manuel utilisateur

Costway

Costway FP10130WL Manuel utilisateur

Lemair

Lemair LWC59 Manuel utilisateur

Haier

Haier JC-125GEA Manuel utilisateur

Caple

Caple WCi46B Manuel utilisateur

Climadiff

Climadiff CLI24 Guide rapide

Viking

Viking VCWB301LSS Manuel utilisateur

Caple

Caple WC6511 Manuel utilisateur
