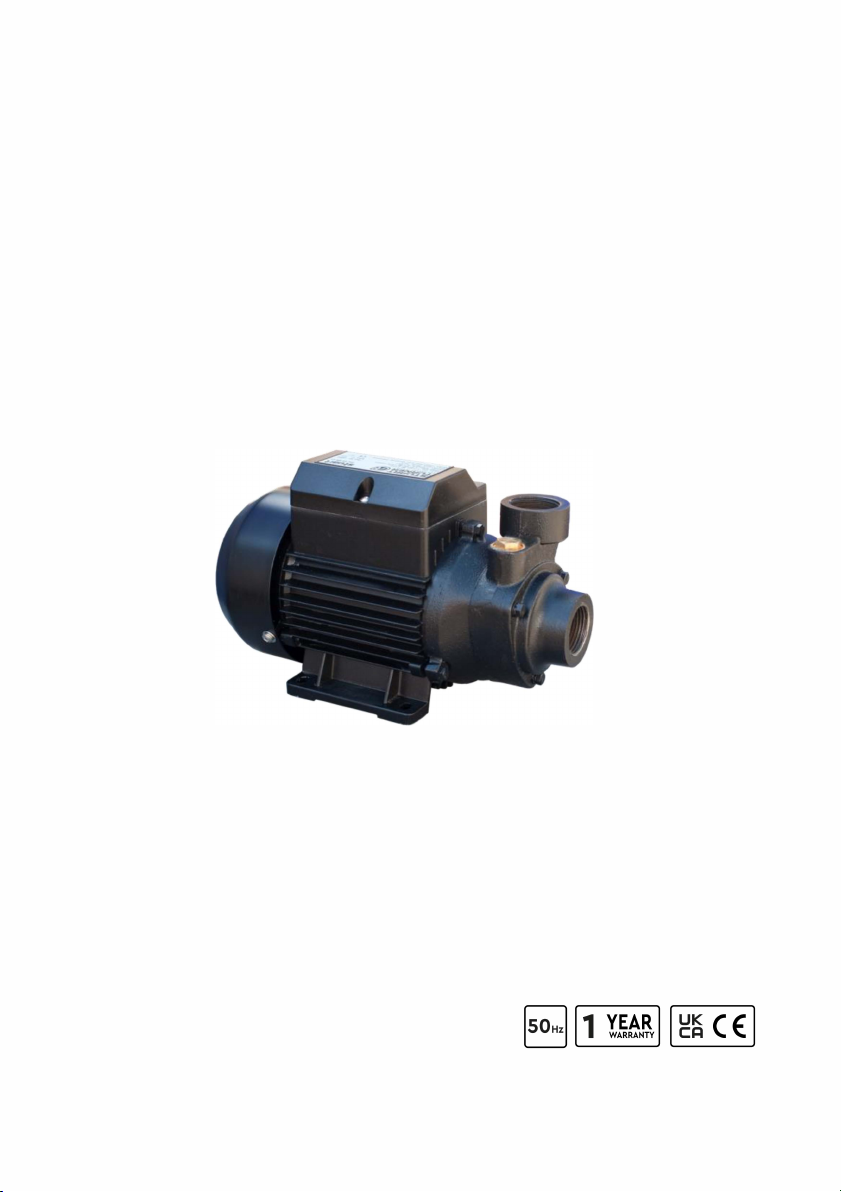

Stuart Turner PH 45 ES Mode d’emploi

STU�RT





Installation, Operation & Maintenance

Instructions

Please leave this instruction booklet with the owner as it contains important

warranty, maintenance and safety information

Read this manual carefully before commencing installation.

This manual covers the following products suitable for 230/1/50 supply:

PH  ES Cl

  

PH 65 ES Cl

Pt. No. 47394

PH 75 ES Cl

 

PH  ES Cl

  

- 2 –

Arabic Installation Operation & Maintenance Instructions ................... 25

English (GB) Installation Operation & Maintenance Instructions .............. 2

PRODUCT DESCRIPTION

Electric motor driven peripheral pump.

APPLICATION

The PH range of peripheral pumps are designed for pressure boosting applications in

vented stored, hot or cold, clean water systems.

Inlet pressures to the pump and ambient temperatures must not exceed the values

given in the technical specifications.

STORAGE

If this product is not to be installed immediately on receipt, ensure that it is stored in a

dry, frost and vibration free location in its original packaging.

CONTENTS Page

Checklist ...........................................................5

Important Facts – read before commencing installation ......................6

Location ............................................................7

Electrical Installation ..................................................8

Plumbing ...........................................................10

Technical Specification ................................................11

Trouble Shooting .....................................................12

Warranty ...........................................................13



- 6 –

Cont ...

1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION

A Water storage capacity.

1.11 The water storage capacity must be sufficient to meet the flow rates required

by the pumped equipment and any other water using fittings and appliances,

which may be operated simultaneously. DO NOT RUN PUMP DRY.

1.12 Ensure the pump is primed as described in the priming section before

starting, damage to the shaft seal will result otherwise. See Section 4 –

Plumbing.

B Water temperature

The water entering the pump must be controlled as follows:

1.13 The maximum allowable water temperature is 60 oC.

1.14 The minimum allowable water temperature is 4 oC.

1.15 Ambient temperature: The pump must be sited in a location where the

maximum ambient temperature does not exceed 50 oC.

1.16 DO NOT fit a pump if the hot water is heated via a method whereby the water

temperature cannot be controlled, such as solar or solid fuel you must

consult the TechAssist team on +44 (0) 800 31 969 80.

C Pipework – general

1.17 Pipework design: Care should be taken in the design of pipework runs to

minimize the risk of air locks e.g. use drawn bends rather than 90obends.

1.18 DO NOT allow contact with oil or cellulose based paints, paint thinners

or strippers, acid based descalents or aggressive cleaning agents.

D Plumbing installation regulations

1.19 The plumbing installation must be installed by a qualified person and in

accordance with local regulations.

- 7 –

Cont ...

2 LOCATION  GENERAL

2.11 Access: For emergencies and maintenance the pump must be

easily accessible.

2.12 Protection: The pump must be located in a dry position, frost free

and protected from freezing.

2.13 Ventilation: Ensure an adequate air flow to cool the pump.

Separate the pump from other appliances that generate heat.

An 80 mm (3 “) air gap must be maintained around the pump.

2.14 Safety: The motor casing can become very hot under normal

operating conditions. Care must be taken to ensure it cannot

be touched during operation.

2.15 Water retention: Site the pump in a location where in the unlikely

event of a water leak, any spillage is contained or routed to avoid

electrics or areas sensitive to water damage.

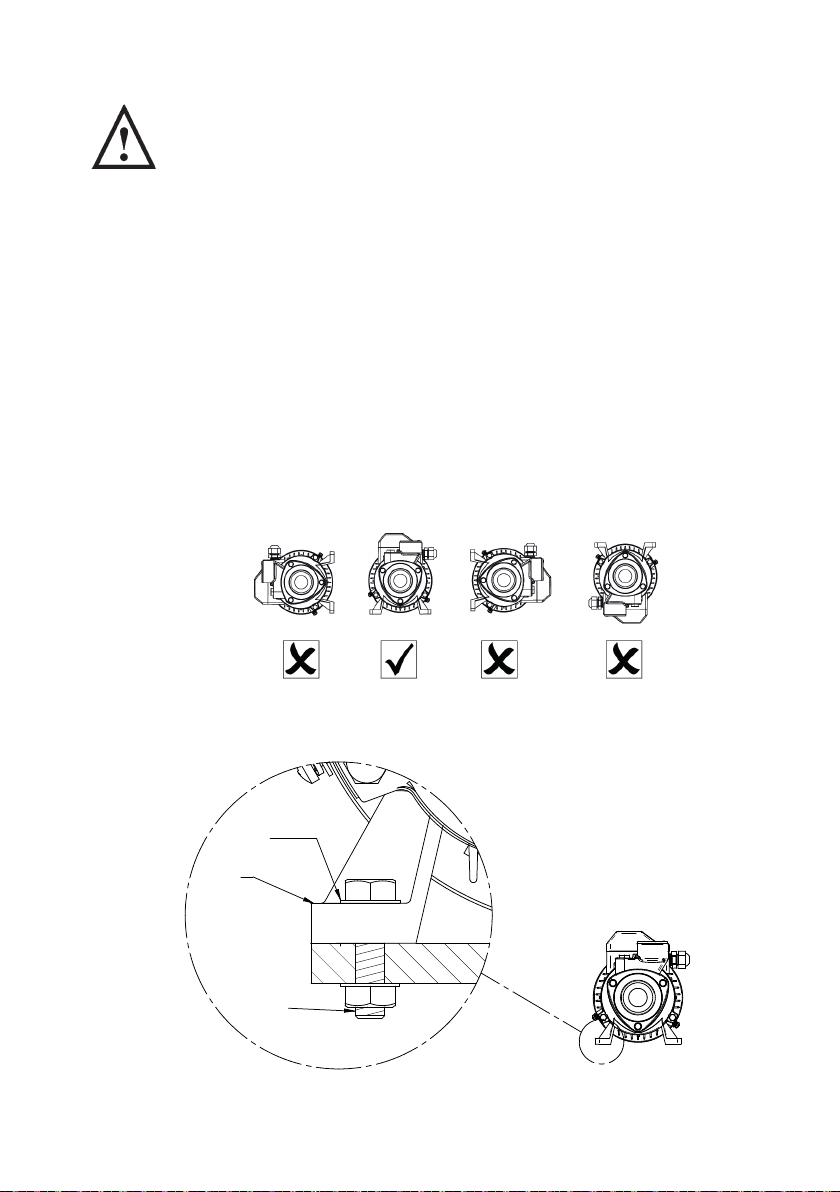

2.16 Pump position: The pump must be positioned on its mounting feet and as

close to the water source as possible.

2.17 Mounting foot securing: This pump is fitted with aluminium feet. If there is a

requirement to secure the pump via the feet, the following points should be

noted.

The pump should be mounted only in the horizontal position.

The mounting bolts used to secure the pump must be fitted with a plain

washer to distribute clamping load evenly across load bearing face of foot

(not supplied).

Fig. 2

PLAIN

WASHER

MOUNTING

FOOT

BOLT

Fig. 3

CAPA CITOR

L N E

230 VAC/1PH/50Hz SUPPLY

MOT O R

BLACK

BL AC K

YE LLOW

BR O WN

RED

BLUE

BL AC K

GREEN YELLOW

    

 





 



  

 







. 9.
