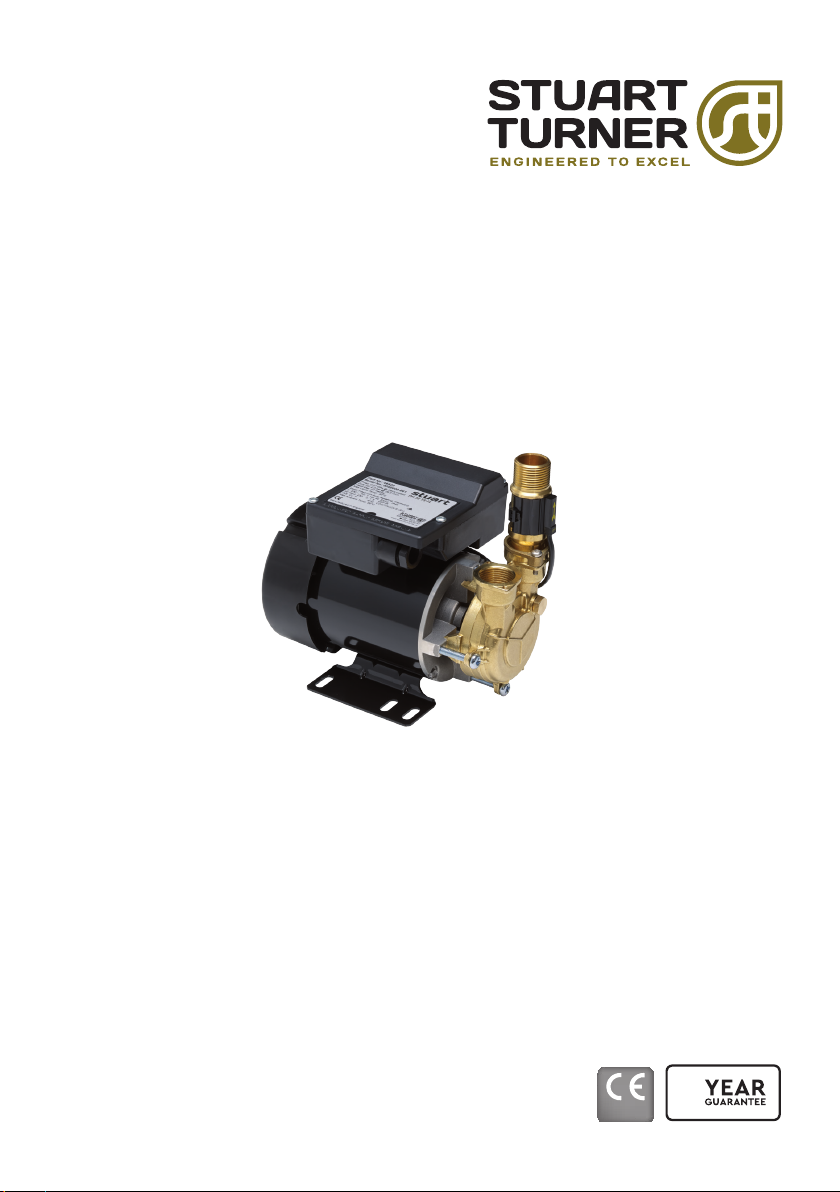

Stuart Turner PH 45 TS FL Mode d’emploi

Installation, Operation & Maintenance

Instructions

Please leave this instruction booklet with the owner as it contains important

guarantee, maintenance and safety information

Read this manual carefully before commencing installation.

This manual covers the following products suitable for 230/1/50 supply:

PH 35 TS FL

Pt. No. 46522

PH 35 ES FL

Pt. No. 46566

PH 45 TS FL

Pt. No. 46530

PH 45 ES FL

Pt. No. 46567

PHD 35 TS FL

Pt. No. 46625

PHD 45 TS FL

Pt. No. 46531

FOR POSITIVE HEAD APPLICATIONS ONLY

50 Hz

STUART

CE compliant product

- 2 –

PRODUCT DESCRIPTION

Electric motor driven peripheral pump complete with an automatic control system,

consisting of flow switches and electronic controls.

APPLICATION

The Stuart PH FL range is designed for pressure boosting applications in vented stored,

hot, cold or blended clean water systems, where under gravity, a flow is available of

at least 1 l/min. If you wish to boost both hot and cold services, then PH Boostamatic

models must be used, for further details contact ‘TechAssist’.

Inlet pressures to the pump and ambient temperatures must not exceed the values

given in the technical specifications.

STORAGE

If this product is not to be installed immediately on receipt, ensure that it is stored in a

dry, frost and vibration free location in its original packaging.

CONTENTS Page

Checklist ...........................................................5

Important Facts – read before commencing installation ......................6

Location ............................................................7

Electrical Installation ..................................................8

Plumbing ...........................................................10

Technical Specification ................................................12

Trouble Shooting .....................................................14

Guarantee ..........................................................16

- 3 –

Cont ...

WARNINGS:

zThis pump set must not be used for any other

application without the written consent of Stuart

Turner Limited and in particular, must not be

connected directly to the mains water supply.

zThis appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given

supervision or instruction concerning use of the

appliance in a safe way and understand the hazards

involved.

zChildren must not play with the appliance.

zCleaning and user maintenance shall not be made by

children without supervision.

zMaximum head (closed valve) PH 35 TS FL-33 metres,

PH 45 TS FL-40 metres, PHD 35 TS FL-28.7 metres,

PHD 45 TS FL-41.6 metres.

zThe motor casing can become very hot under normal

operating conditions. Care must be taken to ensure it

cannot be touched during operation.

zThe electrical installation must be carried out

in accordance with the current national electrical

regulations.

zThe electrical installation must be installed by a

qualified person.

zIn the interests of electrical safety a 30 mA residual

current device (R.C.D. not supplied) should be

installed in the supply circuit. This may be part of a

consumer unit or a separate unit.

zBefore starting work on the electrical supply ensure

power supply is isolated.

zDO NOT allow the supply cord to contact hot

surfaces, including the motor shell, pump body or

pipework. The cord should be safely routed and

secured by cable clips.

- 4 –

Cont ...

zThis appliance must be earthed via the supply cord,

which must be correctly connected to the earth

point located in the terminal box.

zThe supply cord and internal wiring within the

terminal box are routed and secured to ensure

compliance with the electrical standard

EN 60335–1. It is essential that prior to any

disturbance of this internal wiring, all cable routing

and securing details are carefully noted to ensure

re-assembly to the same factory pattern is always

maintained.

zIf the supply cord is to be changed or is damaged, it

must be replaced with a special cord assembly

available from Stuart Turner or one of their approved

repairers.

Please read installation details carefully as they are intended to ensure this product

provides long, trouble free service. Failure to install the unit in accordance with the

installation instructions will lead to invalidation of the warranty.

- 5 –

CHECKLIST

Your product may vary slightly from the picture above.

Fig. 1

IMPORTANT: With the pump removed from

its packaging check for any damage prior

to installation. If any damage is found

contact Stuart Turner Ltd within

24 hours of receipt.

PH TS FL

PHD TS FL

PH ES FL

- 6 –

1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION

A Water storage capacity.

1.11 The water storage capacity must be sufficient to meet the flow rates required

by the pumped equipment and any other water using fittings and appliances,

which may be operated simultaneously.

1.12 Ensure the pump is primed as described in the priming section before

starting, damage to the shaft seal will result otherwise. See Section 4 –

Plumbing.

B Water temperature

The water entering the pump must be controlled as follows:

1.13 The maximum allowable water temperature is 80 oC.

1.14 The minimum allowable water temperature is 4 oC.

1.15 Ambient temperature: The pump must be sited in a location where the

maximum ambient temperature should not exceed 40 oC continuous or 50 oC

intermittent (ES models only).

1.16 DO NOT fit a pump if the hot water is heated via a method whereby the water

temperature cannot be controlled, such as solar or solid fuel you must consult

the TechAssist team on +44 (0) 800 31 969 80.

C Water flow

1.17 For this pump to operate correctly there must be a minimum gravity flow of at

least 0.6 l/min through all outlets to be pumped.

D Pipework – general

1.18 Secure pipework: Ensure pipework to and from pump is independently

supported & clipped to prevent forces being transferred to inlet and outlet

branches of pump.

1.19 Flux: Solder joints must be completed and flux residues removed prior to

pump installation (flux damage will void any warranty).

1.20 Pipework design: Care should be taken in the design of pipework runs to

minimize the risk of air locks e.g. use drawn bends rather than 90obends.

1.21 DO NOT introduce solder flux to pump parts manufactured from

plastic.

1.22 DO NOT allow contact with oil or cellulose based paints, paint thinners

or strippers, acid based descalents or aggressive cleaning agents.

1.23 DO NOT install a non-return valve, or devices which contain non-return

valves, in the suction (inlet) pipework to the pump. The pump must be

free to vent to the supply tank at all times.

1.24 DO NOT fit single ended models on installations with mixer taps.

E Plumbing installation regulations

1.25 The plumbing installation must be installed by a qualified person and in

accordance with local regulations.

F Electrical/installation regulation

1.26 Check the mains voltage and frequency corresponds to the values on the

pump rating plate.

- 7 –

Cont ...

2 LOCATION  GENERAL

2.11 Access: For emergencies and maintenance the pump must be

easily accessible.

2.12 Protection: The pump must be located in a dry position, frost free

and protected from freezing, particularly when installed in a loft

(notrecommended).

2.13 Ventilation: Ensure an adequate air flow to cool the pump.

Separate the pump from other appliances that generate heat. An

80 mm (3 “) air gap must be maintained around the pump.

2.14 Safety: The motor casing can become very hot under normal

operating conditions. Care must be taken to ensure it cannot

be touched during operation.

2.15 Water retention: Site the pump in a location where in the unlikely

event of a water leak, any spillage is contained or routed to avoid

electrics or areas sensitive to water damage.

2.16 Mounting foot securing: This pump is fitted with mild steel feet. If there is a

requirement to secure the pump via the feet, the following points should be

noted.

The pump should be mounted only in the horizontal position.

The mounting bolts used to secure the pump must be fitted with a plain

washer to distribute clamping load evenly across load bearing face of foot

(not supplied).

Fig. 2

PLAIN

WASHER

MOUNTING

FOOT

BOLT

Fig. 3

- 8 –

Cont ...

3 ELECTRICAL INSTALLATION  EARTHING

3.11 Regulations: The electrical installation must be carried out in

accordance with the current local regulations by a qualified person.

3.12 Safety: In the interests of electrical safety a 30 mA residual current

device (R.C.D. not supplied) should be installed in the supply circuit.

This may be part of a consumer unit or a separate unit.

3.13 Before starting work on the electrical supply ensure power supply is

isolated.

3.14 DO NOT allow the supply cord to contact hot surfaces, including the

motor shell, pump body or pipework. The cord should be safely

routed and secured by cable clips.

3.15 Earthing: This appliance must be earthed via the supply cord, which must be

correctly connected to the earth point located in the terminal box.

3.16 Connections: The pump must be permanently connected to the fixed wiring

of the mains supply using the factory fitted supply cord, via a dedicated

double pole switched fused spur off the ring main.

3.17 Wiring of connection unit:

WARNING: This appliance must be earthed.

The wires in the mains lead (supply cord) are coloured in accordance with the

following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this appliance may not

correspond with the coloured markings identifying the terminals in your

connection unit proceed as follows:

zThe wire which is coloured green and yellow must be connected to the

terminal in the connection unit which is marked with the letter E or by the

earth symbol: or coloured green or green and yellow.

zThe wire which is coloured blue must be connected to the terminal which

is marked with the letter N or coloured black.

zThe wire which is coloured brown must be connected to the terminal

which is marked with the letter L or coloured red.

- 9 –

3.19 Fuse: PHD FL models should use 13 Amp fuse, all other models use 5 Amp

fuse.

3.20 Supply cord replacement:

The supply cord and internal wiring within the terminal box are

routed and secured to ensure compliance with the electrical

standard EN 60335–1. It is essential that prior to any disturbance

of this internal wiring, all cable routing and securing details are

carefully noted to ensure re-assembly to the same factory pattern

is always maintained.

3.21 If the supply cord is to be changed or damaged, it must be replaced by a

special cord available from Stuart Turner or one of its approved repairers.

3.18 Wiring diagrams:

MAIN WINDING

THERMOTRIP CAPACITOR

START WINDING

FLOWSWITCH

REED (S2)

LINK WIRE (BLUE)

BROWN

BLACK

BLUE

GREEN/YELLOW

BLUE

BROWN L

S1 S2 S2 S1

FLOWSWITCH

REED (S1)

230 VAC/1PH/50Hz SUPPLY

Fig. 4 PHD FL models Fig. 5 PH 35 variants

MAIN WINDING

THERMOTRIP

CAPACITOR

START WINDING

FLOWSWITCH

REED (S2)

LINK WIRE (BLUE)

BROWN

BLACK

GREEN / YELLOW

BLUE

BROWN L

S2 S2

230 VAC/1PH/50Hz SUPPLY

BLUE

NMNL

MAIN WINDING

THERMOTRIP

CAPACITOR

START WINDING

FLOWSWITCH

REED (S2)

BLUE

BROWN

BLACK

GREEN / YELLOW

BLUE

BROWN L

S2 S2

230 VAC/1PH/50Hz SUPPLY

BLUE

NMNL

Fig. 6 PH 45 variants

- 10 –

Cont ...

4 PLUMBING

4.11 Pipework: For optimum performance pipework use 28 mm dia., 22 mm can be

used but will result in reduced pump performance.

Pipework should only reduce to 15 mm when entering terminal fitting.

4.12 Isolating valves: Separate isolating valves (non restrictive) must be fitted to

allow easy pump service.

4.13 Inline strainer: When the pump is to be installed in areas where there is risk

of debris or scale build up within the system, you MUST ensure the inlet

pipework is fitted with an inline strainer.

4.14 The pump must be located with at least 0.5 metres flooded suction at all

times.

COLD WATER INSTALLATION

4.15 Must have a dedicated air free

supply.

4.16 Pump must be sited as close to

the water source as possible and

never more than 4 metres away.

4.17 Do not connect this pump to the

mains supply.

HOT WATER INSTALLATION

4.18 Must have a dedicated air free supply.

4.19 Pump must be sited as close to the

water source as possible and never

more than 4 metres away.

4.20 The preferred pump location is below

the hot water take off.

4.21 However if the pump can not be located

below the hot stored water take off the

following must be adhered too:

zWater supply must be by side flange.

zThe pump must be located 0.5 metre

below the cold water tank.

zFrom a hot dedicated air free

connection a downward loop of

350 mm depth must be fitted before

rising directly to the pump.

Fig. 7 Cold water

pump

Static inlet pressure

Min. 0.5 m

Max. 10 m

Max. static outlet pressure

12 m

Fig. 8

Hot water

pump

Static inlet pressure

Min. 0.5 m

Max. 10 m

Static outlet pressure

12 m

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Stuart Turner Pompe à eau

Stuart Turner

Stuart Turner 46601 Mode d’emploi

Stuart Turner

Stuart Turner monsoon extra Manuel utilisateur

Stuart Turner

Stuart Turner Supersub 150VA Mode d’emploi

Stuart Turner

Stuart Turner Wasteflo Instructions d'installation et d'utilisation

Stuart Turner

Stuart Turner Monsoon Extra U1.4 bar Mode d’emploi

Stuart Turner

Stuart Turner mainsboost MBF 60-1-15 Instructions d'installation et d'utilisation

Stuart Turner

Stuart Turner FLOMATE MBF 12 Instructions d'installation et d'utilisation

Stuart Turner

Stuart Turner Flomate Mains Boost 46574 Instructions d'installation et d'utilisation

Stuart Turner

Stuart Turner Stuart SPU 130 Mini Mode d’emploi

Stuart Turner

Stuart Turner Monsoon U1.5 bar Twin Manuel utilisateur

Stuart Turner

Stuart Turner aquaboost ABP F120-30-1H-1 Mode d’emploi

Stuart Turner

Stuart Turner iBOLT 0304 3H-CMT/24 Mode d’emploi

Stuart Turner

Stuart Turner MAINSBOOST MBF Series Instructions d'installation et d'utilisation

Stuart Turner

Stuart Turner Showermate Series Manuel utilisateur

Stuart Turner

Stuart Turner Monsoon Extra S1.4 bar Mode d’emploi

Stuart Turner

Stuart Turner 28474 Manuel utilisateur

Stuart Turner

Stuart Turner AQUABOOST iMatic 0304 1S-CMT/8 450 Mode d’emploi

Stuart Turner

Stuart Turner SHOWERMATE 46534 Mode d’emploi

Stuart Turner

Stuart Turner Mainboost MJ3 VM Mode d’emploi

Stuart Turner

Stuart Turner STUART 46553 Mode d’emploi

Stuart Turner

Stuart Turner Showermate U2.6 bar Single Mode d’emploi

Stuart Turner

Stuart Turner BOOSTAMATIC 330 Manuel utilisateur

Stuart Turner

Stuart Turner CH4-30 Manuel du propriétaire

Stuart Turner

Stuart Turner PH 35 ES Mode d’emploi

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
