Stuart Turner CH4-30 Mode d’emploi

Installation, Operation & Maintenance

Instructions

Please leave this instruction booklet with the owner as it contains important

guarantee, maintenance and safety information

Read this manual carefully before commencing installation.

This manual covers the following products suitable for 220/1/60 supply.

CE compliant product

Multistage CH 4–30

Pt. No. 46643

Multistage CH 4–50

Pt. No. 46645

Multistage CH 4–40

Pt. No. 46644

Multistage CH 4–60

Pt. No. 46646

60 Hz

STUART

- 2 –

Cont ...

Arabic Installation Operation & Maintenance Instructions ................... 25

English (GB) Installation Operation & Maintenance Instructions .............. 2

PRODUCT DESCRIPTION

Electric motor driven centrifugal pump.

APPLICATION

These self priming centrifugal pumps are designed to pump clean fresh water and can

be used for pressure boosting, fluid transfer and distribution.

Inlet pressures to the pump and ambient temperatures must not exceed the values

given in the technical specifications.

STORAGE

If this product is not to be installed immediately on receipt, ensure that it is stored in a

dry, frost and vibration free location in its original packaging.

CONTENTS Page

Checklist ...........................................................5

Important Facts – read before commencing installation ......................6

Location ............................................................7

Electrical Installation ..................................................8

Plumbing ...........................................................10

Technical Specification ................................................11

Trouble Shooting .....................................................12

Guarantee ..........................................................13

- 3 –

Cont ...

WARNINGS:

zThis pump set must not be used for any other

application without the written consent of Stuart

Turner Limited.

zDo not connect this pump to the mains water supply.

zThis appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given

supervision or instruction concerning use of the

appliance in a safe way and understand the hazards

involved.

zChildren shall not play with the appliance.

zCleaning and user maintenance shall not be made by

children without supervision.

zMaximum head (closed valve) CH 4–30 – 27 metres,

CH 4–40 – 42 metres, CH 4–50 – 56 metres,

CH 4–60 – 74 metres.

zThe motor casing can become very hot under normal

operating conditions. Care must be taken to ensure it

cannot be touched during operation.

zThe electrical installation must be carried out

in accordance with the current national electrical

regulations.

zThe electrical installation must be installed by a

qualified person.

zIn the interests of electrical safety a 30 mA residual

current device (R.C.D. not supplied) should be

installed in the supply circuit. This may be part of a

consumer unit or a separate unit.

zBefore starting work on the electrical supply ensure

power supply is isolated.

- 4 –

Cont ...

zDo not allow the supply cord to contact hot

surfaces, including the motor shell, pump body or

pipework. The cord should be safely routed and

secured by cable clips.

zThis appliance must be earthed via the supply cord,

which must be correctly connected to the earth

point located in the terminal box.

zThe supply cord and internal wiring within the

terminal box are routed and secured to ensure

compliance with the electrical standard

IEC 60335–1. It is essential that prior to any

disturbance of this internal wiring, all cable routing

and securing details are carefully noted to ensure

re-assembly to the same factory pattern is always

maintained.

zIf the supply cord is to be changed or is damaged, it

must be replaced with a special cord assembly

available from Stuart Turner or one of their approved

repairers.

Please read installation details carefully as they are intended to ensure this product

provides long, trouble free service. Failure to install the unit in accordance with the

installation instructions will lead to invalidation of the warranty.

- 5 –

Cont ...

CHECKLIST

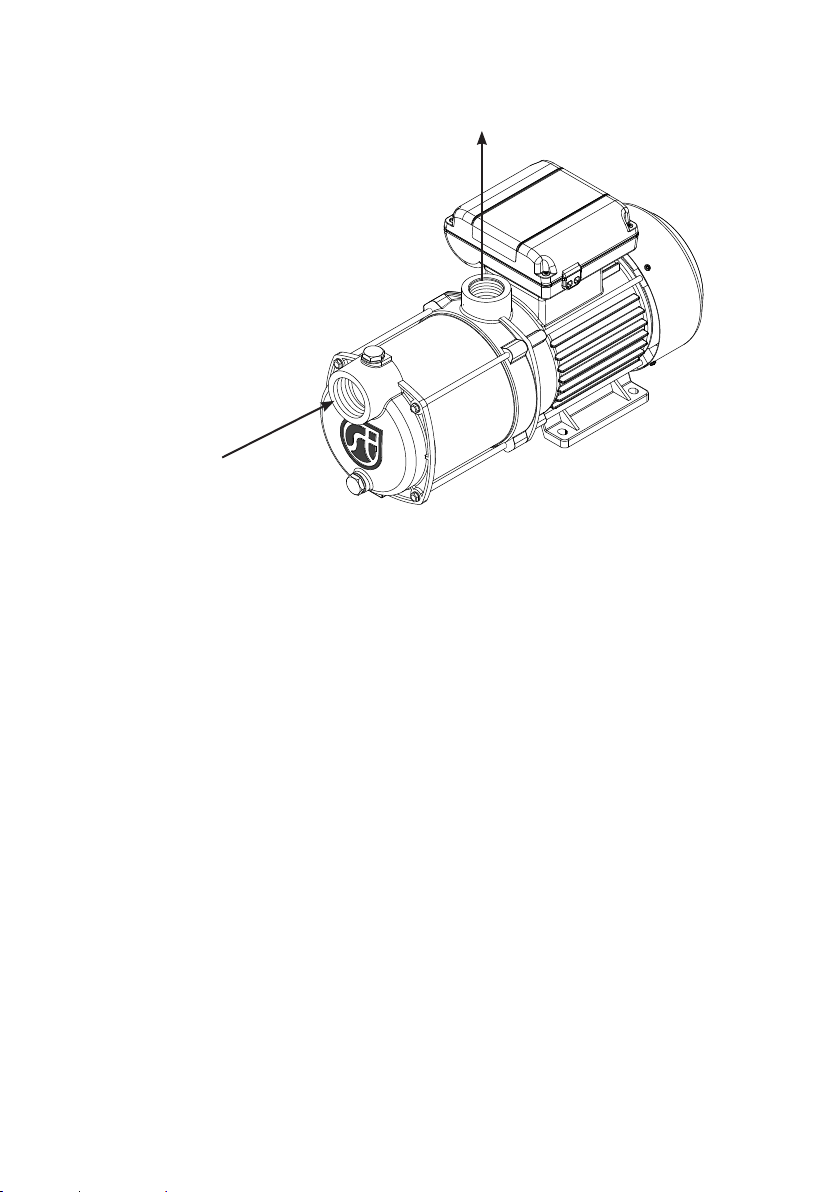

Your product may vary slightly from the picture above.

Fig. 1

IMPORTANT: With the pump

removed from its packaging

check for any damage prior to

installation. If any damage is

found contact Stuart Turner Ltd

within 24 hours of receipt.

Outlet port

Inlet port

- 6 –

Cont ...

1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION

A Water storage capacity.

1.11 The water storage capacity must be sufficient to meet the flow rates required

by the pumped equipment and any other water using fittings and appliances,

which may be operated simultaneously. DO NOT RUN PUMP DRY.

1.12 Ensure the pump is primed as described in the priming section before

starting, damage to the shaft seal will result otherwise. See Section 4 –

Plumbing.

B Water temperature

The water entering the pump must be controlled as follows:

1.13 The maximum allowable water temperature is 65 oC.

1.14 The minimum allowable water temperature is 4 oC.

1.15 Ambient temperature: The pump must be sited in a location where the

maximum ambient temperature does not exceed 50 oC (55 oC CH 4–50 only).

1.16 DO NOT fit a pump if the hot water is heated via a method whereby the water

temperature cannot be controlled, such as solar or solid fuel you must consult

the TechAssist team on +44 (0) 800 31 969 80.

C Pipework – general

1.17 Pipework design: Care should be taken in the design of pipework runs to

minimize the risk of air locks e.g. use drawn bends rather than 90obends.

1.18 DO NOT allow contact with oil or cellulose based paints, paint thinners

or strippers, acid based descalents or aggressive cleaning agents.

D Plumbing installation regulations

1.19 The plumbing installation must be installed by a qualified person and in

accordance with local regulations.

E Electrical/installation regulations

1.20 Check the mains voltage and frequency corresponds to the values on the

pump rating plate.

- 7 –

Cont ...

2 LOCATION  GENERAL

2.11 Access: For emergencies and maintenance the pump must be

easily accessible.

2.12 Protection: The pump must be located in a dry position, frost free

and protected from freezing.

2.13 Ventilation: Ensure an adequate air flow to cool the pump.

Separate the pump from other appliances that generate heat. An

80 mm (3 “) air gap must be maintained around the pump.

2.14 Safety: The motor casing can become very hot under normal

operating conditions. Care must be taken to ensure it cannot be

touched during operation.

2.15 Water retention: Site the pump in a location where in the unlikely

event of a water leak, any spillage is contained or routed to avoid

electrics or areas sensitive to water damage.

2.16 Pump position: The pump must be positioned on its mounting feet and as

close to the water source as possible.

2.17 Mounting foot securing: This pump is fitted with cast feet. If there is a

requirement to secure the pump via the feet, the following points should be

noted.

The pump should be mounted on a horizontal surface only, with the outlet

facing vertically upwards.

The mounting bolts used to secure the pump must be fitted with a plain

washer to distribute clamping load evenly across load bearing face of foot

(not supplied).

Fig. 2

PLAIN

WASHER

MOUNTING

FOOT

BOLT

Fig. 3

- 8 –

3 ELECTRICAL INSTALLATION  EARTHING

3.11 Regulations: The electrical installation must be carried out in

accordance with the current local regulations by a qualified person.

3.12 Safety: In the interests of electrical safety a 30 mA residual current

device (R.C.D. not supplied) should be installed in the supply circuit.

This may be part of a consumer unit or a separate unit.

3.13 Before starting work on the electrical supply ensure power supply is

isolated.

3.14 DO NOT allow the supply cord to contact hot surfaces, including the

motor shell, pump body or pipework. The cord should be safely

routed and secured by cable clips.

3.15 Earthing: This appliance must be earthed via the supply cord, which must be

correctly connected to the earth point located in the terminal box.

3.16 Connections: The pump must be permanently connected to the fixed wiring

of the mains supply using the factory fitted supply cord, via a dedicated

double pole switched fused spur off the ring main.

3.17 Wiring of connection unit:

WARNING: This appliance must be earthed.

The wires in the mains lead (supply cord) are coloured in accordance with the

following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this appliance may not

correspond with the coloured markings identifying the terminals in your

connection unit proceed as follows:

zThe wire which is coloured green and yellow must be connected to the

terminal in the connection unit which is marked with the letter E or by the

earth symbol: or coloured green or green and yellow.

zThe wire which is coloured blue must be connected to the terminal which

is marked with the letter N or coloured black.

zThe wire which is coloured brown must be connected to the terminal

which is marked with the letter L or coloured red.

- 9 –

Cont ...

3.18 Wiring diagram:

Fig. 5

3.19 Fuse: CH 4–30, 40, 50 use a 13 Amp fuse, CH 4–60 should use a 16 Amp fuse.

3.20 Supply cord replacement:

The internal wiring within the terminal box is routed and secured

to ensure compliance with the electrical standard IEC 60335–1. It

is essential that prior to any disturbance of this internal wiring, all

cable routing and securing details are carefully noted to ensure re-

assembly to the same factory pattern is always maintained.

3.21 If the supply cord is to be changed or damaged, it must be replaced by a

special cord available from Stuart Turner or one of its approved repairers.

3.22 Cable Gland Fitting Instructions:

To enable correct assembly of the cable gland the

‘O’-ring (Fig. 5 item 1) must be placed over the cable

before the clamping insert (Fig. 5 item 2) can be

tightened.

Note: Cable diameter range:- 9.2 mm to 11.9 mm.

3.23 Supply Cord Extension:

The pumps are fitted with a supply cord to the

following specification:-

All models ..............HO7RN-F3 G 1.5 mm – 10 Amp rated cable.

If the supply cord is to be extended, a cord of the same specification should

be used. Any connections or junction boxes used should be specifically

suited for the application and installed in accordance with the manufacturers

instructions.

220 VAC/1PH/60Hz SUPPLY

L N E

BROWN

BLUE

GREEN/YELLOW

RED

BLACK

CAPACITOR

MOTOR

RED

YELLOW

Fig. 4

- 10 –

We recommend the use of a footvalve and strainer when a suction lift is

required, to reduce priming time.

4.14 System flushing: The pipework system should be flushed out

prior to the pump being connected to ensure any contaminants/

chemical residues and foreign bodies are removed from elsewhere

in the system.

4.15 Priming:

Never operate pump with inlet and/or outlet isolating valves in the

closed position. Damage will occur!

The pump must be primed (filled with water) before starting.

4.16 Turn on the isolating valves.

(a) Loosen vent plug and allow an even flow of water this may take a

few seconds.

(b) Re-seal vent plug, nipping tight.

The pump is now ready to start.

4 PLUMBING

4.11 Pipework: For optimum performance pipework use 28 mm dia., 22 mm can be

used but will result in reduced pump performance.

4.12 Isolating valves: Separate isolating valves (non restrictive) must be fitted to

allow easy pump service.

4.13 This pump has a self priming ability once filled with water. It can therefore be

used to draw water from a storage tank either above or below the pump

position.

switch off and repeat priming process.

4.17 Maintenance:

This product is maintenance free for its life, however it is a mechanical

product and will eventually show signs of wear. Spare parts are available, for

more information phone the Stuart Turner TechAssist team on

+44 (0) 800 31 969 80.

Fig. 7

Vent

Plug

Drain

Plug

Outlet

Inlet

Max. flooded

suction head

10 m

Fig. 6

Max. suction

lift 5 m

Min. immersion

depth 0.5 m Suction pipe run, no

greater than 10 m

Min. flooded

suction 0.5 m

Autres manuels pour CH4-30

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Stuart Turner Pompe à eau

Stuart Turner

Stuart Turner Wasteflo Instructions d'installation et d'utilisation

Stuart Turner

Stuart Turner STUART 46553 Mode d’emploi

Stuart Turner

Stuart Turner AQUABOOST iMatic 0304 1S-CMT/8 450 Mode d’emploi

Stuart Turner

Stuart Turner SHOWERMATE 46534 Mode d’emploi

Stuart Turner

Stuart Turner WASTEFLO BC3 Manuel

Stuart Turner

Stuart Turner 46647 Mode d’emploi

Stuart Turner

Stuart Turner Flomate Mains Boost 46574 Instructions d'installation et d'utilisation

Stuart Turner

Stuart Turner PH 45 TS S Mode d’emploi

Stuart Turner

Stuart Turner supersub 230a Manuel du propriétaire

Stuart Turner

Stuart Turner Monsoon Extra S1.4 bar Mode d’emploi

Stuart Turner

Stuart Turner Monsoon Extra U1.4 bar Mode d’emploi

Stuart Turner

Stuart Turner PH 45 ES Mode d’emploi

Stuart Turner

Stuart Turner monsoon extra Manuel utilisateur

Stuart Turner

Stuart Turner Jet 55-45 Mode d’emploi

Stuart Turner

Stuart Turner FLOMATE MBF 12 Instructions d'installation et d'utilisation

Stuart Turner

Stuart Turner CH 3-30 CI Mode d’emploi

Stuart Turner

Stuart Turner AQUABOOST iBolt Pump Mode d’emploi

Stuart Turner

Stuart Turner PH 35 ES Mode d’emploi

Stuart Turner

Stuart Turner Stuart SPU 130 Mini Mode d’emploi

Stuart Turner

Stuart Turner S2.0 bar Twin Mode d’emploi

Stuart Turner

Stuart Turner Showermate S2.6 bar Single Mode d’emploi

Stuart Turner

Stuart Turner CH 4-30 FL Mode d’emploi

Stuart Turner

Stuart Turner MAINSBOOST MBF Series Instructions d'installation et d'utilisation

Stuart Turner

Stuart Turner mainsboost MBF 60-1-15 Instructions d'installation et d'utilisation

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
