ENGLISH GB

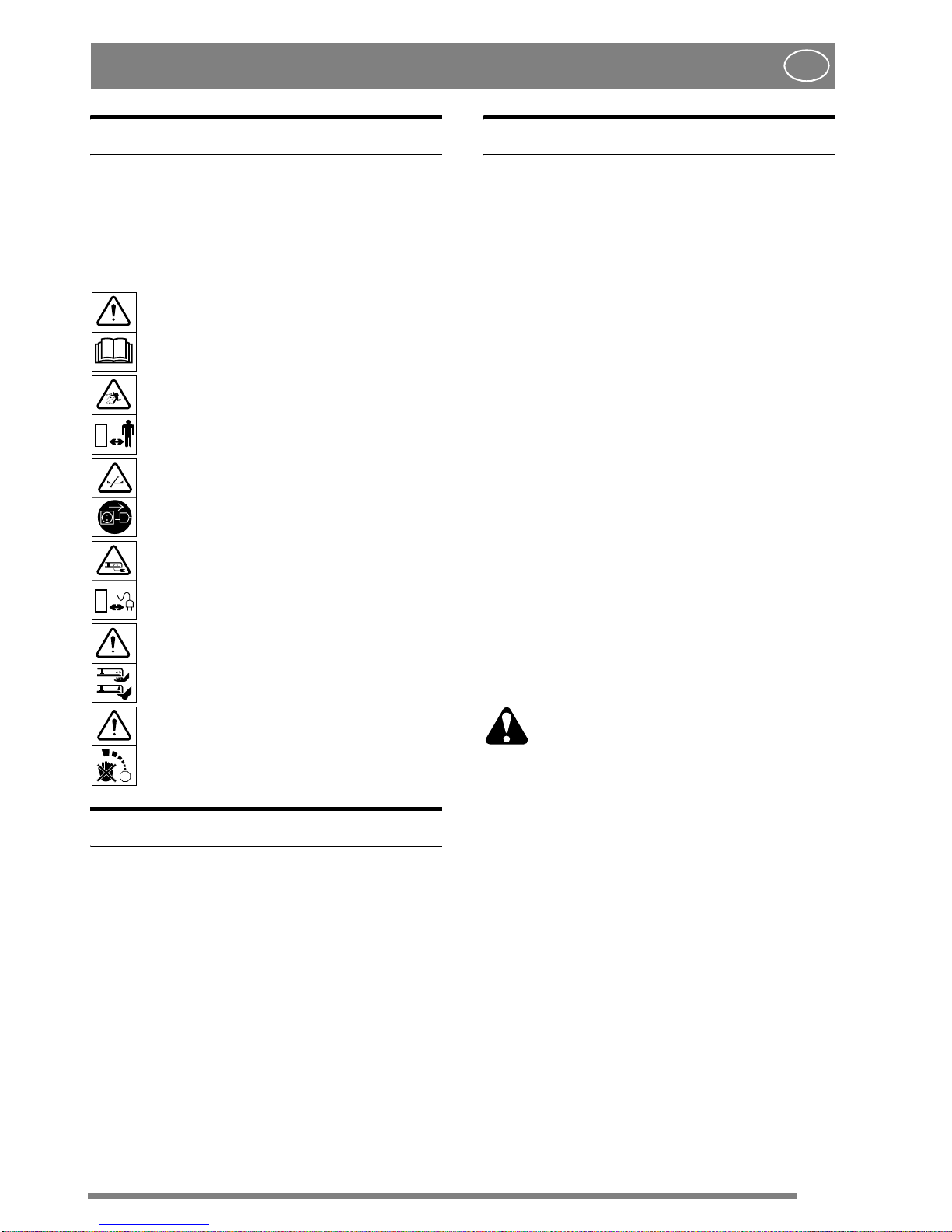

SYMBOLS

The following symbols are displayed on the ma-

chine in order to remind you about the safety pre-

cautions and attention necessary when using the

machine.

The symbols mean:

Warning! Read the Instruction Book and

Safety Manual before using the machine.

Warning! Keep spectators away. Beware of

objects being flung out.

Warning! Before starting any repair work,

disconnect the plug from the wall socket.

Warning! Keep the extension cord away

from the cutting deck.

Warning!Donotputhandsorfeetunderthe

cover of the machine when it is running.

Warning! The blades continue to rotate

even after the machine has been switched

off.

ASSEMBLING

HANDLEBAR

1. Setthehighestcuttingheight(position3,seealso

under heading “CUTTING HEIGHT”)

2. The parts used for installation of the lower sec-

tion of the steering handle are installed in a pack-

age.Removethepartsfrom thelowerholeonthe

chassis. Then fold the lower section of the steer-

ing handle up and fit the parts.NOTE that the

washer Ashould be fitted between the screw and

the plastic bushing (fig. 1).

3. Fold the upper section of the steering handle up

and tighten the lock knobs (fig. 2).

USING THE MOWER

CONNECTING

Connect the machine to an earthed, single phase

electric socket. The circuit must be protected by a

10A slow fuse.

Only use an extension cable that is approved for

outdoor use with a maximum length of 50 m. It

should not be lighter than type 245 IEC 53

(H05RR-F) or 227 IEC 53 (H05VV-F). If you are

unsure of anything, please contact your dealer.

Check thatthe extension cable isnot damaged, each

time before using the machine. The machine may

not be used if the extension cable is damaged.Re-

lievetheextensioncable intheloadreliefunitonthe

steering handle (fig. 3, 4).

We recommend that you use an earth leakage cir-

cuit breaker that will cut off the power if anything

happens to the machine or the extension lead. If

you use a portable earth leakage circuit breaker

this must be fitted between the electric socket and

the extension lead.Test the operation of the earth

leakage circuit breaker before use.

If uncertain, contact your retailer.

START/STOP OF ENGINE

Keep hands and feet well away from the

rotating blade(s). Never put your hand

or foot under the blade casing or in the

grass evacuation unit while the motor is

running.

When starting up the motor, press the handlebar to

lift the front wheels and in that way reduce the re-

sistance from the grass at the starting moment.

Do not engage and disengage the motor repeatedly

since this will build up heat because of the high cur-

rent when starting, and this could, consequently,

cause motor damages.

Press the block button 1. Start the engine by press-

ing in the start handle 2against the steering (fig. 5).

Release the start handle to stop the engine.

OVERLOADING THE ENGINE

The lawn mower has an integrated overload protec-

tor. If this trips the engine will not start. Let the en-

gine cool for 2 minutes before restarting.

If the mower still does not start, contact an author-

ised service workshop.

STOP

ENGLISH

MOWING TIPS

Always mow so the cable is laid out behind you on

the grass (fig. 6).

Never cross the cable! Should this hap-

pen by accident, stop the motor, pull out

the plug and check if the cable is dam-

aged.

Before mowing the lawn, take care to remove any

stones toys and other hard objects.

A machine with MULCHER system cuts the grass,

chops it finely and then blows it down in the lawn.

The grass clippings need not to be collected.

The following rules should be observed to give

best MULCHER effect:

1. Do not cut the grass too short. Not more than 1/

3rd of the length should be cut off.

2. Always keep it clean under the mower casing.

3. Always use a well sharpened blade.

4. Avoid mowingwhen the grass is wet. The grass

then sticks to the underside of the casing, giving

poor mowing results.

CUTTING HEIGHT

Do not set the cutting height so low that

the blade/blades can hit uneven ground.

When adjusting the cutting height - al-

ways first disconnect the plug.

The cutting height can be adjusted to three posi-

tions by moving the wheel axles (fig. 7).

Position 1 = Lowest cutting height

Position3=Highestcuttingheight

CLEANING

In order to function properly the engine must be ef-

fectively cooled. This is done by a fan which sucks

in air at the air intake on the engine casing (fig. 8).

To make sure that the cooling system functions

properly the air intake must be thoroughly cleaned

if it has become blocked.

The machine should be cleaned each time after

use. For best possible mowing results it is impor-

tant that the underside of the chassis is kept clean.

Use a brush or blow with compressed air.

The machine must not be washed down with water.

MAINTENANCE

CHANGING BLADES

You must never service the motor or the lawn

mower before first shutting off the motor and pull-

ing out the plug.

Use protective gloves to prevent cuts when chang-

ing blades/knifeblades.

Blunt and damaged blades tear off the grass and

spoil the look of the lawn after mowing. New, well

sharpened blades cut the grass cleanly, so that the

lawn looks green and fresh even after mowing.

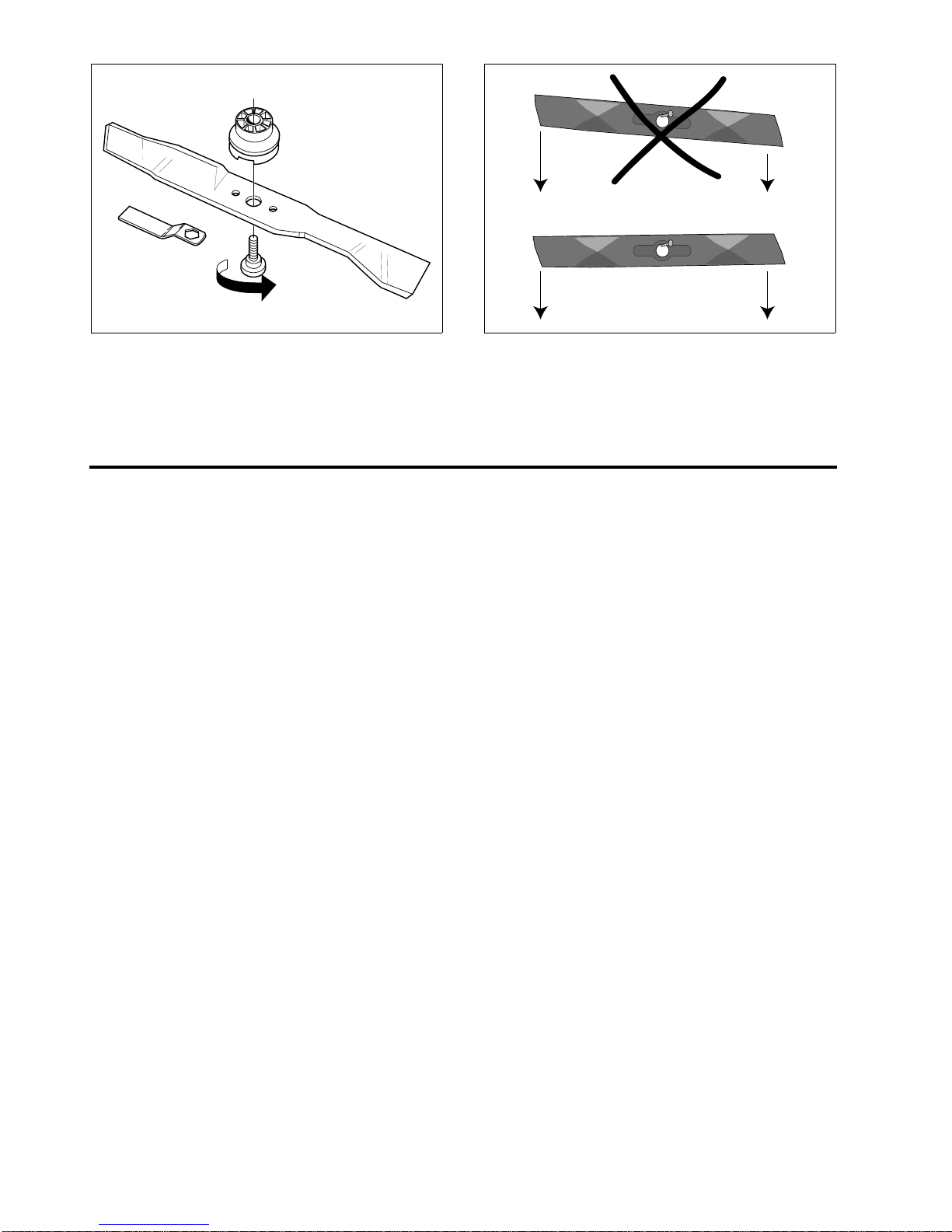

To replace the cutting blades, slacken the screw us-

ing the enclosed blade wrench. Fit the new blade

so that the punched STIGA logotype on the blade

is facing upwards towards the chassis (not down

towards the grass). Refit the screw and tighten to

20 Nm.

When replacing the blade, the blade screw should

also be replaced.

The guarantee does not cover damage to the blade,

blade holder or engine caused by running into ob-

stacles.

When replacing the blade, the blade holder and

blade screw, always use original spare parts. Non-

authentic spare parts could lead to the risk of per-

sonal injury or damage, even if they fit the ma-

chine.

SHARPENING OF THE BLADES

Sharpening of the blades must be done by wet

method grinding, using a whetstone or a grind-

stone.

For the sake of safety, the blades should not be

sharpenedonanemerywheel.Averyhightemper-

ature could cause the blade to become brittle.

Once the blade has been sharpened, it

must then be balanced so as to avoid vi-

bration damage (fig. 10).

STORAGE

Thoroughly clean the mower and store it indoors in

a dry place.
