STEP STEP-MXO2 Manuel utilisateur

STEP-MXO2

Hardware Manual

STEP FPGA

STEP

2017/2/14

STEP-MXO2 Hardware Manual

2/ 7

STEP-MXO2 Hardware Manual

CONCENTS

1．Introduction...........................................................................................................................................................3

2．Package Contents.................................................................................................................................................3

3. Layout and Components......................................................................................................................................4

3.1 Development Board Layout ...................................................................................................................4

3.2 FPGA Device .................................................................................................................................................5

3.3 Programming and Configuration.........................................................................................................5

3.4 Connecters ....................................................................................................................................................5

3.5 Display ............................................................................................................................................................5

3.6 Buttons and Switches...............................................................................................................................5

3.7 Power ..............................................................................................................................................................5

4．Block Diagram of Board ....................................................................................................................................6

5．Pins Assignments.................................................................................................................................................7

6．Version......................................................................................................................................................................7

STEP-MXO2 Hardware Manual

3/ 7

1．Introduction

The STEP-MXO2 development board presents a robust, portable and easy-to-learn hardware

design platform built around the Lattice MachXO2 4000HC FPGA.

This board currently features the MachXO2-4000HC FPGA which offers embedded Flash

technology for instanton, non-volatile operation in a single chip. Numerous system functions

are included, such as two PLLs and 10 Kbits of embedded RAM plus hardened

implementations of I2C, and user Flash memory.

The STEP MXO2 FPGA development board includes hardware such as on-board JTAG

Programmer, 7-Segment Displays, LEDs, GPIOs and much more. By leveraging all of these

capabilities, the STEP MXO2 FPGA development board is the perfect solution for learning

FPGA, evaluating and prototyping the true potential of the MXO2 FPGA.

2．Package Contents

Figure 1 shows a photograph of the STEP-MXO2 package.

Figure 1 The STEP MXO2 Package contents

The STEP MXO2 package includes:

1.The STEP MXO2 FPGA Development Board

2.Product Packing Box

3.Quick Start Manual

STEP-MXO2 Hardware Manual

4/ 7

3. Layout and Components

3.1 Development Board Layout

This section presents the features and design characteristics of the board.

A photograph of the board is shown in Figure 2 and Figure 3. It depicts the layout of the

board and indicates the location of the connectors and key components.

Figure 2 Development Board (top view)

Figure 3 Development Board (bottom view)

This board has many features that allow users to implement a wide range of designed

circuits, from simple circuits to various creative projects.

STEP-MXO2 Hardware Manual

5/ 7

3.2 FPGA Device

Version

MachXO2 4000HC

Series

MachXO2

Density LUTs

4320

EBR SRAM(Kbits)

Dist. SRAM(Kbits)

User Flash Memory(Kbits)

PLL

DDR/DDR2/LPDDR

Memory Support

YES

3.3 Programming and Configuration

· On-Board JTAG Programmer(Normal Micro-USB connector)

3.4 Connecters

· 36 GPIO Header

3.5 Display

· 7-Segment Display ×2

· User LEDs ×8

· RGB LEDs ×2

3.6 Buttons and Switches

· Buttons ×4

· Switches ×4

3.7 Power

· 5V DC input from Micro-USB.

STEP-MXO2 Hardware Manual

6/ 7

4．Block Diagram of Board

Figure 4 gives the block diagram of the board. To provide maximum flexibility for the user, all

connections are made through the MachXO2 4000HC FPGA device. Thus, the user can

configure the FPGA to implement any system design.

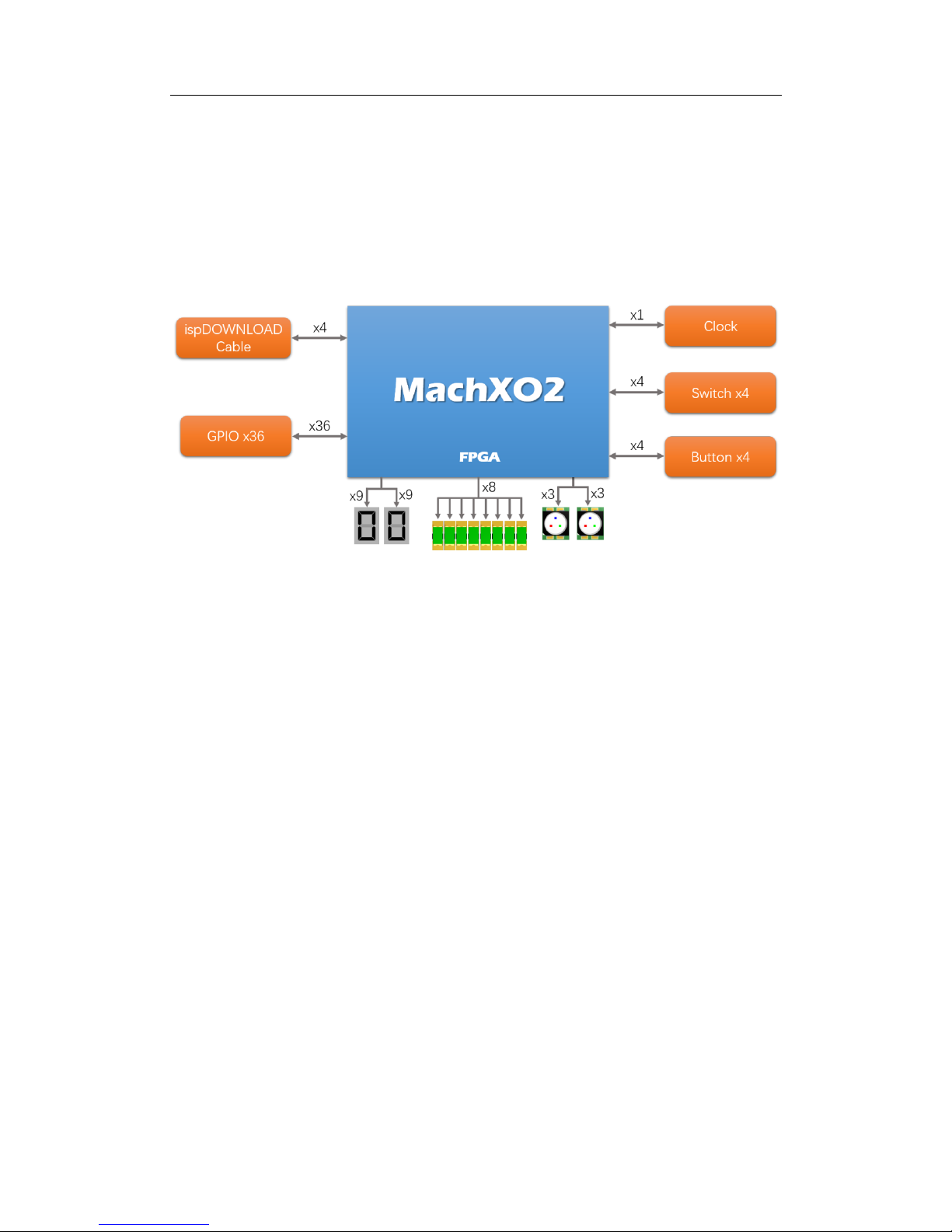

Figure 4 Board Block Diagram

STEP-MXO2 Hardware Manual

7/ 7

5．Pins Assignments

STEP

PINs

FPGA

PINs

STEP

PINs

FPGA

PINs

Digital

Display1

FPGA

PINs

12M

CLOCK

FPGA PINs

3.3V

VBUS

SEG-A1

A10

PCLK

SCL

GPIO29

E12

SEG-B1

C11

LED

FPGA PINs

SDA

GPIO28

F12

SEG-C1

LED1

N13

GPIO0

GPIO27

G12

SEG-D1

LED2

M12

GPIO1

GPIO26

F13

SEG-E1

LED3

P12

GPIO2

GPIO25

F14

SEG-F1

LED4

M11

GPIO3

GPIO24

G13

SEG-G1

LED5

P11

GPIO4

GPIO23

G14

SEG-DP1

LED6

N10

GPIO5

GPIO22

H12

SEG-DIG1

LED7

GPIO6

GPIO21

J13

Digital

Display2

FPGA

PINs

LED8

GPIO7

GPIO20

J14

Switch

FPGA PINs

GPIO8

GPIO19

K12

SEG-A2

C12

SW1

GPIO9

GPIO18

K14

SEG-B2

B14

SW2

GPIO10

GPIO17

K13

SEG-C2

SW3

GPIO11

GPIO16

J12

SEG-D2

SW4

M10

GPIO12

SEG-E2

Button

FPGA PINs

GPIO13

SCK

SEG-F2

B12

KEY1

L14

GPIO14

SEG-G2

A11

KEY2

M13

GPIO15

P13

SEG-DP2

KEY3

M14

GND

SEG-DIG2

A12

KEY4

N14

RGBLED1

RGBLED2

FPGA PINs

6．Version

Version number

Date

Comments

1.0

2017/2/14

Initial Revision
