Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have been caused in transit.
Instruction Manual
60CM UPRIGHT FREEZER
TF170LWE
Serial Number:
CONTENTS
Important Safety Instructions ............... 3-5
Specication .............................................. 6
Appliance Overview................................... 7
Installation.............................................
-12
Operating Instructions
.......................
13-14
Cleaning and Maintenance................
15-16
Plug Fuse Replacement..........................
16
Troubleshooting Guide............................
17
Disposal Information...............................
18
9
Temperature Setting .................................
8
3
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all of the instructions even if you feel you
are familiar with the product and nd a place to keep this
manual handy for future reference.
Important: This product is intended for domestic use only,
and for food storage only. When using electrical appliances,
basic safety precautions should always be followed:
• Do not operate the appliance with a damaged cord or plug,
after it malfunctions or has been dropped or damaged
in any way. All electrical repairs must be carried out by
aqualiedelectrician.Inadequaterepairsmayresultin
a major source of danger for the user and invalidate the
warranty.
• Check the voltage of the appliance (which is located on the
rating label) matches the household voltage.
• Use of an extension cord is not recommended with this
product.
• This appliance should only be used by adults.
• Cleaning and user maintenance shall not be made by
children
• Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
• Keep all packaging well away from children, due to the risk
ofsuocation.
• This appliance cannot be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge.
• Always unplug the appliance before attempting to move
it. When disconnecting from the electricity supply, pull the
plug and not the cord.
• This product is for indoor use only.
• Do not store explosive substances such as aerosol cans
4
withaammablepropellant,inthisappliance.
• Always keep the ventilation openings clear of obstruction.
Should they become blocked, clear them straight away.
• TherefrigerantofthisproductisR600awhichisammable.
Ensure when moving the appliance or during installation
that the cooling system does not get damaged.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: The appliance is heavy and care is needed
when unpacking and moving. Get extra help and only
hold the appliance by the casing – never hold by the
door or the trim.
WARNING: Risk of child entrapment.
Before disposal of the old appliance, make sure that
anylockingmechanismshavebeenbrokeno,doors
have been removed but shelves have been left in so that
children cannot easily climb inside. Also remove the plug
so the appliance is unusable.
• Any electrical components (plug, power cord, compressor
etc.)mustbereplacedbyaqualiedelectrician.
• Thelightbulbsuppliedwiththisapplianceisspecictothe
appliance and not usable for domestic lighting.
• Do not touch the light bulb if it has been on because it
could be very hot.
• The refrigerant isobutane (R600a) is contained within the
refrigerantcircuitoftheappliance,whichisammable.
• Avoidopenamesandsourcesofignition
• Thoroughly ventilate the room in which the appliance is
situated
• Itisdangeroustoalterthespecicationsormodifythis
product in any way. Any damage to the cord may cause a
shortcircuit,reand/orelectricshock.
5
•
This appliance is intended to be used in household and
similar environments such as:
•
Sta
kitchen
areas
in
shops,
oces
and
other
working
environments
•
Farm houses and by clients in hotels, motels and other
residential type environments
•
Bed and breakfast type environments
•
Catering and similar non-retail environments
•
Make sure that the power plug is not squashed or
damaged by the back of the appliance. A squashed or
damaged
power
plug
may
overheat
and
cause
a
re.
•
Make sure that you have easy access to the mains plug of
the appliance at all times.
•
If
the
power
plug
socket
is
loose,
do
not
insert
the
power
plug.
There
is
a
risk
of
electric
shock
or
re.
•
Do not remove or touch items from the freezer
compartment
if
your
hands
are
damp/wet,
as
this
could
cause
skin
abrasions
or
frost/freezer
burns.
•
Avoid prolonged exposure of the appliance to direct
sunlight.
•
Do not put anything hot on the plastic parts in the
appliance.
•
Do not place food products directly against the rear wall.
•
Frozen foods must not be re-frozen once they have been
thawed out.
•
Store pre-packed frozen food in accordance with the
frozen food manufacturer’s instructions.
•
Do
not
place
carbonated
or
zzy
drinks
in
the
freezer
compartment as it creates pressure on the container,
which may cause it to explode, resulting in damage to the
appliance.
The refrigerating appliance is not intended to be used as
a built-in appliance, unless specifically shown as such
into its instruction manual.
The drawers, baskets and shelves should be kept in their
current position unless otherwise specified in this
document.
•
•
6
Brand Statesman
Model Number TF170LWE
Category Type Upright Freezer
EnergyEciencyClass F
AnnualEnergyConsumption
267
kWh/annum
FreezingCapacity 11kg/24hr
FridgeStorageVolume(Litre) N/A
Freezer Storage Volume (Litre) 242
Applicable Star Rating of Freezer Compartment 4*
Refrigeration System (Frost Free, Static, Total No Frost) Static
Temperature Rise Time 12 Hours
Climate Class N, ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C
Noise Emission (dB) 40
Built-inappliance N/A
Voltage (V) 220~240V
Wattage Power (W) 100W
Frequency (Hz) 50Hz
Ambient Room Temperature Limits
Install
this
appliance
at
a
location
where
the
ambient
temperature
corresponds
to
the climate class indicated on the rating plate of the appliance:
for refrigerating appliances with climate class:
-extended temperate: this refrigerating appliance is intended to be used at
ambient temperatures ranging from 10 °C to 32 °C; (SN)
-temperate: this refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 32 °C;(N)
-subtropical: this refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 38 °C;(ST)
-tropical: this refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 43°C;(T)
SPECIFICATION
Specications
are
measured
according
to
below
standards:
ER Directive
2009/125/EC,
EU2017/1369,
EU
2019/2016,
EU2019/2019:
EN52552-1/-2/-3:
2020
P
IMPORTANT NOTE:
Technical
specications
may
be
changed
without
prior
notice to improve the quality of the product.
7

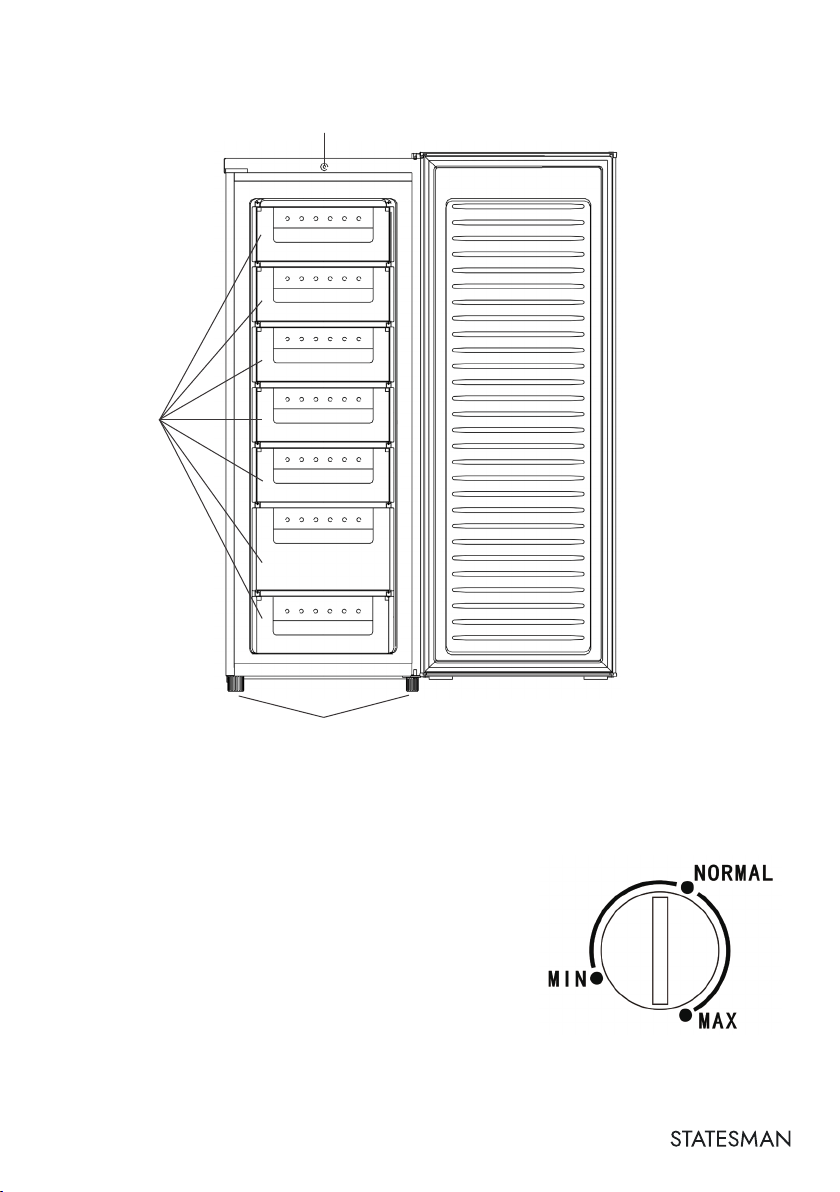

Thermostat Knob
APPLIANCE OVERVIEW
Drawers
Levelling feet
Note: Above picture is for reference only
Temperature Setting
• Plug in your appliance. The internal temperature
is controlled by a thermostat. There are 3 settings:
MIN, NORMAL and MAX. MIN is the warmest
setting and MAX is the coldest setting.
• The appliance may not operate at the correct
temperature if it is in a particularly hot environment
or if you open the door often.

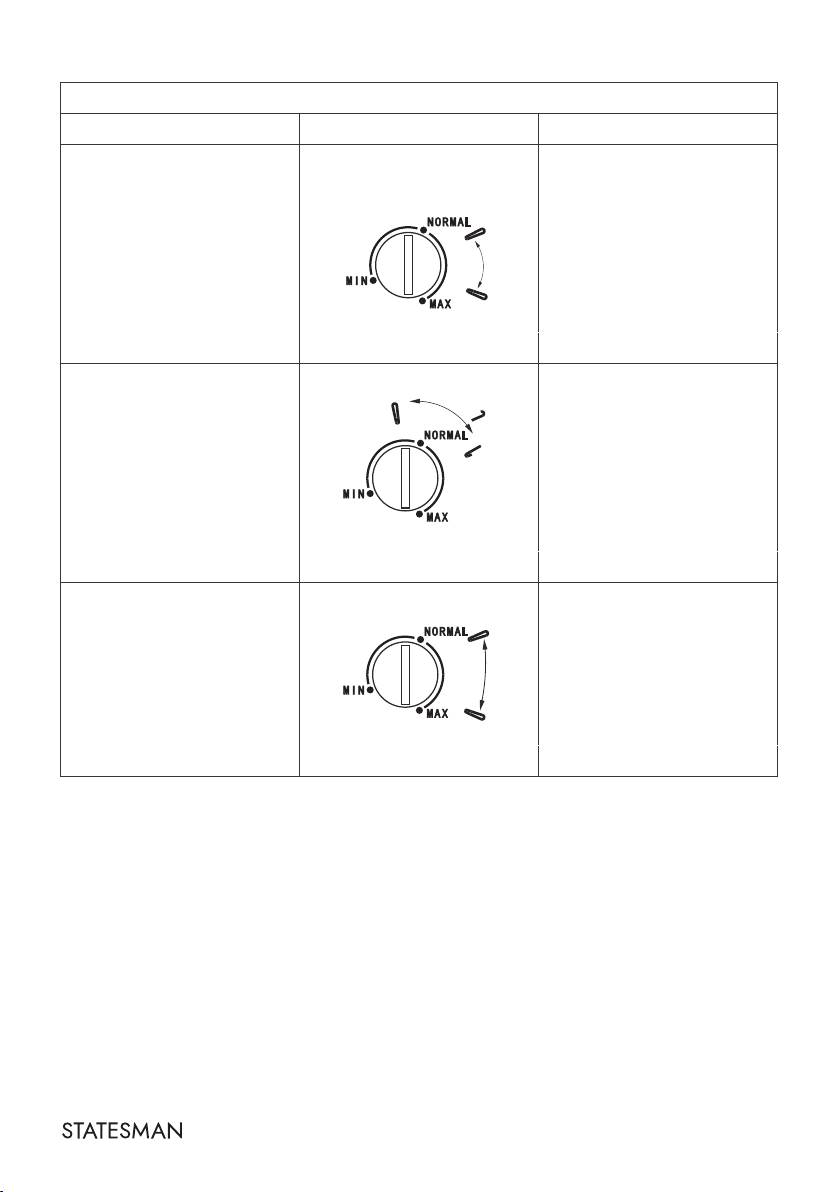

Temperature
Temperature Setting Recommendation
Environment Temperature Freezer Compartment Fridge Compartment
/
/
Summer
(Above 38°C)
Normal
Winter
(Below 16°C)
/
8
INSTALLATION

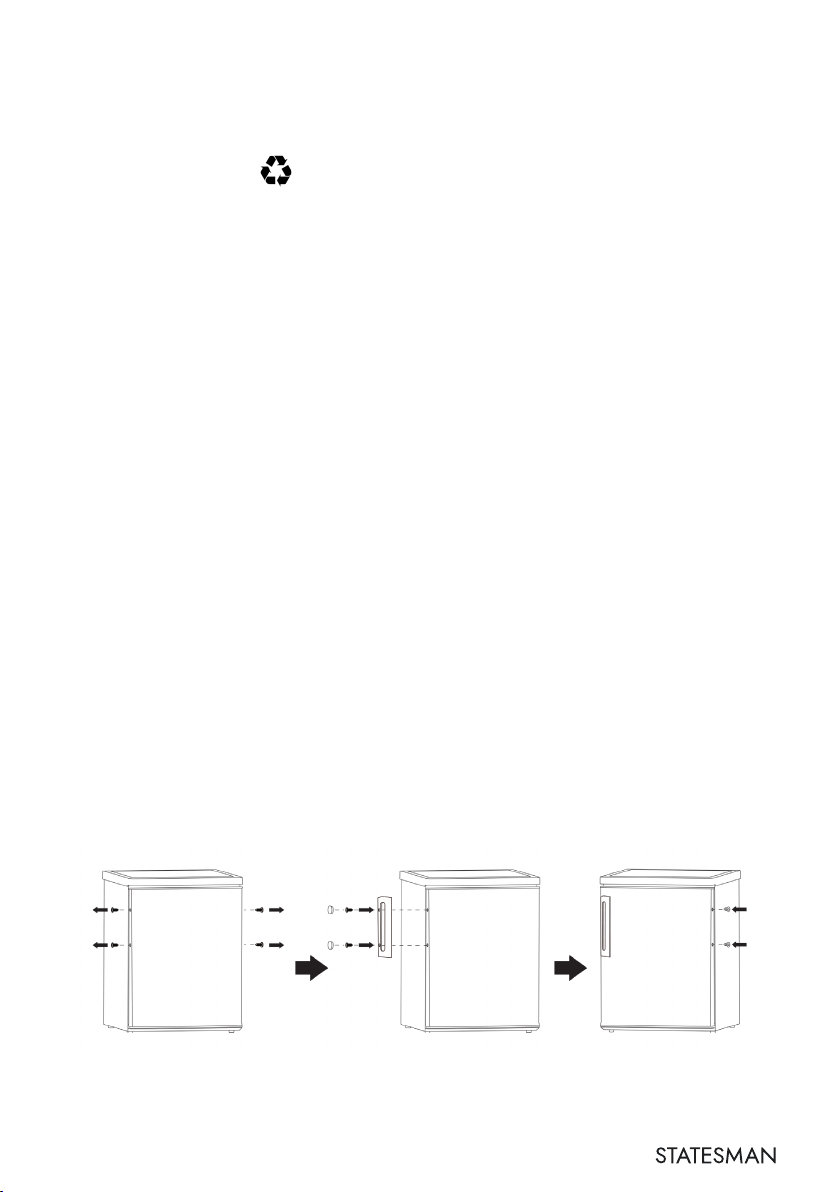

Install External Door Handle
Packaging Materials
The materials with the symbol are recyclable. Dispose of the packaging in a
suitable collection container to recycle it.
Disposal Of The Appliance
1. Disconnect the mains plug from the mains socket.
2. Cutothemainscableanddiscardit.
3. Makesurethatanylockingmechanismshavebeenbrokeno,doorshave
been removed but shelves have been left in so that children cannot easily
climb inside.
Unpacking
• Unpack the appliance and check if there are damages on it. Do not connect
the appliance if it is damaged. Report possible damages immediately to the
placeyouboughtit.Inthatcaseretainpacking.
• Itisadvisabletowaitatleastfourhoursbeforeconnectingtheapplianceto
allowtheoiltoowbackintothecompressor.
• Adequate air circulation should be allowed around the appliance, failure to do
this can lead to overheating.
• Wherever possible the spacers of the product should be against a wall to
avoid touching or catching warm parts (compressor, condenser) to prevent
possible burns.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the
appliance.
