StarTech.com ST3300U3S Instructions d'installation

Manual Revision: 06/13/2013

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

ST3300U3S

3 Port SuperSpeed USB 3.0 Hub with

1x Gigabit Ethernet Port

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................3

Driver Installation...................................................................................................................................... 3

Verifying Installation................................................................................................................................ 4

Specications..........................................................................................5

Technical Support ..................................................................................6

Warranty Information............................................................................6

Instruction Manual

Introduction

The ST3300U3S SuperSpeed USB 3.0 Hub with Gigabit Ethernet adapter allows you

to add 3 additional USB 3.0 ports and a RJ45 Gigabit Ethernet port through a single

SuperSpeed USB 3.0 connection to the host comptuer system.

With Gigabit Ethernet NIC support, connect to your home or oce network at full

bandwidth, with support for 10/100/1000Mbps networks, unlike USB 2.0 adapters.

Backwards compatible with USB 2.0 and USB 1.x standards, this USB 3.0 Hub with

Gigabit Ethernet will still support older USB devices and can also be used in an older

system that does not have USB 3.0 ports (speed limited by USB bus).

With the capability to mix and match USB 3.0/2.0/1.x devices and be used with or

without the included external power adapter, this hub oers the best of versatility

and portability.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Contents

• 1x USB 3.0 Hub

• 1x Micro USB 3.0 Cable

• 1x Universal Power Adapter

• 3x Power Adapter Plug (NA/ UK/ EU)

• 1x Driver CD

• 1x Instruction Manual

System Requirements

• Computer system with an available USB port

• Microsoft® Windows® XP (32/64-bit)/Server 2003 (32/64-bit)/Vista (32/64-bit)/Server

2008 R2/7 (32/64-bit)/8 (32/64-bit), or Mac OS X® (up to 10.8), or Linux® kernel 2.6.14

~ 3.5.0

• Available AC power outlet (optional)

Instruction Manual

USB 3.0 A

USB 3.0

micro B

Power

RJ45 Gigabit

Ethernet

Blue:

Power Green: Network

Link (Solid)

Green: Activity

(Blinking)

Instruction Manual

Installation

1. Connect the included power adapter to the USB hub. The power LED should light

up solid.

NOTE: Supplying external power is optional, however to ensure each USB port is

fully powered, connecting external power is recommended.

2. Connect an Ethernet cable into the RJ45 port on the USB Hub. Connect the other

end into your router, switch, or other networking device.

3. Connect the supplied USB cable from the USB hub (Micro B port) to a USB port on

the host computer system.

NOTE: If connected to a USB 2.0 host port, the hub will only operate at

USB 2.0 speeds.

4. The host computer’s operating system should detect the hub immediately and

automatically install the USB drivers.

5. Once installation is complete, USB 1.x/2.0/3.0 devices should be able to be

connected to the hub and recognized.

Driver Installation

NOTE: The drivers for the USB Hub will be automatically installed by the host

computer’s operating system. Only the driver for the Ethernet port needs to

be installed.

Windows

1. Insert the provided CD into your CD-ROM drive.

2. At the Windows desktop click Start, then Run.

3. Type D:\LAN\AX88179\Windows\AX88179_Setup.exe, then click OK. (Change D: to

match your CD-ROM drive letter)

4. Follow the instructions on screen to install the driver.

Instruction Manual

Verifying Installation

Windows

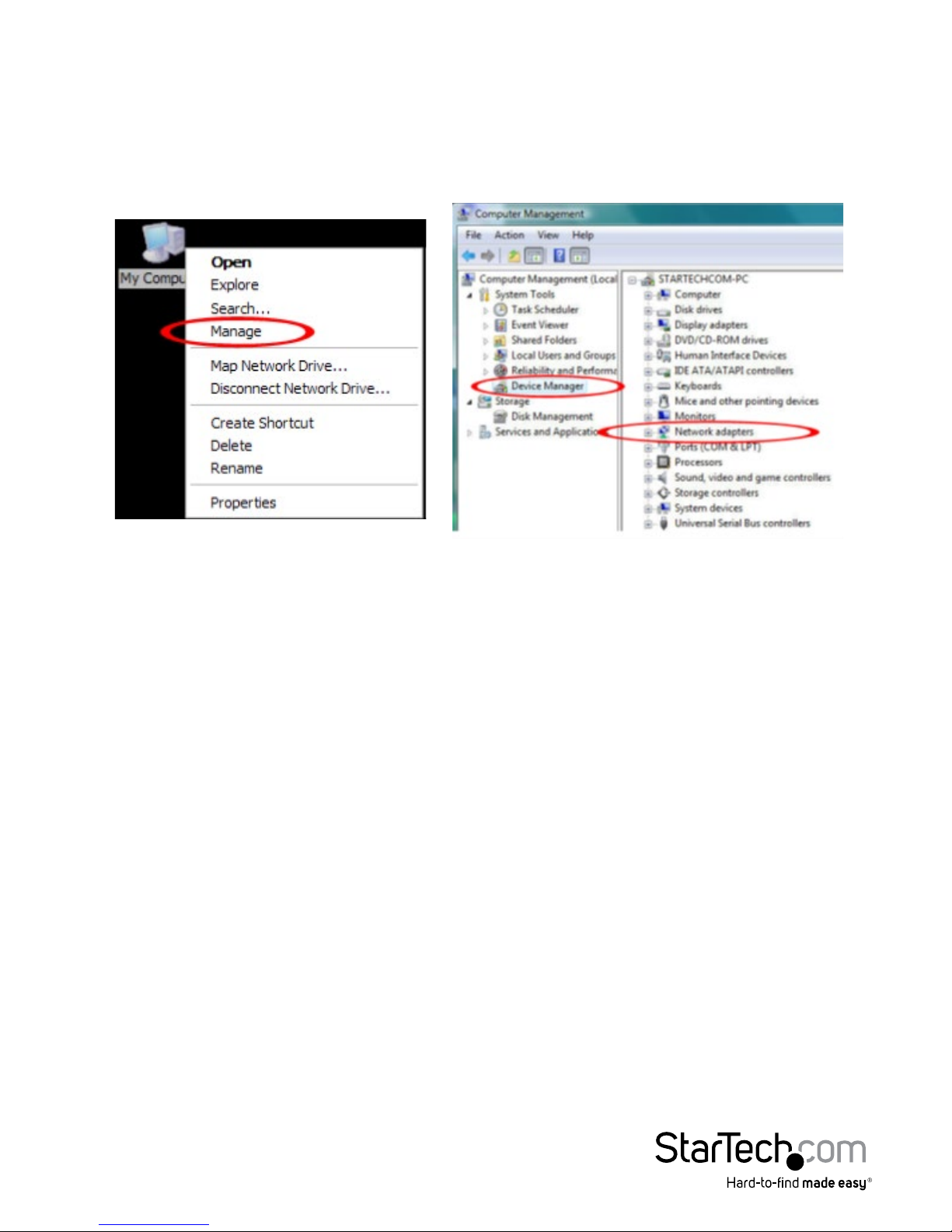

1. From the main desktop, right-click on “My Computer” (“Computer” in Vista/7/8), then

select Manage. In the new Computer Management window, select Device Manager

from the left window panel.

2. Under the “Network adapters” heading, there should be a new listing for “ASIX

AX88179 USB 3.0 to Gigabit Ethernet Adapter.”

3. Under the “Universal Serial Bus controllers” heading, there should be new listings for

the USB hub.

Instruction Manual

Specications

Bus Interface USB 3.0

Number of Ports 3 x USB 3.0

1 x Gigabit Ethernet

Chipset ID ASIX AX88179 + VIA VL811

Connectors

3 x USB 3.0 type A female

1 x USB 3.0 type micro B female

1 x RJ45 Ethernet female

1 x DC Power

LEDs

1 x Blue: Power

1 x Green: Network Link (solid) / Activity

(blinking)

Maximum Data Transfer Rate 5Gbps (USB 3.0)

1Gbps (Ethernet)

Enclosure Material Plastic

Power Adapter 5v DC, 2000mA, type M plug, center

tip positive

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)

Humidity 5% ~ 85% RH

Dimensions (LxWxH) 75mm x 55mm x 15mm

Weight 75g

Compatible Operating Systems

Windows XP(32/64-bit)/ Vista(32/64-bit)/

Server 2003(32/64-bit)/ 7(32/64-bit)/

8(32/64-bit)/ Server 2008 R2,

Mac OS (tested up to 10.8), Linux kernel

2.6.14 ~ 3.5.0

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
