StarTech.com 35BAYFWUSB Manuel

2 Firewire 4 USB 3.5 Bay

Front Panel Hub

35BAYFWUSB

Instruction Guide

The Professionals’ Source For Hard-to-Find Computer Parts

USB HUB

* Actual product may vary from photo

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Introduction

Tired of the hassle and inconvenience of connecting your favorite USB and FireWire

device to the back of your PC? Then the StarTech.com 35BAYFWUSB FireWire/USB 3.5”

internal bay hub device is the right product for you. It has a unique panel design that

allows it to be simply inserted into a front 3.5" bay, giving easy access to four USB and

two IEEE 1394 FireWire ports. Up to 127 USB devices (including mouse, keyboard,

joystick, camera, scanner, printer etc) and up to 63 FireWire IEEE 1394 devices

(including hard drive, DV camera, printer etc) may be connected from the front.

Features

• Four USB ports and two IEEE 1394 ports

• Easy insertion into a 3.5” front bay

• No software driver required

• Fully compatible with USB OHCI specification and USB v1.1

• Data transfer rate of 12 Mbits/sec from USB ports

• Supports up to 127 USB devices

• OHCI-Link and PHY 100/200/400 Mbits/sec from IEEE 1394 ports

• All IEEE 1394 ports provide up to 15W of power

• Supports up to 63 IEEE 1394 devices

Getting Started

This section is designed to help you prepare the 35BAYFWUSB for installation. Please

read through this section carefully before attempting to install the hub.

Unpacking the 35BAYFWUSB

This package should contain:

1 x 2 FireWire 4 USB 3.5 bay front panel hub

1 x IEEE 1394 A type cable

1 x USB A type cable

1 x Y power cable

1 x rear bay bracket

4 x small screws (for panel), 2 x medium screws (for cables) and 1 x large screw (for

attaching rear bracket)

2 x plastic cable holders

Software Requirements

• A PC running Windows 98SE, Windows 2000, Windows ME, Windows XP

This product is not compatible with Macintosh computers!

Installation

Panel

1. Ensure that your computer is turned off.

2. Remove the computer case and remove a 3.5” front bay cover.

3. Insert the 35BAYFWUSB panel into the empty slot and secure it into place using the

4 small screws provided.

4. Follow the cable connection instructions listed below.

2 IEEE-1394 Ports 4 USB A Type Ports

External Ports

Internal Connectors

USB1394 V1.0

1394 Port USB B Type Power Jack

Cable Connection

Caution!!! Please take special care when inserting the cables onto the internal connectors at the

back of the panel. It is very important that the instructions below are followed carefully. Incorrect

insertion could lead to a device or motherboard short circuit.

Cable Color Diagram

1. Remove one of the brackets from the rear of the computer case. This will allow the

cables to be passed through and connected to the rear USB and IEEE 1394 ports.

2. IEEE 1394 cable: Connect the cable to the internal IEEE 1394 connector on the panel.

The connector fits on only one way, with the white wire to the right. Pass the cable

to the rear of the computer case and out the empty bracket space. Connect it to an

IEEE 1394 port on the back of the computer case.

3. USB cable: Connect the cable to the internal USB connector on the panel. The

connector fits on only one way, with the red wire to the right. Pass the cable to the

rear of the computer case and out the empty bracket space. Connect it to a USB port on

the back of the computer case.

4. Y power cable: Connect the cable to the internal power connector on the panel. Be sure

that the colored wires of the cable (from left to right) are yellow, black, black and red.

Connect one end of the connector to the power supply and the other end can be used

to attach another device.

5. Once the cables have been connected and passed through the computer case, put the

cables into the cutout slots on the bracket. Insert the bracket using the large screw

provided.

6. Once the cables have been connected to their respective rear ports, the cables can be

fixed more securely onto the panel by using the supplied screws and plastic cable

holders. Place the holder around the cable and fix it to the panel using the medium

screws provided.

7. Replace the computer case and turn on the computer.

8. Follow the software instructions as below.

1394 Port USB B Type Power Jack

White

Red

Yellow

Black

Red

Software Installation

1. After you have turned on the computer, Windows will automatically detect that a

Generic USB hub has been added and the Add New Hardware Wizard will appear.

Press “Next.”

2. The Add New Hardware Wizard will suggest that it searches for the most suitable

driver. Press “Next.”

3. Check the “Location” box C:\WINDOWS\system and press “Next.”

4. Windows will find the best driver for this device and install it automatically. Press

“Next.”

5. When the installation is complete, press “Finish.”

6. Attach an IEEE 1394 device to one of the IEEE 1394 ports on the panel. The IEEE 1394

ports can only be installed after an IEEE 1394 device has been connected.

7. Windows will automatically detect that an IEEE 1394 device has been added, and the

Add New Hardware Wizard will appear. Press “Next.”

8. The Add New Hardware Wizard will suggest that it searched for the most suitable

driver. Press “Next” to agree.

9. Check the “Location” box C:WINDOWS\system and press “Next.”

10. Windows will find the best driver for this device and install it automatically.

Press “Next.”

11.After the installation is complete, press “Finish.”

12. Re-start Windows.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

Warranty Information

This product is backed by a one-year warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted below,

following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The

warranty covers parts and labor costs only. StarTech.com does not warrant its products

from defects or damages arising from misuse, abuse, alteration, or normal wear and

tear.

Limitation of Liability

In no event shall the liability to StarTech.com Ltd. (or its officers, directors, employees or

agents) for any damages (whether direct or indirect, special, punitive incidental,

consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss,

arising out of related to the use of the product exceed the actual price paid for

the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Revised: June 11, 2003

Table des matières

Autres manuels StarTech.com Changer

StarTech.com

StarTech.com DS15H54 Manuel du système

StarTech.com

StarTech.com ST4100USB Manuel utilisateur

StarTech.com

StarTech.com VS221HDQ Manuel utilisateur

StarTech.com

StarTech.com ConvergeAV VS410HDMIE Manuel utilisateur

StarTech.com

StarTech.com ST4200USBM Manuel utilisateur

StarTech.com

StarTech.com SV441DUSBI Manuel utilisateur

StarTech.com

StarTech.com DisplayPort SV231QDPU34K Manuel utilisateur

StarTech.com

StarTech.com SV431HDU3A Manuel utilisateur

StarTech.com

StarTech.com ST7300USBME Manuel utilisateur

StarTech.com

StarTech.com POEINJ2GI Manuel utilisateur

StarTech.com

StarTech.com IES81GPOEW Manuel utilisateur

StarTech.com

StarTech.com SV431HDU3A2 Manuel utilisateur

StarTech.com

StarTech.com ConvergeAV VS410HDMIE Manuel utilisateur

StarTech.com

StarTech.com 5G16AINDS-USB-A-HUB Manuel utilisateur

StarTech.com

StarTech.com V231DVIUDDM Manuel utilisateur

StarTech.com

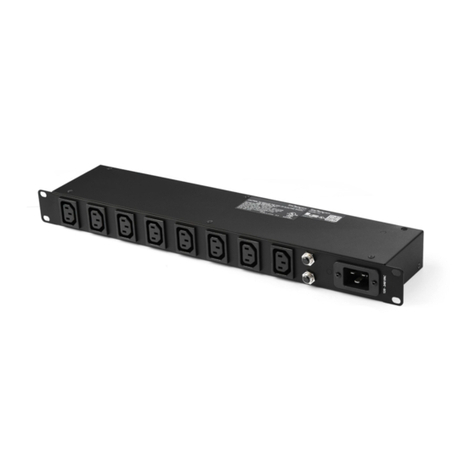

StarTech.com PDU08C13GB Manuel utilisateur

StarTech.com

StarTech.com SV231QDVIUA Manuel utilisateur

StarTech.com

StarTech.com KVM SWITCHBOX VGA DS15H954 Manuel utilisateur

StarTech.com

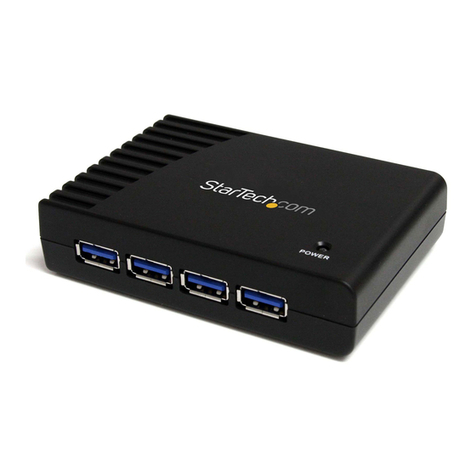

StarTech.com ST4300USB3 Manuel utilisateur
