Network Adapter

10-Mbps PCI 10BaseT Ethernet Card

Installation Manual

PCIBT

General Description

The StarTech 10Mbps PCI Ethernet Card is a network adapter that combines low cost,

reliable performance, and easy Plug and Play installation. It is capable of operating in

full-duplex mode, which doubles its data throughput to 20 Mbps. This network adapter

is fully compliant with industry specifications for 10Mbps twisted-pair

Ethernet networks.

Features

lFully compliant with IEEE 802.3 10BaseT Ethernet specifications.

lSupports full duplex mode to double data transmission rate.

lAutomatic polarity correction for 10BaseT.

lIncludes a built-in 32 kb SRAM buffer to speed data transmission.

lJumperless Plug & Play installation.

lDrivers for: Novell Netware3.x, 4.x, Windows NT3.1, NT3.5, NT4.0, Windows for

workgroups 3.x, Windows 95, 98, 2000, ME, Lantastic 4.x, 5.x, 6.x, SCO UNIX.

System Requirements

1. An IBM-PC compatible computer.

2. One PCI slot.

3. One free IRQ.

4. One of the following operating systems: Windows 95/98, Windows Me,

Windows NT 4.0/2000, MS-DOS/Windows 3.1.

Getting Started

This section is designed to help you prepare the Network Adapter for installation. Please

read through this section carefully before attempting to install the card.

Unpacking the PCIBT

This package should contain:

1 x PCIBT card

1 x driver disk

Installation

Network Adapters, like all computer equipment, are subject to static electricity. Be sure

that you are properly grounded. StarTech.com recommends that you wear an

anti-static strap.

Installing the Card:

1. Make sure your system is unplugged and you are grounded.

2. Remove the cover of your system.

3. Remove the covering plate from a free PCI bay. (a PCI Bay is usually a short white

slot found on the motherboard)

4. Insert the Network Adapter, and make sure it is firmly seated in the slot.

5. Using a #6-32 x 1/4” screw secure the card in place.

6. Put your computer case back on.

7. Connect to the network using AUI, thin or twisted-pair cables depending on the

connector you are using.

Configuration/Diagnostics

The PCIBT is basically self-configurable and requires no intervention from the user.

There are only 2 items that can be configured: Full/Half duplex, and Boot ROM

enabled/disabled. You can also run diagnostic of the card from the Setup.exe

program provided.

Insert the floppy diskette provided. Prompt the Setup.exe and you will see

the following:

• Auto Configuration

• Manual Setup Configuration

• View current Configuration

• Diagnostic

• Exit

Please follow the easy menu-driven program to configure the card.

Driver Installation

For detailed information, please refer to the document in the diskette provided.

Examples:

1. For NetWare client, please execute the following:

lsl

pciodi

ipxodi

netx or vlm

2. For NetWare server, please execute the following:

load pcisrv

bind ipx pcisrv

load monitor

Boot ROM Installation (Optional)

The PCIBT provides a socket for a remote boot ROM. With a boot ROM, a host computer

can load the operating systems over the network.

1. Plug in the boot ROM to the appropriate position, make sure the direction is correct.

2. Enable the boot ROM function. Please see Setup program for details.

Troubleshooting

Most common factors that cause an adapter to fail are configuration conflicts and cabling

problems. PCI cards shouldn’t have any conflict problems due to plug and play

specification. If there is, check the cable and its connector and/or use the adapter LED

indicators and Diagnostic Program For information on the Diagnostic Program, please

see the Setup program. If the problem persists, call your dealer for help.

LED Indicators

The LEDs help you monitor the network status. Their functions depend on the type of

cable used.

*Link monitors the data link status on the UTP cable. It turns ON when there is data

link, and off when there is a bad connection.

*Activity blinks when there is data transmission/reception.

FCC Warning

This equipment complies with the limits for a Class A digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection when the

equipment is operated in a commercial environment. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used properly, may cause

harmful interference to radio communications. Operation of the equipment in a

residential area is likely to cause harmful interference.

Table des matières

Autres manuels StarTech.com Carte PCI

StarTech.com

StarTech.com PCIUSB3S2 Manuel utilisateur

StarTech.com

StarTech.com 8STPEXUSB3S44V Manuel utilisateur

StarTech.com

StarTech.com PEXSATA22I Manuel du système

StarTech.com

StarTech.com PEX4S950 Manuel utilisateur

StarTech.com

StarTech.com PEXUSB3S42 Manuel utilisateur

StarTech.com

StarTech.com PCIUSB7 Manuel utilisateur

StarTech.com

StarTech.com PEXESATA1 Manuel utilisateur

StarTech.com

StarTech.com PCI2S232485I Manuel utilisateur

StarTech.com

StarTech.com UVCHDCAP Manuel utilisateur

StarTech.com

StarTech.com PEX2S952PW Manuel utilisateur

StarTech.com

StarTech.com PEX4S952 Manuel utilisateur

StarTech.com

StarTech.com PEX2S553B Manuel utilisateur

StarTech.com

StarTech.com PEXUSB3S24 Manuel utilisateur

StarTech.com

StarTech.com PEXUSB3S7 Manuel utilisateur

StarTech.com

StarTech.com PEX400USB2 Manuel utilisateur

StarTech.com

StarTech.com PEX1394A2V2 Manuel utilisateur

StarTech.com

StarTech.com PCI2S1P2 Manuel utilisateur

StarTech.com

StarTech.com PEXUSB312EIC Manuel utilisateur

StarTech.com

StarTech.com PEXUSB4DP Manuel utilisateur

StarTech.com

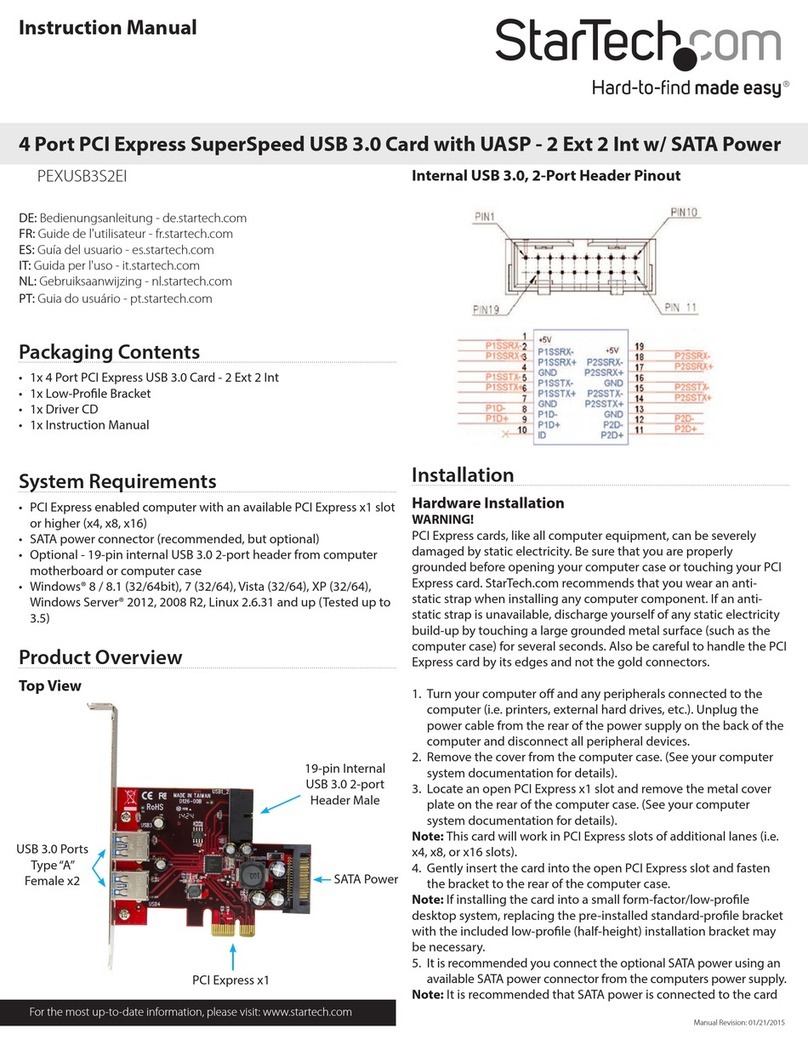

StarTech.com PEXUSB3S2EI Manuel utilisateur
