StarTech.com SV565UTP Manuel utilisateur

KVM Console Extender over

Cat5 UTP

USB PS/2 KVM Console

Extender over Cat5 UTP

SV565UTP

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 1

Preparing Your Site......................................................................2

Installing the Host Unit.................................................................3

Installing the Remote Unit ...........................................................4

Driver Installation.........................................................................5

Video Compensation ...................................................... 5

Using the SV565UTP KVM Extender.............................. 6

Using the Host Unit......................................................................6

Using the Remote Unit ................................................................9

Speciﬁcations.................................................................. 12

RJ-45 Connector Pinout ................................................. 12

Technical Support........................................................... 13

Warranty Information...................................................... 13

Introduction

Packaging Contents

1 x SV565UTP Host Unit•

1 x SV565UTP Remote Unit•

1 x Instruction Manual•

2 x Power adapter•

2 x Set of rubber mounting feet•

System Requirements

Integrated KVM cable for the host and remote computers (not•

provided) StarTech.com ID: SVECONx (PS/2), SVECONUSx (USB)

Standard 104-key PS/2 keyboard•

Standard 3-button PS/2 mouse•

VGA capable display•

Installation

This product is composed of two different units: the Host Unit and

the Remote Unit. The Host Unit takes input controls from a computer

(using a PS/2 or USB integrated KVM cable) and allows access to

them via the Remote Unit over Category 5 UTP cable. The remote

computer also connects to the Remote Unit using an integrated KVM

cable (again, either PS/2 or USB) and allows the user at the remote

site to control that computer or the host computer using keyboard

hotkey commands.

A PS/2 mouse and keyboard and a VGA monitor are connected to the

Remote Unit (the console). You can also connect console peripherals

to the Host Unit if you need direct as well as remote access to that

computer.

Preparing Your Site

Before you can install the the product, you need to prepare your site.

Determine where the host computer will be located and set up the1.

computer.

Determine where the console devices (mouse, keyboard, monitor)2.

will be located and place them appropriately.

If you are using surface cabling, ensure you have enough Category3.

5 unshielded twisted pair (UTP) network cabling to connect the Host

Unit to the Remote Unit’s location, and that each end is terminated

with a RJ-45 connector.

If you are using premises cabling, ensure that the Category 54.

unshielded twisted pair (UTP) network cabling between the Host

Unit and the Remote Unit has been properly terminated in a wall

outlet in each location and there is a patch cable long enough

to connect the Remote Unit and the Host Unit to their respective

outlets.

Installing the Host Unit

Place the Host Unit near the computer.1.

Switch off the computer and disconnect any existing VGA and input2.

connections.

Using a StarTech.com integrated KVM cable (see page 8 for part3.

numbers), connect the end of the cable that has two (USB) or three

(PS/2) connectors to the VGA Out connector and the USB or mouse

and keyboard PS/2 connectors on the computer as appropriate. (The

PS/2 version of the cable is color-coded.) Connect the opposite end

of the cable with a single connector to the gray-coded connector

marked COMPUTER on the Host Unit of the KVM extender.

If you wish to have console access to the host computer, connect a4.

PS/2 mouse, keyboard, and VGA monitor to the indicators marked

as CONSOLE on the Host Unit.

Connect the UTP cable connection for Remote Unit to the5.

NETWORK RJ-45 connector on the Host Unit. Connect the opposite

end to a terminated wall outlet (if you are using premises cabling).

PS/2 keyboard/

mouse and VGA

console

Host Computer

(KVM cable)

Power

Connector

UTP Cable

Installing the Remote Unit

Place the Remote Unit near the computer.1.

Switch off the computer and disconnect any existing VGA and input2.

connections.

Using a StarTech.com integrated KVM cable (see page 8 for part3.

numbers), connect the end of the cable that has two (USB) or three

(PS/2) connectors to the VGA Out connector and the USB or mouse

and keyboard PS/2 connectors on the computer as appropriate. (The

PS/2 version of the cable is color-coded.) Connect the opposite end

of the cable with a single connector to the gray-coded connector

marked COMPUTER on the Remote Unit of the KVM extender.

Connect a PS/2 mouse, keyboard, and VGA monitor to the indicators4.

marked as CONSOLE on the Remote Unit.

Connect the UTP cable connection for Remote Unit to the5.

NETWORK RJ-45 connector on the Remote Unit. Connect the

opposite end to a terminated wall outlet (if using premises cabling).

CAUTION: The UTP network cables that connect the Host and Remote

PS/2 keyboard/

mouse and VGA

console

Remote

Computer

(KVM cable) Power

Connector

UTP Cable

Units carry electrical current and should not be plugged in to other

devices, as they may cause damage. We strongly recommend marking

the cables you are using with this product at both locations for easy

identiﬁcation.

Driver Installation

No driver installation is required as the SV565UTP uses standard

keyboard/mouse drivers.

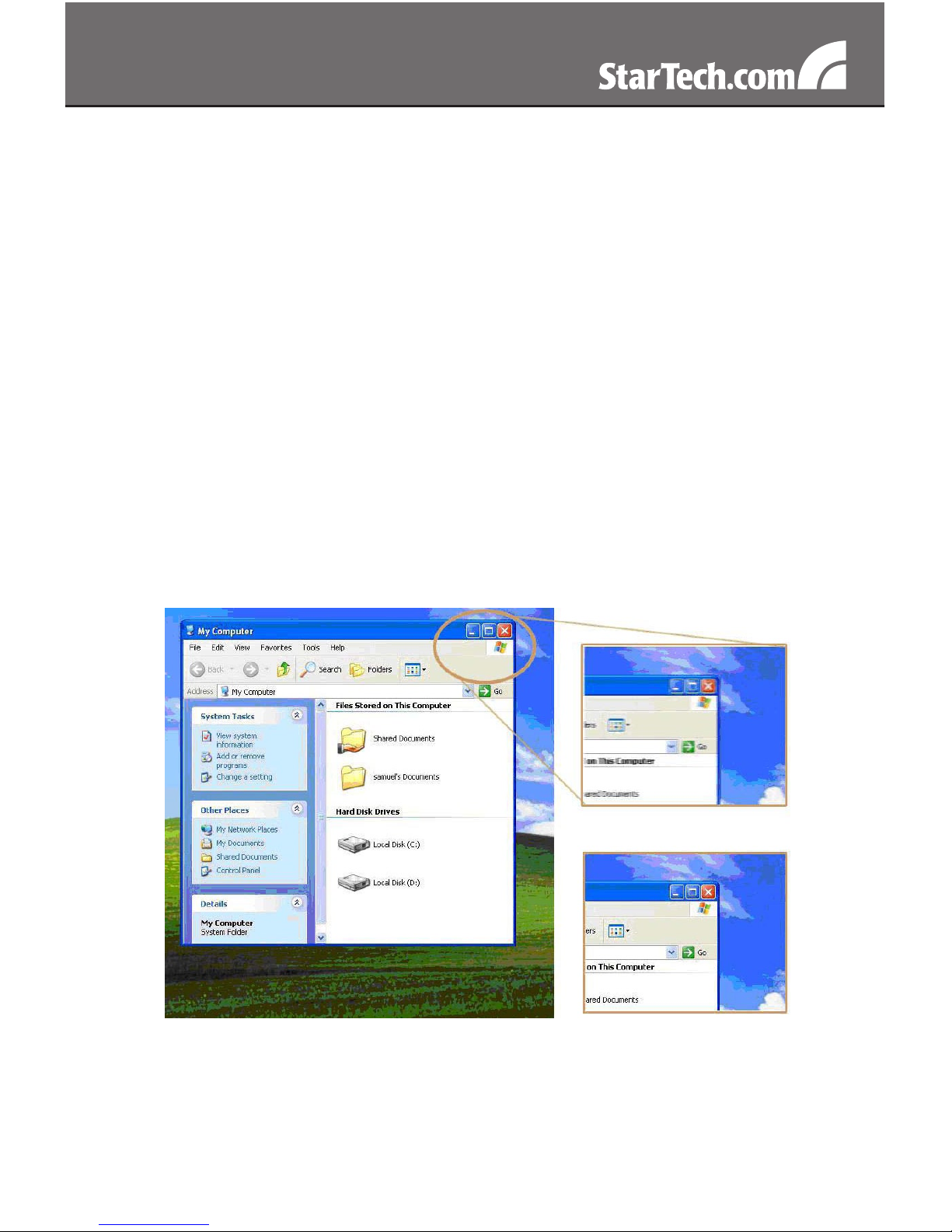

Video Compensation

Video Compensation allows the user to adjust the equalization on the

Remote Unit to optimize video performance based on the length of

cable being used, as well as other factors that may affect . There are

ﬁve segments of various lengths of CAT 5 cables from which to chose;

to achieve the best visibility, please refer to the section titled Keyboard

Shortcut Command Sequences, to adjust the video compensation.

First, note the length of CAT 5 cable you used. Then, use the hotkeys

to adjust the video compensation accordingly. You can use the hotkey

sequence as outlined in the section titled Keyboard Shortcut Command

Sequences.

Using the SV565UTP KVM Extender

This section details how to use your KVM extender at both the host and

remote locations.

Using the Host Unit

The Host Unit performs two functions: it allows a user at the Remote

Unit to assume control of the computer on the Host Unit (Computer A),

and it also permits the user at the Host Unit to use Computer A. It has

three modes that control which user may access the system at a given

time: Auto (the KVM extender looks for keyboard or mouse activity from

both Host and Remote and automatically accepts input from the active

console), Local (only the user seated at the Host Unit can access the

system), and Remote (only the user at the Remote Unit can access

Computer A).

You can use either keyboard shortcuts (if there is a keyboard and

mouse attached) or the mode switch on the top of the Host Unit to

control which user has access to Computer A. By default, the Host Unit

operates in Auto mode, and switches to the next mode in the sequence

each time the switch is pressed as follows:

Having a keyboard and mouse attached to the console ports on

the Host Unit is recommended since it offers access to a number of

extended features.

LED Indicators

Mode ‘A’ Indictor ‘B’ Indicator

Auto (Auto senses activity) Flashing Flashing

Local (User at Host Unit has control) ON OFF

Remote (User at Remote Unit has control) OFF ON

Local RemoteAuto

Keyboard Shortcut Command Sequences

Standard Hotkey Hotkey with

Compatibility Mode Description

[Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T] Toggles control of Computer A between

Auto, Local, Remote modes

[Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Esc] Cancels the hotkey sequence

[Ctrl] - [Ctrl] - [Alt]+[E] [Ctrl] - [Ctrl] - [Alt]+[E]

Enables (2 beeps) or disables (1 beep)

Compatibility Mode so that the KVM

extender will work with a KVM switch

that also uses a [Ctrl] hotkey sequence

[Ctrl] - [Ctrl] - [1] [Ctrl] - [Ctrl] - [E] - [1]

Local Mode: Allows the user at Host

Unit exclusive access to Computer A;

remote access from Remote Unit is

disabled

[Ctrl] - [Ctrl] - [2] [Ctrl] - [Ctrl] - [E] - [2]

Remote Mode: Allows the console

at Remote Unit exclusive access to

Computer A; access to Computer A from

the Host Unit is disabled

[Ctrl] - [Ctrl] - [3] [Ctrl] - [Ctrl] - [E] - [3] Auto Mode : Wait for console activity

[Ctrl] - [Ctrl] - [F3] [Ctrl] - [Ctrl] - [E] - [F3]

Sets the interval of inactivity in seconds

that the Host Unit will wait before

returning to Auto Mode

[Ctrl] - [Ctrl] - [F4] [Ctrl] - [Ctrl] - [E] - [F4] Adjusts the typematic rate for improved

keyboard responsiveness

Autres manuels pour SV565UTP

Table des matières

Autres manuels StarTech.com Extenseur

StarTech.com

StarTech.com USB2G4LEXT2 Manuel utilisateur

StarTech.com

StarTech.com ST122UTPAL Manuel utilisateur

StarTech.com

StarTech.com ST121HDBTE Manuel utilisateur

StarTech.com

StarTech.com ST121UTP Manuel utilisateur

StarTech.com

StarTech.com SV565FXHD4KU Manuel utilisateur

StarTech.com

StarTech.com ST121WHD Manuel utilisateur

StarTech.com

StarTech.com ST222HDBT Manuel utilisateur

StarTech.com

StarTech.com ST121SHD30 Manuel utilisateur

StarTech.com

StarTech.com ST121 Series Manuel utilisateur

StarTech.com

StarTech.com USBthere USB110EXT Manuel utilisateur

StarTech.com

StarTech.com USBthere USB110EXT Manuel utilisateur

StarTech.com

StarTech.com USBthere USB201EXT Manuel utilisateur

StarTech.com

StarTech.com SV565UTPUL Manuel utilisateur

StarTech.com

StarTech.com USBthere USB221EXT Manuel utilisateur

StarTech.com

StarTech.com STUTPRXWLA Manuel utilisateur

StarTech.com

StarTech.com SV565FXDUSA Manuel utilisateur

StarTech.com

StarTech.com ST1212T Manuel utilisateur

StarTech.com

StarTech.com USBthere USB201EXT Manuel utilisateur

StarTech.com

StarTech.com IREXT2 Manuel du système

StarTech.com

StarTech.com DPBOOST Manuel utilisateur

StarTech.com

StarTech.com 8STSV565DUTPU Manuel utilisateur

StarTech.com

StarTech.com STUTPRXWAL Manuel utilisateur

StarTech.com

StarTech.com UTPE Series Manuel utilisateur

StarTech.com

StarTech.com ST121UTP232 Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
