StarTech.com 110VDSLEXT Manuel utilisateur
VDSL Ethernet LAN Extender
10/100 VDSL Ethernet
LAN Extender Kit over Single
Pair Wire
110VDSLEXT
110VDSLEXTGB
110VDSLEXTEU
Instruction Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particu-
lar installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the receiver•
is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and
do not represent an endorsement of a product or service by StarTech.com, or an en-
dorsement of the product(s) to which this manual applies by the third-party company in
question. Regardless of any direct acknowledgement elsewhere in the body of this doc-
ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,
service marks, and other protected names and/or symbols contained in this manual and
related documents are the property of their respective holders.
i
Table of Contents
Introduction .................................................................... 1
Package Contents .......................................................................1
Installation....................................................................... 1
Hardware Installation...................................................................1
Operation......................................................................... 2
LED Displays ...............................................................................2
DIP Switch Settings.....................................................................2
Connector Architecture ...............................................................5
Specifications.................................................................. 6
Technical Support........................................................... 7
Warranty Information...................................................... 7
1
Introduction
Package Contents
2 x 110VDSLEXT/GB/EU units•
2 x RJ-45 to VDSL Cable•
2 x Power Adapter•
1 x Instruction Manual•
Installation
Hardware Installation
Install one of the 110VDSLEXT / GB / EU units with all four of the1.
DIP switches set to the upward (OFF) position. This places the unit
in CO mode.
Install the second 110VDSLEXT / GB / EU unit with DIP switches 22.
through 4 set to the upward (OFF) position and DIP switch 1 set to
the downward position (ON). This places the unit in CPE mode.
Plug the DC power adapter into the port on the rear panel of the3.
units, and then into an available AC outlet.
Plug in an RJ45 Ethernet cable to the RJ45 port on the4.
110VDSLEXT / GB / EU units. Connect the other end of the cables
to your Ethernet devices.
Plug a phone cable into the VDSL port of the 110VDSLEXT/GB/EU.5.
Connect the other end of the cable into the opposing 110VDSLEXT/
GB/EU unit.
Optional:6. Configure DIP switches 2 through 4 as necessary (see
DIP Switch Settings section). Leave DIP switch 1 alone, as one unit
should always be set to CO mode while the other is CPE mode.
2
Operation
LED Displays
LAN LED Display
VDSL LED Display
DIP Switch Settings
The 110VDSLEXT / GB / EU has a 4-position DIP switch for
configuration of Side, Channel, Rate Limit, and SNR.
Pin 1 - CO, CPE Switch
OFF:If Pin 1 is in the OFF position, the
110VDSLEXT / GB / EU will operate in
Central Office (CO) mode.
ON: If Pin 1 is in the ON position, the
110VDSLEXT / GB / EU will operate in
Customer Premise Equipment (CPE)
mode.
LED Blinking ON OFF
1Activity Device
Power On
Device Power Off
2-CPE Mode CO Mode
3Slowly: Idle
Quickly: Training Linked Offline
LED Blinking ON OFF
1Activity Link up Link down
2100 Mbps 10 Mbps
3Full duplex Half duplex
3

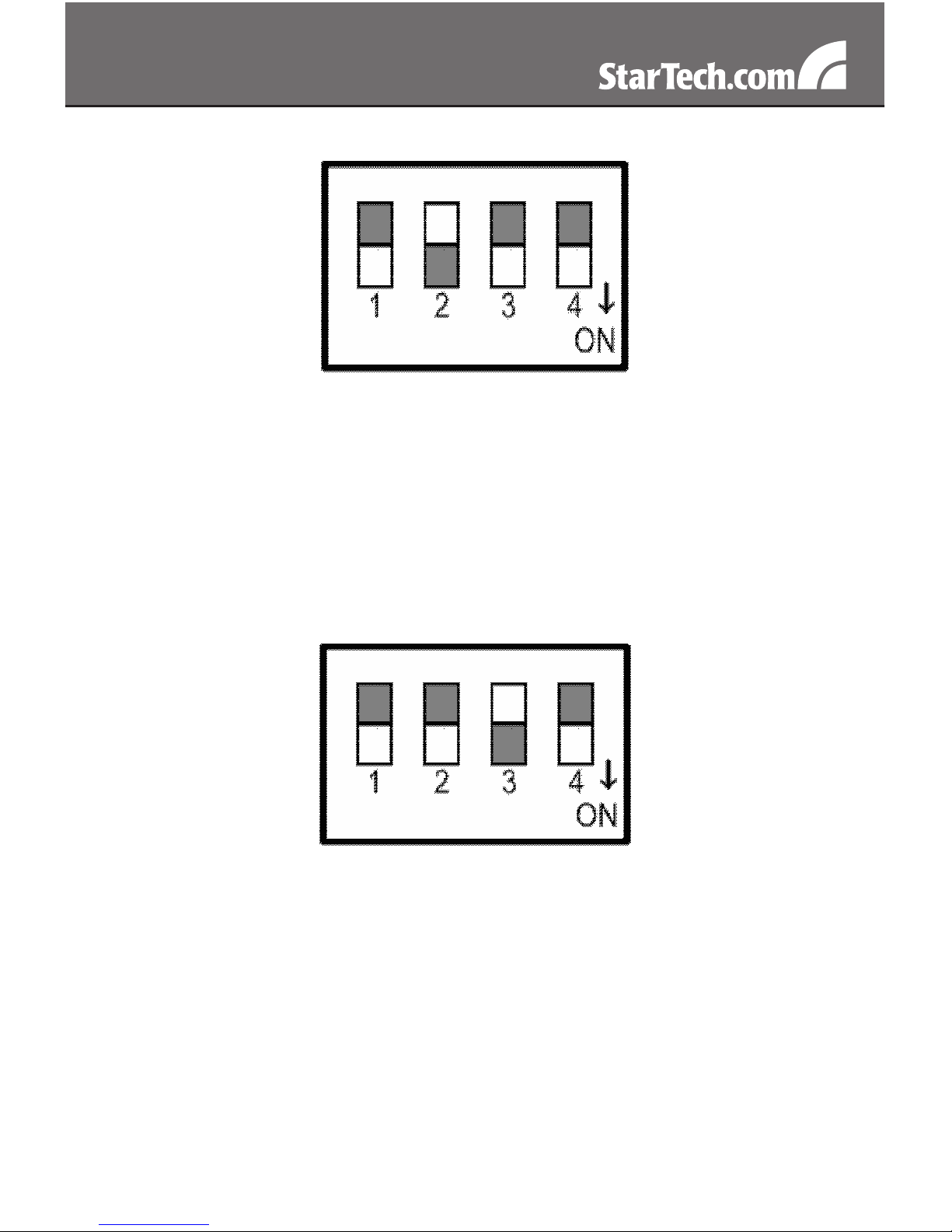

Pin 2 - Interleave Noise Protection
OFF:If Pin 2 is in the OFF position, the 110VDSLEXT / GB / EU will
operate in Interleave mode, with communication protection for up to
250ms of impulse noise with latency less than 6 ms
ON:If Pin 2 is in the ON position, the 110VDSLEXT / GB / EU will
operate in Fast mode, with direct data transmissions having less than
1ms of latency.
Pin 3 - Band Plan
OFF:If Pin 3 is in the OFF position, the 110VDSLEXT / GB / EU will
operate in Symmetric mode, with both downstream and upstream
transmissions operating on the G.997 band plan.
ON:If Pin 3 is in the ON position, the 110VDSLEXT / GB / EU
will operate in Asymmetric mode, with asymmetric short range
transmissions operating at the highest available line rate.
4
Pin 4 - General Protection
OFF:If Pin 4 is in the OFF position, the 110VDSLEXT / GB / EU will
operate with a SNR ratio up to 9 dB.
ON:If Pin 4 is in the ON position, the 110VDSLEXT / GB / EU will
operate with a SNR ratio of 6 dB.
5
Connector Architecture
Ethernet Port
VDSL Port
Pin Number Assignment (MDI-X)
1RX+; Receive data +
2RX-; Receive data -
3TX+; Transmit data +
4Not used
5Not used
6TX-; Transmit Data -
7Not used
8Not used
Pin Number Assignment (MDI-X)
1Not used
2Not used
3Not used
4ANALOG Input/Output
5ANALOG Input/Output
6Not used
7Not used
8Not used
6
Specications
110VDSLEXT
110VDSLEXTGB
110VDSLEXTEU
LAN Interface
RJ-45 connector•
Complies with IEEE•
802.3/802.3u/802.3x
10/100 Base-T Auto-•
Negotiation, Auto-MDI/MDI-X
VDSL Interface
RJ-45 connector•
DMT Encoding•
Complies with ITU-T•
G993.1/993.2
On-board surge protection•
DIP Switch 4 position
LED
LAN: ACT/LNK, 10/100 Mbps,•
Half/Full Duplex
VDSL: Power On/Off, CO/CPE,•
Idle/Trained/Link
Power Supply 12VDC, 1A output, 3.5mm jack
Power Consumption 4.2 Watt maximum
Dimensions 95.5 mm x 72.0 mm x 22.0 mm
7
Technical Support
StarTech.com’s lifetime technical support is an integral part of our com-
mit-ment to provide industry-leading solutions. If you ever need help
with your product, visit www.startech.com/support and access our com-
prehensive selection of online tools, documentation, and downloads.
Warranty Information
This product is backed by a one year warranty.
In addition, StarTech.com warrants its products against defects in
materials and workmanship for the periods noted, following the initial
date of purchase. During this period, the products may be returned for
repair, or replacement with equivalent products at our discretion. The
warranty covers parts and labor costs only. StarTech.com does not war-
rant its products from defects or damages arising from misuse, abuse,
alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com
USA LLP (or their officers, directors, employees or agents) for any dam-
ages (whether direct or indirect, special, punitive, incidental, consequen-
tial, or otherwise), loss of profits, loss of business, or any pecuniary loss,
arising out of or related to the use of the product exceed the actual price
paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limita-
tions or exclusions contained in this statement may not apply to you.
