StarTech.com SATDOCK22RU3 Manuel utilisateur

Manual Revision: 11/22/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SATDOCK22RU3 / SATDOC2RU3GB / SATDOC2RU3EU

USB 3.0 to SATA Standalone Hard Drive

Duplicator and Docking Station

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Front View.................................................................................................................................................... 2

Rear View...................................................................................................................................................... 2

Installation ..............................................................................................3

Hardware Installation .............................................................................................................................. 3

Driver Installation...................................................................................................................................... 4

Using the Storage Device......................................................................4

Specications..........................................................................................6

Technical Support ..................................................................................7

Warranty Information............................................................................7

Instruction Manual

Introduction

The SATDOCK22RU3 USB 3.0 to SATA Hard Drive Duplicator Dock lets you duplicate/

clone an existing hard drive without the use of a host computer system, or it can be

connected to a computer system for use as a standard external hard drive dock.

In Duplicator Mode, it creates an exact 1-to-1 sector clone from one hard drive to

another, including partition and boot sector information and all data - ensuring data

integrity and consistency for sensitive operations, such as data recovery. Direct drive-

to-drive copying over the native SATA II bus, allows the SATA drives to hit their optimal

SATA II read/write performance, without a computer or being bottle necked by another

bus, like USB.

In Dock Mode, it can be connected to your host computer through USB 3.0, providing

up to 5 Gbps of bandwidth from both hard drives to your computer system. The value

of this hard drive docking station can be further extended through a SATA to IDE hard

drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard drive in

a SATA hard drive dock slot.

Packaging Contents

• 1 x SATA Drive Duplicator

• 1 x USB 3.0 Cable

• 1 x Power Adapter

• 1 x Instruction Manual

System Requirements

• 2.5in and/or 3.5in SATA hard drive(s) or solid state drive(s)

• Available AC electrical outlet

• Docking Station Mode:

• USB enabled computer system with available USB port

• Microsoft® Windows® XP/ Server 2003/ Vista/ Server 2008 R2/ 7 (32/64-bit), or

Apple® Mac OS® X, or Linux®

*If used with the Apple Mac OS operating system, this device will function in USB 2.0 mode

only as Apple does not yet support USB 3.0

Instruction Manual

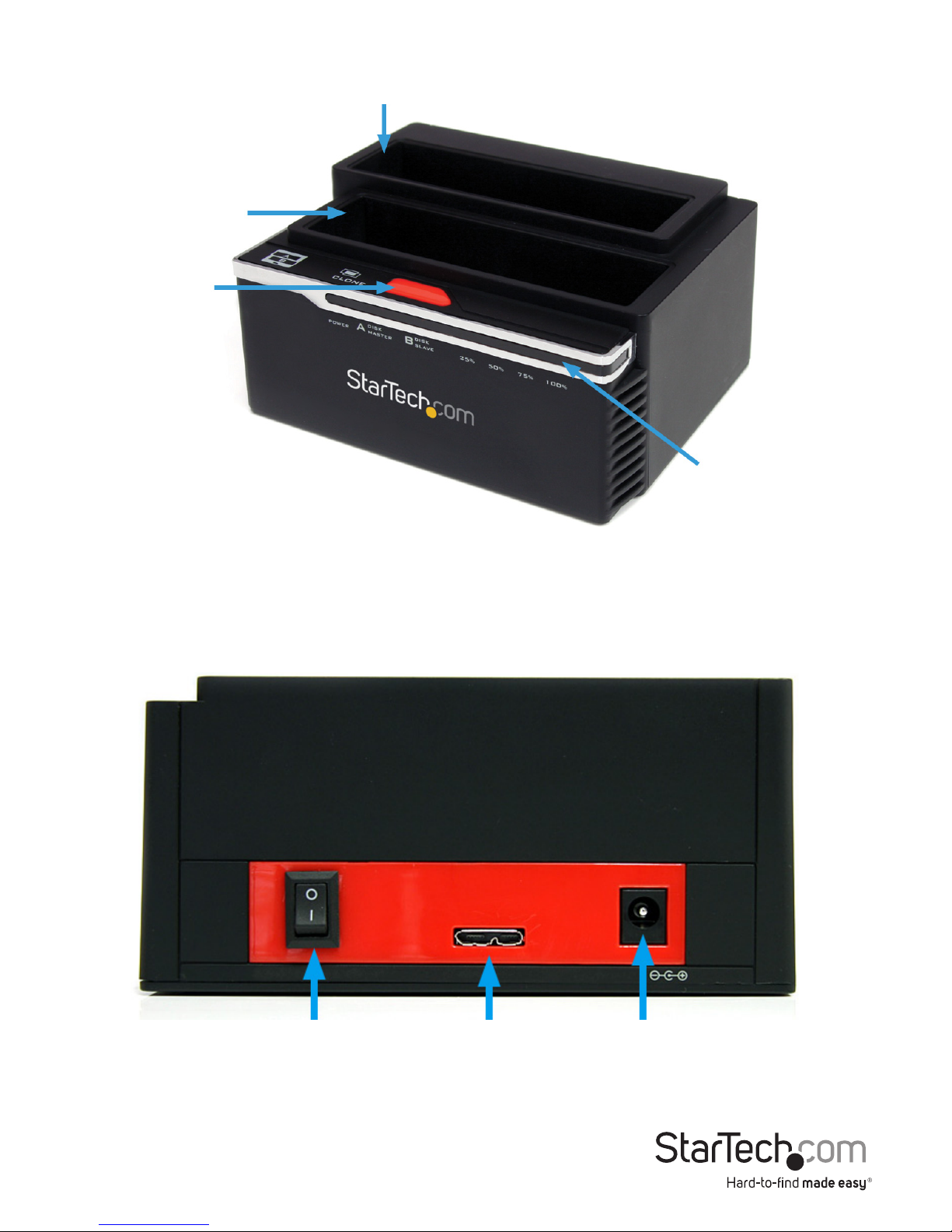

Front View

Rear View

Drive Slot A (Source)

Drive Slot B

(Destination)

Clone

button

LED indicators

Power Switch USB 3.0 micro-B

connector

DC Power

connector

Instruction Manual

Installation

WARNING! Hard drives and storage enclosures require careful handling,

especially when being transported. If you are not careful with your hard disk,

lost data may result. Always handle your hard drive and storage device with

caution. Be sure that you are properly grounded by wearing an anti-static

strap when handling computer components or discharge yourself of any static

electricity build-up by touching a large grounded metal surface (such as the

computer case) for several seconds.

Hardware Installation

Docking Station Mode

1. Connect the external power adapter to the docking station.

2. Insert 1 or 2 SATA drives into the drive bays on the docking station.

3. Connect the USB cable from the hard drive dock to the computer system.

4. Power on the docking station by pressing the power switch located on the rear side

of the docking station. The Power LED will light up solid.

5. The operating system should now detect the hard drive(s) and make them available.

The hard drives may need to be partitioned/formatted using a disk management

utility before you can access them (see “Using the Storage Device”for reference).

Duplicator Mode

1. Connect the external power adapter to the docking station.

2. Make sure the USB cable is not connected to the docking station and/or the host

computer system.

3. Insert the 2 SATA drives into the drive bays on the docking station. Make sure to

place the drive with the data you want copied (Source) into the “A” or “Source” bay.

NOTE: The drive to receive the data (Destination) needs to be equal or larger in

capacity than the source disk.

4. Power on the hard drive dock by pressing the power switch located on the rear side

of the docking station. The Power LED will light up solid.

5. Once both drives are ready, the LED for each drive will light up solid.

6. Press and hold the “Clone”button for several seconds until the LED for 100% lights

up, then release and press the“Clone”button again to begin duplication. The

progress bar will indicate how much of the duplication is complete. Once complete,

the entire bar will be lit solid.

NOTE: Cloning will automatically stop if bad sectors are encountered during

duplication. Ensure the drive is healthy before attempting to clone.

NOTE: Drives with EISA or protected partitions cannot be duplicated.

Instruction Manual

Driver Installation

Windows 2000/XP/Vista/Server 2008 R2/7, Mac OS X, Linux

No driver installation is required for the supported operating systems, as this hard

drive dock is natively supported, so the drivers are already installed.

Using the Storage Device

Windows 2000/XP/Vista/7

If you are using a brand new hard drive that does not contain any data in Docking

Station Mode, then you will rst need to prepare the hard drive for use. From the main

desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage.

In the new Computer Management window, select Disk Management from the left

window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity to conrm it’s the

correct hard drive) and then right-click in the section that says“Unallocated” and select

“New Partition”.

Instruction Manual

The New Partition Wizard will appear. Follow the instructions in the wizard to

complete setting up the drive. Once complete, the Disk should show up as “Healthy”

with a drive letter assigned (i.e. E:). This drive letter should now appear within My

Computer.

If you are installing a hard drive that already has data on it, then after plugging it in, the

drive should automatically show up with a drive letter assigned within My Computer.

Instruction Manual

Specications

Number of Drive Bays 2

Host Interface USB 3.0

Chipset ID JMicron JMS551

Connectors 1 x USB 3.0 micro-B female

1 x DC Power

LEDs

1 x Power

2 x Drive Activity

1 x Duplication Progress Bar

Maximum Data Transfer Rate USB 3.0: 5 Gbps

Compatible Hard Drives 2.5”/3.5” SATA hard drive/solid state

drives

Power Adapter 12V DC, 4000mA, center positive

Operating Temperature 0°C ~ 85°C (32°F ~ 185°F)

Storage Temperature -10°C ~ 95°C (14°F ~ 203°F)

Humidity 5% ~ 90% RH

Dimensions (LxWxH) 128.0mm x 103.0mm x 62.0mm

Weight 562g

Compatible Operating Systems

Windows XP/ Server 2003/ Vista/

Server 2008 R2/ 7 (32/64-bit),

Mac OS X, Linux

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels StarTech.com Station d'accueil

StarTech.com

StarTech.com TB2DOCK4KDHC Manuel utilisateur

StarTech.com

StarTech.com DK31C4DPPD Manuel utilisateur

StarTech.com

StarTech.com TB3DK2DPWUE Manuel utilisateur

StarTech.com

StarTech.com UNIDOCK3U Manuel utilisateur

StarTech.com

StarTech.com UNIDOCKU33 Manuel utilisateur

StarTech.com

StarTech.com SATDOCK4U2E Manuel utilisateur

StarTech.com

StarTech.com SDOCKU33BV Manuel utilisateur

StarTech.com

StarTech.com 116N-USBC-DOCK Manuel utilisateur

StarTech.com

StarTech.com 101N-USBC-DOCK Manuel utilisateur

StarTech.com

StarTech.com SATADOCK525 Manuel du système

StarTech.com

StarTech.com SDOCK2U313 Manuel utilisateur

StarTech.com

StarTech.com SDOCK4U313 Manuel utilisateur

StarTech.com

StarTech.com TB3DKM2DP Manuel utilisateur

StarTech.com

StarTech.com DK30C2DPPD Manuel utilisateur

StarTech.com

StarTech.com DK30C2DPPDUE Manuel utilisateur

StarTech.com

StarTech.com Thunderbolt TB3CDOCKDP Manuel utilisateur

StarTech.com

StarTech.com USBVGADOCK2 Manuel utilisateur

StarTech.com

StarTech.com USB3VDOCKH Manuel utilisateur

StarTech.com

StarTech.com Thunderbolt 3 Series Manuel utilisateur

StarTech.com

StarTech.com SDOCKU313E Manuel utilisateur

StarTech.com

StarTech.com 8STSATDOCK5U3ER Manuel utilisateur

StarTech.com

StarTech.com USB6N1DOCK Manuel utilisateur

StarTech.com

StarTech.com SATDOCKU3S Manuel utilisateur

StarTech.com

StarTech.com InfoSafe SATDOCKU2GB Manuel utilisateur

Manuels Station d'accueil populaires d'autres marques

Sony

Sony Dream Machine XDR-DS12iP Manuel utilisateur

Acer

Acer USB Type-C Dock II Manuel utilisateur

ATEN

ATEN UC-2000 Manuel utilisateur

Xcellon

Xcellon HDD-202 Manuel utilisateur

Dok

Dok CR09 Manuel utilisateur

Philips

Philips BTM630/12 Manuel utilisateur

IOGear

IOGear Travel Pro GUD3C09 Manuel utilisateur

RKI

RKI SDM-E2 Manuel utilisateur

iHome

iHome iP15 Manuel utilisateur

VITURE ONE

VITURE ONE MOBILE DOCK Manuel utilisateur

Lindy

Lindy 42984 Manuel utilisateur

CipherLab

CipherLab 8001 Manuel utilisateur

Pyle

Pyle PIPDSP2 Manuel utilisateur

Avol

Avol AS2350 Manuel utilisateur

Datalogic

Datalogic JoyaTouch Manuel utilisateur

Philips

Philips DC190/79 Manuel utilisateur

Targus

Targus DOCK315EUZ Manuel utilisateur

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manuel utilisateur
