StarTech.com KEYBOARD-TRAY-CLAMP1 Manuel utilisateur

Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Manual Revision: January 28, 2022 3:27 PM

Product Diagram (KEYBOARD-TRAY-CLAMP1)

Component Function

1Desk Clamp, Left • Attach the Keyboard Tray to the Desk

2Keyboard Tray • Place a keyboard and a mouse on the Keyboard Tray

3Desk Clamp, Right • Attach the Keyboard Tray to the Desk

4Clamp Knob • Turn by hand to secure the Clamp to the Desk

5Height Adjustment L

Bracket

• Adjust the height between the Desk and the

Keyboard Tray

• Attach the Keyboard Tray to the Desk Clamp

Package Contents

• Keyboard Tray x 1

• Height Adjustment Screws x 5

• Tray Mounting Screws x 5

• Height Adjustments L Brackets x 2

• Desk Clamp Left x 1

• Desk Clamp Right x 1

• Quick-star Guide x1

Desk Clamp Keyboard Tray

Requirements

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit: www.startech.com/KEYBOARD-TRAY-CLAMP1

• Phillips Head Screwdriver

Installation

WARNING!

Do not exceed the weight capacity of this product. Overloading this product might

result in injury or property damage. This product can support the following weight: up

to 11.8 kg (26 lbs).

Ensure the mounted Keyboard Tray is properly secured to the Desk before use.

Attach the Desk Clamp to the Height Adjustment L

Brackets

1. Determine the desired height between the Desk and the Keyboard Tray: 100,

120, or 140 mm (3.9, 4.7, or 5.5 in). Each row of holes on the Height Adjustment

L Bracket are spaced 20 mm apart. The row of holes, located closest to the bend

of the Height Adjustment L Brackets, provides the minimum height adjustment

setting of 100 mm (3.9 in).

2. Secure the Height Adjustment L Bracket to the Desk Clamps using the Height

Adjustment Screws (x2 shorter screws) and tighten using a Phillips Head

Screwdriver to complete the rst Desk Clamp Assembly (Figure 1).

3. Repeat steps 2and 3to install the second Desk Clamp Assembly

Attach the Desk Clamp Assemblies to the Keyboard Tray

1. Flip the Keyboard Tray upside down and align the mounting holes located on

Figure 1

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of

third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative

purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. StarTech.com hereby acknowledges that

all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual

and related documents are the property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a 2-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or

agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of

prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price

paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such

laws apply, the limitations or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

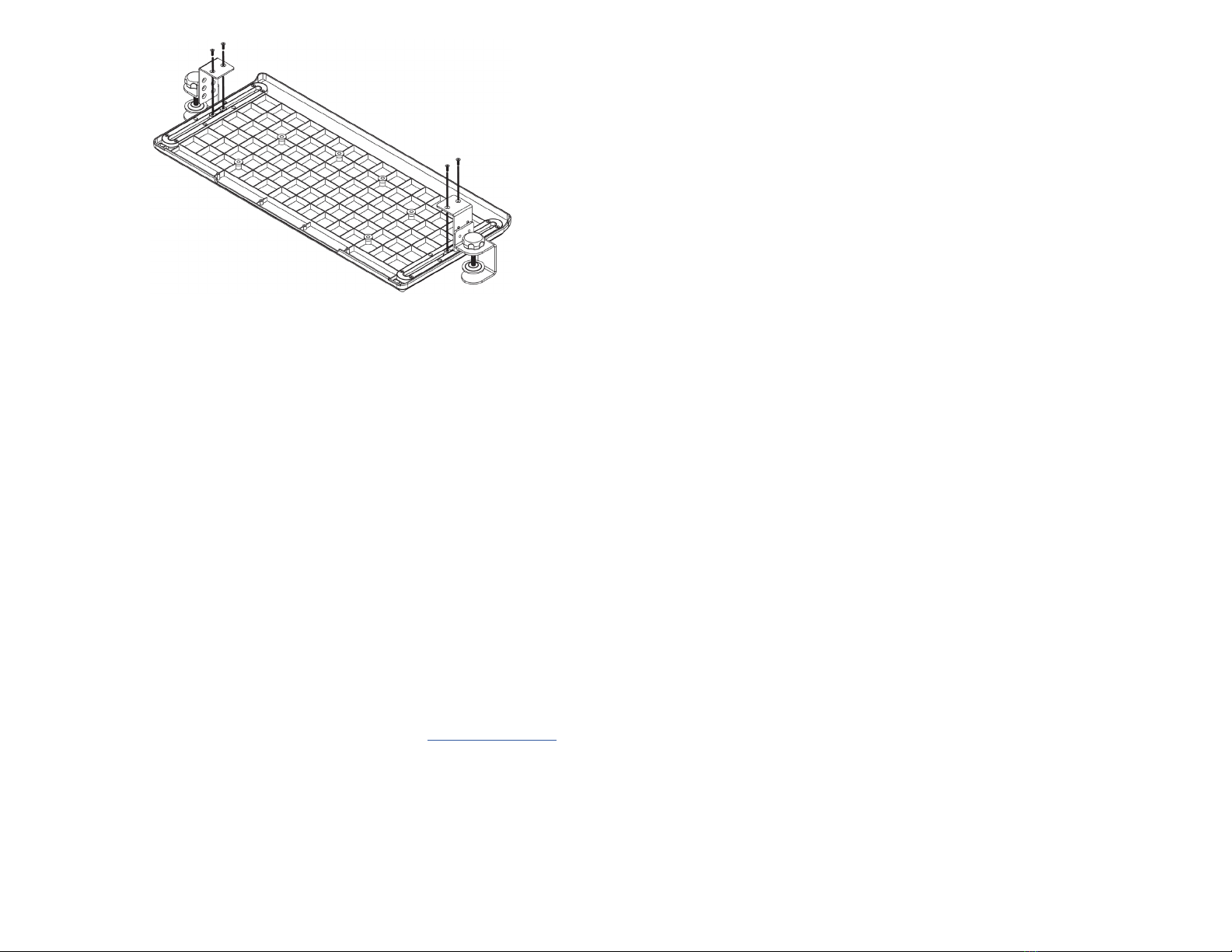

either side of the Keyboard Tray with the bottom of the Desk Clamp Assembly.

(Figure 2).

2. Secure the Desk Clamp Assembly to the Keyboard Tray using the Tray

Mounting Screws (x2) and tighten using a Phillips Head Screwdriver.

3. Repeat steps 2and 3to attach the second Desk Clamp Assembly. This

completes the Keyboard Tray Assembly.

Attach the Keyboard Tray Assembly to the Desk

1. Open the Desk Clamps rotating the Clamp Knobs counterclockwise. The Desk

Clamps can accommodate Desks measuring up to 59 mm (2.3 in) thick.

2. Slide the Desk Clamps over the edge of the Desk.

3. Tighten the Desk Clamps by rotating the Clamp Knobs clockwise.

Figure 2
