StarTech.com MST30C2HDPPD Manuel utilisateur

Manual Revision: 02/21/2019

User Manual

For the latest information and specications visit

www.startech.com/MST30C2HDPPD

USB-C™ Docking Station for Laptops |

Hard Drive Bay | Power Delivery | 4K

Actual product may vary from photos

SKU#: MST30C2HDPPD

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Compliance Statements

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit dierent from that to

which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Use of Trademarks, Registered Trademarks, and other

Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and

other protected names and/or symbols of third-party companies not related in

any way to StarTech.com. Where they occur these references are for illustrative

purposes only and do not represent an endorsement of a product or service

by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com

hereby acknowledges that all trademarks, registered trademarks, service marks,

and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements

Safety Measures

• Wiring terminations should not be made with the product and/or electric

lines under power.

• Cables (including power and charging cables) should be placed and routed

to avoid creating electric, tripping or safety hazards.

Mesures de sécurité

• Les terminaisons de câblâge ne doivent pas être eectuées lorsque le produit

et/ou les câbles électriques sont sous tension.

• Les câbles (y compris les câbles d’alimentation et de chargement) doivent

être placés et acheminés de façon à éviter tout risque électrique, de chute ou

de sécurité

安全対策

• 電源が入っている状態の製品または電線の終端処理を行わないでくださ

い。

• ケーブル（電源ケーブルと充電ケーブルを含む）は、適切な配置と引き回し

を行い、電気障害やつまづきの危険性など、安全上のリスクを回避するよう

にしてください。

Misure di sicurezza

• I terminiali dei li elettrici non devono essere realizzate con il prodotto e/o le

linee elettriche sotto tensione.

• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati

e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o

pericoli per la sicurezza.

Säkerhetsåtgärder

• Montering av kabelavslutningar får inte göras när produkten och/eller

elledningarna är strömförda.

• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så

sätt att risk för snubblingsolyckor och andra olyckor kan undvikas.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Table of Contents

Compliance Statements........................................................................1

Safety Statements..................................................................................2

Product Diagram....................................................................................4

Front View.................................................................................................................................................... 4

Back View ..................................................................................................................................................... 5

Installation ..............................................................................................6

Installing an Internal 2.5 in. Hard Drive..............................................6

Powering the Docking Station ............................................................................................................. 7

Connecting the Docking Station......................................................................................................... 8

Prepare a drive for use ..........................................................................9

Windows OS................................................................................................................................................ 9

macOS........................................................................................................................................................... 10

Installing the Remaining Drivers ......................................................................................................... 11

Charging a Device..................................................................................11

Conguring a Display Device...............................................................12

Supported Video Resolutions ..............................................................12

About the LED indicators......................................................................13

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Diagram

Front View

1USB-A Port (Fast Charge and Sync)

23.5mm Headphone Port

3HDD Activity LED

4Power LED

5Power Button

3 4 51 2

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Back View

1Hard Drive Bay Lock 5DisplayPort Port

2DC Power Input Port 6RJ45 Port

3USB-C Host Port 7USB-A Port

4DisplayPort Port 8USB-A Port

2 3 4 5 6 7 8

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Installation

Installing an Internal Hard Drive

Note: Disconnect the docking station from your laptop and

any peripherals before you begin installation.

1. Slide the hard drive bay lock into the unlock position.

Unlocking the hard drive bay lock

2. Slide the cover o of the docking station by pushing from

the back forward to the front.

3. Using a Phillips type screwdriver, install each of the four

drive screws (included) into the screw holes on your 2.5 in.

hard drive.

Installing the four drive screws into the hard drive

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

4. Place your 2.5 in. hard drive into the enclosure, ensuring the

four screws are aligned with the open notches inside the

drive bay. Then slide the drive toward the SATA connector to

connect the drive and lock it into position.

Installing the hard drive

5. Replace the cover of the docking station and slide the Hard

drive bay lock into the lock position.

Note: See the “Prepare a drive for use” section, for details on

formatting your drive for your specic operating system.

Powering the Docking Station

Notes: When the docking station is plugged in and powered,

you can use USB-C Power Delivery to power and charge your

laptop through its USB-C port.

The docking station cannot receive power from the host lap-

top, therefore the power adapter must always be connected

to the docking station.

1. Select the appropriate power cord for your region and

connect it to the power adapter.

2. Connect the power adapter to an AC electrical outlet and

then to the docking station’s DC IN (power input) port.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

3. Connect the provided USB-C cable to a USB-C port on your

host laptop and to the USB-C port on the dock that is labeled

with a laptop icon.

4. Both the docking station and your connected laptop should

now be receiving power.

Note: In order to power and charge your connected laptop,

its USB-C port must support USB Power Delivery.

Connecting the Docking Station

1. Connect a USB-C Cable to the USB-C Port (Host) on the

Docking Station and connect the other end to a USB-C port

on the Host Computer.

2. Connect a USB Peripheral Device to either the USB-A Ports or

USB-C Port on the back of the Docking Station. Devices may

include USB peripherals, headset, microphone, etc.

Note: The three USB ports located at the back of the docking

station (2x USB-A, 1x USB-C) are standard USB 3.0 through-

put ports. When the dock is connected to a host laptop, these

ports provide a trickle charge to a connected device.

3. Connect a CAT6/5e Cable to the RJ45 Port on the Docking

Station and the other end to a Network Device.

4. Connect a DisplayPort Cable to the DisplayPort Port on the

Docking Station and the other end to a Display Device.

5. Repeat step 4 to connect a second Display Device.

Notes: Video output capabilities are dependent on the video

card and hardware specications of your connected host

laptop.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Installing the Remaining Drivers

Depending on your operating system, the dock will

automatically install some of the required drivers once

connected to your host laptop. Follow the below instructions to

complete the full driver installation process.

1. Using a Web browser navigate to www.startech.com/

MST30C2DPPD.

2. Click the Support tab.

3. Download the drivers.

4. When the download is complete, extract the contents of the

compressed le(s) that you downloaded.

5. Double-click the appropriate driver for the version of

Windows that you are running and follow the on-screen

instructions to complete the installation.

Note: If you are prompted to restart your computer, do so to

complete the installation.

Preparing the Hard Drive

Windows OS

If you install a drive that already has data on it, after you insert

the drive, it appears under My Computer or Computer with a

drive letter assigned to it. If you install a brand-new drive that

doesn’t contain any data, you must prepare the drive for use.

Warning! When you complete the following steps, all of the

data on your drive will be deleted. If your drive has data on

it that you require, you should create a backup le or use a

Table des matières

Autres manuels StarTech.com Accessoires informatiques

StarTech.com

StarTech.com DK30CH2DPPDU Manuel utilisateur

StarTech.com

StarTech.com ATX8400PRO2B Manuel utilisateur

StarTech.com

StarTech.com USB3SDOCKDD Manuel utilisateur

StarTech.com

StarTech.com ECESAT32 Manuel utilisateur

StarTech.com

StarTech.com USB3VDOCK4DP Manuel utilisateur

StarTech.com

StarTech.com MST30C2DPPD Manuel utilisateur

StarTech.com

StarTech.com CB1PECP Manuel utilisateur

StarTech.com

StarTech.com CMPNL2U Series Manuel utilisateur

StarTech.com

StarTech.com DK30A2DH Manuel utilisateur

StarTech.com

StarTech.com S2510U33RUSM Manuel utilisateur

StarTech.com

StarTech.com TB3DOCK2DPPD Manuel utilisateur

StarTech.com

StarTech.com SATERASER4 Manuel utilisateur

StarTech.com

StarTech.com EC400USB Manuel utilisateur

StarTech.com

StarTech.com SECTBLTPOS Manuel utilisateur

StarTech.com

StarTech.com MST30C2HHPD Manuel utilisateur

StarTech.com

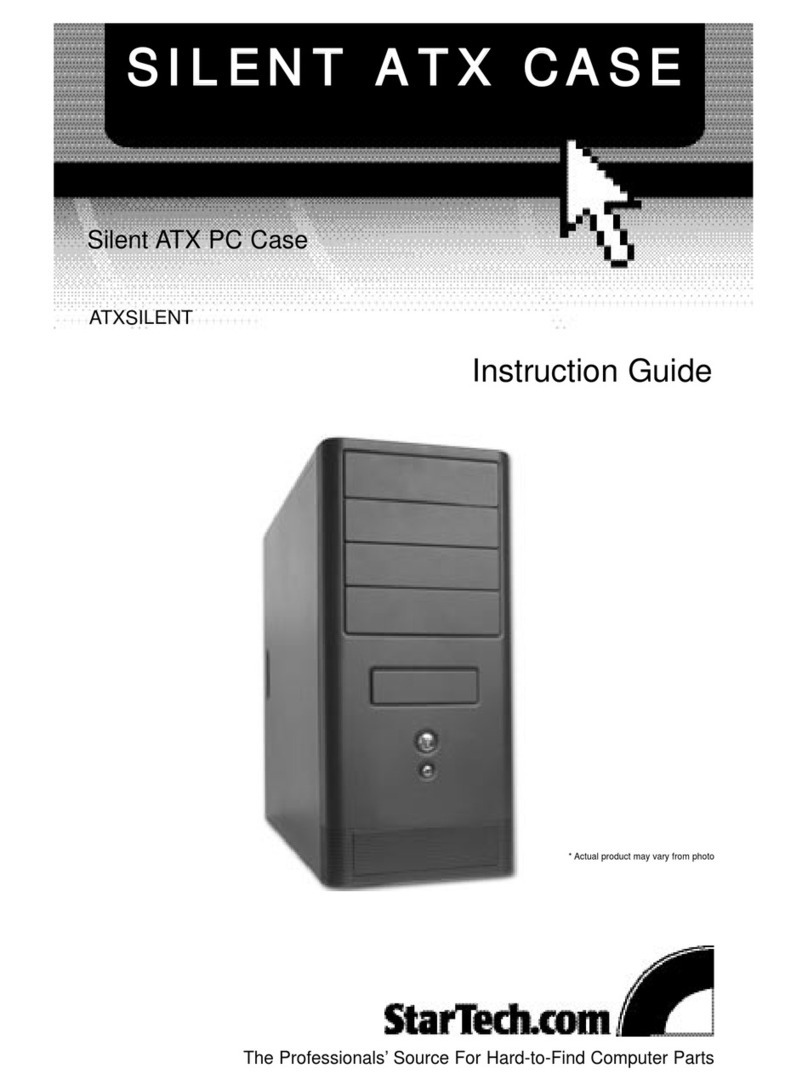

StarTech.com ATXSILENT Manuel

StarTech.com

StarTech.com SAT3520U3SR Manuel utilisateur

StarTech.com

StarTech.com STNDTBLT1A5T Manuel utilisateur

StarTech.com

StarTech.com S3510WMU33T Manuel du système

StarTech.com

StarTech.com ATX5250PRO Manuel

StarTech.com

StarTech.com MST30C2DPPD Manuel utilisateur

StarTech.com

StarTech.com PCI220USB Manuel utilisateur

StarTech.com

StarTech.com KEYBOARD-TRAY-CLAMP1 Manuel utilisateur

StarTech.com

StarTech.com ST7300USB3B Manuel utilisateur

Manuels Accessoires informatiques populaires d'autres marques

Motorola

Motorola ATRIX Manuel utilisateur

HP USB Media Docking Station Manuel utilisateur

Cherry

Cherry B.UNLIMITED 3.0 Manuel utilisateur

Logitech

Logitech IO2 Manuel utilisateur

ARM

ARM DSTREAM-ST Manuel utilisateur

Bartec

Bartec TC 7 Series Manuel utilisateur

Philips

Philips SPC3540 Manuel utilisateur

Logitech

Logitech mk220 Manuel utilisateur

SilverStone

SilverStone LC02 Manuel utilisateur

Flexispot

Flexispot ML2B Manuel utilisateur

Hamlet

Hamlet UNIVERSAL COVER 101 KBT2 Manuel utilisateur

Adam Equipment

Adam Equipment RS-485 Manuel utilisateur

Vivo

Vivo MOUNT-KB05-4DW Manuel utilisateur

Kvaser

Kvaser Memorator Professional Manuel utilisateur

DRC

DRC D-Imaging Manuel utilisateur

Sven

Sven Base 305 сombo Manuel utilisateur

Hama

Hama 108310 Manuel utilisateur

SpeechWare

SpeechWare FlexyMike FMK03 Manuel utilisateur
