StarTech.com S322SAT3R Manuel utilisateur

Manual Revision: 05/09/2014

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

S322SAT3R

Internal Drive Mounted Dual SATA Hard

Drive RAID Adapter

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Diagram ....................................................................................1

Front View .................................................................................................................................................... 1

Rear View...................................................................................................................................................... 1

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements.............................................................................................................................. 2

Installation ..............................................................................................2

Hardware Installation .............................................................................................................................. 2

Congure RAID .......................................................................................6

RAID Lock/Unlock Jumper Pins............................................................................................................ 6

LED Activity and Drive Failure Indicators...........................................8

Hard Drive Initialization........................................................................8

Specications..........................................................................................10

Technical Support ..................................................................................11

Warranty Information............................................................................11

Instruction Manual

Product Diagram

Front View

Rear View

Drive #1 SATA (DATA + Power) connector

2-pin LED connector

for HDD Activity LED

4-pin power

connector

SATA host interface

connector

Drive #2 SATA

(DATA) connector

RAID setting

jumper pins

RAID unlock/

lock jumper

pins

Instruction Manual

Introduction

Packaging Contents

• 1x Internal Drive Mounted Dual SATA Hard Drive RAID Adapter (S322SAT3R)

• 2x SATA Cable (50cm)

• 1x 4-pin to SATA Power Adapter

• 1x Installation Manual

System Requirements

• 2 x 2.5/3.5” SATA Hard Drives or Solid State Drives (HDD/SSD)

• 1 x Computer System with:

• 1x Available SATA Interface Connection

• 2 x Available SATA Power Source

Installation

Hardware Installation

WARNING! Hard drives, internal computer system components, and RAID adapters

require careful handling. If you are not careful with your hard drive, lost data may

result. Always handle your computer equipment with caution. Be sure that you

are properly grounded by wearing an anti-static strap when handling computer

components or discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

Note: Before you begin installation open your computer system and remove any SATA

or Data or power cables connected to the drives you intent to build in your RAID array.

WARNING! Setting or changing your RAID modes may erase all data or metadata

on your existing HDD/SSDs. It is recommended you backup any existing data before

attaching your hard drives to the S322SAT3R RAID Adapter.

1. Set the RAID unlock/lock jumper pins to the unlock position, and set your desired

RAID conguration. (See: Congure RAID).

Instruction Manual

2. Connect the Drive #1 SATA (DATA + Power) connector on the S322SAT3R to the

SATA (DATA+Power) connector on the rst HDD/SSD mounted in your Computer

System.

3. Using one of the included SATA Cables, connect the SATA (Data) connector on the

second HDD/SSD to the Drive #2 SATA (DATA) connector on the S322SAT3R.

4. Connect an available SATA Power Source in your Computer System to the SATA

(Power) connector on the second HDD/SSD.

Instruction Manual

5. Using the remaining included SATA Cable, connect the SATA Host Interface

connector on the S322SAT3R to an available SATA Interface on your Computer

System.

Instruction Manual

6. Using the included 4-pin to SATA Power Adapter, connect the 4-pin power

connector on the S322SAT3R to an available SATA Power Source in your

Computer System.

7. The S322SAT3R is now been installed, close your computer case and start your

computer to build the RAID array.

8. (Optional) If you would prefer to lock your RAID array so it cannot be altered by the

RAID mode setting jumper pins, power down and open your computer system, and

set the RAID Lock/Unlock Jumper Pins to the lock position. (See Congure RAID).

The computer system can then be closed and powered back on.

Instruction Manual

Congure RAID

WARNING! Setting or changing your RAID modes may erase all data or metadata on

your existing HDD/SSDs.

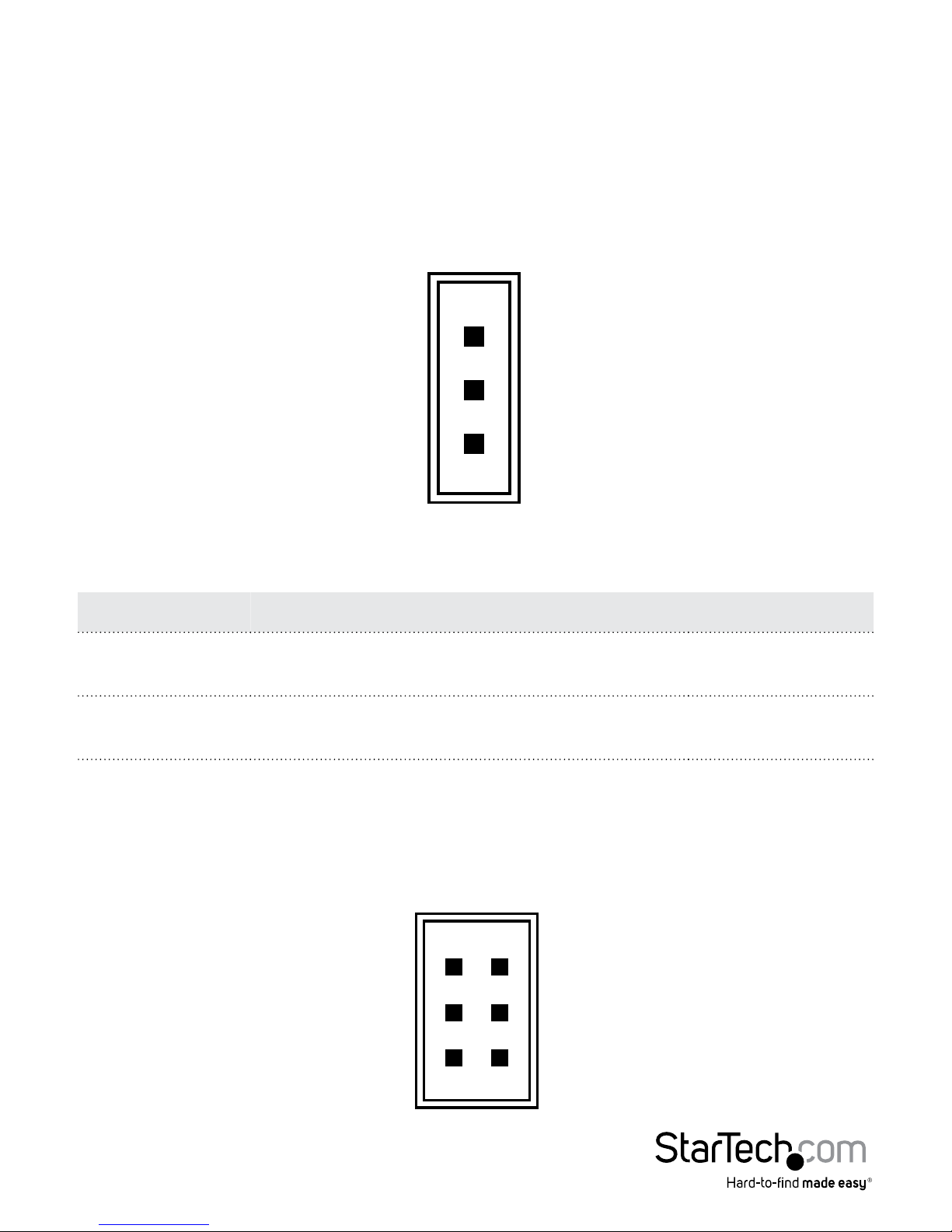

RAID Lock/Unlock Jumper Pins

The RAID lock/unlock jumper pins, located above the drive mounting brackets

enable you to lock your RAID conguration so it cannot be changed. Or unlock your

conguration so it can be changed.

Use the included jumper and the table below, to short the pins and set the mode for

your desired conguration.

GND

SET

Mode Description Jumper Pins

Unlocked Enables you to change your RAID

conguration mode. GND-SET

Locked Does not allow you to change your RAID

conguration mode. SET-NC

RAID Mode Setting Jumper Pins

The RAID setting jumper pins, located next to the SATA connector enable you to set

your desired RAID conguration between RAID 0, RAID 1, JBOD, and RAID initial Mode.

Instruction Manual

Use the included jumpers and the table below, to short the pins and set your desired

RAID mode.

RAID Mode Description Short Pins

RAID 0 Striping - Improves system performance 1-2, 4-5

RAID 1 Mirror – Creates a redundant drive on the

second drive for security 2-3, 4-5

BIG Spanning – Creates a large single drive

volume consisting of both drives. 1-2, 5-6

JBOD

Just a Bunch of Disks – Allows access to both

drives individually

(Note: A port multiplier compatible SATA

controller is required for this mode)

2-3, 5-6

Set RAID Conguration

1. Set the RAID Lock/Unlock Jumper Pins to the unlock position.

2. Using the RAID Mode setting jumper pins to your desired Mode.

3. Your RAID array has now been installed.

4. (Optional) If you would prefer to lock your RAID array so it cannot be altered by the

RAID mode setting jumper pins, power down your SATA host device, and set the

RAID Lock/Unlock Jumper Pins to the lock position.
