Star Trac eSPINNER Manuel technique
620-7907 REV A
STAR TRAC BY UNISEN CONFIDENTIAL AND PROPRIETARY Page 2 of 9
1
3
2
This procedure describes how to upload new software from your USB drive and adjust the video
dubbing settings on the eSpinner.
To be able to use a dual language SD card on the eSpinner, the unit has to be uploaded with
software release, v1.04 or higher.
STEP 1 - Verify Software Version
To check the software version please follow the instructions below
1- On the start screen, press the start button.
2- A 3-touch sequence is needed to access the password entry dialog
box. Touch the locations on the workout options screen in the
sequence shown (
, then
,
and then center of the logo
)
The password dialog box should now appear at the screen.
Note: Each location must be pressed within 1 second of the
previous location. If you are unable to access the password screen
after several attempts, you may need to re-calibrate the touch
screen.
620-7907 REV A
STAR TRAC BY UNISEN CONFIDENTIAL AND PROPRIETARY Page 3 of 9
3- After the password screen appears, type ‘218’ then ‘enter’ to gain
entry into the Service Menu Screen.
4- Once in the Service Menu screen, press the Calibration and Setup.
5- Verify on the Calibration and Setup page the software
version number below the TV setup button. Software
version 1.04 and higher is required to use the dual
language SD card. If you have software 1.04 or higher
you can proceed to step 3 if you do not want to upgrade
software. Star Trac recommends always updating your
eSpinner to the latest software available.
620-7907 REV A
STAR TRAC BY UNISEN CONFIDENTIAL AND PROPRIETARY Page 4 of 9
STEP 2 – UPDATE SOFTWARE
To update the software on the eSpinner you need to download the latest software from the
Star Trac support website and load the software into a USB thumb drive. The file “spinner” and
other language text files should be downloaded to the root directory of the USB drive, as shown
below. The main file from Star Trac is compressed with WINzip and this utility is needed to
decompress the file on your local computer and download the files to your USB drive.
Once you have the files on your USB drive, insert the USB drive in the USB port located on the
left upper side of the display console. Follow the instructions below:
1- On the start screen, press the start button.
620-7907 REV A
STAR TRAC BY UNISEN CONFIDENTIAL AND PROPRIETARY Page 5 of 9
1
3
2
2- A 3-touch sequence is needed to access the password entry dialog
box. Touch the locations on the workout options screen in the
sequence shown (
, then
,
and then center of the logo
)
The password dialog box should now appear at the screen.
Note: Each location must be pressed within 1 second of the
previous location. If you are unable to access the password screen
after several attempts, you may need to re-calibrate the touch
screen.
3- After the password screen appears, type ‘218’ then ‘enter’ to gain
entry into the Service Menu Screen.
4- Once in the Service Menu screen, press the Maintenance Mode
button to enter Maintenance Menu screen.
620-7907 REV A
STAR TRAC BY UNISEN CONFIDENTIAL AND PROPRIETARY Page 6 of 9
5- While in Maintenance Mode screen, press the update code
button to start software update. The process will take several
minutes, and unit will exit back to main menu once the software
update is complete.
a. Once the update process has started the screen will
change and you will see a progress bar appear and
track the software progression.
b. The screen will automatically reset to the main menu
once complete.
c. If you do not automatically reset to the main menu the
software did not update and you should go back to
step 1 and repeat the process, verifying each step
along the way.
620-7907 REV A
STAR TRAC BY UNISEN CONFIDENTIAL AND PROPRIETARY Page 7 of 9
1
3
2
STEP 3 – LANGUAGE CONFIGURATION
Now that the software update is completed, continue with the
instruction below to setup audio language:
1- On the start screen, press the start button.
2- A 3-touch sequence is needed to access the password entry dialog
box. Touch the locations on the workout options screen in the
sequence shown (
, then
,
and then center of the
logo
)
The password dialog box should now appear at the screen.
Note: Each location must be pressed within 1 second of the
previous location. If you are unable to access the password
screen after several attempts, you may need to re-calibrate
the touch screen.
3- After the password screen appears, type ‘218’ then ‘enter’ to gain
entry into the Service Menu Screen.
620-7907 REV A
STAR TRAC BY UNISEN CONFIDENTIAL AND PROPRIETARY Page 8 of 9
Languages enabled
Languages disabled
Audio Menu
4- Once in the Service Menu screen, press the Manager Mode
button to enter Manager Mode menu.
5- While in Manger Mode screen, user can toggle between enable Languages and disable
language button to allow user to select text language on the screen. When the enable
languages option is selected, an audio menu option will populate in the list:
620-7907 REV A
STAR TRAC BY UNISEN CONFIDENTIAL AND PROPRIETARY Page 9 of 9

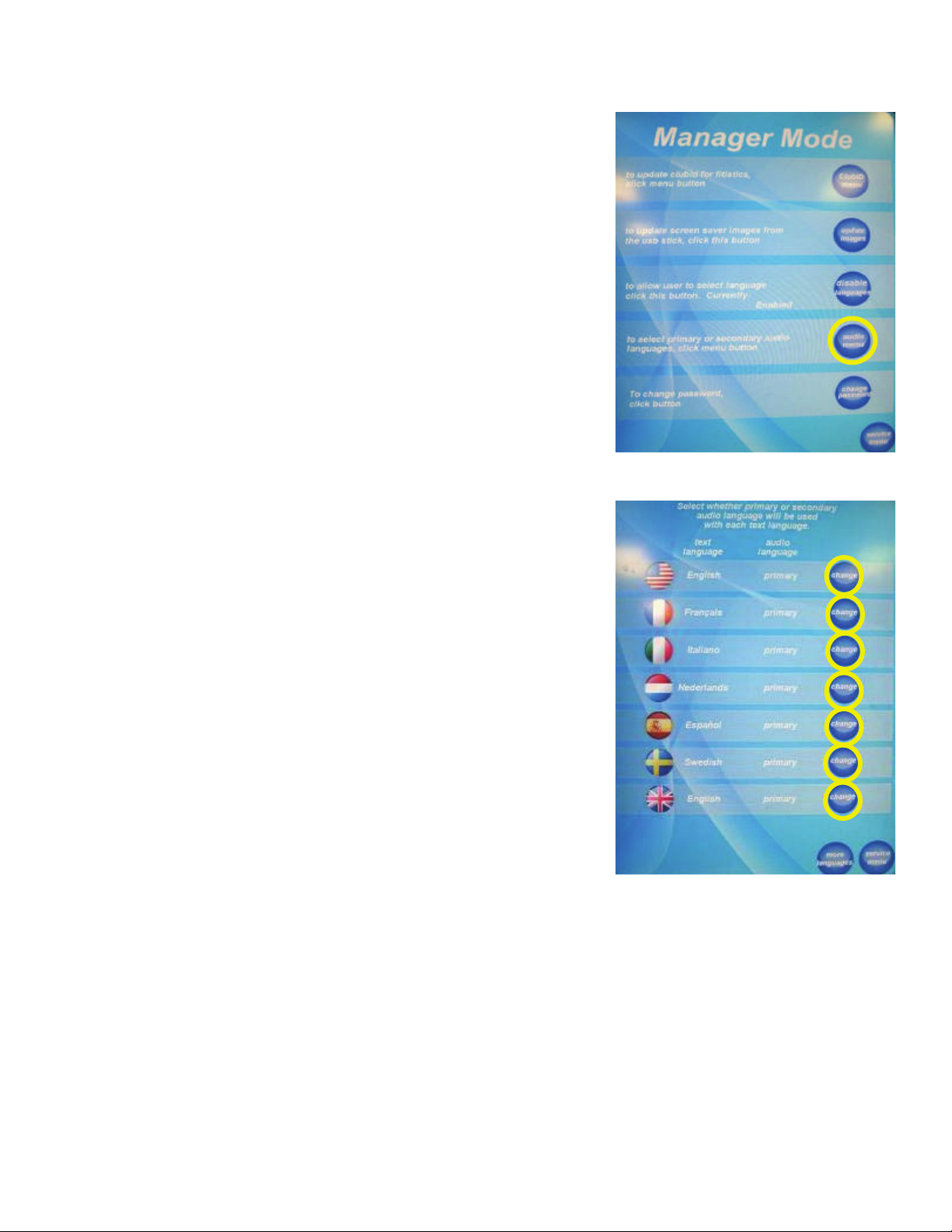

6- Once the ‘enable languages’ option is selected, press the
audio menu button to gain entry to audio menu screen:
7- The 16 Gb language cards are loaded with 2 languages. The
primary language is identifed on the card. The secondary
language is always english.
8- Use the change button to toggle between the primary and
secondary option for each flag. When primary option is selected,
audio language will be the dubbed language on the SD card.
When secondary option is selected, English audio is used.
***Note – There are multiple screens on this page that will need
to be complete. Use the more languages button to toggle
between languages.
9- Exit audio language screen by pressing service menu button then main menu button.
Changing audio language is now complete.
