Star Micronics SLIP SP298 SERIES Manuel utilisateur

SLIP PRINTER

SP298 SERIES

USER’S MANUAL

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

MANUALE DI ISTRUZIONI

Cover1.fm Page 1 Tuesday, September 30, 2008 5:26 PM

Federal Communications Commission

Radio Frequency Interference

Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A dig-

ital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-

able protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful interfer-

ence to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference

at his own expense.

This statement will be applied only for the equipments marketed in U.S.A.

FCC WARNING

Changes or modiﬁcations not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

For compliance with the Federal Noise Interference Standard, this equipment requires a

shielded cable.

For RF interference suppression, if a ferrite core is provided with this device, afﬁx it to the

interface cable.

Statement of

The Canadian Department of Communications

Radio Interference Regulations

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

The above statement applies only to printers marketed in Canada.

Trademark acknowledgments

SP298, AutoSide Loading

: Star Micronics Co. Ltd.

ESC/POS, TM-295, TM-290

: Seiko Epson Corporation

Notice

mission, is strictly forbidden.

• The contents of this manual are subject to change without notice.

• All efforts have been made to ensure the accuracy of the contents of this manual at the time of printing. However,

should any errors be found, STAR would greatly appreciate being informed of them.

• The above notwithstanding, STAR can assume no responsibility for any errors in this manual.

Cover2.fm Page 1 Tuesday, February 9, 2010 1:23 PM

TABLE OF CONTENTS

Chapter 1: Printer Setup ..............................................................................1

Choosing a place for the printer ..................................................1

Unpacking the printer ..................................................................2

Removing the protective materials ..............................................2

General guide ..............................................................................3

Removing the printer cover .........................................................4

Installing the ribbon cassette .......................................................4

Removing the ribbon cassette ......................................................6

Connecting to a power outlet and turning power on and off .......6

Connecting to your host computer ..............................................8

Connecting to a peripheral unit .................................................10

Inserting the paper into the printer ............................................11

AutoSide Loading™ ..................................................................12

Chapter 2: Control Panel Operations .......................................................14

Indicator lights ...........................................................................14

Buttons ......................................................................................15

Producing a test print .................................................................15

Adjusting the dot alignment ......................................................15

Hexadecimal dump ....................................................................17

Errors .........................................................................................18

Chapter 3: Command Summary ...............................................................20

Star Mode Commands ...............................................................20

ESC/POS Mode Commands (TM-295 emulation).....................26

ESC/POS Mode Commands (TM-290 emulation).....................28

Appendix A: Specifications ..........................................................................120

Appendix B: Making DIP Switch Settings..................................................125

Appendix C: Memory Switch Settings ........................................................130

Appendix D: Interface ..................................................................................131

Appendix E: Peripheral Unit Driver Circuit..............................................137

Please access the following URL

http://www.star-m.jp/eng/dl/dl02.htm

for the latest revision of the manual.

ENGLISH

SP29ETOC.fm Page 1 Tuesday, September 30, 2008 5:35 PM

ENGLISH

Chapter 1: Printer Setup

This chapter contains important information on setting up your printer. Be sure

to read this chapter carefully before using the printer for the first time. In this

chapter you will learn about:

❏

Choosing a place for the printer

❏

Unpacking and setting up the printer

❏

Installing the ribbon cassette

❏

Connecting to a host computer

❏

Inserting paper

Choosing a place for the printer

Before actually unpacking the printer, you should take a few minutes to think

about where you plan to use it. Remember the following points when doing this.

✓

Choose a ﬁrm, level surface where the printer will not be exposed to

vibration.

✓

The power outlet you plan to connect to for power should be nearby and

unobstructed.

✓

Make sure that the printer is close enough to your host computer for you to

connect the two.

✓

Make sure that the printer is not exposed to direct sunlight.

✓

Make sure that the printer is well away from heaters and other sources of

extreme heat.

✓

Make sure that the surrounding area is clean, dry, and free of dust.

✓

Make sure that the printer is connected to a reliable power outlet. It should

not be on the same electric circuit as copiers, refrigerators, or other

appliances that cause power spikes.

✓

Use a power outlet that matches the power rating noted on the label afﬁxed

to the bottom of your printer.

✓

Make sure that the room where you are using the printer is not too humid.

SP298E.fm Page 1 Wednesday, October 1, 2008 10:10 AM

ENGLISH

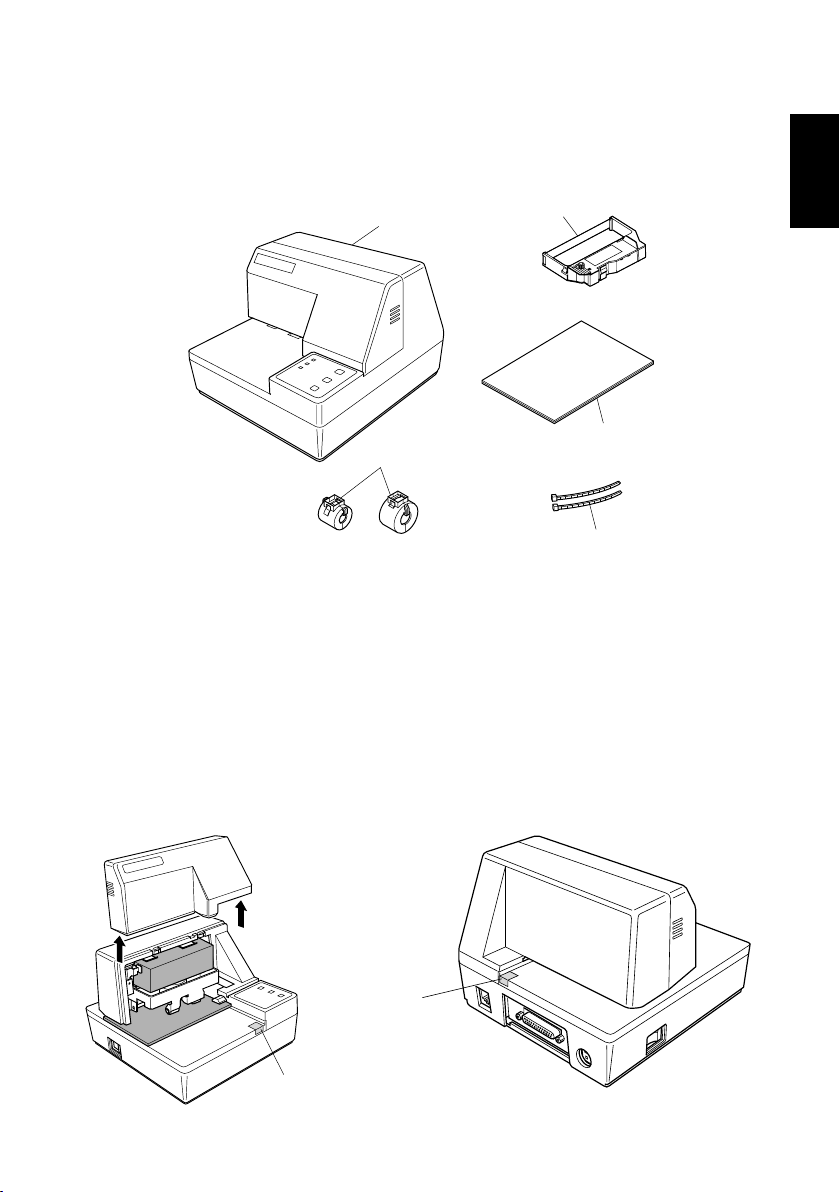

Unpacking the printer

Check to make sure that the carton contains each of the items shown in the

following illustration.

If anything is missing, contact the dealer where you bought the printer and ask

them to supply the missing part. Note that it is a good idea to keep the original

box and all the packing materials just in case you need to pack the printer up

again and send it somewhere at a later date.

Removing the protective materials

Four protective materials are inserted into the printer to protect components

during shipping. Before using the printer, be sure to remove all protective

materials as shown in the illustration.

Printer Ribbon cassette

User’s Manual

Ferrite core

Fastener

tape

SP298E.fm Page 2 Wednesday, October 1, 2008 10:10 AM

ENGLISH

General guide

The following illustrations describe the major components, buttons, and

connectors of your printer.

Printer cover

Protects internal components.

Control panel

Three indicators show

the printer status, and

two switches provide

control over printer

functions.

Power switch

Turns printer

power on and off.

Document table

Supports the paper fed

into the printer.

For connection

to a host computer.

For connection of the AC adapter.

Never unplug the AC adapter

while the printer is on.

Interface connector

AC adapter cable connector

Peripheral unit connector cover

Covers a modular jack for

connection of a cash drawer or

other peripheral.

Do not connect a telephone line

to this connector.

SP298E.fm Page 3 Wednesday, October 1, 2008 10:10 AM

ENGLISH

Removing the printer cover

❏

Push straight up on the ridged locations on the sides of the printer cover to

remove it from the printer.

❏

To replace the cover, slide it back down into position. Gently press down on

the cover until you hear it click securely into place.

Installing the ribbon cassette

❏

Make sure that the printer’s paper release is activated (the paper is not held

in place by the paper feed roller). If it cannot be determined whether or not

the paper release is activated, turn on the printer and check if the

RELEASE

indicator on the control panel is lit. If the indicator is not lit,

press the

RELEASE

button until the indicator lights up.

❏

Make sure that the printer is turned off and unplugged from its power

outlet.

❏

Remove the printer cover.

❏

Remove the ribbon cassette from its packaging, and turn its knob in the

direction indicated by the arrow to take up any slack in the ribbon.

Printer cover

SP298E.fm Page 4 Wednesday, October 1, 2008 10:10 AM

ENGLISH

❏

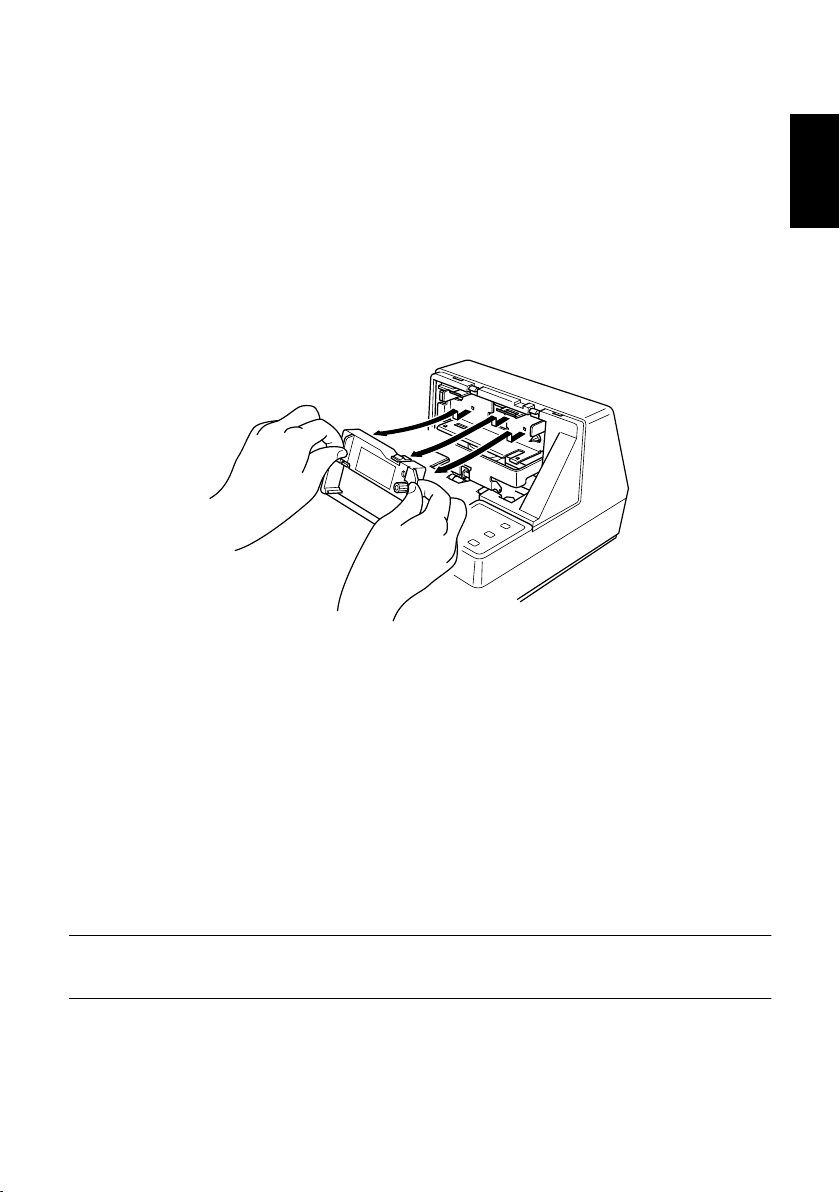

Holding the ribbon cassette so that the ribbon is facing down, install the

cassette into the slip printer as shown in the illustration.

❏

Press gently but ﬁrmly on the cassette until it snaps securely into place.

❏

Rotate the knob on the cassette again to take up any slack.

❏

Replace the printer cover.

Important!

Make sure that the ribbon is not twisted before installing the ribbon cassette.

Otherwise, the ribbon may become jammed in the printer and damage the

ribbon rollers.

In addition, if the ribbon becomes twisted after installation, remove the ribbon

cassette, untwist the ribbon, and then reinstall the cassette.

<Correct: Ribbon is not twisted> <Incorrect: Ribbon is twisted>

SP298E.fm Page 5 Wednesday, October 1, 2008 10:10 AM

ENGLISH

Removing the ribbon cassette

Use the following procedure to remove the ribbon cassette from the slip printer

when you want to replace it with a new one.

❏

Make sure that the printer is turned off and unplugged from its power

outlet.

❏

Remove the printer cover.

❏

Grasping the ribbon cassette as shown, gently pull it away from the printing

mechanism.

❏

Use the procedure under “Installing the ribbon cassette”on page 4 to install

a new cassette.

Connecting to a power outlet and turning power on and off

❏

Plug the AC adapter that comes with the printer into the printer’s AC

adapter cable connector.

❏

Connect a three-prong grounded power cord to the power cord connector of

the AC adapter.

Note:

The printer does not come with a power cord, so you must provide one yourself.

SP298E.fm Page 6 Wednesday, October 1, 2008 10:10 AM

ENGLISH

❏

Plug the other end of the power cord to a standard household wall outlet.

❏

Use the power switch on the left side of the printer to turn power on and off.

Important!

We recommend that you unplug the printer from the power outlet whenever you

do not plan to use it for long periods. Because of this, you should locate the

printer so that the power outlet it is plugged into is nearby and easy to access.

At this point you may want to perform a test of the printer to make sure it is

working properly. See page 15 for details on how to test the printer.

SP298E.fm Page 7 Wednesday, October 1, 2008 10:10 AM

Autres manuels pour SLIP SP298 SERIES

Table des matières

Langues :

Autres manuels Star Micronics Imprimante

Star Micronics

Star Micronics MULTI-FONT NX-1000II Manuel utilisateur

Star Micronics

Star Micronics TSP400 Series Manuel utilisateur

Star Micronics

Star Micronics LaserPrinter 8III Manuel utilisateur

Star Micronics

Star Micronics TSP100ECO Manuel utilisateur

Star Micronics

Star Micronics TUP500 series Manuel utilisateur

Star Micronics

Star Micronics DP8340RC Series Manuel utilisateur

Star Micronics

Star Micronics TSP200 Series Manuel utilisateur

Star Micronics

Star Micronics NX-2460C Manuel utilisateur

Star Micronics

Star Micronics TSP800 Series Manuel utilisateur

Star Micronics

Star Micronics TSP400Z Series Manuel utilisateur

Star Micronics

Star Micronics SP2000 Manuel d'utilisation et d'entretien

Star Micronics

Star Micronics TSP700 Series Instructions d'installation

Star Micronics

Star Micronics DP-8340 FM-120 Manuel utilisateur

Star Micronics

Star Micronics NX-1000 Manuel utilisateur

Star Micronics

Star Micronics SM-S200 Series Instructions de montage

Star Micronics

Star Micronics LC24-30 Colour Manuel utilisateur

Star Micronics

Star Micronics TCP300II Series Instructions d'installation

Star Micronics

Star Micronics TSP400 Series Manuel d'utilisation et d'entretien

Star Micronics

Star Micronics TSP2000 Series Manuel utilisateur

Star Micronics

Star Micronics DP8340RC Series Manuel utilisateur

Star Micronics

Star Micronics TSP600 Series Manuel

Star Micronics

Star Micronics LC-20 Manuel utilisateur

Star Micronics

Star Micronics SP500 Series Manuel utilisateur

Star Micronics

Star Micronics TSP2000 Series Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
