Stanley TMR-105T Manuel utilisateur
Model: TMR-105T
TV Mount Installation Guide
Thank you for choosing Stanley – the hardware of choice
for Architects, Contractors, and Home Owners for its quality,
performance and dependability.
Enclosed are your step-by-step instructions for an install made
easy.
If you get stuck, give customer service a call at 1-855-816-6868
You can also reach us at contact@stanleymounts.com
www.stanleymounts.com
2
Getting Started
Before we start lets make sure we have the correct mount and all
the required tools and hardware to complete the installation.
The TV is a Flat Panel TV is between 32” - 60” and weighs no more than
55lbs.
The Wall the TV will be mounted on is either concrete or dry wall with
wood studs.

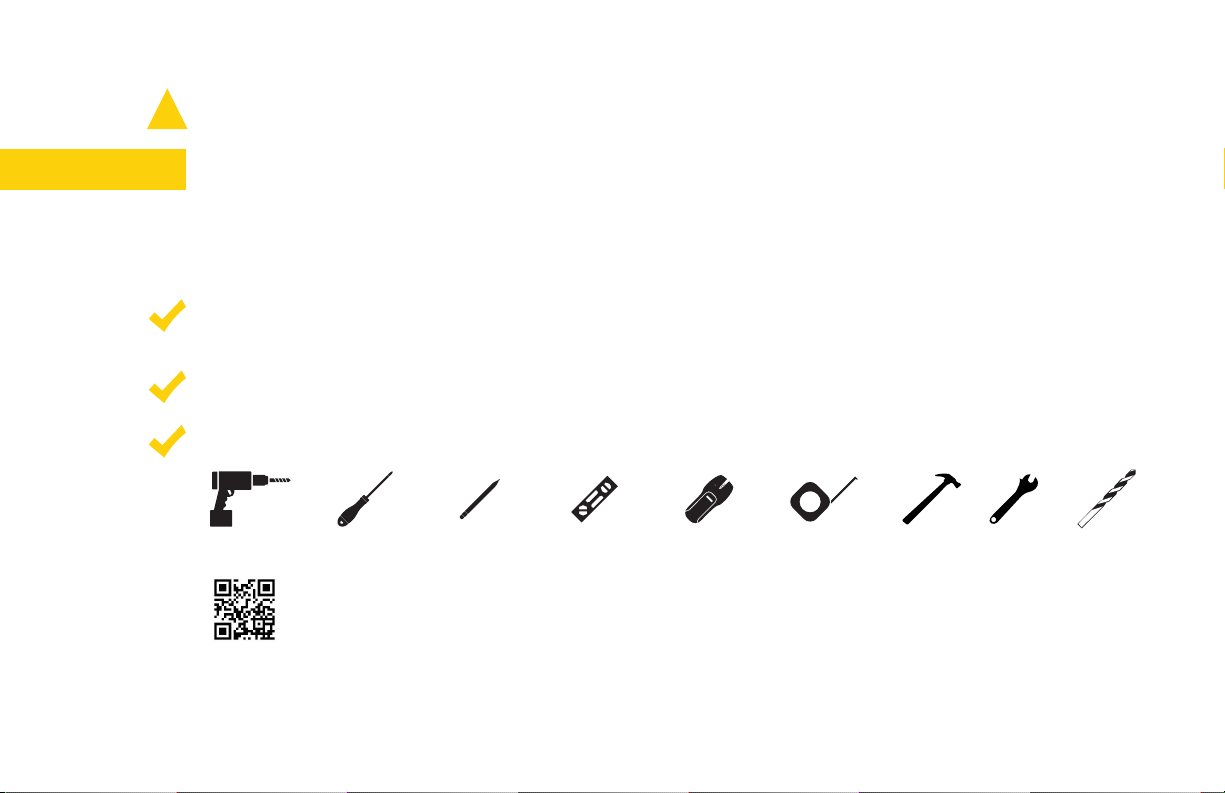

You have all of the following tools:
If you answer “Yes” to all the questions above then you are ready
to begin the TV Mount installation!
!Caution: Please read the entire manual before proceeding
View warranty and disclaimer on page 14
Drill Screwdriver Pencil Level Stud Finder Tape Measure Hammer Wrench Drillbit
Check out our free level app in the app store!
3
Parts & Hardware
Caution: Before starting assembly, verify all parts are included and undamaged. If any parts are missing or
damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged
parts or previously used parts!
D x4 A x4 B x4 C x4
H x4 I x4 J x4 K x4
Wall Plate Wall Plate Covers x2 TV Rails x2
!
For attaching TV Rails to TV Spacers Wall Screw Wall Anchor Washers
Caution: This product contains small items that could be a choking hazard if swallowed.
!
E x4
F x4 G x4
Pull Cable x2
4
Attach Pull Cable to the TV
bracket as show in the image.
Step 1: Attach Pull Cables to TV
1
1
5
1
2

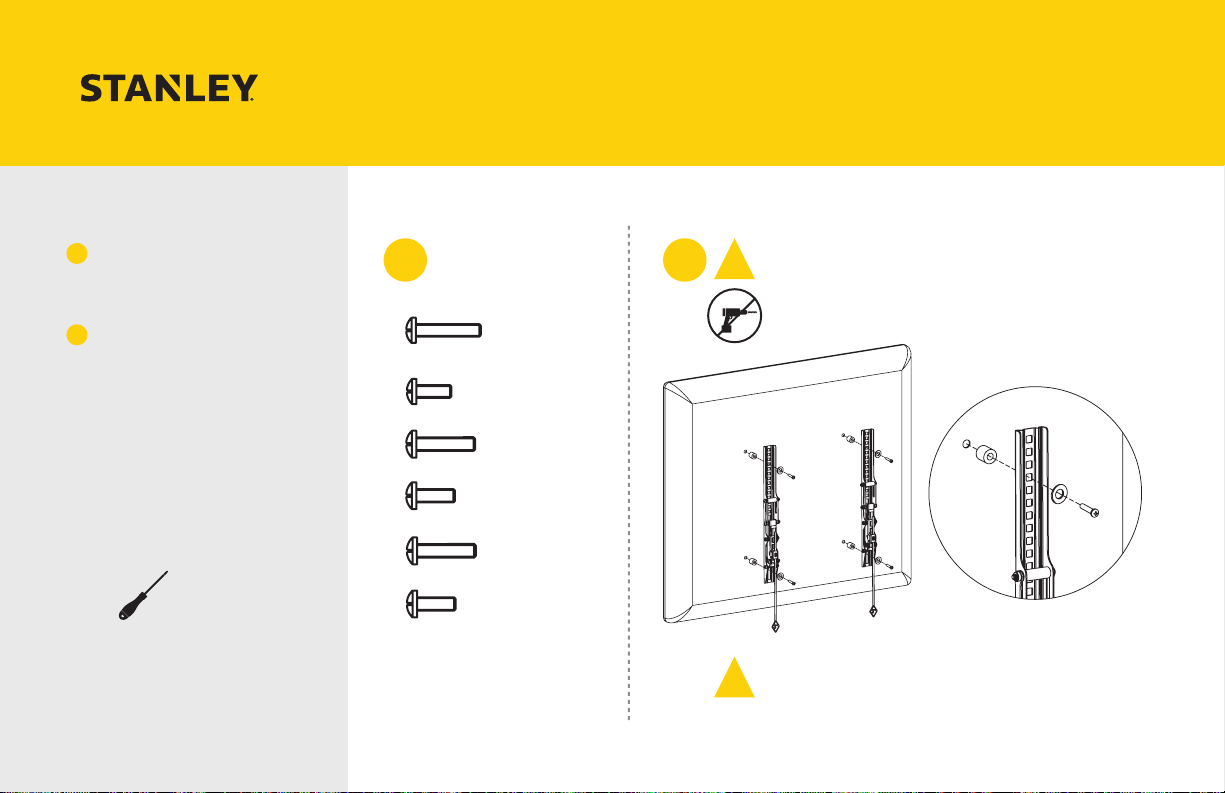

Step 2: Attach Rails to TV
1
Check what screw size will t
in your TV. (F,G,H,I,J,K)
If your TV has a curved back
you may need to use longer
screws with spacers.
Align the rails onto the back
of the TV and install with the
hardware.
Tools Required:
2Caution: Hand tighten with screwdriver only,
over tightening may damage the TV!
!
Screwdriver
Caution: If you are unable to line up the hardware
with the TV, please call: 1-855-816-6868
!
Do not use a drill for this step!
F x4
G x4
Hx4
Ix4
J x4
K x4
6

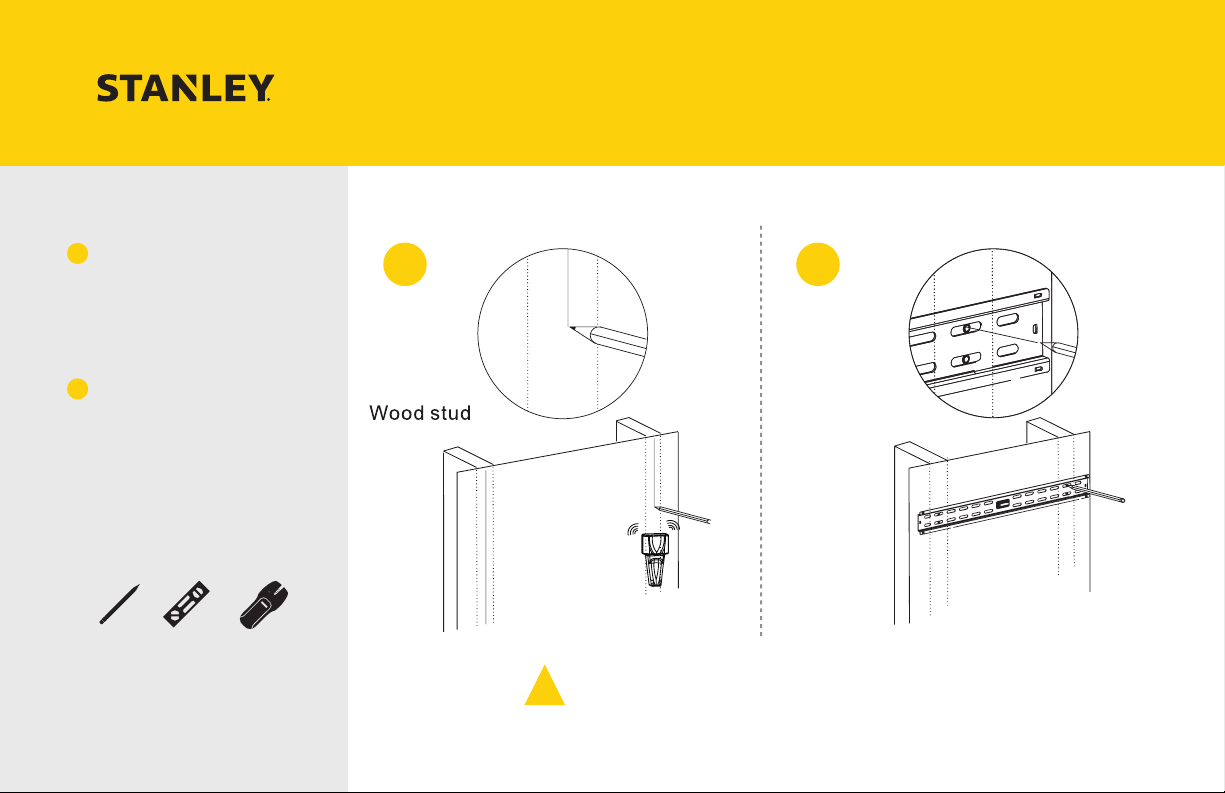

Step: 3A Install WallPlateonDrywall withWood Stud
Note: For Concrete skip to Step 3B
Use the stud finder to
locate 2 studs. Then draw
a vertical line on the center of
each stud.
Level the wall plate and align
it with the center of the
studs. Make 4 Pencil marks
to indicate where to drill.
Tools Required:
1
2
1 2
Pencil Level Stud Finder Caution: The minimum size of the woodstud must be
1/2”x 3 1/2” and the thickness of the drywall must not
exceed 5/8”.
!
7
43

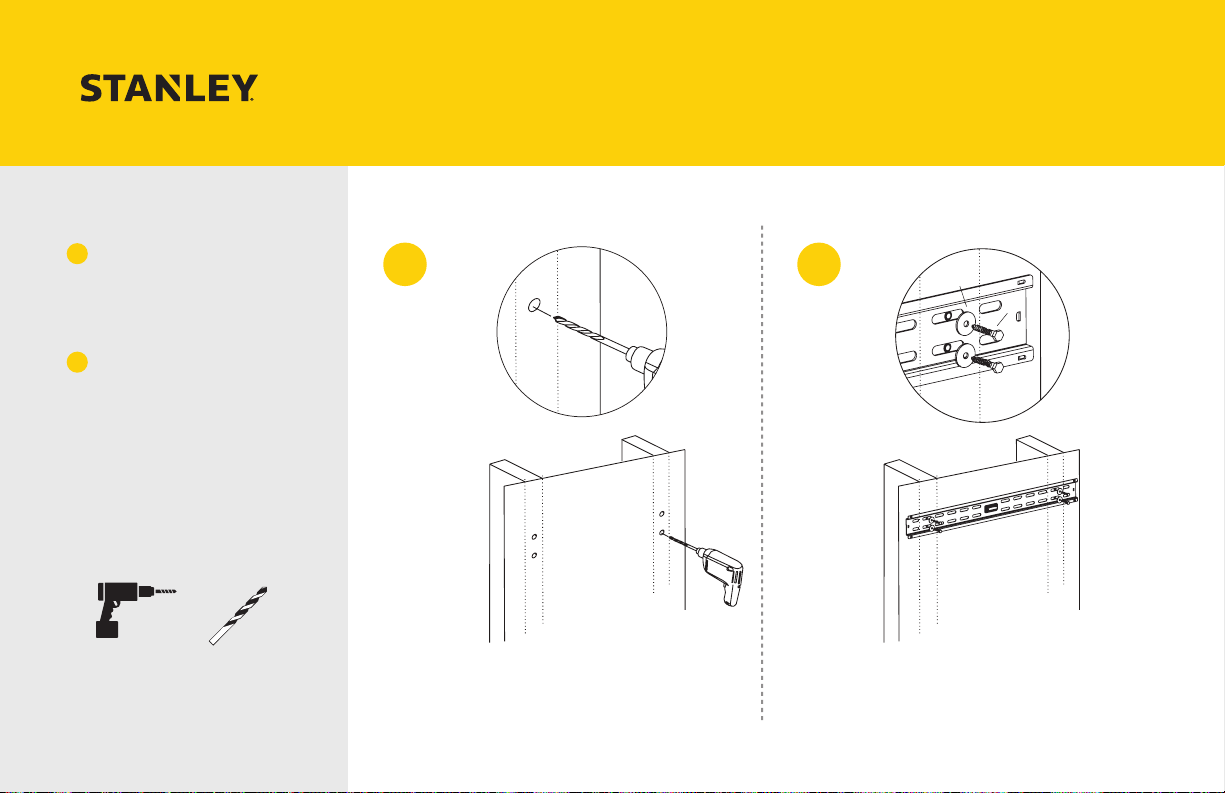

Remove the wall plate and
drill the pilot holes with a
3/16” drill bit
Align the wall plate with the
pilot holes and insert 4 bolts
through the washer in the
pilot holes and tighten.
Tools Required:
3
4
Drill 3/16” Drill Bit
A
E
8

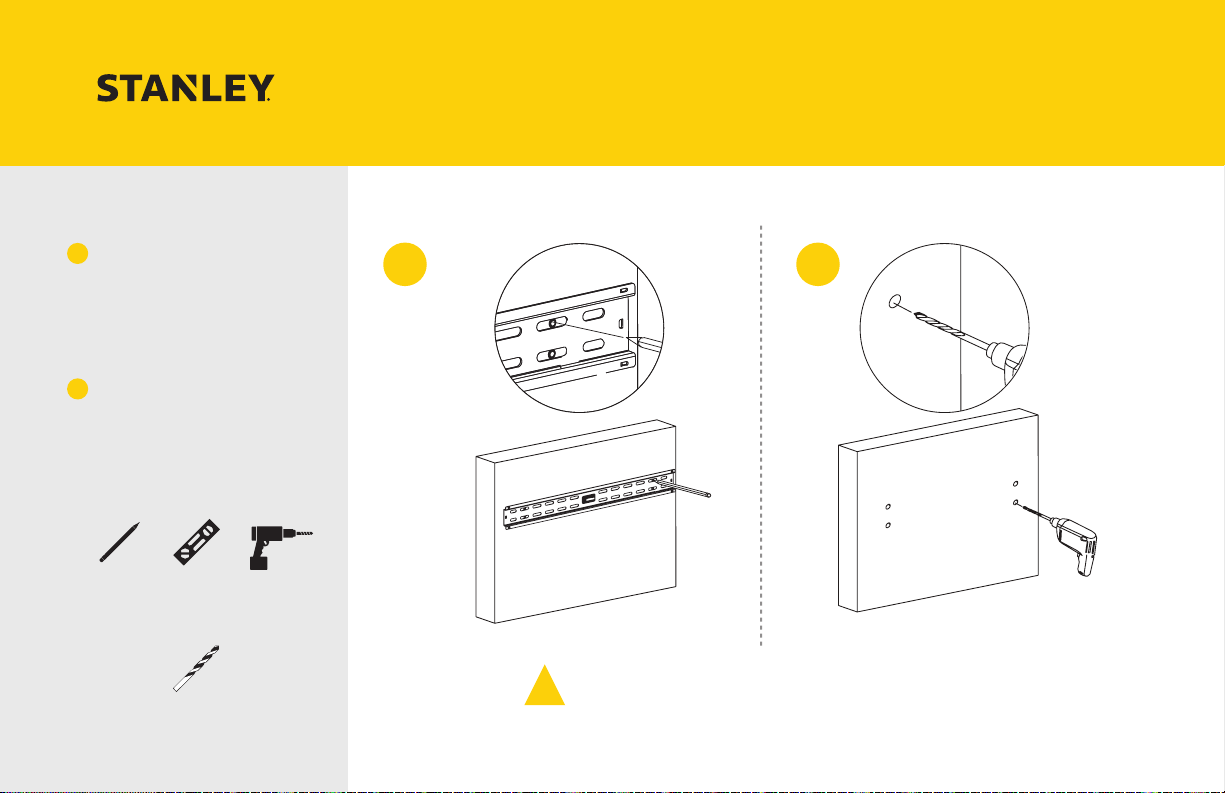

Step: 3B Install WallPlateonConcrete
Level the wall plate and
make 4 marks with pencil to
show where to drill the pilot
holes.
Remove the wall plate and
drill the pilot holes with a 3/8”
drill bit.
Tools Required:
1
2
1 2
Pencil Level Drill
3/8” Drill Bit
Caution: The minimum depth of the concrete must be 8”.
Do not drill pilot holes into the mortar between the concrete.
!
9

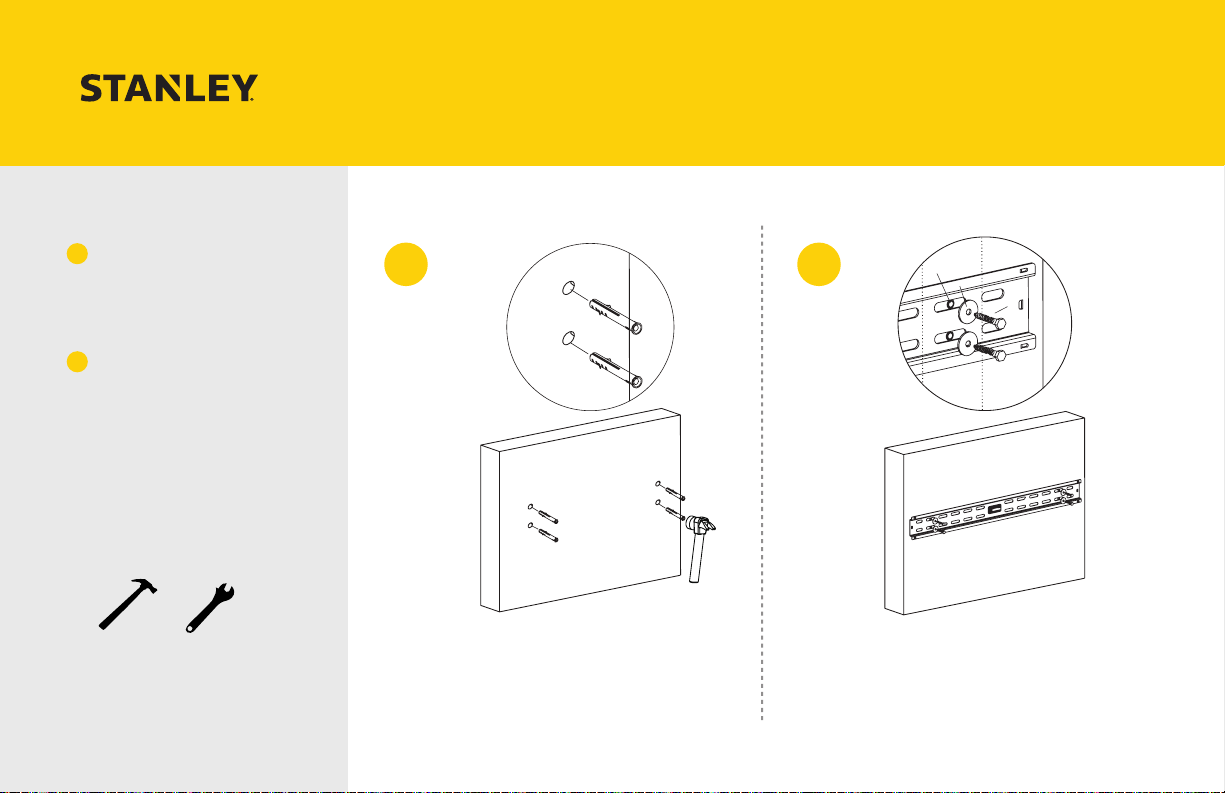

Insert the anchors into the
4 pilot holes. Tap with a
hammer
Align the wall plate with the
pilot holes and anchors and
insert 4 bolts through the
washer into the anchors and
tighten.
Tools Required:
3
4
3 4
Hammer Wrench
A
E
B
10

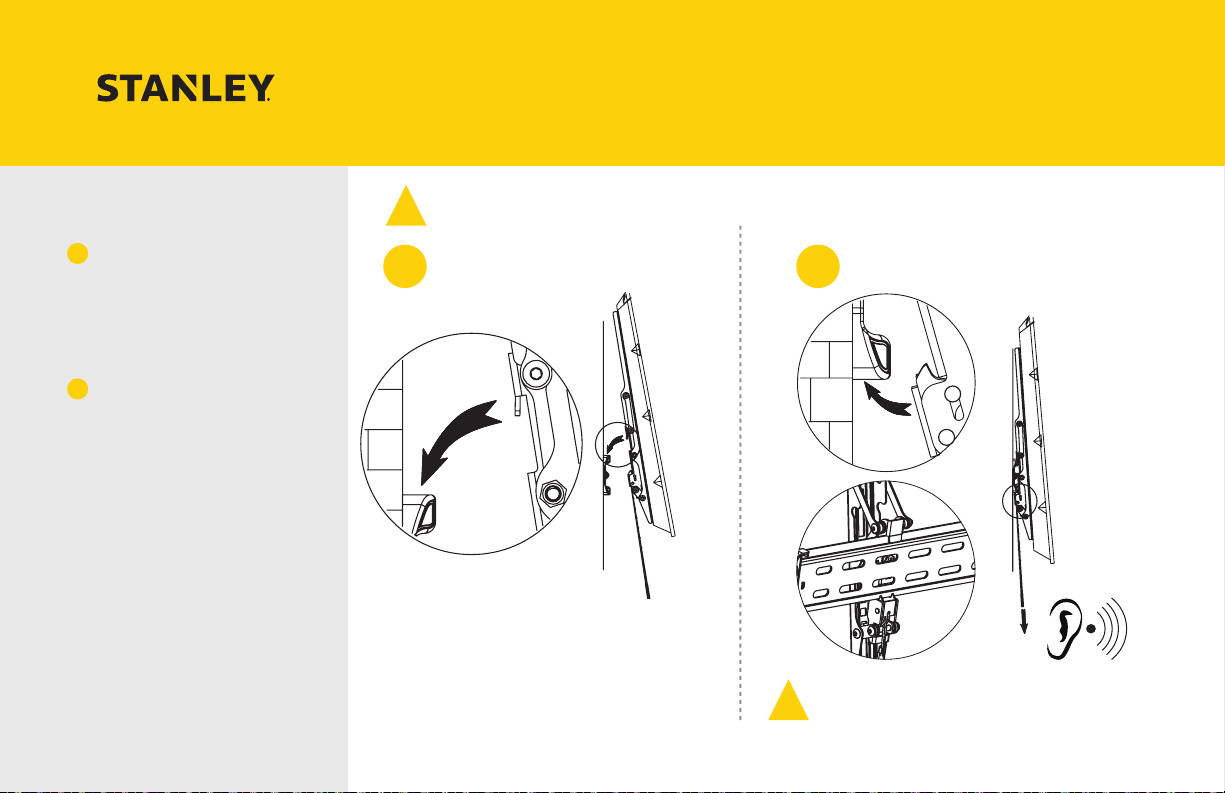

Step: 4 Hang Your TV
To hang your TV, clip the TV
Rails to the mounted wall
plate.
After the TV is hanging properly
on the wall mount, press on
the bottom of the TV to lock it
in place.
1
2
1 2
Listen for a “Click” to ensure mount
is locked in place
!
!Warning: Always use 2 people to lift your TV.
“snap”
“click”
“snap”
“click”
