Stanley RL HW Manuel utilisateur

FIN

Please read these instructions before operating the product

RL HW / RL HW+ / RL HGW / RL HV / RL HVPW

Auto-Levelling Rotary Laser Level

77-496 / 77-429 / 77-439 / 77-497 / 77-427

Auto-Levelling

277-496 / 77-429 / 77-439 / 77-497 / 77-427

77-496 / 77-429 / 77-439 / 77-497 / 77-427

RL HW RL HW+

RL HGW

RL HV /

RL HVPW

11 12

1313

477-496 / 77-429 / 77-439 / 77-497 / 77-427

(+)

(-)

(+)

(-)

(+)

(-)

(+)(-)

77-496 / 77-429 / 77-439 / 77-497 / 77-427

677-496 / 77-429 / 77-439 / 77-497 / 77-427

77-496 / 77-429 / 77-439 / 77-497 / 77-427

X1 X2

20 m 20 m

2 m

N1N2

N3N4

P1P2

1 m

2 m

1 m

D1D2

877-496 / 77-429 / 77-439 / 77-497 / 77-427

Contents

• Safety

• Product Overview

• Feature Set

• Keypad, LED, and LCD

• Batteries and Power

• Set Up

• Operation

• Accuracy Check and Calibration

• Speciﬁcations

User Safety

WARNING:

• Carefully read the Safety Instructions and

Product Manual before using this product.

The person responsible for the instrument must

ensure that all users understand and adhere to

these instructions.

CAUTION:

• While the laser tool is in operation, be careful

not to expose your eyes to the emitting laser

beam (red light source). Exposure to a laser

beam for an extended time may be hazardous

to your eyes.

CAUTION:

• Glasses may be supplied in some of the laser

tool kits. These are NOT certiﬁed safety glasses.

These glasses are ONLY used to enhance the

visibilty of the beam in brighter environments or

at greater distances from laser source.

Retain all sections of the manual for future reference.

WARNING:

• The following label samples are placed on

your laser tool to inform of the laser class for

your convenience and safety. Please reference

the Product Manual for the speciﬁcs on a

particular product model.

EN 60825-1

LASER RADIATION - DO NOT

STARE INTO THE BEAM OR VIEW

DIRECTLY WITH

OPTICAL INSTRUMENTS

CLASS 2 LASER PRODUCT

Max Output ≤ 1 mW @ 630 - 670 nm

Product Overview

Figure A - Laser Tool in Horizontal Position

1. Alignment Sight

2. Vertical Up Beam Window (RL HV / RL HVPW)

3. Rotary Laser / Glass Enclosed

4. Charging / Power Adapter Plug Jack

5. Keypad (See Figure E)

6. Vertical Down Beam (RL HVPW)

7. Infrared Sensor for Remote

(RL HW+ / RL HGW / RL HV / RL HVPW)

Figure B - Laser Tool in Vertical Position

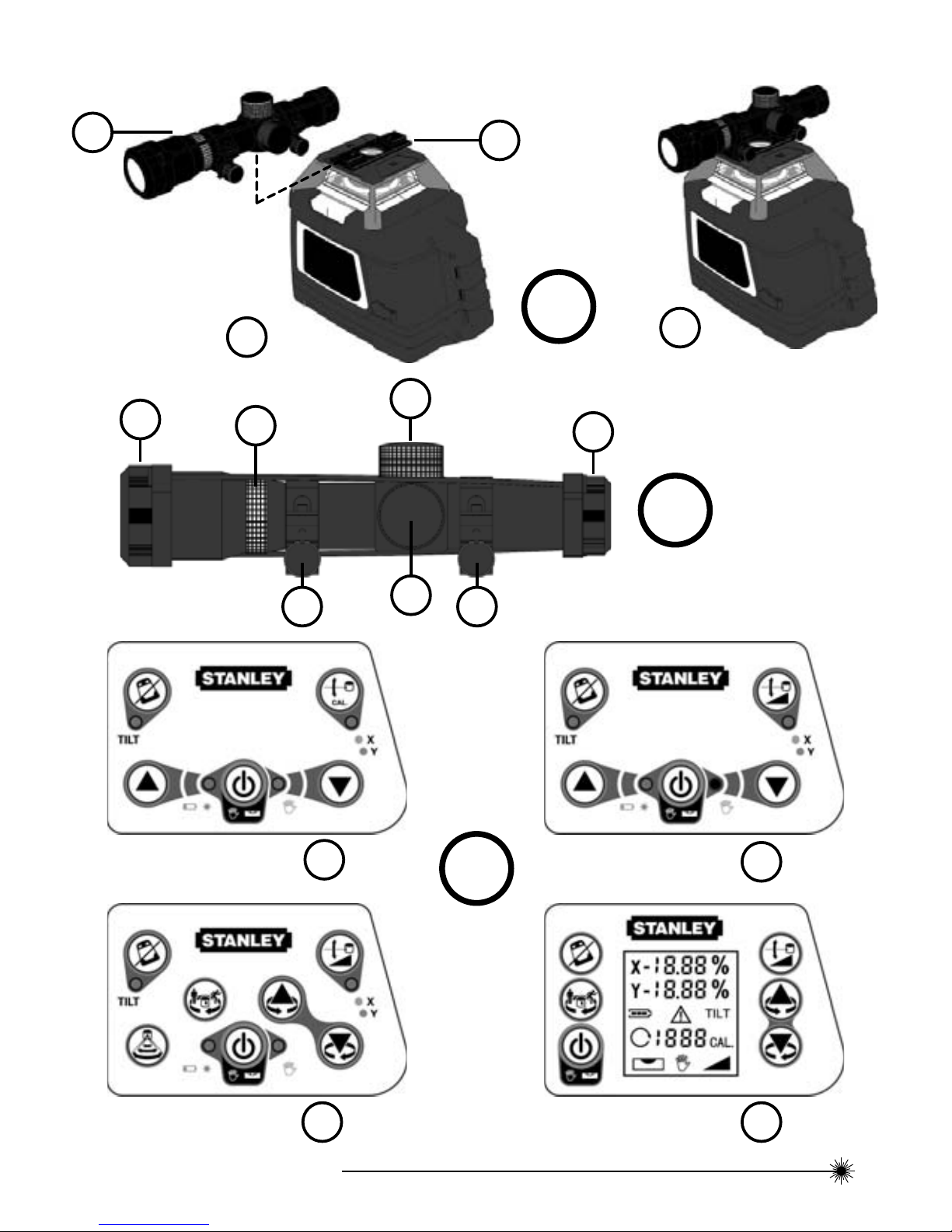

Figure C - Laser Tool with Sighting Telescope Accessory

(RL HGW)

8. Sighting Telescope

9. Sighting Telescope Mount Base

Figure D - Sighting Telescope

10. Eyepiece (Shown with Cover ON)

11. Reticle Focus

12. Windage / Elevation Adjustment Covers

(DO NOT OPEN / ADJUST)

13. Locking Screws

14. Objective (Shown with Cover ON)

Figure E - Keypad Conﬁgurations

77-496 / 77-429 / 77-439 / 77-497 / 77-427

Figure F - Laser Tool Battery Location

15. Battery Pack

16. Optional Batteries - 4 x “C”

17. Battery Cartridge for use with 4 x “C” Batteries

Figure G - Remote Control

18. Infrared LED

19. Keypad

Figure H - Remote Control Battery Location

20. Batteries - 2 x “AAA”

21. Battery Compartment

Figure J - Bracket Accessory

22. Key Hole Slot for Wall Hanging

23. Ceiling Grid Clamp

24. Vertical (Up / Down) Fine Adjust Knob

25. Included 5/8 to 1/4 Adapter

26. Vertical Adjust Lock Knob

27. 5/8 Mounting Screw

28. Rotary Fine Adjust Knob

29. Tightening Knob

30. Magnetic Mount

31. Keyhole Mount for Additional Magnet and / or Clamp

Accessories

32. Storage Location for 5/8 to 1/4 Adapter

Figure K - Tripod Mounting

33. 5/8 Center Screw

34. Leg Lock Lever

Figure L - Calibration and / or Slope Axis Direction

Figure M - Spot and / or Scan Rotation Direction

Figure N - Horizontal Check Setup

Figure P - Vertical Check Setup

RL HW RL HW+ RL HGW RL HV RL HVPW

Horizontal Auto-Levelling X X X X X

Tilt Warning X X X X X

Manual Mode X X X X X

Calibration Mode X X X X X

IR sensor for remote X X X X

Vertical Auto-Levelling X X X X

Manual Slope Mode (NO Auto-Levelling) XXXX

Speed Select X X X

Spot Mode X X X

Scan Mode XX

Vertical Up Beam XX

Vertical Down Beam X

Digital Slope Mode (with Auto-Levelling) X

Feature Set

10 77-496 / 77-429 / 77-439 / 77-497 / 77-427

Keypad, LED, and LCD

(See ﬁgure Eto reference keypad display for each

laser tool model)

Keypads

RL HW (See Figure E1)

Power ON / OFF Key

Tilt Warning ON / OFF Key

Calibration Mode Key

Calibration Adjust Keys

RL HW+ (See Figure E2)

Power ON / OFF Key

Tilt Warning ON / OFF Key

Manual Slope Mode Key

Calibration Adjust Keys

RL HV / RL HVPW (See Figure E3)

Power ON / OFF Key

Tilt Warning ON / OFF Key

Rotation Speed Key

Scan Mode Key

Manual Slope Mode Key

Scan, Spot, Slope and Calibration Adjust

Keys

RL HGW (See Figure E4)

Power ON / OFF Key

Tilt Warning ON / OFF Key

Rotation Speed Key

Auto-Levelling / Manual Slope Mode Key

Scan, Spot, Slope and Calibration Adjust

Keys
