Stanley FATMAX FMFP70979 Manuel utilisateur

FMFP70979

Contractor’s Electric 4 Gallon Hand Carry Air Compressor

Compresseurs d’air portatifs électriques de 4 gallons de classe entrepreneur

Compresor de aire portátil elèctrico de 4 galones para contratistas

INSTRUCTION MANUAL

GUIDE D'UTILISATION

MANUAL DE INSTRUCCIONES

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA

DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVOANTES

DE USAR EL PRODUCTO.

N217712

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contáctenos.

1-800-262-2161 • www.stanleytools.com

English

A. On/Off Switch

B. Air Tank Pressure Gauge

C. Regulated Pressure Gauge

D. Pressure Regulator

E. Quick Connect (if equipped)

F. Check Valve

G. Safety Valve

H. Air Tank Drain Valve

J. Pressure Switch

K. Pump Oil Dipstick

L. Pump Oil Drain Plug

M. Motor Reset

N. Air Intake Filter

Air Compressor Specications

MODEL FMFP70979

WEIGHT 56 lbs. (25.4 kg)

HEIGHT 16.75" (425.5 mm)

WIDTH 18.0" (457.2 mm)

LENGTH 15.0" (381 mm)

AIR TANK CAPACITY (GALLONS) 4.0 (15.1 liters)

APPROX CUT-IN PRESSURE

95 PSI (655 kPa)

APPROX. CUT-OUT PRESSURE

125 PSI (861.8 kPa)

SCFM @ 90 PSI (620.5 kPa) 3.4

MOTOR 1.1 HP (continuous)

Volts/Amps/Hertz 120V/14 A/60 Hz

RPM 3400

Minumum Branch Circuit

Requirement 15 Amp

PUMP OIL CAPACITY 6 oz. (177.4 ml)

FIG. 1

Product may vary slightly from images - does not affect function.

English

Denitions: Safety Guidelines

The definitions below describe the level of severity

for each signal word. Please read the manual and

pay attention to these symbols.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

WARNING: Indicates a potentially hazardous

situation which, if not avoided, could result in death

or serious injury.

CAUTION: Indicates a potentially hazardous

situation which, if not avoided, may result in minor

or moderate injury.

NOTICE: Indicates a practice not related to personal

injury which, if not avoided, may result in property

damage.

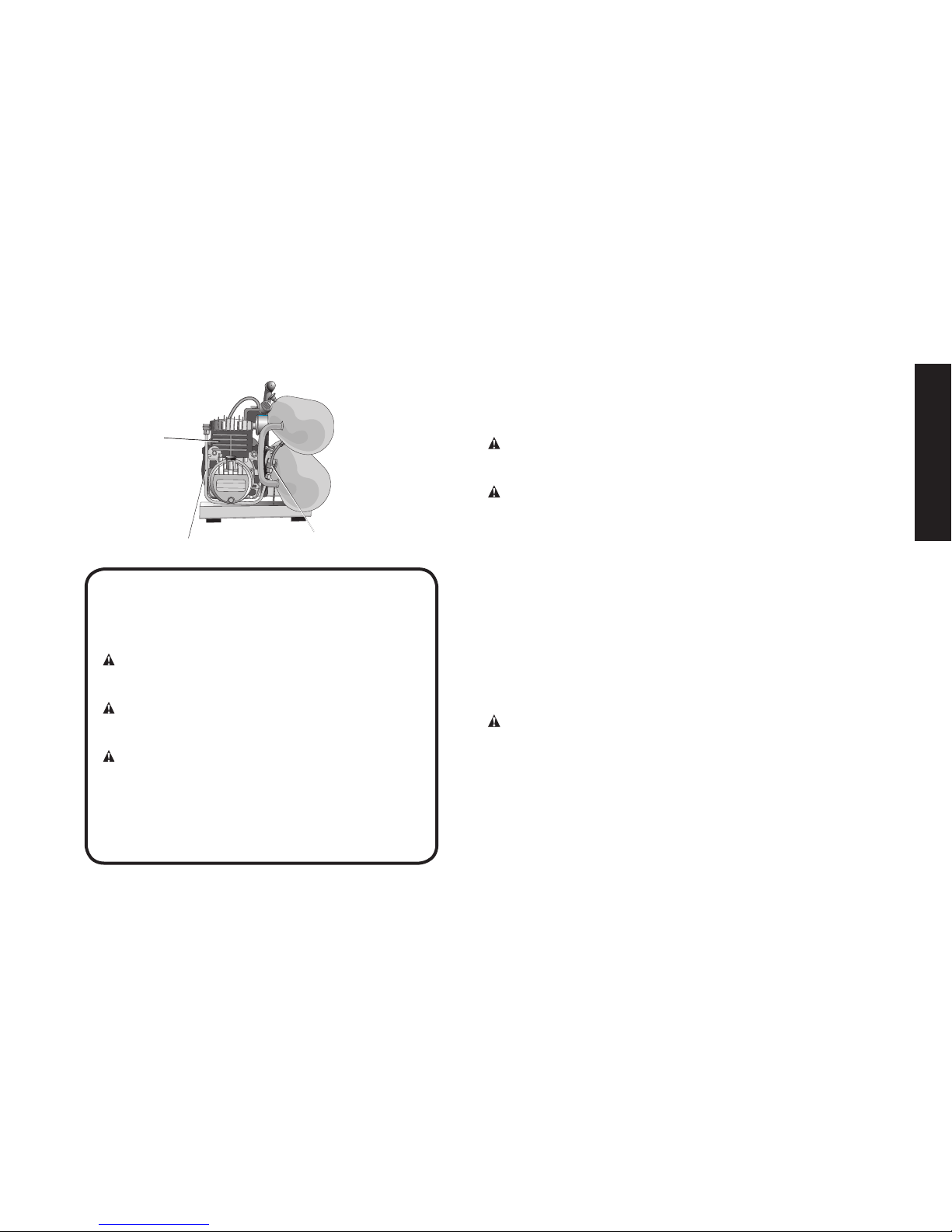

PUMP

CYLNDER

AND HEAD

Hot Surfaces

FIG. 2

CHECK

VALVE

OUTLET TUBE

IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT

THIS OR ANY STANLEY TOOL, CALL US TOLL FREE AT:

1-800-262-2161

Important Safety Instructions

WARNING: Do not operate this unit until you read and understand

this instruction manual for safety, operation and maintenance

instructions.

WARNING: Some dust created by power sanding, sawing,

grinding, drilling, and other construction activities contains chemicals

known to the State of California to cause cancer, birth defects or other

reproductive harm. Some example of these chemicals are:

 • leadfromlead-basedpaints

 • crystalline silica from bricks and cement and other masonry

products

 • arsenicandchromiumfromchemically-treatedlumber

Your risk from these exposures varies, depending on how often

you do this type of work. To reduce your exposure to these

chemicals: work in a well ventilated area, and work with approved

safety equipment, always wear OSHA/MSHA/NIOSH approved,

properly fitting face mask or respirator when using such tools.

When using air tools, basic safety precautions should always be

followed to reduce the risk of of personal injury.

WARNING: This product contains chemicals, including lead,

known to the State of California to cause cancer, and birth

defects or other reproductive harm. Wash hands after handling.

English

SAVE THESE INSTRUCTIONS

DANGER: RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Itisnormalforelectrical

contacts within the motor

and pressure switch to

spark.

 • Alwaysoperatethecompres-

sor in a well ventilated area

free of combustible materials,

gasoline, or solvent vapors.

 • Ifelectricalsparksfrom

compressor come into con-

tact with flammable vapors,

they may ignite, causing fire

or explosion.

 • Ifsprayingflammablemateri-

als, locate compressor at

least 20 feet (6.1 m) away

from spray area. An addi-

tional length of hose may be

required.

 • Storeflammablematerialsin

a secure location away from

compressor.

 • Restrictinganyofthecom-

pressor ventilation openings

will cause serious overheat-

ing and could cause fire.

 • Neverplaceobjectsagainst

or on top of compressor.

 • Operatecompressorin

an open area at least 12"

(30.5 cm) away from any

wall or obstruction that would

restrict the flow of fresh air to

the ventilation openings.

 • Operatecompressorina

clean, dry well ventilated area.

Do not operate unit indoors or

in any confined area.

 • Unattendedoperationof

this product could result in

personalinjuryorproperty

damage. To reduce the risk

of fire, do not allow the

compressor to operate unat-

tended.

 • Alwaysremaininattendance

with the product when it is

operating.

 • Always turn off and unplug

unit when not in use.

DANGER: RISK TO BREATHING (ASPHYXIATION)

WHAT CAN HAPPEN HOW TO PREVENT IT

• Thecompressedairdirectly

from your compressor is not

safe for breathing. The air

stream may contain carbon

monoxide, toxic vapors,

or solid particles from the

air tank. Breathing these

contaminant's can cause

seriousinjuryordeath.

• Neveruseairobtaineddirectly

from the compressor to supply

air for human consumption.

The compressor is not

equipped with suitable filters

and in-line safety equipment

for human consumption.

• Exposuretochemicals

in dust created by

power sanding, sawing,

grinding, drilling, and other

construction activities may be

harmful.

• Sprayedmaterialssuchas

paint, paint solvents, paint

remover, insecticides, weed

killers, may contain harmful

vapors and poisons.

• Workinanareawithgood

cross ventilation. Read and

follow the safety instructions

provided on the label or safety

data sheets for the materials

you are spraying. Always use

certified safety equipment:

OSHA/MSHA/NIOSH

respiratory protection designed

for use with your specific

application.

English

WARNING:

RISK OF INJURY OR PROPERTY DAMAGE WHEN

TRANSPORTING OR STORING

WHAT CAN HAPPEN HOW TO PREVENT IT

• Oilcanleakorspillandcould

result in fire or breathing

hazard;seriousinjuryor

death can result. Oil leaks will

damage carpet, paint or other

surfaces in vehicles or trailers.

• Alwaysplacecompressor

on a protective mat when

transporting to protect against

damage to vehicle from leaks.

Remove compressor from

vehicle immediately upon arrival

at your destination. Always keep

compressor level and never lie

on its side.

WARNING: RISK OF BURSTING

Air Tank: On February 26, 2002, the U.S. Consumer Product

Safety Commission published Release # 02-108 concerning air

compressor tank safety:

Air compressor receiver tanks do not have an infinite life. Tank life

is dependent upon several factors, some of which include operat-

ing conditions, ambient conditions, proper installations, field modi-

fications, and the level of maintenance. The exact effect of these

factors on air receiver life is difficult to predict.

If proper maintenance procedures are not followed, internal corro-

sion to the inner wall of the air receiver tank can cause the air tank

to unexpectedly rupture allowing pressurized air to suddenly and

forcefullyescape,posingriskofinjurytoconsumers.

Your compressor air tank must be removed from service by the end

of the year shown on your tank warning label.

The following conditions could lead to a weakening of the air tank,

and result in a violent air tank explosion:

WHAT CAN HAPPEN HOW TO PREVENT IT

• Failuretoproperlydrain

condensed water from

air tank, causing rust and

thinning of the steel air tank.

• Drainairtankdailyorafter

each use. If air tank develops

a leak, replace it immediately

with a new air tank or replace

the entire compressor.

• Modificationsorattempted

repairs to the air tank. • Neverdrillinto,weld,ormake

any modifications to the air

tank or its attachments. Never

attempt to repair a damaged or

leaking air tank. Replace with a

new air tank.

English

• Unauthorizedmodificationsto

the safety valve or any other

components which control air

tank pressure.

• Theairtankisdesignedto

withstand specific operating

pressures. Never make

adjustmentsorparts

substitutions to alter the factory

set operating pressures.

Attachments & accessories:

• Exceedingthepressure

rating of air tools, spray guns,

air operated accessories,

tires, and other inflatables

can cause them to explode or

fly apart, and could result in

seriousinjury.

• Followtheequipment

manufacturers

recommendation and never

exceed the maximum

allowable pressure rating

of attachments. Never use

compressor to inflate small

lowpressureobjectssuch

as children’s toys, footballs,

basketballs, etc.

Tires:

• Over inflation of tires could

resultinseriousinjuryand

property damage.

 • Useatirepressuregaugeto

check the tires pressure before

each use and while inflating

tires; see the tire sidewall for

the correct tire pressure.

NOTE: Air tanks, compressors

and similar equipment used to

inflate tires can fill small tires very

rapidly.Adjustpressureregulator

on air supply to no more than the

rating of the tire pressure. Add air

in small increments and frequently

use the tire gauge to prevent over

inflation.

WARNING: RISK OF ELECTRICAL SHOCK

WHAT CAN HAPPEN HOW TO PREVENT IT

• Your air compressor is

Like any other electrically

powered device, if it is not

used properly it may cause

electric shock.

 • Never operate the

compressor outdoors when it

is raining or in wet conditions.

 • Never operate compressor

with protective covers

removed or damaged.

 • Repairs attempted by

unqualified personnel can

resultinseriousinjuryor

death by electrocution.

 • Any electrical wiring or repairs

required on this product

should be performed by a

Stanley Tools factory service

center or a Stanley Tools

authorized service center in

accordance with national and

local electrical codes.

 • Electrical Grounding:

Failure to provide adequate

grounding to this product

couldresultinseriousinjury

or death from electrocution.

See Grounding

Instructions under

Installation.

 • Make certain that the

electrical circuit to which the

compressor is connected

provides proper electrical

grounding, correct voltage

and adequate fuse protection.

English

WARNING: RISK FROM FLYING OBJECTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• Thecompressedairstream

can cause soft tissue

damage to exposed skin and

can propel dirt, chips, loose

particles,andsmallobjects

at high speed, resulting in

property damage or personal

injury.

• Always wear certified safety

equipment: ANSI Z87.1 eye

protection (CAN/CSA Z94.3)

with side shields when using

the compressor.

• Neverpointanynozzleor

sprayer toward any part of

the body or at other people or

animals.

• Alwaysturnthecompressoroff

and bleed pressure from the

air hose and air tank before

attempting maintenance,

attaching tools or accessories.

WARNING: RISK OF HOT SURFACES

WHAT CAN HAPPEN HOW TO PREVENT IT

• Touchingexposedmetal

such as the compressor

head, engine head, engine

exhaust or outlet tubes, can

result in serious burns.

 • Nevertouchanyexposed

metal parts on compressor

during or immediately after

operation. Compressor will

remain hot for several minutes

after operation.

 • Donotreacharound

protective shrouds or attempt

maintenance until unit has

been allowed to cool.

WARNING: RISK FROM MOVING PARTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• Movingpartssuchasthe

pulley, flywheel, and belt can

causeseriousinjuryifthey

come into contact with you or

your clothing.

• Neveroperatethecompressor

with guards or covers which

are damaged or removed.

• Keepyourhair,clothing,and

gloves away from moving

parts.Looseclothes,jewelry,

or long hair can be caught in

moving parts.

• Airventsmaycovermoving

parts and should be avoided

as well.

English

• Attemptingtooperate

compressor with damaged or

missing parts or attempting

to repair compressor with

protective shrouds removed

can expose you to moving

parts and can result in

seriousinjury.

• Anyrepairsrequiredonthis

product should be performed

by a Stanley Tools factory

service center or a Stanley

Tools authorized service

center.

WARNING: RISK OF UNSAFE OPERATION

WHAT CAN HAPPEN HOW TO PREVENT IT

• Unsafeoperationofyourair

compressor could lead to

seriousinjuryordeathtoyou

or others.

• Reviewandunderstandall

instructions and warnings in

this manual.

• Becomefamiliarwiththe

operation and controls of the

air compressor.

• Keepoperatingareaclear

of all persons, pets, and

obstacles.

• Keepchildrenawayfromthe

air compressor at all times.

• Donotoperatetheproduct

when fatigued or under the

influence of alcohol or drugs.

Stay alert at all times.

• Neverdefeatthesafetyfea

tures of this product.

• Equipareaofoperationwitha

fire extinguisher.

• Donotoperatemachinewith

missing, broken, or unautho-

rized parts.

WARNING: RISK OF FALLING

WHAT CAN HAPPEN HOW TO PREVENT IT

• Aportablecompressor

can fall from a table,

workbench, or roof causing

damage to the compressor

and could result in serious

injuryordeathtothe

operator.

• Alwaysoperatecompressor

in a stable secure position to

prevent accidental movement

of the unit. Never operate

compressor on a roof or

other elevated position. Use

additional air hose to reach

high locations.

CAUTION: RISK FROM NOISE

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Under some conditions and

duration of use, noise from

this product may contribute

to hearing loss.

 • Alwayswearcertifiedsafety

equipment: ANSI S12.6

(S3.19) hearing protection.

English

SAVE THESE INSTRUCTIONS

FOR FUTURE USE

FEATURES

ON/OFF SWITCH

Place this switch (A) in the ON position to G

provide automatic power to the pressure

switch and OFF to remove power at the

end of each use.

PRESSURE SWITCH

AThe pressure switch (J)

automatically starts the

motor when the air tank

pressure drops below the

factory set cut-in pressure.

It stops the motor when

the air tank pressure reaches the factory set cut-out pressure.

PRESSURE RELEASE VALVE

The pressure release valve located on the side of the pressure switch, is

designed to automatically release compressed air from the compressor

head and the outlet tube when the air compressor reaches cut-out

pressure or is shut off. The pressure release valve allows the motor to

restartfreely.Whenthemotorstopsrunning,airwillbeheardescaping

from this valve for a few seconds. No air should be heard leaking when

the motor is running or after the unit reaches cut-out pressure.

SAFETY VALVE

If the pressure switch does not shut off the air compressor at its

cut-out pressure setting, the safety valve (G) will protect against

high pressure by popping out at its factory set pressure (slightly

higher than the pressure switch cut-out setting).

CHECK VALVE

Whentheaircompressorisoperating,thecheck

valve (F) is open, allowing compressed air to enter

theairtank.Whentheaircompressorreachescut

out pressure, the check valve closes, allowing air

pressure to remain inside the air tank.

TANK PRESSURE GAUGE

The tank pressure gauge (B) indicates the reserve air pressure in

the tank.

OUTLET PRESSURE GAUGE

The outlet pressure gauge (C) indicates the air pressure

available at the outlet side of the regulator. This pressure is

controlled by the regulator and is always less than or equal to the

tank pressure.

REGULATOR

The regulator (D) controls the air pressure shown on the outlet

pressure gauge. Turn regulator knob clockwise to increase

pressure and counterclockwise to decrease pressure.

UNIVERSAL QUICK CONNECT BODIES (IF EQUIPPED)

The universal quick connect body (E) accepts the three most

popular styles of quick connect plugs: Industrial, automotive, and

ARO. One hand push-to-connect operation makes connections

simple and easy. The two quick connect bodies allow the use of two

tools at the same time.

English

DRAIN VALVE

The drain valve (H) is located at the base

of the air tank and is used to drain

condensation at the end of each use.

See

Draining Air Tank under Maintenance.

COOLING SYSTEM

This compressor contains an advanced design cooling system.

It is normal for this fan to blow air through the vent holes in large

amounts. The cooling system is working when air is expelled.

AIR COMPRESSOR PUMP

The pump compresses air into the air tank. Working air is not

available until the compressor has raised the air tank pressure

above that required at the air outlet.

MOTOR OVERLOAD PROTECTOR

This motor has a manual thermal overload K

protector. If the motor overheats for any

reason, the overload protector will shut off

the motor. The motor must be allowed to

cool down before restarting. To restart:

1. Ensure the On/Off switch (A) is in the

OFF position and unplug unit..

2. Allow the motor to cool.

3. Depress the reset button (M) on the

motor.

OIL DIPSTICK

The oil dipstick (K) indicates the amount of oil in the pump. Check

pump oil daily, see Compressor Pump Oil under Maintenance.

AIR INTAKE FILTER

The filter (N) is designed to clean air entering the pump. To ensure

the pump continually receives a clean, cool, and dry air supply the

filter must always be clean and the filter intake must be free from

obstructions.

INSTALLATION

Assembly

INSTALLING HOSES

WARNING: Risk of unsafe operation. Firmly grasp hose in hand

when installing or disconnecting to prevent hose whip.

1. Ensure regulated pressure gauge reads 0 PSI (0 kPa).

2. Grasp the hose at the quick connect plug and push the plug

into the quick connect body (E). Coupler will snap into place.

3. Grasp the hose and pull to ensure coupler is seated.

DISCONNECTING HOSES

WARNING: Risk of unsafe operation. Firmly grasp hose in hand

when installing or disconnecting to prevent hose whip.

1. Ensure regulated pressure gauge reads 0 PSI (0 kPa).

2. Pull coupler on quick connect body back to release quick

connect plug on hose.

Grounding Instructions

This product must be grounded. In the event of an electrical short

circuit, grounding reduces the risk of electric shock by providing an

escape wire for the electric current. This product is equipped with

a cord (O) having a grounding wire with an appropriate grounding

plug (P). The plug must be plugged into an outlet (Q) that is

properly installed and grounded in accordance with all local codes

and ordinances.

Table des matières

Langues :

Autres manuels Stanley Compresseur d'air

Stanley

Stanley D 200/8/6 Manuel utilisateur

Stanley

Stanley DN 200/8/6 Manuel utilisateur

Stanley

Stanley FATMAX FMXCMD152WE Manuel utilisateur

Stanley

Stanley FATMAX FMXCMD156HE Manuel utilisateur

Stanley

Stanley DN55/8/5 Manuel utilisateur

Stanley

Stanley D 210/8/6 Manuel utilisateur

Stanley

Stanley N128677 Manuel utilisateur

Stanley

Stanley FATMAX FMXCMS156HE Manuel utilisateur

Stanley

Stanley Fatmax TAB 200/10/24V Manuel utilisateur

Stanley

Stanley D 200/8/6 Manuel utilisateur

Stanley

Stanley D 200/10/24V Manuel utilisateur

Stanley

Stanley AC6359 Manuel utilisateur

Stanley

Stanley B 255/10/50 Manuel utilisateur

Stanley

Stanley SXAC2550222 Manuel utilisateur

Stanley

Stanley AC6168 Manuel utilisateur

Stanley

Stanley AIR KIT Manuel utilisateur

Stanley

Stanley D 200/8/6 Manuel utilisateur

Stanley

Stanley STCT224 Manuel utilisateur

Stanley

Stanley WD210/8/24 Manuel utilisateur

Stanley

Stanley DN 200/10/30V Manuel utilisateur

Stanley

Stanley HY 227/8/6E Manuel utilisateur

Stanley

Stanley D 200/10/24V Manuel utilisateur

Stanley

Stanley 8216035SCR011 Manuel utilisateur

Stanley

Stanley Fatmax FMXCMS2020TE Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
