OPERATING MANUAL
3
CONTENT

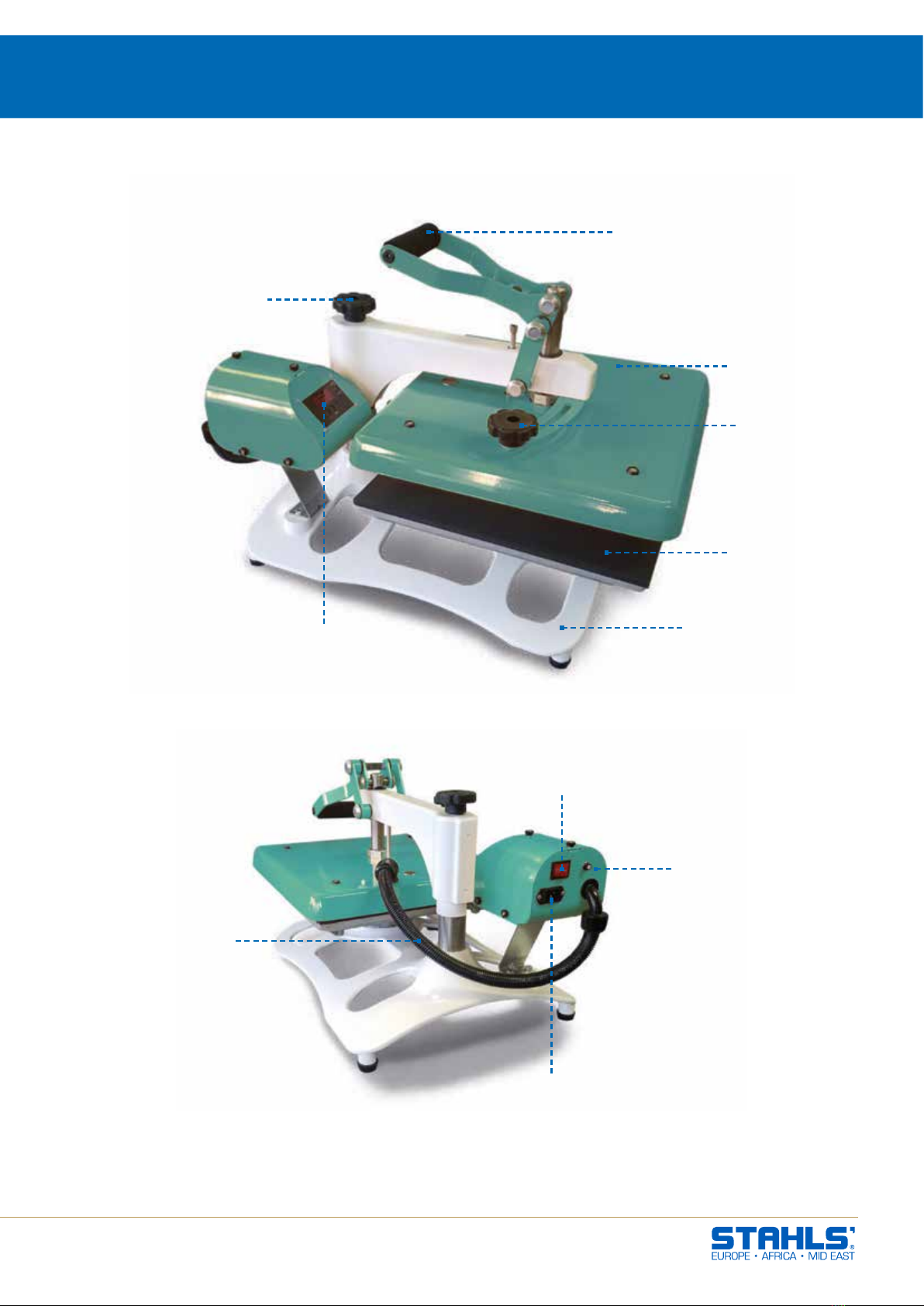

Print Handle
Upper Platen
Pressure Adjustment Knob
Control Panel & LED
Swing Handle
Base
Lower Platen
Rear view of heat press
DETAIL PICTURE
Power ON/OFF Switch
Circuit Breaker
Power Supply
Cable Conduit
Initial Setup
Carefully follow the step-by-step instructions for best results:
• To avoid burns, do not touch the heated upper platen during use.
• Keep hands clear of the upper platen during platen lock down as the pressure may cause
injury.
• Press should be placed on a sturdy, level surface at least 76 cm L x 51 cm W x 24 cm H.
• Keep the work area clean, tidy and free of obstructions with enough space to swing the
press open.
• Connect the power cord into a properly grounded 240 volt electrical outlet with a minimum
16 amp rating.
• If necessary, a minimum ø 2,5mm², 16 amp extension cord is required.
Maintenance & Service
Your heat press requires minimal service to achieve a long, trouble-free life:
1 Clean exposed surfaces with a damp cloth to prevent dust buildup, which could lead to over-
heating.
2. All other maintenance and service should be performed by an authorized service representative.
Maintenance & Service
Moving the heat press is easiest with the handle in the lowered and locked position.
WARNING
WARNING
Disconnect the appliance from its power source during service or when replacing parts.
Allow heat press to cool before moving or storing.
OPERATING INSTRUCTIONS
5
OPERATING INSTRUCTIONS GETTING STARTED
Getting Started: Temperature, Time, and Pressure
Recommended settings vary based on the garment material and type of transfer. It’s important
to review the application instructions included with your transfers for the recommended settings.
Lasting, durable prints can be easily achieved when observing these three essential specifications.
Temperature must be high enough to melt the transfer adhesive or cure the ink but not so high that
it scorches, marks or otherwise damages garments. This setting has the greatest effect on heat
transfer success.
Time controls the amount of heat transferred to the garment. If you stop the apllication process to
early or taking it too long, it will have unwanted effects on your transfer. Thick transfer products
may require a longer press time.
Pressure drives your transfer deep into the garment fabric for a stronger and more durable bond. It
flattens garments to prevent wrinkles, creases and seams from distorting the printed image. How-
ever, too much pressure can wear down mechanical parts.

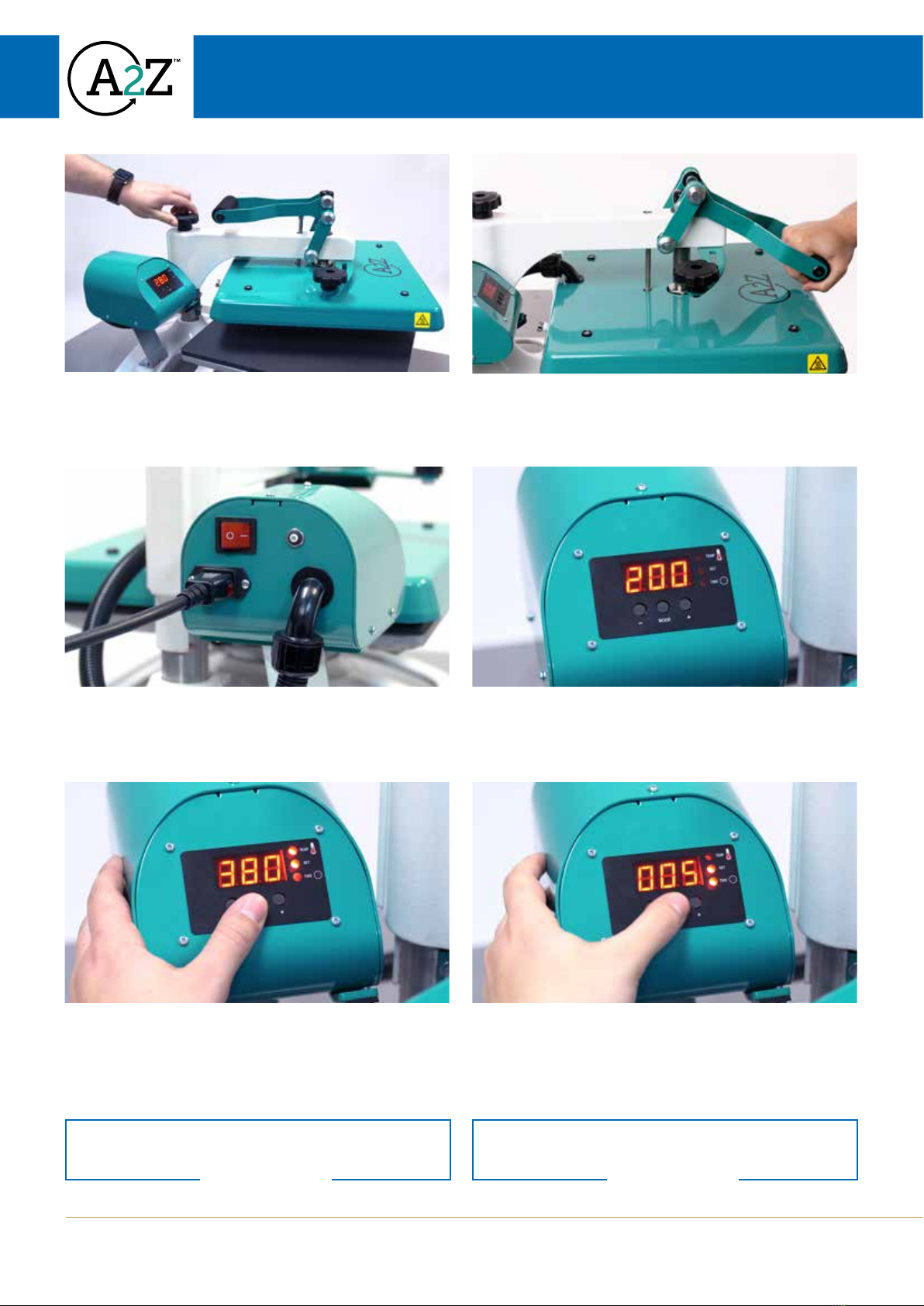

ADJUSTING TEMPERATURE, TIME &
PRESSURE
With the print handle in the raised position,
rotate the knob to adjust PRESSURE.
Flip the power switch on the back of the cont-
roller to turn on the heat press.
Press MODE once to change the TEMPERATURE.
While SET and TEMP are illuminated, press (+)
and (-) buttons to adjust the TEMPERATURE.
Lower the print handle into the locked position
to test your PRESSURE and adjust as needed
until the desired level is achieved.
While no LEDs are illuminated, the controller
displays the current heater temperature. Press the
MODE button to set the TEMPERATURE and TIME.
Press MODE twice to set the TIME. While SET and
TIME are illuminated, press (+) and (-) buttons to
adjust the TIME.
NOTE NOTE
The press will not heat while SET is illuminated. The press will not heat while SET is illuminated.
7
ADJUSTING TEMPERATURE, TIME &
PRESSURE
PRINTING / PRESSING
Using the swing handle, move the upper platen
to access the lower platen. While heating, the
print handle should remain raised to extend
the life of the silicone pad.
For best results, “thread” the garment around
the lower platen so a single layer of fabric is on
top of the silicone pad.
Lower the print handle fully until the upper pla-
ten locks into the press position. After the recom-
mended pre-press time has elapsed, lift the print
handle.
Position the garment on the lower platen, cen-
tering the transfer area on the platen.
Some transfer products recommend a “pre-press” to
heat and flatten the garment before printing. Using
the swing handle, position the upper platen over the
garment.
Swing away the upper platen and align the transfer
on the garment.
PRINTING / PRESSING
Lower the print handle fully until the upper
platen locks into the press position. After the
required time has elapsed, lift the print handle.
Using the swing handle, move the upper pla-
ten to access the garment. Depending on the
transfer, peel the carrier hot or cold.
9
PRINTING / PRESSING

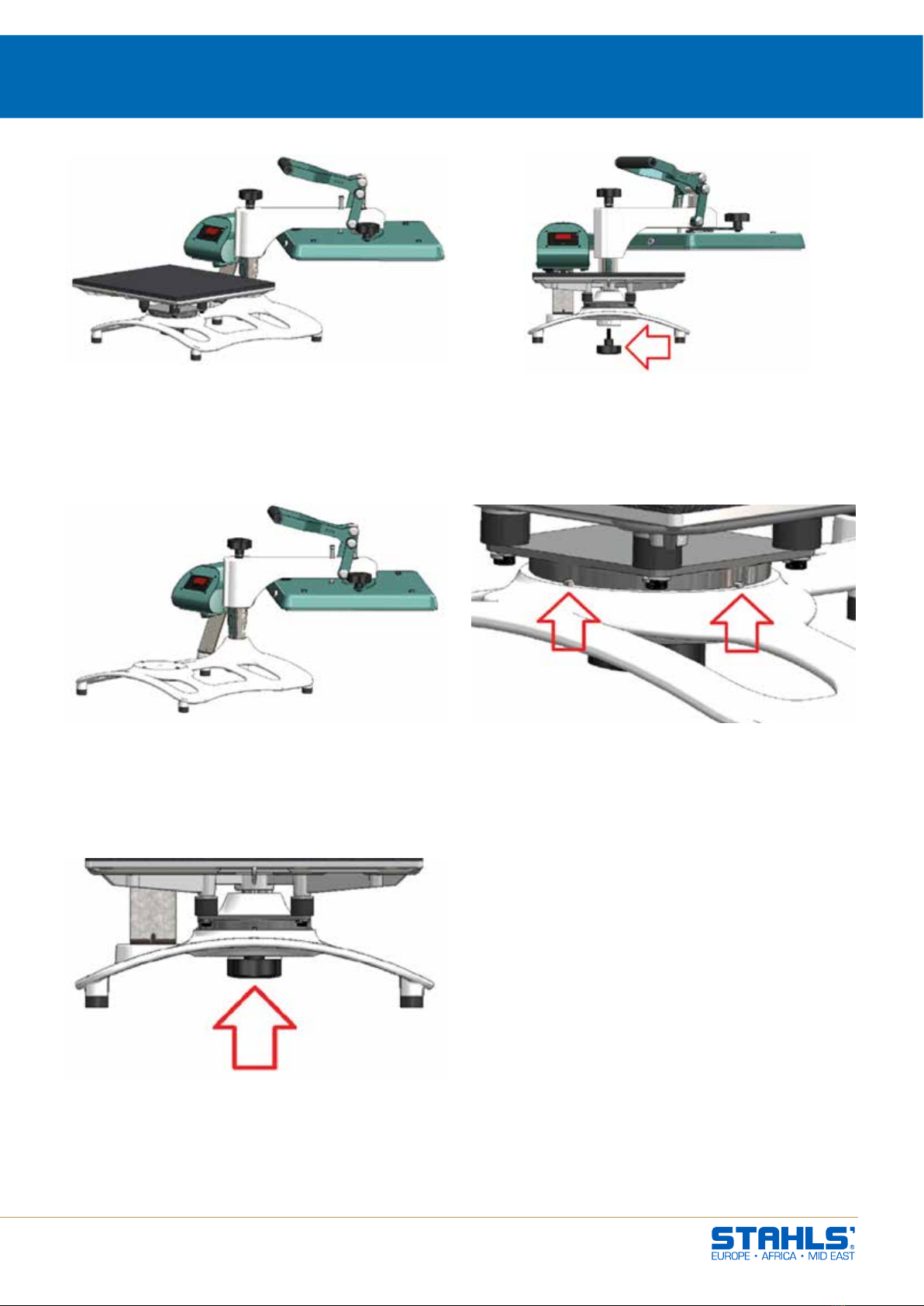

CHANGING LOWER PLATEN
Swing away the upper platen using the swing
handle to access the lower platen.
Lift the 38 cm x 38 cm lower platen off the
heat press and set aside.
Return the platen knob and tighten.
Loosen and completely remove the platen knob
located underneath the base.
Place the new platen onto the base, taking care to
align the platen keys for a secure fit.

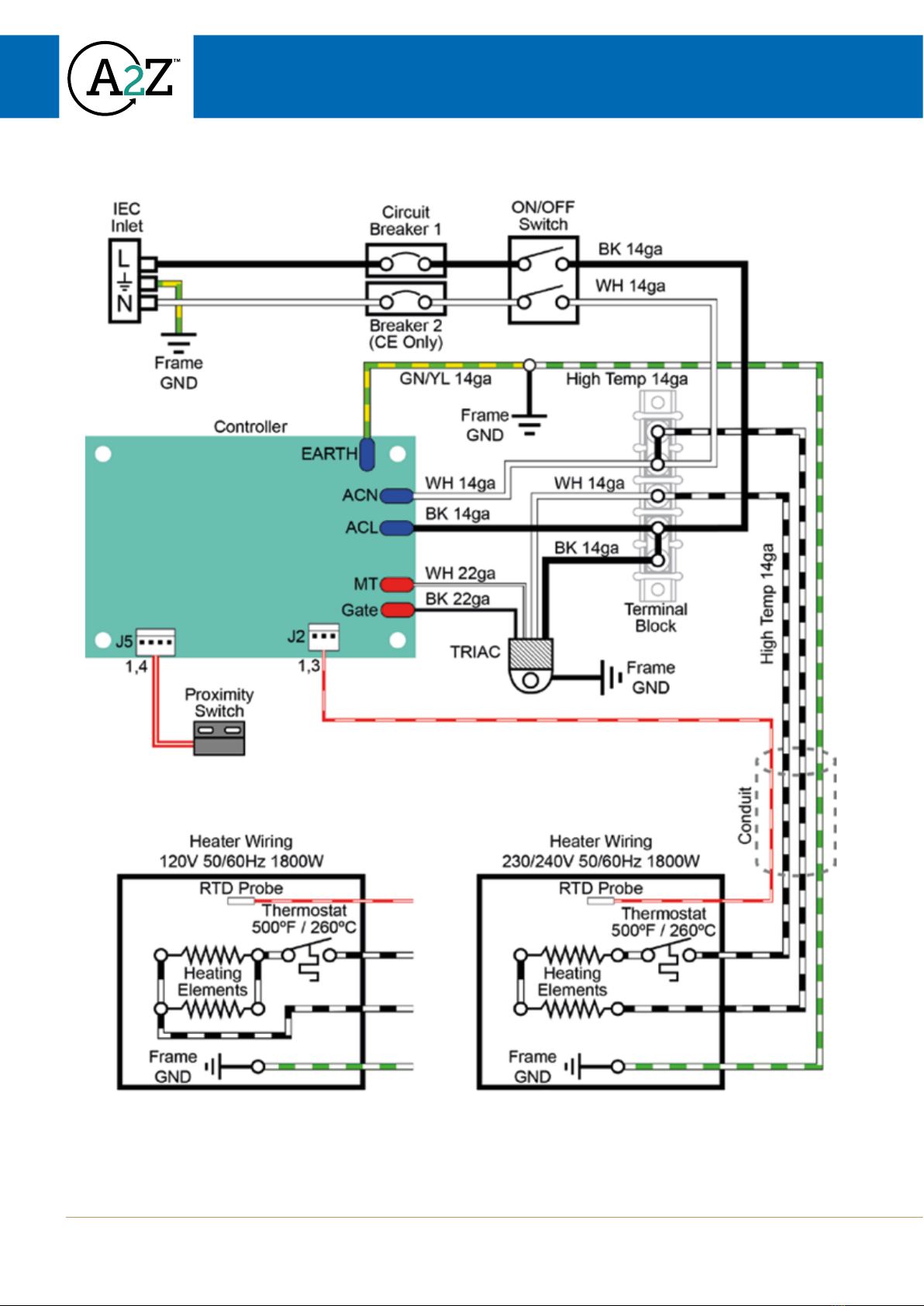

ELECTRICAL SCHEMATIC
