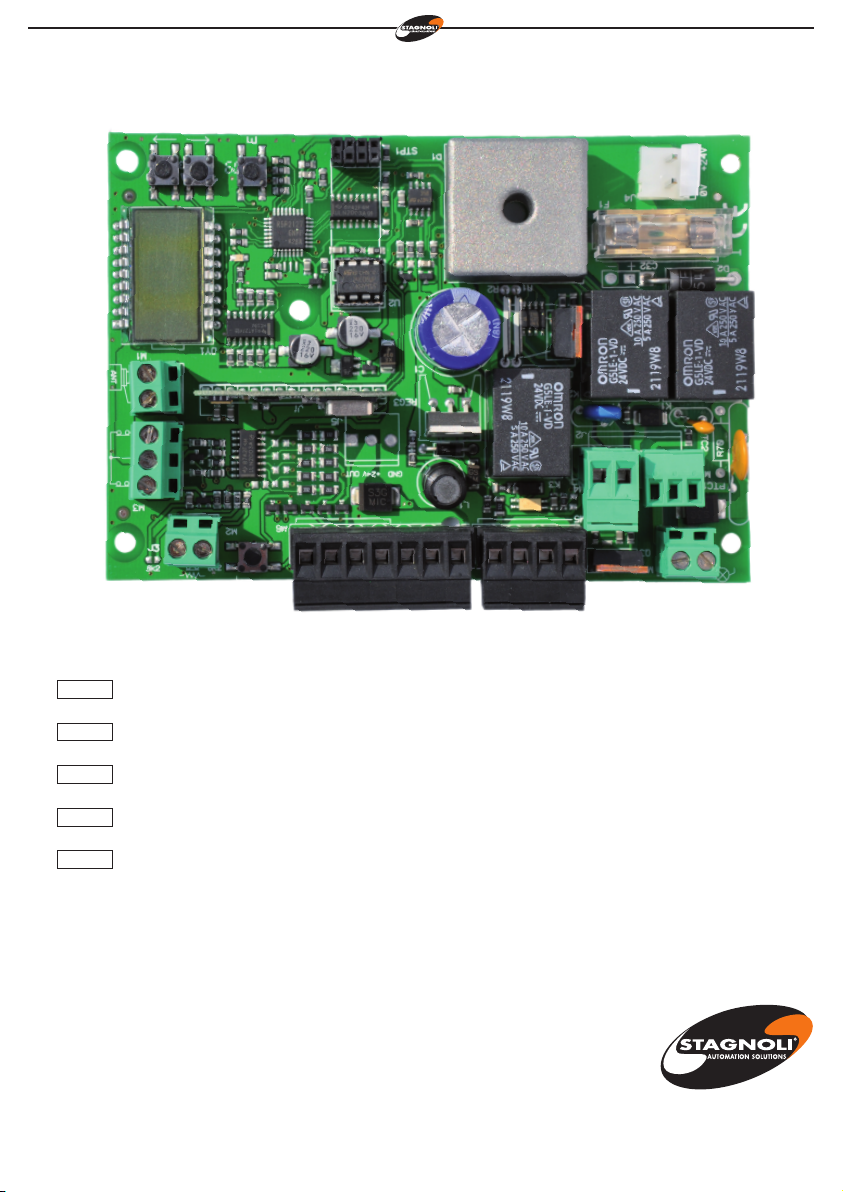

GB Addition of radiocontrols
•Before memorising a transmitter, make sure that it is compatible with the type of
receiver that is integrated (the first time the display shows r, if the receiver is in
rolling code mode, or fif the receiver is in fixed code mode). The receiver can
memorise rolling codes type HCS300 STAGNOLI with billions of combinations or
fixed codes type HT53200 with 13 bits or the fixed part of a rolling code (28 bit
SN). It is possible to memorise up to 76 codes.
•Enter the menu add transmitter,move over the wording display 1ch or 2ch and
select the channel that is to be added. Press ENTER, the wording premi (press)
will appear.Press the key that must be memorised. At this point the display shows
the wording ok if the operation has been carried out correctly, err if there are
registration errors or full if the receiver memory is full.
•An external antenna installed far from the ground, increases the visibility betwe-
en the transmitter and the receiver. The power of the receiver can be reduced if
metal parts or reinforced concrete are placed next to it.
Regulating
•ttca (automatic closing time)= this is the time from the when the gate is fully ope-
ned to when it is closed automatically. If the photocell is engaged, the ttca viene
conteggiato dal momento in cui la fotocellula si disimpegna. time is counted from
the time when the photocell is freed. The default time set by Stagnoli is 10 secs
and it can be regulated from 1 to 240secs.
•aped (pedestrian opening)= this is the length of the stroke stated in centimetres
of the partial opening, namely the pedestrian mode. The default value set by Sta-
gnoli is 70 secs and it can be regulated from 30 to 150.
•rlap (slowed stroke in opening)= the control board slows down the stroke of the
motor in the end part of its opening phase. The default stroke set by Stagnoli is 20
cm and it can be regulated from 0 to 70 cm.
•rlch (slowed stroke in closing)= the control board slows down the stroke of the
motor in the end part of its closing phase. The default stroke set by Stagnoli is
20cm and it can be regulated from 0 to 70cm.
WARNING: before setting the slowing phase, check that the gate has been instal-
led correctly. In this phase, the motor has less power and the way this parameter is
set can influence the level of safety of the system itself. Once this phase has been
carried out, check the force of impact of the gate.
•fm1a (anti-crushing force of the motor in opening)= is the anti-crushing force of
the motor stated in percentage compared with the maximum force that the same
can generate. The default value set by Stagnoli is 50 and it can be regulated from
20 to 99.
•fm1c (anti-crushing force of the motor in closing)= is the anti-crushing force of the
motor stated in percentage compared with the maximum force that the same can
generate. The default value set by Stagnoli is 50 and it can be regulated from 20
