ST STEVAL-BCN002V1B Manuel utilisateur

Quick Start Guide

STEVAL-BCN002V1B - BlueTile kit

www.st.com/bluetile

What do you want to do? 2

Unpack and run

the default demo Start designing

your application

Go to page 8 Go to page 10

www.st.com/bluetile ST BLE Sensor

Run the preloaded Demo

•The preloaded demo on Bluetile is the BLE_SensorDemo available in the SDK software development kit

3

Step 1

To power the system, slide

the battery inside the holder.

Step 2

Download and run the ST BLE Sensor

app from the iOS or Android store

www.st.com/bluems

Step 3

Discover, connect and see the

data in real time; swipe for more

ST BLE Sensor

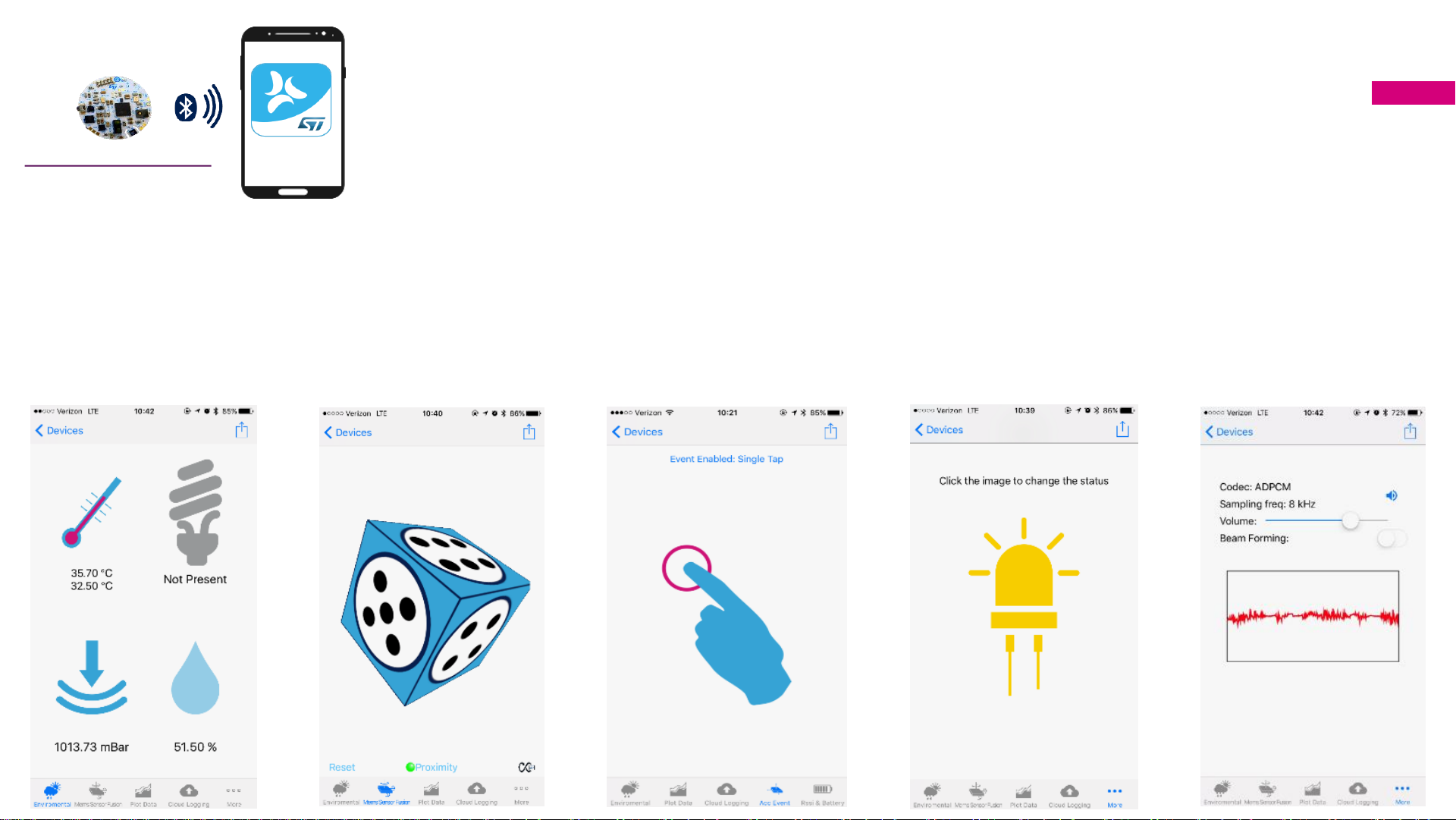

Run the preloaded Demo 4

Environmental

sensors Inertial sensor and

MotionFX fusion Accelerometer

events LED control Voice over BLE

(BlueVoice)

References for libraries embedded in the demo

•UM2220 Getting started with MotionFX sensor fusion library

•UM2382 / UM2196 Getting started with BlueVoice full/single duplex

www.st.com/bluetile ST BLE Sensor

Start designing your application 5

Software setup

SDK & IDE Hardware setup

Flash & Debug

Go to page 11 Go to page 12

Flash only

using the host board Flash & Debug

using the host board

and ST-Link on a Nucleo

Software setup: SDK & IDE

•Download and unzip the Bluetile SDK (software development kit) from www.st.com/bluetile

6

BLE_SensorDemo is the default

firmware preloaded for demo purposes

Select the most appropriate project in BLE_Examples directory

•BLE_Beacon to advertise programmable data

•BLE_HID_Peripheral to emulate a wireless keyboard or mouse

•BLE_SensorDemo to stream sensor data to the reference app ST BLE Sensor

•DTM to enable BlueNRG-2 control in real-time using STSW-BNRGUI software tool

Open the project file corresponding to your favorite IDE

•EWARM for IAR Embedded Workbench by IAR

•MDK-ARM for KEIL uVision by ARM

•TrueStudio for TrueStudio by Atollic

Step 1

Step 2

Step 3

Hardware setup: Flash & Debug 7

Step 1

Remove the battery and plug the BlueNRG-Tile on its

host board, move switch SW2 and SW3 in position 2-3 Remove the battery and plug the BlueNRG-Tile on its

host board, plug the host board on any Nucleo ST-Link

Flash Flash & Debug with supported IDEs

10 pin SWD/UART connector 5 pin SWD connector

Alignment connectors

SW2 and SW3

in position 2-3

Remove

the battery

not needed for

Window 10

Hardware setup: Flash & Debug 8

Step 3

Step 1

Step 2

Connect the USB of the host board to the laptop

Download and install STSW-STM32102

Virtual COM port driver (VCOM)

Download, install, run STSW-BNRGFLASHER

to Flash BlueNRG-2(reference manual UM2406) Download, install and run STSW-BNRG1STLINK

to Flash BlueNRG-2 (reference manual UM2109)

Connect the USB of the host board to the laptop, also

connect the USB of the Nucleo ST-Link to the laptop

Flash Flash & Debug with supported IDEs

Flasher

in UART

mode

SW2 and SW3 in position 2-3

Host board

If BlueNRG-2 is in deep sleep, it is not possible to Flash & Debug

(use STSW-BNRGFLASHER to Flash - see next slide)

Flash & Debug using supported IDEs (IAR, Keil, Atollic

TrueSTUDIO) or…

Hardware setup: Flash & Debug

•If BlueNRG-2 is in deep sleep

•It is not possible to Flash & Debug with STSW-BNRG1STLINK: the SWD interface is shut down and the ST-Link will not

detect BlueNRG-2

•Use STSW-BNRGFLASHER to Flash then Debug with supported IDEs

•Use STSW-BNRGFLASHER to mass erase then Flash & Debug with supported IDEs

•When debugging, custom firmware should not enter deep sleep: as soon as the deep sleep mode is activated the SWD

interface will be shut down and the ST-Link will be disconnected

•When the BlueNRG-Tile is plugged on its host motherboard, the reference firmware automatically disables deep sleep

mode to enable Flash & Debug with the ST-Link

•BlueNRG-2 is not an STM32 microcontroller!

•The standard ST-Link Utility STSW-LINK004 will NOT work with BlueNRG-2

•Use the BlueNRG ST-Link Utility STSW-BNGR1STLINK or STSW-BNRGFLASHER

9

More information

10
