Ssl PDX2 Guide de démarrage rapide
Rev 523
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICTLY PROHIBITED. © SOLID STATE LUMINAIRES.
GENERAL:
1. Before starting the installation, make sure all electricity has been turned off and electrical breaker has been locked out and tagged out.
2. To ensure the success of the installation, be sure to read these instructions and review the diagrams thoroughly before beginning.
3. All electrical connections must be in accordance with local codes, ordinances, or the National Electrical Code.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.
INSTALLATION:
1) Follow wiring diagram on to complete proper wiring.
corporate
t(877) SSL-GREEN
f(630) 889-8106
3609 Swenson Ave.
St. Charles, IL 60174

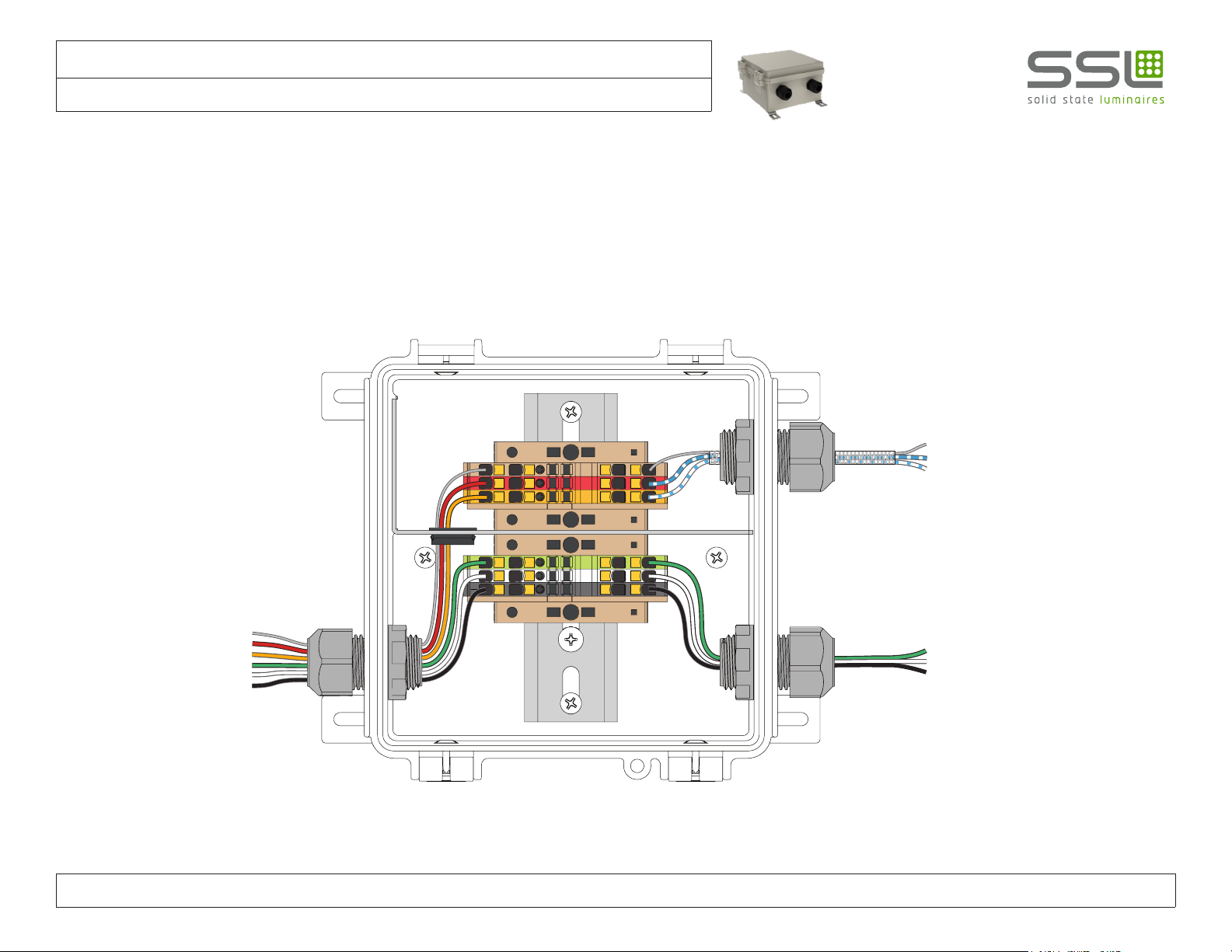

PDX2 Wiring Diagram - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
DETAILED ILLUSTRATION
Ground (G)
Neutral (N)
Line (L)
AC Power (IN)
Shield
(+) Data (Red)
(–) Data (Orange)
Ground (G)
Neutral (N)
Line (L)
Fixture (OUT)
PDX2 Wiring for ColourLine Series
TOP VIEW
Products include:
• ColourLine Cove (CLCV)
• ColourLine Graze (CLGR)
• ColourLine Wet (CLWET)
• SSF2100 Series RGBW Floods
Uses 5-PIN Connectors
DMX Controller
(IN)
Wire Shield
Shield
Data (+) (Blue w/ White Dash)
Data (–) (White w/ Blue Dash)
Rev 523
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICTLY PROHIBITED. © SOLID STATE LUMINAIRES.
GENERAL:
1. Before starting the installation, make sure all electricity has been turned off and electrical breaker has been locked out and tagged out.
2. To ensure the success of the installation, be sure to read these instructions and review the diagrams thoroughly before beginning.
3. All electrical connections must be in accordance with local codes, ordinances, or the National Electrical Code.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.
INSTALLATION:
1) Follow wiring diagram on to complete proper wiring.
corporate
t(877) SSL-GREEN
f(630) 889-8106
3609 Swenson Ave.
St. Charles, IL 60174
PDX2 Wiring Diagram - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
DETAILED ILLUSTRATION
Ground (G)
Neutral (N)
Line (L)
AC Power (IN)
Shield
(+) Data (Purple)
(–) Data (Pink or Gray)
Ground (G)
Neutral (N)
Line (L)
Fixture (OUT)
PDX2 Wiring for ColourLine Lazer Series
TOP VIEW
Products include:
• ColourLine Lazer Wet (CLZWET)
• ColourLine Lazer Flood (CLZF)
• ColourLine Lazer Micro Flood (CLZMF)
Uses 6-PIN Connectors
DMX Controller
(IN)
Wire Shield
Shield
Data (+) (Blue w/ White Dash)
Data (–) (White w/ Blue Dash)
Rev 523
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICTLY PROHIBITED. © SOLID STATE LUMINAIRES.
GENERAL:
1. Before starting the installation, make sure all electricity has been turned off and electrical breaker has been locked out and tagged out.
2. To ensure the success of the installation, be sure to read these instructions and review the diagrams thoroughly before beginning.
3. All electrical connections must be in accordance with local codes, ordinances, or the National Electrical Code.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.
INSTALLATION:
1) Follow wiring diagram on to complete proper wiring.
corporate
t(877) SSL-GREEN
f(630) 889-8106
3609 Swenson Ave.
St. Charles, IL 60174
PDX2-ACP (ColourLine Lazer) Wiring Diagram - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
DETAILED ILLUSTRATION
Ground (G)
Neutral (N)
Line (L)
AC Power (IN)
Shield
(+) Data (Purple)
(–) Data (Pink or Gray)
Ground (G)
Neutral (N)
Line (L)
Fixture (OUT)
PDX2-ACP Wiring for ColourLine Lazer with Surge Protector
TOP VIEW
Products include:
• ColourLine Lazer Wet (CLZWET)
• ColourLine Lazer Flood (CLZF)
• ColourLine Lazer Micro Flood (CLZMF)
Uses 6-PIN Connectors
DMX Controller
(IN)
Wire Shield
Shield
Data (+) (Blue w/ White Dash)
Data (–) (White w/ Blue Dash)
Rev 523
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICTLY PROHIBITED. © SOLID STATE LUMINAIRES.
GENERAL:
1. Before starting the installation, make sure all electricity has been turned off and electrical breaker has been locked out and tagged out.
2. To ensure the success of the installation, be sure to read these instructions and review the diagrams thoroughly before beginning.
3. All electrical connections must be in accordance with local codes, ordinances, or the National Electrical Code.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.
INSTALLATION:
1) Follow wiring diagram on to complete proper wiring.
corporate
t(877) SSL-GREEN
f(630) 889-8106
3609 Swenson Ave.
St. Charles, IL 60174
PDX2-ACP (ColourLine) Wiring Diagram - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
DETAILED ILLUSTRATION
Ground (G)
Neutral (N)
Line (L)
AC Power (IN)
Shield
(+) Data (Red)
(–) Data (Orange)
Ground (G)
Neutral (N)
Line (L)
Fixture (OUT)
PDX2-ACP Wiring for ColourLine with Surge Protector
TOP VIEW
DMX Controller
(IN)
Wire Shield
Shield
Data (+) (Blue w/ White Dash)
Data (–) (White w/ Blue Dash)
Products include:
• ColourLine Cove (CLCV)
• ColourLine Graze (CLGR)
• ColourLine Wet (CLWET)
• SSF2100 Series RGBW Floods
Uses 5-PIN Connectors
