Speco O5P2 Manuel utilisateur

Quick Start Guide

O5P2

Welcome

Thank you for purchasing this network camera!

This owner's manual is designed to be a reference tool for your system.

Please read this manual carefully before operating the unit and retain it for future reference.

Should you require any technical assistance, contact Speco Technologies Tech Support at

1-800-645-5516

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC Class 2 power supply only.

Please note: Do not connect two power supplying sources to the device at the same time;

it may result in device damage! The product must be grounded to reduce the risk of

electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Heavy stress, violent vibration or exposure to water is not allowed during transportation,

storage and installation.

This product should be installed in a cool, dry place away from direct sunlight and heat

sources.

Do not install the product in extreme temperature conditions.

Do not expose the camera to electromagnetic radiation. Otherwise it may result in CMOS

sensor failure.

Do not block any ventilation openings.

Do not allow water and liquid intrusion into the camera.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any

maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on

the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth

Important Safeguards and Warning

Warning

Statement

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

This guide is for reference only.

Product, manuals and specifications may be modified without prior notice. Speco

Technologies reserves the right to modify these without notice and without incurring

any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is

broken or missing in the package.

dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean

the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure

cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

Dome cover is an optical device, please don't touch or wipe cover surface directly during

installation and use, please refer to the following methods if dirt is found:

Stained with dirt: Use oil-free soft brush or hair dryer to remove it gently.

Stained with grease or fingerprint: Use oil-free cotton cloth or paper soaked with alcohol

or detergent to wipe from the lens center outward. Change the cloth and wipe several

times if it is not clean enough.

Package

Overview

3 Overview

Ethernet connector

Reset

Micro SD card slot

Audio input connector

DC power connector

Camera Quick start guide

CD Plastic plug ×2

Drill template Wall mounting bracket

Screwdriver

2 tapping screws PA 4×25

Microphone

* 1 It is recommended to install the security cap for outdoor installations.

* 2 DC 12V power supply is not required if a PoE switch or injector is used to power

the camera.

► Connecting Network Cable

① Loosen the nut from the main element.

② Run the network cable (without RJ 45 connector) through both

elements. Then crimp the cable with RJ 45 connector.

③ Connect the cable to the hermetic connector. Then tighten the nut

and the main cover.

Security Cap

DC12V

Installation

* Before you start, please make sure that the wall or ceiling is strong enough

to withstand three times the weight of the camera and bracket.

① Loosen the lock screw of the bracket and then remove the

mounting base from the bracket.

② Loosen the screws to remove the lower dome from the camera.

Lower Dome

Lock screw

Mounting base

③fix the camera onto the

bracket with the screws provided.

Pull the cables through the bracket. Then

④Fix the mounting base of the bracket onto the wall with the screws.

⑥

preview the image of the camera on a monitor.

Adjust the camera to obtain an optimum angle . Before adjustment,

⑤

base and fasten them with the lock screw.

Connect the cables. Then attach the bracket onto the mounting

Rotation 0°~350°

Pan 0°~360°

Tilt 0°~70°

Web Operation and Login

●Operation

IP Scanner can search for the device on the local network.

①Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

②Install IP Scanner from the CD and run it after installation. Or

download from https://www.specotech.com/ip-scanner/

⑦Install the lower dome back to the camera with the screws.

③In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins if prompted.

O5 P2

5C :F 2:07:25 :6 8: 9A

Table des matières

Autres manuels Speco Caméra de sécurité

Speco

Speco RC-650 Manuel du propriétaire

Speco

Speco PROVIDEO CVC-627 Manuel utilisateur

Speco

Speco O4BM Manuel utilisateur

Speco

Speco ProVideo CVC-724EXTP Manuel utilisateur

Speco

Speco ProVideo CVC-695AM Manuel utilisateur

Speco

Speco O8VD3M Manuel utilisateur

Speco

Speco COLOR CAMERA WDRT6 Manuel utilisateur

Speco

Speco PROVIDEO CVC-620WP Manuel utilisateur

Speco

Speco HTSD37X Manuel utilisateur

Speco

Speco HT-7248FFI Manuel utilisateur

Speco

Speco 650Line Intensifier3 HTINTB8G Manuel utilisateur

Speco

Speco VL-648IR Manuel utilisateur

Speco

Speco CVC-680CD Manuel utilisateur

Speco

Speco VL644K Manuel utilisateur

Speco

Speco CVC-927PTZ Manuel utilisateur

Speco

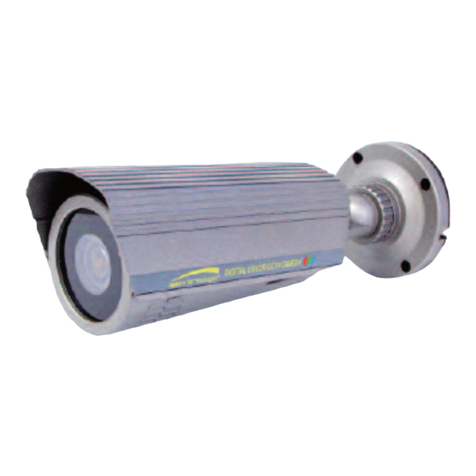

Speco HT-INTB1 Manuel utilisateur
