Quick Start Guide

O4B6

1Warning and Caution

■If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to disassemble

the camera yourself. Any unauthorized changes or modifications

could void the warranty.

■Do not allow water or liquid intrusion into the camera.

■All installation and operation here should conform to local

electrical safety codes. Make sure the device is firmly installed

on the wall or ceiling.

■Do not use camera beyond specified voltage range.

■Do not drop the camera or subject it to physical shock.

■Avoid touching the camera lens.

■If cleaning is necessary, please use cleaning cloth to wipe it

gently.

■Do not aim the camera at the sun or extremely bright light

sources.

■Do not place the camera in extremely hot or cold environments

and dusty and damp locations. Do not expose it to highly

electromagnetic radiation.

■Do not block any ventilations.

Package

2

Overview

3

Camera Quick start guide CD

Plastic plug × 4 Junction box

4 tapping screws

Overview

3

Drill Template

7

2

1

3

4

5

6

1

7

2

3

5

4

6

Fixed ring

Micro SD card slot

Ethernet connector

DC power connector

Audio input connector

Mounting base

Reset

* 1 It is recommended to install the security cap for outdoor installations.

*2 DC 12V power supply is not required if a PoE switch or injector is used to power

the camera.

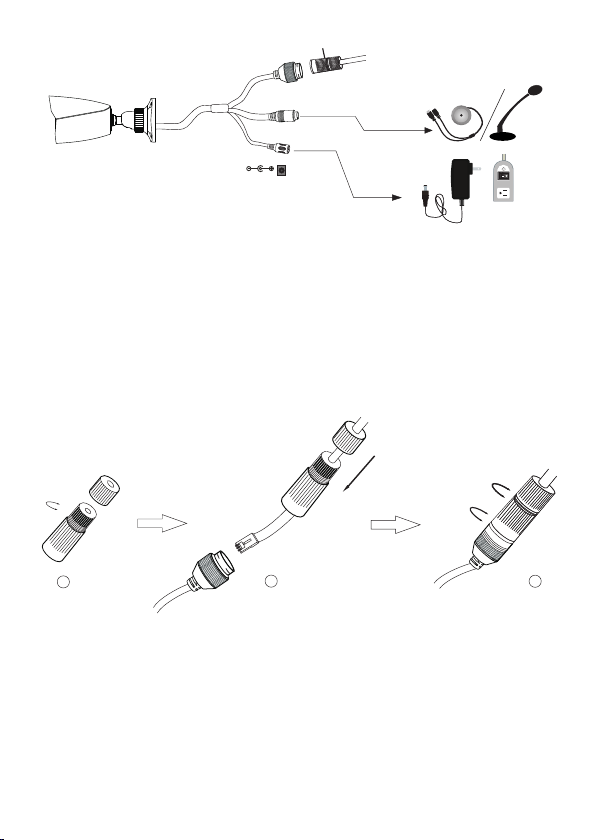

►Connecting Network Cable

①Loosen the nut from the main element.

②Run the network cable (without RJ 45 connector) through both

elements. Then crimp the cable with RJ 45 connector.

③Connect the cable to the hermetic connector. Then tighten the nut

and the main cover.

2

13

DC12V

Security Cap

Installation

4

* Before you start, please make sure that the wall or ceiling is strong enough

to withstand three times the weight of the camera.

① Open the mounting base and the upper cover of the junction box.

② Install junction box onto the wall by using the screws provided.

Mounting Base

Upper Cover

③ Fasten the camera onto the mounting base.

④ nstall the camera onto the junction

box as shown below.

Connect the cables and then i

⑤ Bracket Adjustment-Loosen the fixed ring to adjust the view

angle of the camera. After you get the optimum angle of view,

tighten the fixed ring to complete the installation.

Fixed Ring

Pan 360°

Tilt 80°

③In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

Web Operation and Login

5

●Operation

IP Scanner can search for the device on the local network.

①Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

②Install IP Scanner from the CD and run it after installation.

O4B6

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins.
