Speco HTB11FFi Manuel utilisateur

HTB11FFi

580 Line Color Bullet Camera

Intensifier 2 Series, Focus Free

Wall & Ceiling Mountable

Please read this manual thoroughly before operation and keep

it handy for further reference.

WARNING & CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICINGTO QUALIFIED

SERVICE

PERSONNEL

CAUTION

The lighting flash with an arrowhead symbol, within an equilateral triangle is

Intended to alert the user to the presence of un-insulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to constitute

ariskofelectricshocktopersons____________________________________

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (serving) instructions

the

literature

accompanying

the

appliance

SERVICE

PERSONNEL

_____________

the

literature

accompanying

the

appliance

_________________

INFORMATION -This equipment has been tested and found to company with

limits for a class a digital device Pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful

Interference When the equipments operated in a commercial environment.

This equipment generates, uses, and Can Radiate radio frequency energy and

if not installed and used in accordance with the instruction manual, may Cause

Harmful interference to radio communications. Operation of this equipment in a

id ti l

lik l

hfl

it f

hi h

DO NOT use power sources other than that specified.______

res

area

lik

ocause

arm

erence

Casetheuserwillberequiredtocorrecttheinterferenceathisownexpense.

WARNING – Change or modification not expressly approved by the manufacturer could void

the user’s authority to operate the equipment__________________________________

CAUTION : To prevent electric shock and risk of fire hazards.

NOT

expose

this

appliance

rain

moisture

000

NOT

expose

this

appliance

rain

moisture

000

This installation should be made by a qualified service person and should conform to all local codes.

CONTENTS

Package Contents 4

Precautions 5

Camera Installation 6-10

OSD Menu Tree

Features 11-12

OSD Menu Details 14-17

Troubleshooting 18-19

Specifications 20

Dimensions 21

Warranty 22

PACKAGE CONTENTS

Please make sure that the following items are included

in the package:

1 HTB11FFI Camera

HTB11FFI

Camera

4 Mounting Screws

1 Video test Connector

1 Extra Mount Plate

1 Wrench

Please leave this manual with the end-user for future

reference

PRECAUTIONS

•THIS CAMERA SHOULD BE ONLY INSTALLED BY QUALIFIED

PERSONNEL

•TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE

PROPER POWER CABLE

•DO NOT CLEAN THE FRONT COVER WITH AN ABRAISIVE

CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR

TISSUE TO CLEAN THE FRONT COVER

•THERE ARE NO USER-SERVICEABLE PARTS INSIDE.

PLEASE DO NOT DISASSEMBLE THIS CAMERA OTHER THAN

TO MAKE INITIAL ADJUSTMENTS

•

PLEASE USE A UL APPROVED REGULATED 24 VOLT AC OR

•

PLEASE

USE

APPROVED

REGULATED

VOLT

12 VOLT DC POWER SUPPLY

•PLEASE USE APPROPRIATE LOW VOLTAGE POWER CABLE

TO PREVENT FIRE OR ELECTRICAL SHOCK

•PLEASE INSURE THAT YOUR INSTALLATION AREA CAN

SUPPORT THE WEIGHT OF THE CAMERA

•PLEASE HANDLE THIS CAMERA CAREFULLY:

- DON’T USE A STRONG OR ABRASIVE DETERGENT WHEN

CLEANING THE CAMERA.

- DON’T EXPOSE THE CAMERA TO DIRECT SUN

CAMERA INSTALLATION

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500 mA)

DC 12V Power Supply

Power Input :RED

Center : (+)

2. WHEN USING 24 VOLTS AC (40 Volt Amps)

3. CONNECT VIDEO CABLE

-CONNECT BNC CABLE TO THE BNC JACK.

BLACK:(-)

RED(+)

Power Supply

AC 24V

4. CONNECT Alarm output (Relay output)

-Connect (+ , COM) for Positive activation and (-. COM) for

Negative activation of External Alarm Device when Motion

Detection is ‘ON’ in the camera.

5. CONNECT RS-485 CABLE

-Connect 2Wire Cable to the 485 port as below.

+ RED

-WHITE

COM (GREY)

Alarm Output

Positive Alarm Device (NO)

Negative Alarm Device(NC)

CAMERA INSTALLATION

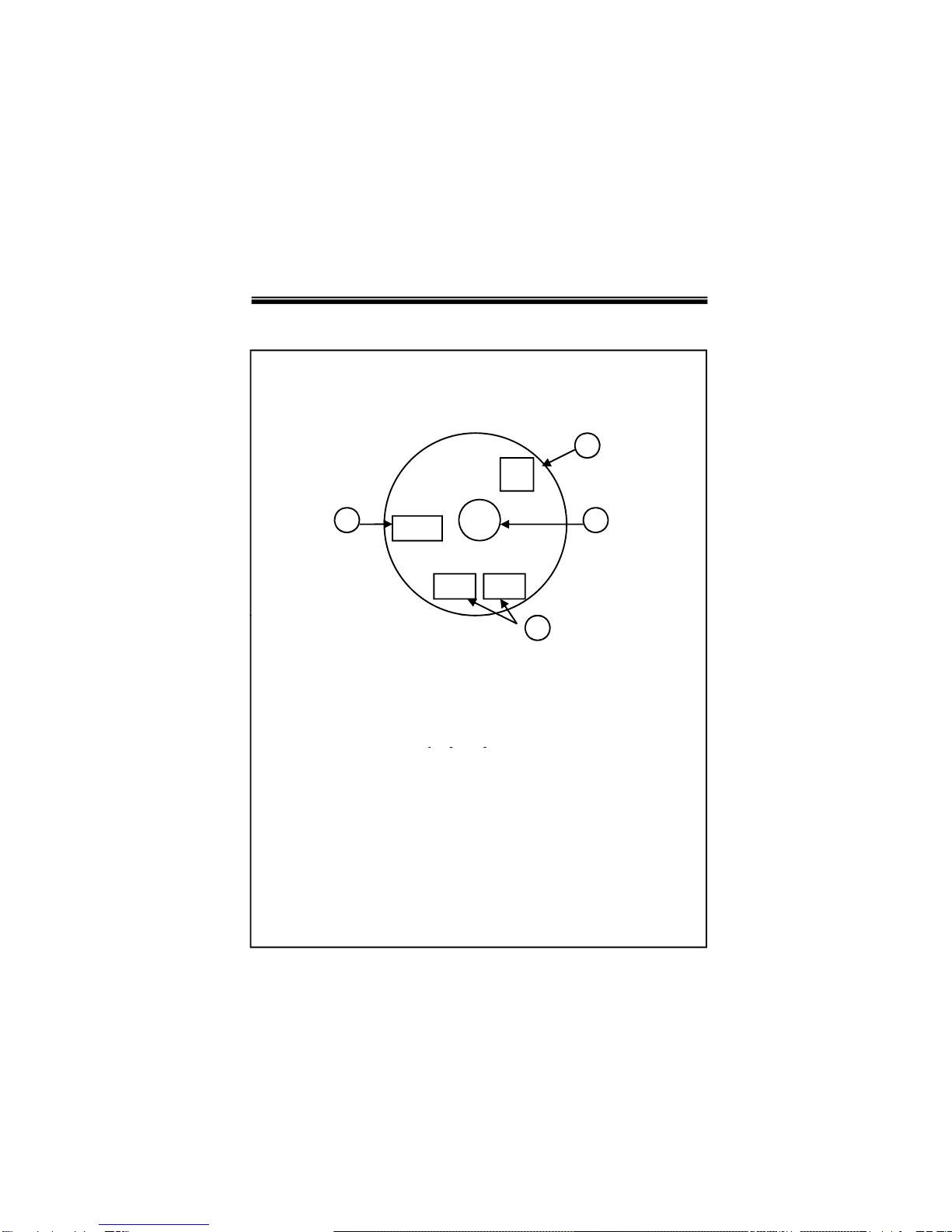

CONTROL BOARD

1) Video Test Terminal

: For second video output

)

OSD

(

On Screen Dis

stick

)( py)y

: Press the Joy stick for one second until the OSD menu tree

appears on the screen. Move the Joy Stick up, down, left &

right to control the OSD functions.

3) DIP Switch setting for RS485 (Pelco-D)

: Please see the next page for controlling this switch.

4) Lens adjustment (for Zoom) Switches

Lens

adjustment

(for

Zoom)

Switches

: Press Zoom or Tele button when desired, Focus is

automatically matched without any adjustment.

CAMERA INSTALLATION

DIP Switch Setting for RS-485 (Pelco-D)

Address Baud Rate

1) Address Setting

to set Camera Address, place switches based on below chart.

1 2 3 4 5 6 7

2) Baud rate Setting

to set Baud rate, please refer the chart below.

CAMERA INSTALLATION

COMPATIBILITY

CVCTPEXT“A” type Box “B” type Box

CVCTPLATE

★Original Base part

Should be taken away

to use CVCTPLATE

Hole 1 : CVCTPEXT

Hole 2 : Electrical Box

“

”

type

[CVCTPLATE Hole Description]

Hole

Electrical

Box

type

Hole 3 : Electrical Box “A” type

CAMERA INSTALLATION

COMPATIBILITY

BCP ( USING 7246WMT)

CVCTPLATE

CVCTPEXT

BCP (Direct connection )
