Speco HLPR1TW Manuel utilisateur

ITEM №: HLPR1TW

Adjustable function

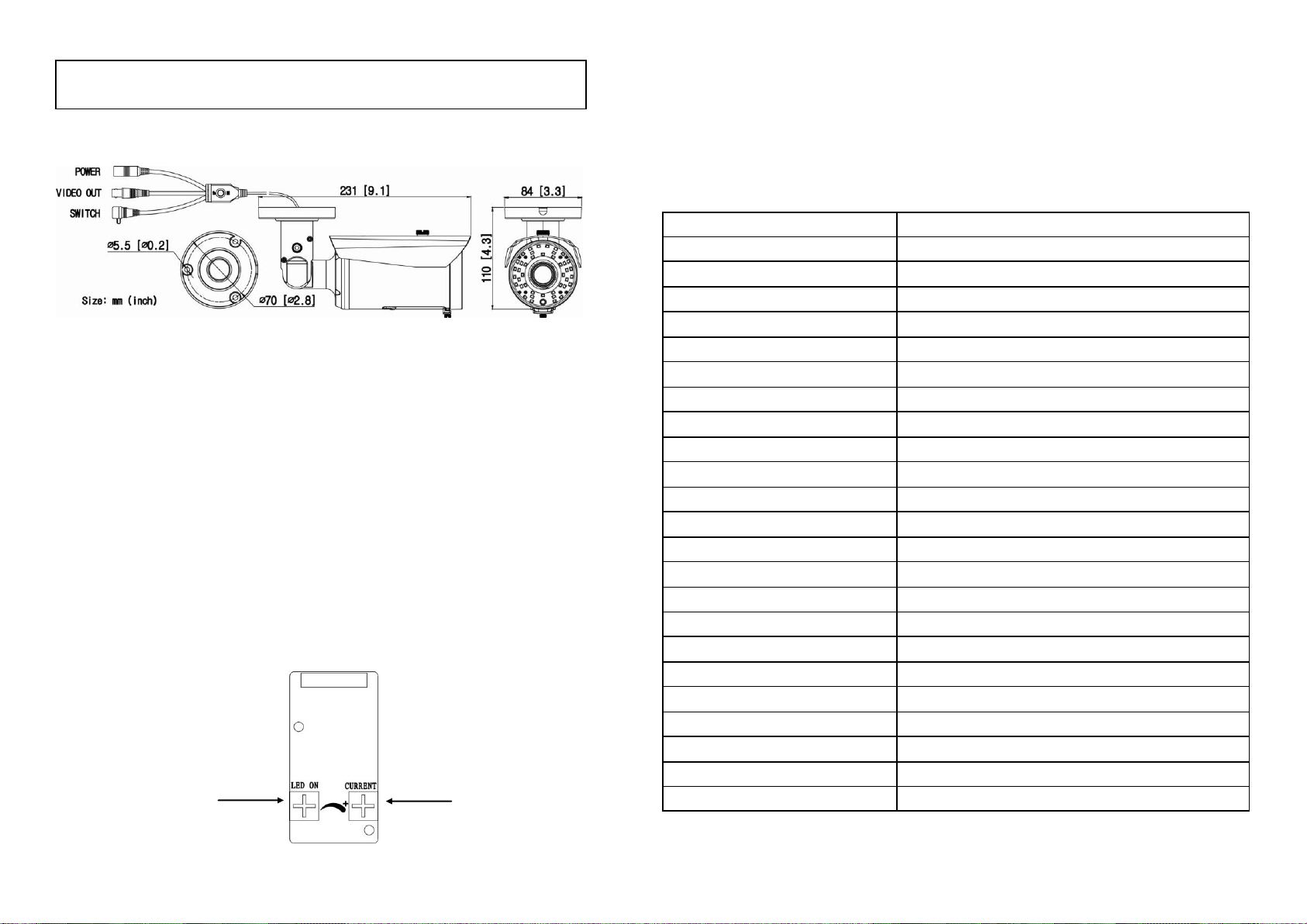

1. Resistor A: If you want to change the working time of IR Led, please

open the cover at the bottom of the camera(As showed in the following

picture), you can adjust the IR LED working time. Anticlockwise refers to the

IR LED will start working under the darker situation. clockwise refers to the

IR LED will startworking under the brighter situation.

2. Resistor B: If you want to change the intensity of the IR light, please

open the cover at the bottom of the camera(As showed in the following

picture), you can adjust the IR light intensity.

When you feel EXPOSURE on the plate, please lower down IR intensity;

when you feel DARK on the plate, please increase IR intensity, IR intensity

please refer to picture shown。

Packing

* Camera X1 *Hexagonal Wrench X1

* User Manual X1 *Mounting drawing paper X1

* Screw X3 *Junction Box X1

*Plastic-Conical-Anchor X3 *Power Cable Connector X1

*Junction box(including accessories) X1

Specification

ITEM

HLPR1TW

IP Rating

IP66

Type

Color/Monochrome

Signal System

NTSC/PAL

Pick Up Device

1/2.9" 2.2 Mega Pixels CMOS

Picture Elements

1920(H)X1080(V)

Min Illumination

0Lux（42 Pieces IR LED ON）

S/N Ratio

≥52dB

Lens

9-22mm Motorized Varifocal Auto iris IR Lens

Mph

28 miles/h

3D/2D

SENS-UP

OFF

IR SMART

White Balance

ATW

Back Light Compensation

OFF

DWDR

OFF

Video Out-put

HD-TVI/HD-AHD/HD-CVI/CVBS

Power Supply

DC12V ±10%/AC24V±10%

Current Consumption

DC:580mA/AC250mA (Max)

IR Effect Distance

2~15m（6.56~49.18ft）(Outdoor)

Dimension

231×84X110mm (9.1”×3.3”×4.3” )

Weight

1260g/2.78pounds (Including Junction Box)

Storage Temperature

-30～+60℃(-22～+140℉)

Operating Temperature

-30～+40℃(-22～+104℉)

Remark:Non-regulative adaptor may cause cameradamaged.

License Plate Capture Camera

ResistorA

Resistor B

Use the OSD joystick to switch the camera to:

video signal output switches

TVI DVR Coaxial Signal Control and Auto Focus Lens

1) Menu

As shown in Picture:

A.shows the up, down, left and right direction of the menu;

B. shows the enter/confirm button of the menu

2) LensAuto Focus

shows lens focus (Near/Far) of the Auto focus lens, and (4) shows

Zoom(wide/tele) of the AUTO focus lens. When Keep pressing “Focus”or

“Zoom”buttons, the lens will keep moving, only after “Focus”or “Zoom”

button without pressing, the lens will focus automatically.

Caution for Installation

1. Please do not install the camera where the vibration always happens, or

the camera will be damaged.

1. Please keep the glass in front of the camera clean. Do not touch it directly.

You can use a soft cloth with alcohol to wipe if necessary.

2. The available IR range of this camera is shown in the specification. Please

be sure to place the camera in the working distance when it works.

3. In order to prevent short circuit, please do not loosen any screws in the

camera at random.

4. Please do not let the camera work in the conditions which is beyond the

most extreme and demanding of operating conditions and climates shown

in the specification. When any abnormalities happen, please turn off the

camera and contact your local dealer or us right away.

Pay attention to the setting angle. The picture in the right is for your

reference.

InstallationGuide

(1)

(2)

(3)

(4)

(5)

(6)

Connect all cable connectors,

make the water proof rubber go

through the tail of video and

power cables;

Put allcables into the junction box

body;

Use 3pcs PM4*8 machine screws

to fix the camera on the round

plate.

Use allen wrench to loosen

the screw on the bullet bracket

as picture shown;

Adjust the viewing angle you

need, then fasten the screw.

Noting: You can rotate 3

directions freely as picture

shown.

Drill Holes according to the

position drawing paper and plug

into the rubbers

Use 3pcs PWA4*25 self-tapping

screws to fix the junction box

body.

Paste the cotton pad on the

bottom of junction box, place the

water proof rubber ring on the

top of the junction box body.

Use 3pcs KM4*10 machine

Screws to fix the round plate on

the junction box body.

Waterproof

Rubber
