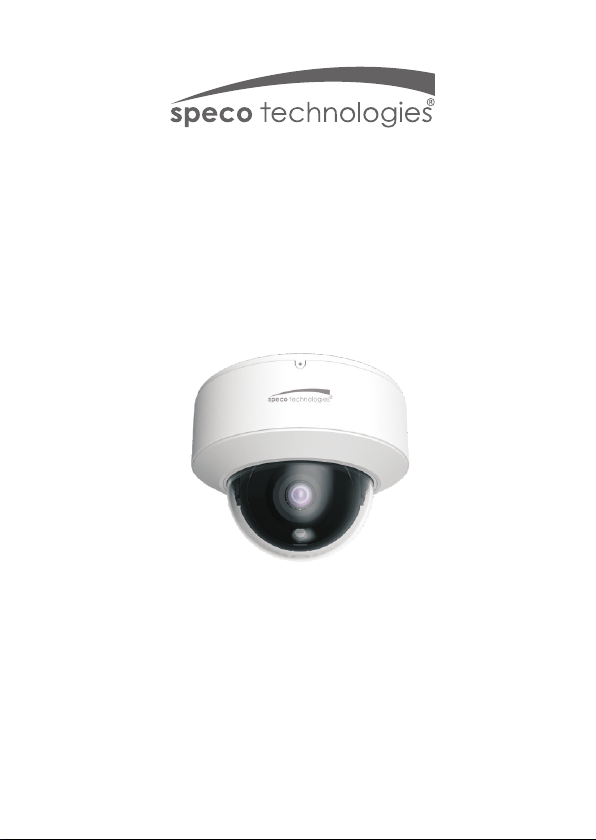

Quick Start Guide

O4D6N

Welcome

Thank you for purchasing this network camera!

This owner's manual is designed to be a reference tool for your system.

Please read this manual carefully before operating the unit and retain it for future reference.

Should you require any technical assistance, contact Speco Technologies Tech Support at

1-800-645-5516

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC Class 2 power supply only.

Please note: Do not connect two power supplying sources to the device at the same time;

it may result in device damage! The product must be grounded to reduce the risk of

electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Heavy stress, violent vibration or exposure to water is not allowed during transportation,

storage and installation.

This product should be installed in a cool, dry place away from direct sunlight and heat

sources.

Do not install the product in extreme temperature conditions.

Do not expose the camera to electromagnetic radiation. Otherwise it may result in CMOS

sensor failure.

Do not block any ventilation openings.

Do not allow water and liquid intrusion into the camera.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any

maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on

the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth

Important Safeguards and Warning

Warning

Statement

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

This guide is for reference only.

Product, manuals and specifications may be modified without prior notice. Speco

Technologies reserves the right to modify these without notice and without incurring

any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is

broken or missing in the package.

dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean

the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure

cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

Dome cover is an optical device, please don't touch or wipe cover surface directly during

installation and use, please refer to the following methods if dirt is found:

Stained with dirt: Use oil-free soft brush or hair dryer to remove it gently.

Stained with grease or fingerprint: Use oil-free cotton cloth or paper soaked with alcohol

or detergent to wipe from the lens center outward. Change the cloth and wipe several

times if it is not clean enough.

Package

Overview

Camera Quick start guide CD

Rubber plug

Junction box Drill template

Overview

Screwdriver

Ethernet connector

Audio input connector

Alarm input/output

Power connector

Microphone

Reset

Micro SD Card Slot

ALARM

4 3 2 1

8 Plastic plugs

8 (PA 4screws ×25mm)

4 (PM 4screws ×16mm)

4 Screw waterproof

rings

* 1 It is recommended to install the water-proof connector for outdoor installations.

* 2 DC 12V power supply is not required if a PoE switch or injector is used to power

the camera.

► Connecting Network Cable

① Loosen the nut from the main element.

② Run the network cable (without RJ 45 connector) through both

elements. Then crimp the cable with RJ 45 connector.

③ Connect the cable to the water-proof connector. Then tighten the

nut and the main cover.

Water-proof connector

DC12V

ALARM

4 3 2 1

1--ALM-COM

2--ALM-OPEN

3--ALM-INA

4--ALM-GND

Installation

* Before you start, please make sure that the wall or ceiling is strong enough

to withstand three times the weight of the camera.

①

want to install the junction box and then rill the screw hole and calbe

hole on the wall according to the drill template.

Install junction box onto the wall by using the screws provided.

Attach the drill template of the junction box to the place where you

②

Trim ring

③ Rotate the trim ring anticlockwise to remove it from the camera.

④ Loosen the screws to open the lower dome.

8mm

PA 4×25mm

4×

Screw water-proof ring

Lower dome

⑤

mounting base and fasten the camera onto the junction box.

Connect the cables, mount the rubber plug to the gap of the

Rubber Plug

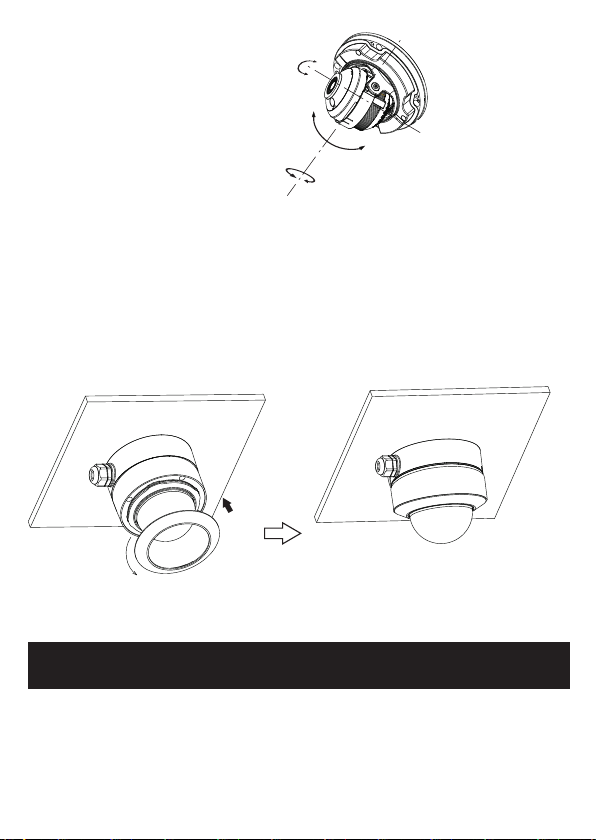

⑥

the camera on a monitor and then adjust the camera according to

the figure below to get an optimum angle.

Three-axis adjustment. Before adjustment, view the image of

PM 4×16mm

6mm

4×

⑦

screws.

Install the lower dome back to the camera and fasten it with the

Then put the trim ring onto the lower dome and then rotate

it clockwise until it is locked.

Rotation 0°~355° Tilt 0°~67°

Pan 0°~355°

Web Operation and Login

● Operation

IP Scanner can search for the device on the local network.

③ In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins if prompted.

O4 D6 N

5C :F 2:07:24 :5 8: 9A

① Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.

Or download from https://www.specotech.com/ip-scanner/
