SOYO – AVRO 3001 ROUTER USER MANUAL

Table of Content

1. Introduction............................................................................. 1

1.1 Product Overview ....................................................................................... 1

2. Hardware Description

......................................................... 2

2.1 Front Panel ................................................................................................... 2

2.2 Rear Panel..................................................................................................... 3

3. Default Values ......................................................................... 4

3.1 Password ....................................................................................................... 4

3.2 Default Network Setup .............................................................................. 4

3.3 Other Default settings ................................................................................ 4

4. Login AVRO 3001 VoIP router

......................................... 5

5. Configure AVRO 3001 VoIP router ......................................... 7

5.1 System............................................................................................................ 7

5.1.1 Time Zone .......................................................................................................7

5.1.2 Password Settings

.......................................................................................7

5.1.3 Remote Management......................................................................................8

5.2 WAN Settings .............................................................................................. 9

5.2.1 Dynamic IP

...................................................................................................9

5.2.2 PPPoE (PPP over Ethernet)

...................................................................10

5.2.3 Static IP

........................................................................................................10

5.2.4 DNS................................................................................................................11

5.3 LAN Settings

............................................................................................. 11

5.4 NAT Settings

............................................................................................. 12

5.4.1 Address Mapping ..........................................................................................12

5.4.2 Virtual Server

............................................................................................13

5.4.3 Special Applications

................................................................................14

5.5 Firewall........................................................................................................ 15

5.5.1 Access Control ..............................................................................................15

5.5.2 URL Blocking

..............................................................................................18

5.5.3 Schedule Rule ................................................................................................18

5.5.4 Intrusion Detection ......................................................................................20

5.5.5 DMZ

..............................................................................................................21

6. UPnP (Universal Plug and Play)........................................... 22

7. DDNS .................................................................................... 23

8. Tools

..................................................................................... 24

8.1 Configuration Tools.................................................................................. 24

8.2 Reset ............................................................................................................ 24

9. Status ..................................................................................... 26

9.1 Internet Connection.................................................................................. 26

9.2 Device Status.............................................................................................. 27

9.3 Security Log................................................................................................ 27

9.4 DHCP Client Log...................................................................................... 28

9.5 VoIP Status................................................................................................. 28

Glossary ..................................................................................... 30

Compliances.............................................................................. 37

1. Introduction

The AVRO 3001 VoIP router is a device tha

combines a

oice Gate

and a

and

ing

uni

t. The

oadband

outer

is designed

to sh

single Internet access

mong t

o or

PCs

in a

household and

to pr

vide Internet security for the PCs connected to its LAN port

. The

AVRO 3001 VoIP router also pr

vides

oice

er IP

(

oIP)

functionality

that

nab

to ma

ove

Int

rne

his Us

dvan

d fe

tures of

this

product.

1.1 Product Overview

The

AVRO 3001 VoIP router is

equipped w

standard

analog

telephone port, one

Ethernet

10/100BaseTX port

and

four

LAN

Ethernet 10/100BaseTX

port

It also

has

the

ability to

route

data bet

een

any PCs

that

are

connected

the LAN ports of the Gateway, up to a maximum of four PCs. The AVRO

3001VoIP router is H.323 v2 compliant for Voice over IP (VoIP) and it is

compatible with most High Speed Internet Service with built-in DHCP and

PPPoE client.

The services offered to the internal network are:

• DHCP Server

• Network Address Translation (NAT)

• Network Address Port Translation (NAPT)

• IPSEC pass through

The AVRO 3001 VoIP router has the ability to prioritize voice over data

through IP Layer QoS, Ethernet Layer CoS (Classes of Service) and VLAN

Tagging.

The AVRO 3001 VoIP router has 8 LEDs on the front panel that provides

status indication that can be used for troubleshooting purposes. See section

2.1

2. Hardware Description

2.1 Front Panel

The AVRO 3001 VoIP router includes an LED display on the front panel

for system power and port indications that simplifies installation and

network troubleshooting.

The following is the illustration and description of LED indicators:

Figure 2-1

Function Label Status Meaning

(Green)

The AVRO 3001 VoIP router is

powered on

Blink

The VoIP Router is loading firmware

Power POWER

Off

Power off or failure

(Green)

WAN connection is functioning

correctly

Flashing

The VoIP Router is

transmitting/receiving data

WAN MODEM

Off

WAN connection is not established

(Orange)

Internet connection is OK

Internet

Link OK

Off

No Internet connection

(Green)

LAN connection is OK

Flashing

The LAN port is sending/receiving data

LAN LAN1 to

LAN4

Off

No LAN port connection

(Orange)

The phone is off hook

Blink

(Ring)

Ring for incoming voice calls (follow the

ring pattern)

Blink

(Alert)

Gatekeeper register failed (one second

on, one second off)

Phone PHONE

Off

The phone is on hook

POWER MODEM OK LAN1 LAN2 LAN3 LAN4 PHONE

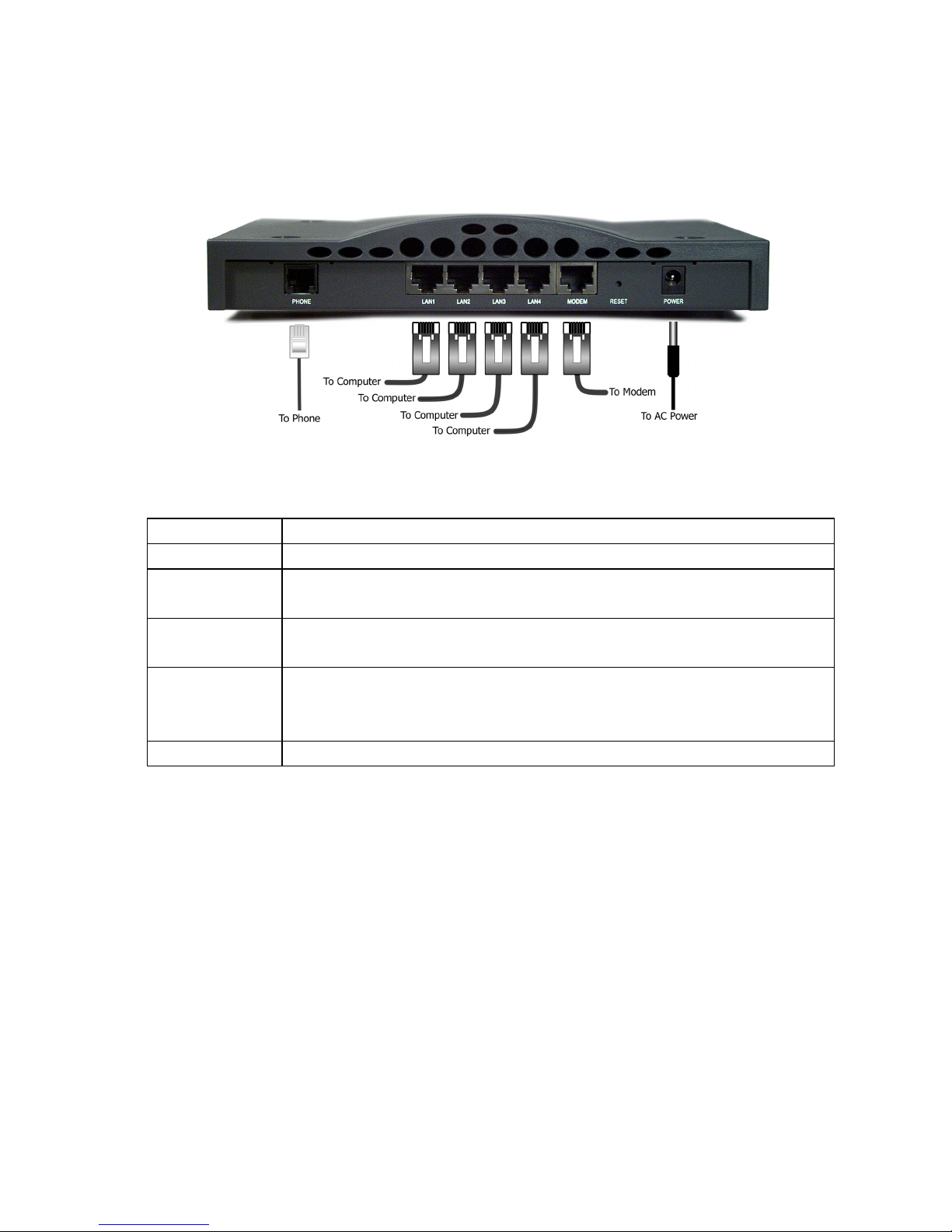

2.2 Rear Panel

The rear panel contains the following items:

Figure 2-2

Item Description

Power Connect to the power adapter

Reset Press this button for more than 5 seconds to reset and restore

the default factory settings

Modem Connect your cable/DSL modem to this port with an Ethernet

Cable

LAN 1 to 4 Fast Ethernet port (RJ-45). Connect devices on your local area

network to this port (i.e., a PC, hub, or switch) with an

Ethernet Cable

Phone Connect your telephone to this port

3. Default Values

3.1 Password

The default username is "user" and the default password is "user". Please

note that the username and password is case sensitive. For security and

management reasons, we recommend that you set up a new password after

you first login to the system. Once you have changed the password, it is

important that you write it down and keep this information in a safe

location. If you happen to forget the username and password, you can push

and hold the reset button for at least 5 seconds, or until all of the LEDs

flash.

Your AVRO 3001 VoIP router is now reset to the factory default settings.

By resetting the Gateway you will loose all changes you have made to date.

Any customization (i.e. your PPPoE username and password) will need to

be reentered.

3.2 Default Network Setup

LAN

Setup

IP Address 192.168.1.1

Subnet Mask 255.255.255.0

DHCP Server Enabled

DHCP IP Range 192.168.1.100 to 192.168.1.199

WAN Setup

DHCP Client Enabled

Table 3-1

3.3 Other Default settings

Fun

ction

Setti

ngs

Time Zone Eastern Standard Time

Firewall Off

UPnP Off

DDNS Off

Table 3-2

4. Login AVRO 3001 VoIP router

Now that you have successfully connected the AVRO 3001 VoIP router

using the Quick Installation Guide and activated your Internet Phone

Service, you will need to login into the AVRO 3001 VoIP router to

configure it for your LAN.

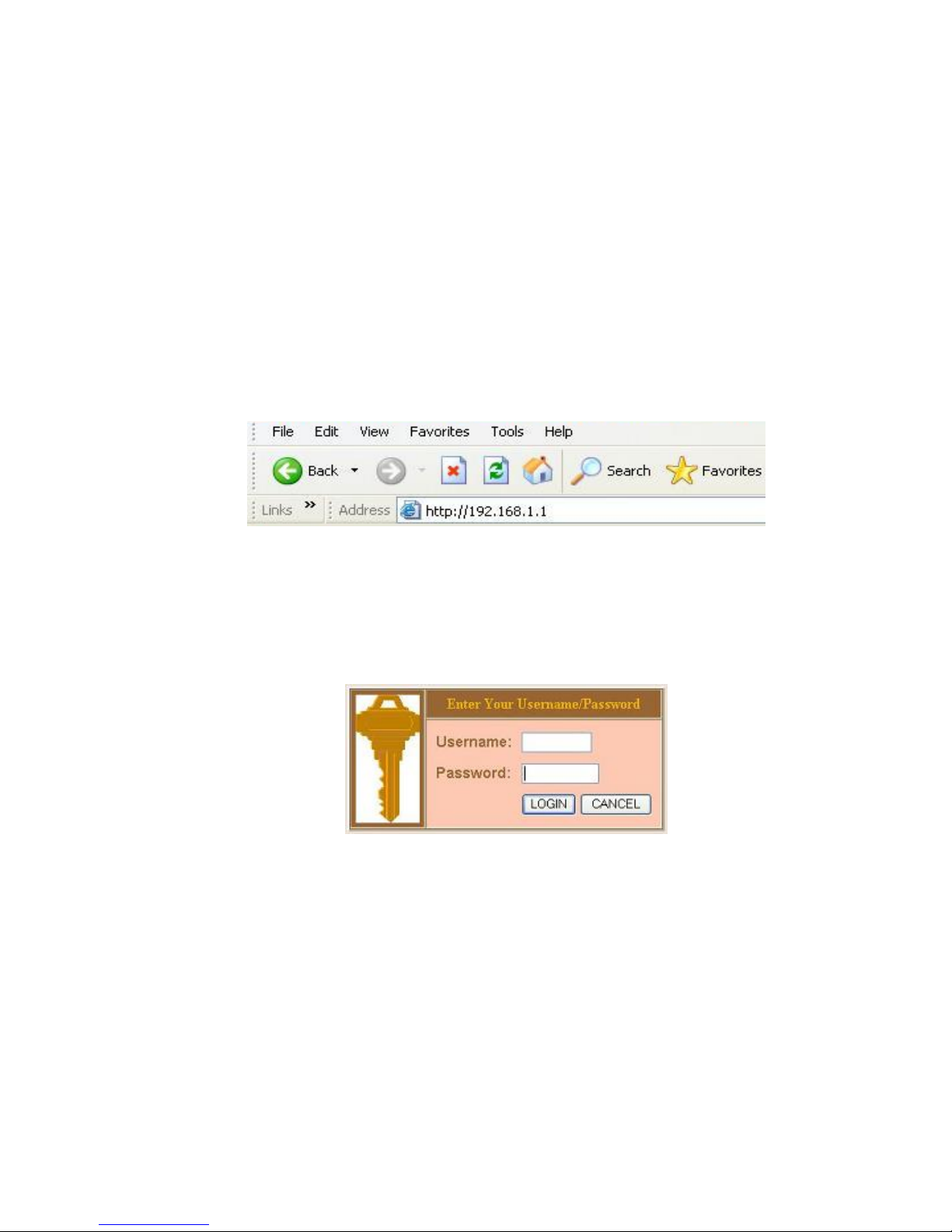

1. Open your Web browser (i.e. Internet Explorer or Netscape Navigator).

2. In the Address field type in the following address: http://192.168.1.1,

and press Enter.

Figure 4-1

3. The AVRO 3001 VoIP router login screen will appear. The default

username is "user" and the default password is "user". For security

reasons, you should assign a new password as soon as possible. Please

note that the login username and password is case sensitive.

Figure 4-2

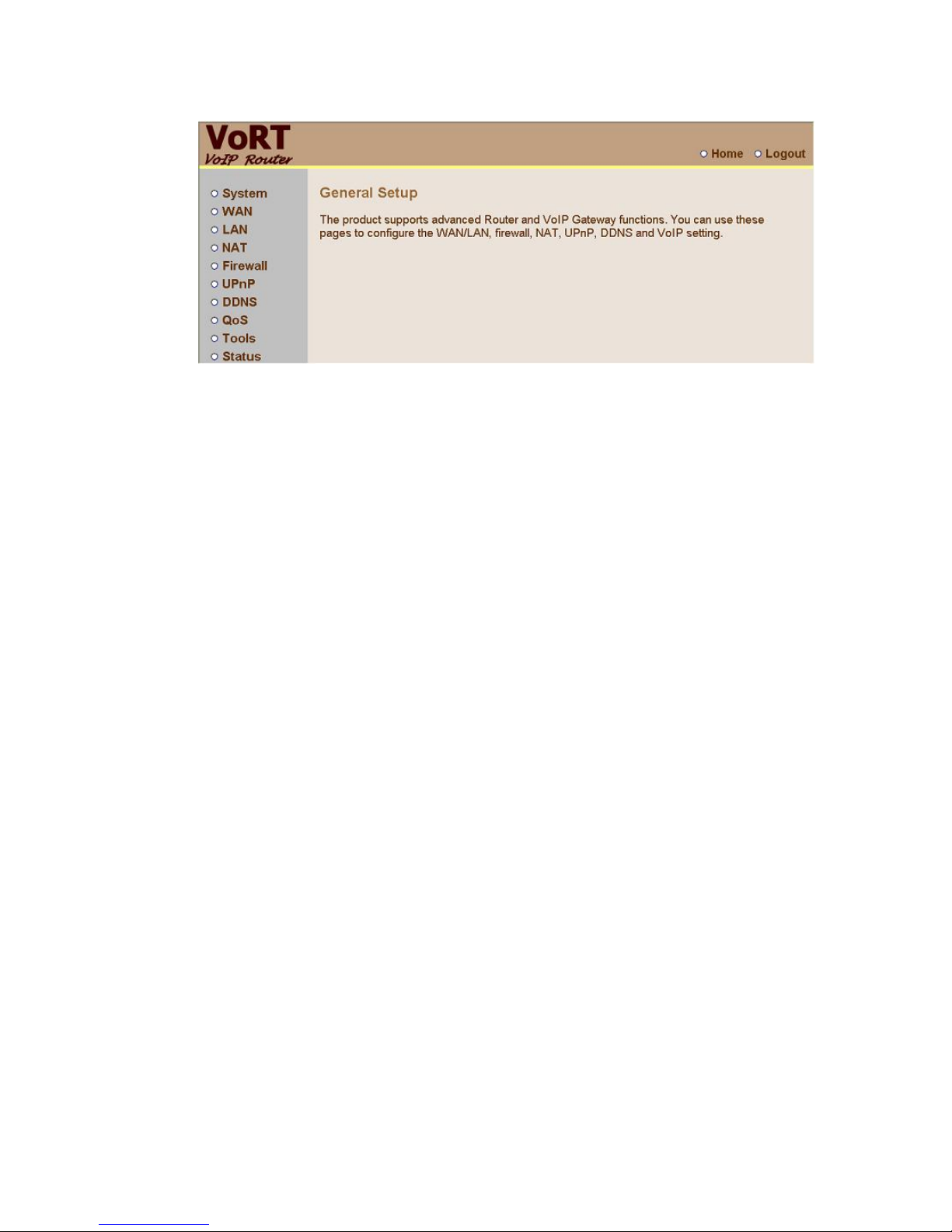

4. Once you have successfully logged in, the first page will appear as below:

Figure 4-3

5. Configure AVRO 3001 VoIP router

Please note that changing some settings on the AVRO 3001 VoIP router

may cause an interruption if attempted during a call.

5.1 System

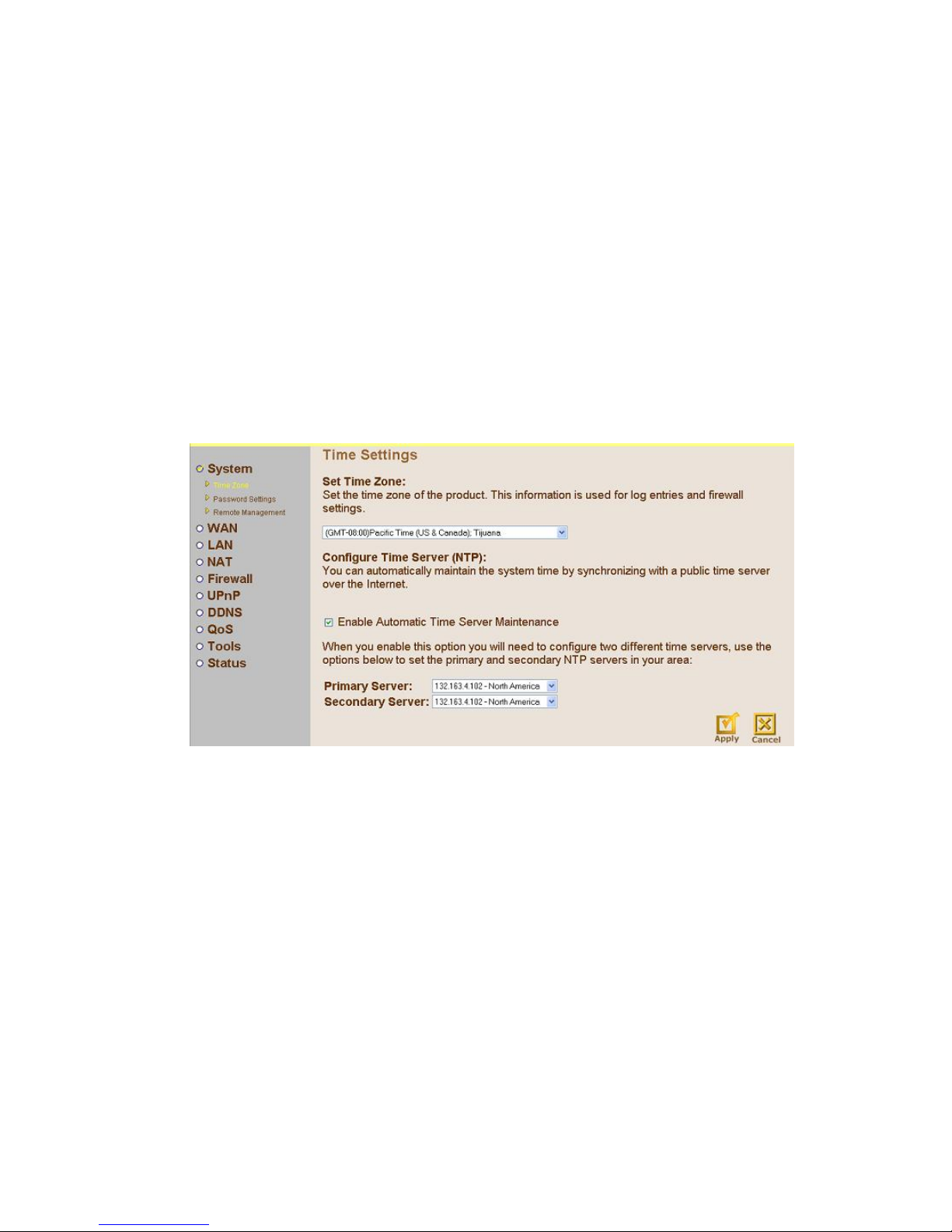

5.1.1 Time Zone

Set the proper time zone and configure the time server for the AVRO 3001

VoIP router. The default time zone is Eastern Standard Time. When you

enable the Automatic Time Server Maintenance option you will need to

configure two time servers, see example provided below.

Figure 5-1

5.1.2 Password Settings

Set the password of the user. The Idle Time Out value is used for AVRO

3001 VoIP router to log out automatically when there has been no access to

the web after this timeout value. The default Idle Time Out value is 10

minutes.
