SOUNDMASTER SCD6450 Manuel utilisateur

16. LCD DISPLAY

17. CASSETTE DOOR

18. CD STOP /CD-USB BUTTON

19. CD BACK BUTTON

20. CD NEXT BUTTON

21. CD PLAY/PAUSE BUTTON

22. TUNING CONTROL

23. BAND SWITCH

24. AC SOCKET

25. AUX. IN JACK

26. VOLUME CONTROL

27. BATTERY COMPARTMENT

28. STANDBY

29. USB PORT

GB 1

LOCATION OF CONTROLS

1. SPEAKER

2. CARRYING HANDLE

3. OPEN/CLOSE CD BUTTON

4. CASSETTE RECORD

5. CASSETTE PLAY

6. CASSETTE REWIND

7. TELESCOPIC ANTENNA

8. CASSETTE F.FWD

9. CASSETTE STOP/EJECT

10. CASSETTE PAUSE

11. CD DOOR

12. FUNCTION SWITCH

13. CD PROGRAM/CLOCK-ADJ. BUTTON

14. CD FOLDER UP BUTTON

15. CD PLAY MODE BUTTON

SPECIFICATIONS

RADIO SECTION

Tuning ranges: FM 87.5 – 108 MHz

AM 522 – 1620 kHz

GERNAL

Power consumption: 13 W

Power source: AC 230V 50Hz

DC 12V ( 8 1,5V “C”/UM2)

POWER SUPPLY

GB 2

TO ADJUST THE VOLUME

VOLUME

USING HOUSEHOLD AC MAINS

Before use, check that the rated voltage of your unit matches

your local voltage.

USING BATTERIES

Disconnect the AC power cord from the AC inlet of the

unit. Battery power is cut automatically by the cord while

it is connected.

Insert eight UM-2

( size C ) batteries.

battery door

When the volume decrease, or the sound distorts, replace

all of the batteries with new ones.

To AC socket To AC outlet

MAX.

MIN.

Note: plug is used as the disconnect device.

the disconnect device shall remain readily operable.

POWER ON/OFF

STANDBY

1. Power is on/off by pressing STANDBY button.

ADJUSTING THE SOUND

The clock is displayed on LCD display at stop mode.on LCD display at stop mode.

1. Press the PROGRAM / CLOCK-ADJ. button,

2. Press the NEXT or BACK to select 12 hours or

24 hours display.

    

4. Press the NEXT or BACK to adjust hour digit.

 

6. Press the NEXT or BACK to adjust minute digit.

7. Press the PROGRAM / CLOCK-ADJ. button again, the correct time is shown on display.

CLOCK ADJUSTMENT

PROGRAM/

CLOCK-ADJ.

LCD display

AM FM

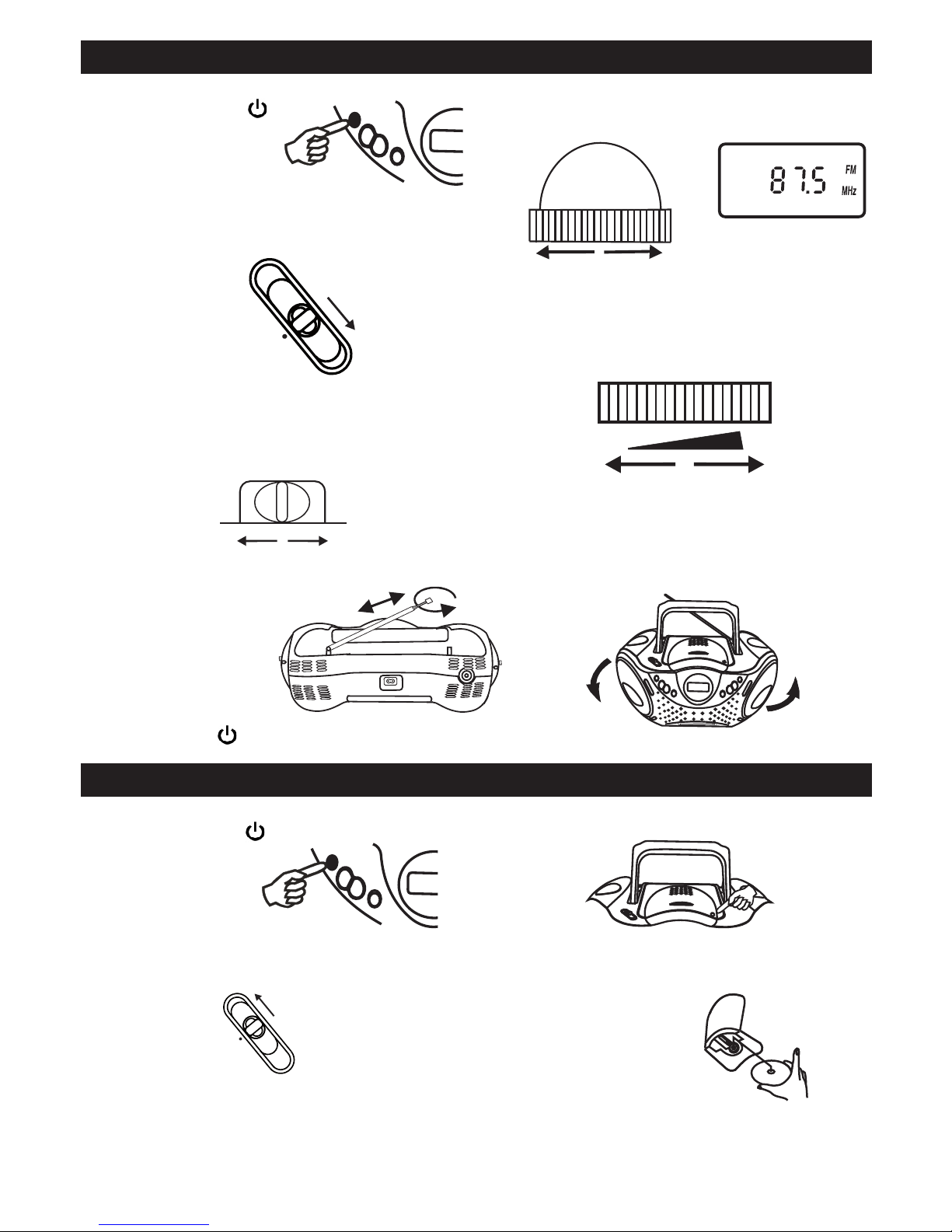

LISTENING TO THE RADIO

2 . Set to TUNER

FUNCTION

5. Adjust the sound.

VOLUME

3 . Select a BAND.

BAND

TUNER

MAX.

MIN.

1 . Turn on the unit by

pressing STANDBY button.

4 . Tune to the desired radio station by using TUNING

knob and frequency is displayed.

TUNING

LCD display

FOR BETTER RECEPTION

AFTER LISTENING

Press the STANDBY button.

COMPACT DISC PLAYBACK

1 . Turn on the unit by

pressing STANDBY button.

2 . Set to CD

3 . Open the CD door by pushing Open / Close CD

button.

4. Insert a disc with the label side facing up.

5 . Close the CD door.

The disc will rotate and

the total tracks of the disc

will show on the display.

FUNCTION

GB 3

During Mix mode,

display shows

TO SKIP TO THE BEGINNING OF A TRACK

• Press either one of the skip buttons according to the desired skip direction.

• Play/back resumes from the selected track.

• When the button is pressed once during play, the previous track starts again.

• When the button is pressed once during play, the next track plays.

SEARCHING FOR A PASSAGE WITHIN A TRACK

• Keep the or button pressed during playback,

and release the button as soon as you recognise the desired

passage. Then normal CD playback will resume from this point.

TO STOP PLAYBACK

Press the STOP button and the display shows the total

tracks of the disc.

TO INTERRUPT PLAYBACK

Press the Play/Pause button and the symbol " " will



CD display

MP3 display

WMA display

USB display

CD display

MP3 display

WMA display

USB display

6. Press the PLAY/PAUSE button.

Track number "01" ," CD "& the symbol " " will

be shown during normal compact disc playback.

Track number "001"," CD ", the symbol " " &

"MP3"will be shown during MP3 playback.

Track number "001"," CD ", the symbol " " &

"WMA" will be shown during WMA playback.

Track number "001"," CD ", the symbol " " &

"USB" will be shown during USB playback.

Press PLAY MODE button.

CD plays with a single track repeat, all tracks repeat or randomly.

REPEAT , REPEAT FOLDER , REPEAT ALL AND MIX PLAYBACK

CD display

FOR NORMAL COMPACT DISC PLAYBACK

Mode sequence REPEAT FLASHED >> REPEAT >> MIX

>> CLEAR.

During Repeat 1 mode,

display shows

During Repeat 2 mode,

display shows

GB 4

CD display

FOR MP3/WMA/ USB PLAYBACK

Mode sequence REPEAT FLASHED >>

REPEAT FOLDER FLASHED >> REPEAT >> MIX >>

CLEAR.

During Repeat 1 mode,

display shows

During Repeat 2 mode,

display shows

1. Set to CD / USB.

2. Connect USB disk or MP3 player into the USB port.

3. In stop mode, press the STOP / CD / USB button and display will show total track & "USB".

4. Press the PLAY/PAUSE button to start playback.

note: USB port does not support connection with USB extension cable and

it is not designed for communication with computer directly.

Manufacturer is not responsible for the playability of USB disk or MP3 player

due to recording condition, capacity, interface compatibility, etc.

Due to different formats, some USB disks or MP3 players may take longer time to be read.

USB stick should be direct connected or with a cable with max. 0,5 m length.

Note on CD-R/RW discs

 

guaranteed.

- Manufacturer is not responsible for the playability of CD-R/RW due to recording conditions, such as PC performance,

writing software, media ability, etc.

- Do not attach a seal or label to either side of the CD-R/RW disc. It may cause a malfunction.

 

MP3 / WMA / USB display

FOLDER UP

USB OPERATION

For MP3/WMA/USB playback, when the unit is at STOP mode, skip up to next folder/album

at increasing order & it will show the folder/album number; press PLAY/PAUSE button to

start the playback of the selected folder/album. When the unit is at MP3/WMA/USB

PLAYBACK mode, skip up to next folder/album at increasing order & the folder/album



USB display

During Repeat 3 mode,

display shows

During Mix mode,

display shows

MP3 / WMA / USB display

AUX. IN

( Plug other end into

external source )

LCD display

GB 5

Connect an external LINE OUT to AUX. IN socket

at the back of the unit . " AUX " is shown on the display.

( AUX IN CABLE NOT INCLUDED )

GB 6

TAPE PLAYBACK

1 . Set to TAPE

TO STOP PLAYBACK

Press the STOP / EJECT button.

TO INTERRUPT PLAYBACK

Press the PAUSE button.

To resume play, press the PAUSE button again.

TO FAST WIND

Press the REWIND or F.FWD button. Press the STOP/

EJECT button to stop winding at the desired position.

PLAY

FUNCTION

TAPE

3 . Press the PLAY button.

2 . Insert the cassette.

TAPE

RECORDING

USE ONLY NORMAL ( TYPE I ) TAPE FOR RECORDING.

1 . Insert the cassette tape.

2 . Press the PAUSE button.

PAUSE

4 . Prepare to play the source to be recorded and play it.

Recording from the radioRecording from a CD

FUNCTION

PLAY THE CD TUNE INTO A STATION

3 . Press the RECORD button.

RECORD

5 . Press the PAUSE button.

PAUSE

TO STOP RECORDING

Press the STOP / EJECT button.

TO INTERRUPT RECORDING

Press the PAUSE button.

To resume recording, press the PAUSE button again.

TO ERASE A RECORDED TAPE

1. Set the FUNCTION selector to TAPE.

2. Insert a tape with the side you want to erase facing you.

3. Press the RECORD button to start erasing.

CD TUNER

RADIO

FOR NORMAL COMPACT DISC PLAYBACK

Programmed playback enables tracks on a disc to be played in the desired order.

Up to 20 tracks can be programmed.

1. In stop mode, press the “ PROGRAM / CLOCK-ADJ.“ button.

2. Press the BACK or NEXT buttons to select the desired track number.

3. Press “ PROGRAM / CLOCK-ADJ. “ button again to memorize the track.

4. Repeat steps 2 to 3 until all desired tracks are programmed.

5. Press the “ PLAY/PAUSE “ button to start. “ PROGRAM “ is

shown on the LCD display.

6. Press “ STOP “ button to stop programmed playback.

7. Press “ PLAY/PAUSE “ buttons to resume programmed playback.

8. Turn off the CD player to clear the programmed memory.

Note : Programming can only be made when the player is in stop mode.

FOR MP3/WMA/USB PLAYBACK

Programmed playback enables folders/albums or tracks on a disc to be played in the desired order.

Up to 20 folders/albums or tracks can be programmed.

1. In stop mode, press the “ PROGRAM / CLOCK-ADJ. “ button.

2. Press the FOLDER UP button to select the desired folder.

3. Press the BACK or NEXT buttons to select the desired track number.

4. Press “ PROGRAM / CLOCK-ADJ. “ button again to memorize the track.

5. Repeat steps 2 to 4 until all desired tracks are programmed.

6. Press the “ PLAY/PAUSE “ button to start. “ PROGRAM “ is

shown on the LCD display.

7. Press “ STOP “ button to stop programmed playback.

8. Press “ PLAY/PAUSE “ buttons to resume programmed playback.

9. Turn off the CD player to clear the programmed memory.

Note : Programming can only be made when the player is in stop mode.

PROGRAMMED PLAYBACK

MP3 / WMA / USB

display

" PROGRAM "

CD display

" PROGRAM "

PROGRAMMED TRACK

NUMBER INDICATOR

PROGRAM /

CLOCK-ADJ.

PROGRAM

PROGRAMMED TRACK

NUMBER INDICATOR

PROGRAM /

CLOCK-ADJ.

PROGRAM

GB 7
