WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 220 – 240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are

present inside the TV. Refer servicing and

disposal of the TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

For children’s safety, do not leave children

alone with the TV. Do not allow children to

climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Pull the power cord out by the plug. Do not pull

the power cord itself. Disconnect the TV before

moving it or if you are not going to use it for

several days.

Using Your New TV

Table of Contents

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna ................................................................. 4

Step 2: Insert the batteries into the remote ......................................... 5

Step 3: Preset the channels automatically........................................... 5

Connecting the 3D WOOFER .................................................................... 6

Connecting optional components ............................................................. 7

Securing the TV .......................................................................................... 10

Watching the TV ........................................................................................ 11

Advanced Operations

Selecting the picture and sound

modes .................................................. 15

Viewing higher quality pictures ...... 16

Viewing your favorite channels ....... 17

Listening with surround sound ....... 18

Enjoying stereo or bilingual

programs ............................................. 19

Adjusting Your Setup (MENU)

Introducing the menu system .......... 21

Changing the “PICTURE” setting

.. 24

Changing the “SOUND” setting

.... 26

Changing the “SETUP”setting ...

Changing the channel preset

(“CH PRESET”) setting .............. 30

Additional Information

Self-diagnosis function...................... 33

Troubleshooting ................................. 34

Overview of controls ......................... 38

Specifications ...................... Back cover

Do not install the TV in an unstable position.

Use a proper TV stand. Do not place any objects on the TV.

WARNING (continued)

4Using Your New TV

Using Your New TV

: Signal flow

IEC connector

(not supplied)

Antenna cable (not supplied)

Rear of TV

To video and

audio outputs

To S video

output

Audio/Video cable

(not supplied) : Signal flow

(S video input)

VCR

Antenna cable (not supplied)

To antenna

output

To 8(antenna)

123

R L Y C

WOOFER

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

R L

Rear of TV

(yellow)

-L (MONO) (white)

-R (red)

To T 1, 2, or 3

(video input)

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the Connecting a VCR diagram below.

Connecting a VCR

To watch the video input, press t(see page 12).

CAUTION

• Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through

the antenna and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries

from the remote if you are not going to use it for several days. If any

liquid that leaks from the batteries touches you, immediately wash it

away with water.

S video cable

(not supplied)

Using Your New TV

L(MONO) R

PROGRMENU AUTO

PROGR

ENTER SELECT

AUTO

PROGR

PR: 01

AUTO PROGRA

VHF LOW

TV SYS:AUTO

Front panel

Notes

• If you connect a monaural VCR, connect the yellow plug to (the yellow

jack) and the black plug to -L (MONO) (the white jack).

• If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• When both the (S video input) and t1 (video input) are connected,

the (S video input) is automatically selected. To view the video input

to t1 (video input), disconnect the S video cable.

• When no signal is input from the connected video equipment, the TV

screen becomes blue.

Step 2

Insert the batteries into

the remote

Note

• Do not use old batteries or different types of batteries together.

Step 3

Preset the channels automatically

Tips

• To stop the automatic channel presetting, press MENU.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 31).

6Using Your New TV

Connecting the 3D WOOFER

You can enjoy high quality sound by connecting the 3D WOOFER.

Bottom of 3D WOOFER

1Place the foot at the front of the 3D WOOFER into the footholds on the top

of your TV.

2Place the foot at the rear of the 3D WOOFER into the footholds at the rear

of your TV.

3Connect the wires to the 3D WOOFER (4Ω) terminals at the rear of your TV.

The red wire should be connected to the 3red terminal and the black wire

to the #black terminal.

Notes

• Connect only the supplied 3D WOOFER; otherwise your TV may

malfunction.

• Unplug your TV from the wall outlet when connecting the 3D WOOFER.

• To prevent a malfunction caused by a short circuit of the terminals, make

sure that none of the 3D WOOFER wire strands stick out, making contact

with it’s neighbouring 3D WOOFER terminal.

Rear of TV

3DWOOFER

Black wire

Red wire

Using Your New TV

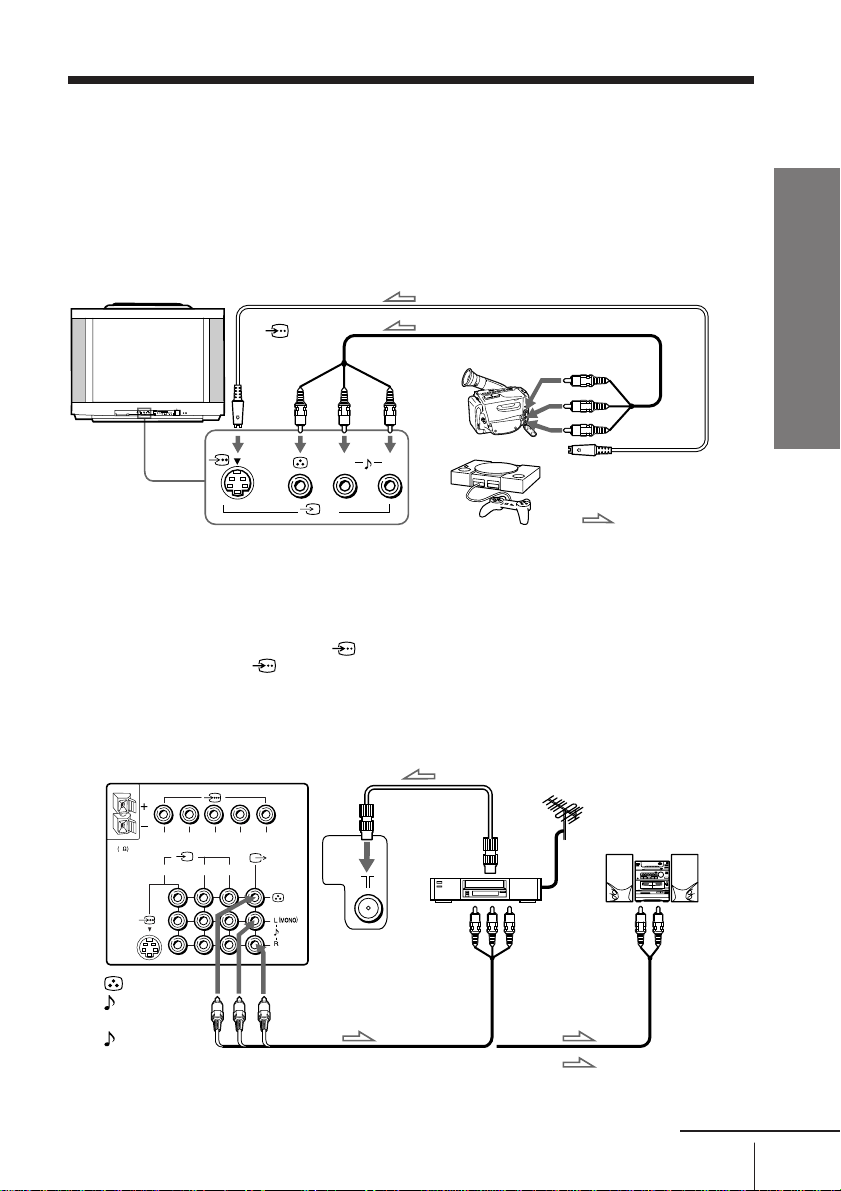

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game, or stereo system. To watch the picture from the connected

equipment, see page 12.

Connecting a camcorder/video game equipment

using the t(video input) jacks

Notes

• When connecting video game equipment, display the “PICTURE” menu

and select “ON” for “GAME MODE” to adjust the picture setting that is

suitable for video games (see page 24).

• You can also connect video equipment to the t1, 2, or 3 (video input)

jacks at the rear of your TV.

• When both the (S video input) and t4 (video input) are connected,

the (S video input) is automatically selected. To view the video input

to t4 (video input), disconnect the S video cable.

Connecting audio/video equipment using the T

(monitor output) jacks

Note

• If you select “DVD” on your TV screen, no signal will be output at the

T (monitor output) jacks (see page 12).

: Signal flow

Video game

equipment

(yellow)

-L (MONO)

(white)

-R (red)

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

To T

(monitor

output)

Antenna cable (not supplied)

Audio cable

(not supplied)

Audio/Video cable (not supplied)

L(MONO) R

PROGRMENU AUTO

PROGR

ENTER SELECT

L(MONO) R

123

R L Y C

WOOFER

continued

Camcorder

To video and

audio outputs

(S video

input)

(video input)

Audio/Video cable (not supplied)

S video cable (not supplied)

Front of TV

To S video output

8Using Your New TV

Connect To (on the DVD player)

Y (green) Y

CB(blue) Cb, B-Y or PB

CR(red) Cr, R-Y or PR

Connecting a DVD player to (component video input)

1 Using an audio cable, connect R and L under (component video input) on your

TV to the LINE OUT, AUDIO R and L output connectors on your DVD player.

2 Using a component video cable, connect Y, CB, and CRunder (component video

input) on your TV to the COMPONENT VIDEO OUT Y, CB, and CRoutput

connectors on your DVD player.

3 Press ton the remote or the TV until “DVD” appears on the screen.

To component

video output

Component video cable

(not supplied)

DVD player

L (white)

R (red)

To audio

output

Audio cable

(not supplied)

: Signal flow

(component video input)

VIDEO

R-AUDIO-L

LINE OUT

COMPONENT VIDEO OUT

S VIDEO OUT

CBCR

R L Y CBCR

Notes

• Some DVD player terminals may be labeled differently:

• When connecting to (component video input) on your TV, you must

connect Y, CB, and CR to receive the video signals, and connect L and R to

receive analog audio signals.

Connecting optional components (continued)

Rear of TV

Using Your New TV

123

R L Y C

WOOFER

VIDEO

R-AUDIO-L

LINE OUT

Connecting a DVD player to t(video input)

Connect t1, 2, or 3 (video input) /(audio/video) connectors on your TV to LINE

OUT on your DVD player.

DVD player

(yellow)

-L (MONO) (white)

-R (red)

To t1, 2, or 3

(video input)

: Signal flow

Audio/Video cable (not supplied)

Notes

• Since the high quality pictures on a DVD disc contain a lot of information,

picture noise may appear. In this case, adjust the sharpness (“SHARP”)

under “PERSONAL ADJUST” in the “PICTURE MODE” menu (see

page 25).

• Connect your DVD player directly to your TV. Connecting the DVD

player through other video equipment will cause unwanted picture noise.

Rear of TV

To video and

audio outputs

10 Using Your New TV

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the stabilizer band to the TV stand and to

the rear of the TV using the provided hole.

BPut the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

3.8 mm

Table des matières

Autres manuels Sony TV

Sony

Sony BRAVIA KDL-55W80 C Series Manuel utilisateur

Sony

Sony BRAVIA KD-43X7500F Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-27FS200 Manuel utilisateur

Sony

Sony KV-SR29 Manuel utilisateur

Sony

Sony BRAVIA XBR-65X855E Manuel utilisateur

Sony

Sony KE-42XBR900 - 42" Xbr Plasma Wega™ Integrated... Manuel

Sony

Sony BRAVIA KDL-48WD65 Series Manuel utilisateur

Sony

Sony Trinitron KV-9PT40 Manuel utilisateur

Sony

Sony Bravia KD-75XG80 series Manuel utilisateur

Sony

Sony TRINITRON KV-21V5A Manuel utilisateur

Sony

Sony TRINITRON KV-HA14M80 Manuel utilisateur

Sony

Sony TRINITRON KV-34FS100 Manuel utilisateur

Sony

Sony FD Trinitron WEGA KD-30XSR955 Manuel utilisateur

Sony

Sony Bravia KDL-22PX300 Manuel utilisateur

Sony

Sony KV-T21, KV-T25, KV-2168 Manuel utilisateur

Sony

Sony BRAVIA Manuel utilisateur

Sony

Sony KDS-50A3000 - Bravia Sxrd Microdisplay Hdtv Guide de l'utilisateur

Sony

Sony Bravia KDL-22L4000 Manuel utilisateur

Sony

Sony Bravia KD-65X8500C Manuel utilisateur

Sony

Sony BRAVIA KD-65Z9F Manuel utilisateur

Sony

Sony Bravia XR-77A80K Manuel utilisateur

Sony

Sony TRINITRON KV-FA21M63 Manuel utilisateur

Sony

Sony TV & Home A/V Mode d’emploi

Sony

Sony Bravia KDL-19M4000 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
