Sony SU-W210 Manuel utilisateur

M90

Wall-Mount Bracket

SU-W210

4-095-518-12 (1)

Instructions

•This Wall-Mount Bracket is designed for use with the Sony KLV-23HR2/

KLV-21SR2/KLV-21SG2/KLV-20SR3/KLV-L23M1 LCD Colour TV.

Gebrauchsanweisung

•Diese Wandhalterung ist für die LCD-Farbfernsehgeräte KLV-23HR2/

KLV-21SR2/KLV-21SG2/KLV-20SR3/KLV-L23M1 von Sony gedacht.

Instructions

•Ce support de fixation mural est conçu pour être utilisé avec le téléviseur couleur

LCD KLV-23HR2/KLV-21SR2/KLV-21SG2/KLV-20SR3/KLV-L23M1 Sony.

Instructies

•Deze wandmontagesteun is ontworpen voor de Sony KLV-23HR2/KLV-

21SR2/KLV-21SG2/KLV-20SR3/KLV-L23M1 LCD-kleurentelevisie.

Instrucciones

•

Este soporte de montaje mural ha sido diseñado para el televisor en color de pantalla de

cristal líquido KLV-23HR2/KLV-21SR2/KLV-21SG2/KLV-20SR3/KLV-L23M1 de Sony.

Istruzioni

•

La presente staffa di montaggio a parete è stata appositamente progettata per il televisore con

display LCD a colori KLV-23HR2/KLV-21SR2/KLV-21SG2/KLV-20SR3/KLV-L23M1 Sony.

Instruções

•

Este suporte de montagem na parede foi concebido para ser utilizado com o televisor com

ecrã LCD a cores Sony KLV-23HR2/KLV-21SR2/KLV-21SG2/KLV-20SR3/KLV-L23M1.

Bruksanvisning

•Det här väggfästet är avsett för Sony KLV-23HR2/KLV-21SR2/KLV-

21SG2/KLV-20SR3/KLV-L23M1 LCD färg-TV.

Instruktioner

•Vægbeslaget kan også anvendes til Sony KLV-23HR2/KLV-21SR2/KLV-

21SG2/KLV-20SR3/KLV-L23M1 LCD-farve-tv.

Käyttöohje

•Tämä television seinäkiinnitin on tarkoitettu käytettäväksi Sony KLV-23HR2/KLV-

21SR2/KLV-21SG2/KLV-20SR3/KLV-L23M1-nestekideväritelevisioiden kanssa.

Инcтpyкции

•

Этот нacтeнный монтaжный кpонштeйн пpeднaзнaчeн для иcпользовaния только c цвeтным

тeлeвизоpом c ЖК экpaном Sony KLV-23HR2/KLV-21SR2/KLV-21SG2/KLV-20SR3/KLV-L23M1.

Instrukcje

•Ścienny wspornik mocujący jest przeznaczony do użytku z telewizorem

kolorowym LCD Sony KLV-23HR2/KLV-21SR2/KLV-21SG2/KLV-20SR3/

KLV-L23M1.

Thank you for purchasing this product.

For Customers

Sufficient expertise is required for installing this product, especially to

assure the strength of the wall. Be sure to entrust the attachment of this

product on the wall (Step 1 to Step 3 in “Installation”) to Sony dealers or

contractors and pay adequate attention to safety during the installation. We

are not liable for any damage or injury caused by mishandling or improper

installation. Your Statutory Rights (if any) are not affected.

WARNING

To avoid risk of serious injury or damage to the TV caused by dropping it,

observe the following precautions.

•Do not hang from the TV or the Wall-Mount Bracket installed on the wall.

•Be careful not to trap the AC power adapter cord of the TV when you secure

the TV to the Wall-Mount Bracket.

•Follow the installation procedures and installation direction described in this

manual.

For a safety installation, consult your Sony dealer or qualified service

personnel.

•Before installing, confirm that the wall has sufficient strength to support the

TV and the Wall-Mount Bracket. The installation location should be a flat,

perpendicular wall with a reinforcing material inside.

•Do not apply a weight other than the TV to the Wall-Mount Bracket installed

on the wall.

•Do not disassemble, modify or change the parts of the Wall-Mount Bracket.

For Sony Dealers

Sufficient expertise is required for installing this product. Be sure to read this

instruction manual thoroughly to do the installation work safely. We are not

liable for any damage or injury caused by mishandling or improper

installation. After installation, please hand this instruction manual to the

customers.

Caution

•This Wall-Mount Bracket is only for the specified Sony LCD Colour TVs.

Do not use the bracket with a TV whose operating instructions do not specify

the use of this bracket.

•Be especially careful not to drop the TV when you install it high on a wall.

Installation

For the installation, have ready eight commercially available mounting screws,

anchor bolts, etc. that are appropriate for the wall.

The type and length of the screws required depend on the material and

strength of the wall. If you do not know which material your wall is made of,

consult your Sony dealer or qualified service personnel.

Step 1: Check the parts

Check all the parts are included in the package.

For Sony Dealers

Bracket A(1) Bracket C(3)

(0°, 5°, 10°)

Bracket E(1) Screw (6)

(with washer)

Bracket B(1) Bracket D(1) Locking rod (1)

continued

Step 2: Decide the installation location

Decide the location on the wall to install the TV.

Then, place bracket Aon the installation location and mark the four screw

holes on the wall using a pencil.

Before marking the location of the holes, make sure that the distance between

the upper edge of bracket Aand the ceiling is 15 cm or more, and that between

the side edge of bracket Aand the side wall is 25 cm or more.

Note

Attach bracket Alevel with the floor.

Bracket A

Ceiling

15 cm or more

Wall

Mark this

portion using

a pencil.

25 cm or more

Step 3: Secure bracket Ato the wall

1Insert four of the screws you prepared at the positions

marked in Step 2 (page 4).

Do not tighten the screws completely for the moment. Keep a space of

2 to 3 mm from the wall.

2Press bracket Ato the wall and slide it down. Then fully

tighten the four screws on the wall.

3Insert four of the screws you prepared in the screw holes,

and tighten them securely in the order of 1to 4as

shown below.

Screws you

prepared

Wall

2 - 3 mm

Wall

Bracket A

Wall

Bracket A

continued

Screws you

prepared Bracket A

Step 4: Attach bracket Bto the TV

Before attaching bracket B, remove the rear cover of the TV and disconnect all

the cables from the TV.

For how to remove the rear cover of the TV, refer to the Operating Instructions

supplied with the TV.

(The illustrations used in this manual show the KLV-21SR2/KLV-L23M1 as

examples.)

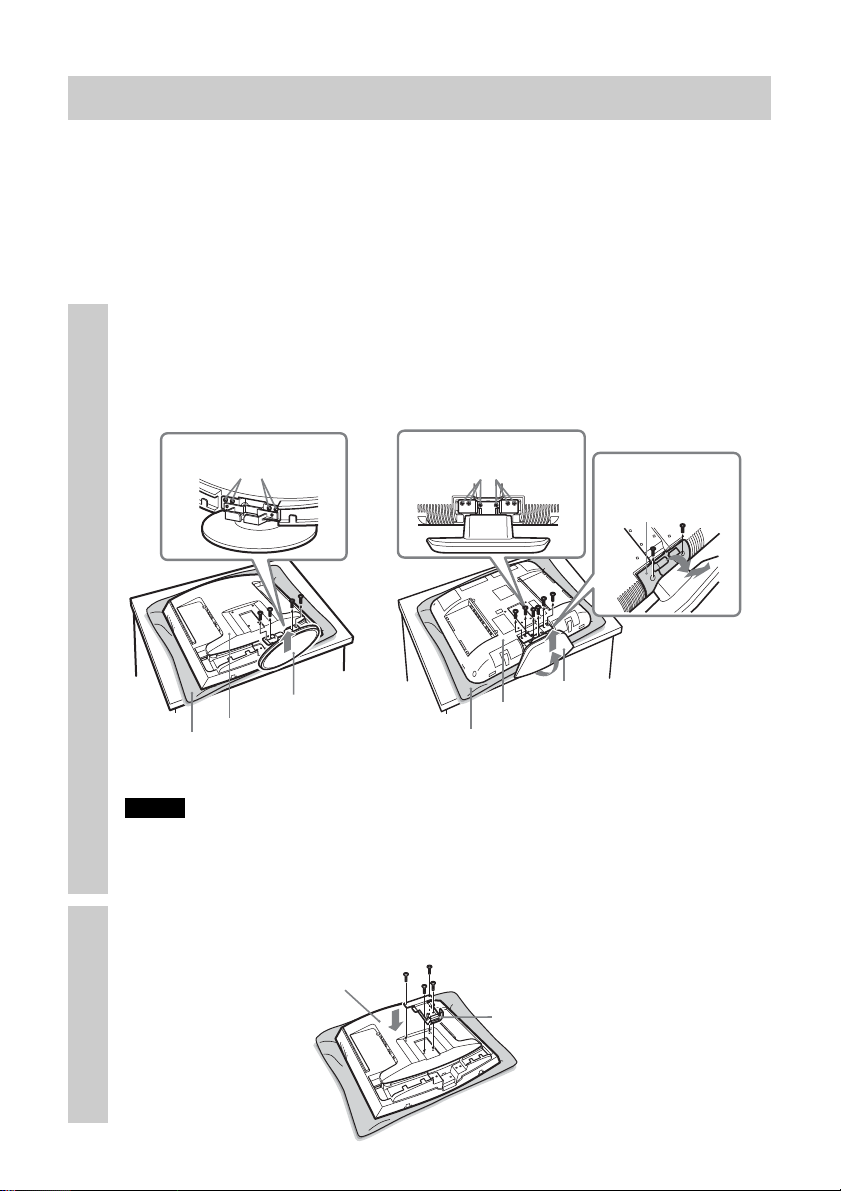

1Remove the screws as shown below, and remove the TV

stand from the TV.

To prevent damaging the surface of the LCD display, place the TV on a

soft mat.

Notes

• Place the TV body only on the table as shown above. If the TV stand is also on the

table, the TV body may be unstable and cause damage.

•When removing the TV stand, hold it firmly.

2Secure bracket Bto the TV firmly using the four screws

removed in step 1.

Rear of the TV

Bracket B

Remove the four

screws.

TV stand

Rear of the TV

Soft mat

KLV-21SR2 KLV-L23M1

Remove the six screws.

(M4 type for bracket

B)Remove the two

screws and hinge

cover.

Soft mat

TV stand

To secure bracket Bto the TV,

use the screws removed from the

TV stand, not the ones from the

hinge cover.

Rear of the TV

Step 5: Attach the rear cover on the TV

(The illustrations used in this manual show the KLV-21SR2/KLV-L23M1 as

examples.)

1Connect the cables.

How to connect/bundle the cables differs depending on the TV model.

For details, refer to the Operating instruction for your TV.

Note

If the cables are not neatly stored in the grooves, you may not be able to attach the

rear cover.

2Attach the rear cover.

For KLV-L23M1, attach the cable covers instead of the rear cover. For

KLV-20SR3, go to Step 6 instead of attaching the rear cover.

For details on how to attach the rear cover, refer to the Operating

Instructions of the TV.

Note

When you attach the rear cover, make sure that bracket Bdoes not damage the rear

cover.

Clips

Tabs

continued

KLV-21SR2 KLV-L23M1

Step 6: Attach brackets C, D, and Eto the TV

To prevent damaging the surface of the rear cover of the TV, put a soft mat on

the rear cover.

1Attach bracket Cof the desired angle to bracket B.

Insert the hooked part of bracket Cinto bracket Bas illustrated below.

Confirm that both sides of bracket Care outside bracket B, and secure

them firmly with two of the supplied screws.

There are three types of bracket C, each with a different angle: 0°, 5°,

and 10°. Choose the bracket Cwith the desired angle to attach.

The illustration below shows an example of how to attach bracket C

with an angle of 0°.

Bracket C

The angle “0°,” “5°,” or

“10°” is marked on the

side of bracket C.

2Attach bracket Dto bracket C, and secure them firmly

with two of the supplied screws.

Place bracket Donto bracket Cas illustrated below, and secure them

with the two screws.

3Attach bracket Eto bracket C, and secure them firmly

with two of the supplied screws.

Slide the shaft of bracket Einto the notches of bracket Cas illustrated

below, and secure them with the two screws one on each side. When you

complete attaching bracket E, remove the soft mat from the rear cover

of the TV.

Note

Be careful not to get your fingers caught between the brackets when attaching them.

Bracket D

Bracket E

Shaft

continued

Step 7: Secure the TV to the wall

1Hook bracket Eon bracket A.

Notes

•Hold the TV firmly. Be especially careful when you secure the TV in a high place.

•Do not release the TV until you confirm that bracket Eis firmly secured to bracket

Aat three locations.

Bracket E

Bracket A

Wall
