SONY:

AUTOMATIC

STEREO

TURNTABLE

SYSTEM

PS-X6

3-X7

Owner’s

instruction

manual

Before

operating

your

new

Sony

turntable,

please

read

this

manual

completely

to

become

familiar

with

all

its

features

and

capabilities.

Keep

this

manual

handy

for

future

reference.

This

instruction

manual

covers

both

the

PS-X6

and

the

PS-X7,

which

differ

only

in

the

arm

pipe,

shell

and

rubber

mat.

There

are

no

differences

in

their

operation.

©

1977

by

Sony

Corporation

OWNER’S

RECORD

The

model

and

serial

numbers

are

located

at

the

rear.

these

numbers

in

the

spaces

provided

below.

Record

Refer

to

them

whenever

you

call

upon

your

Sony

dealer

regarding

this

product.

Model

No.

PS-X6.X7

Serial

No.

TABLE

OF

CONTENTS

Features

.

Warning

.

Precautions.

Wogd

Notes

on

installation

.

Parts

identification

.

Turntable

assembly.

Cartridge

installation.

.

.

.

.

Tonearm

assembly

and

adjustment.

.......

Connections

........

sds

orf

relat

ate

deen

ce

gt

28

Record

playing.

.....

Tips

on

record

handling

.

Tonearm

drop-point

adjustment

Maintenance.

........

Repacking

for

shipment

Specifications

Trouble

checks.

DMA

AHP

HBRWWW

WW

ee

eee

ae

--

OCOO0C

fo

FEATURES

PS-X6,

PS-X7

FEATURES

@

Automatic

turntable—auto

start,

auto

stop,

auto

return,

and

auto

repeat

functions

are

activated

by

merely

touching

the

logic

controlled

START/STOP

switch

and

the

REPEAT

switch.

@

The

Crystal

Lock

System

maintains

the

turntable

at

an

accurate

nominal

speed

under

voltage

or

temperature

variations

or

aging.

and

shows

excellent

initial

drift

and

load/speed

characteristics.

e@With

a

newly

developed

BSL.

(brushless

and

slotless)

Motor

having

a

torque

of

1

kg-cm,

excellent

starting

characteristics

with-

in

a

third

revolution

at

33

1/3

are

obtained.

@A

servo

system,

which

consists

of

a

turntable

with

a

magnet

coated

rim

and

an

8-pole

magnetic

pick-up

head,

and

the

BSL

Motor

free

from

torque

irregularity,

assure

minimal

wow

and

flutter

and

a

high

signal-to-noise

ratio.

The

turntable

attains

nominal

speed

almost

immediately

after

changing

from

33

1/3

rpm

to

45

rpm

or

vice

versa.

e@Luminous

Sensor

(photoelectric

circuit)

is

employed

for

a

smooth

arm

return,

which

eliminates

mechanical

force

on

the

cartridge

or

tonearm.

@

The

automatic

operation

system

is

designed

so

as

not

to

affect

the

tonearm

if

you

accidentally

touch

it

while

it

is

moving

in

the

auto

start

or

auto

return

mode,

or

in

case

you

change

the

record

size

selector

position

during

an

operation

mode.

@

Acoustic

material

SBMC

(Sony

Bulk

Mold

Compound)

is

used

in

the

constructions

of

the

frame,

to

reduce

outside

vibration

effects

to

a

minimum.

@

Newly

developed

resilient

feet

effectively

prevent

acoustic

feed-

back.

ADDITIONAL

PS-X7

FEATURE

@

An

arm

pipe

made

of

carbon

fiber

suppresses

resonance

inter-

ference.

@

Fluid-filled

rubber

mat

absorbs

any

disc

vibration.

WARNING

eTo

prevent

fire

or

shock

hazard,

do

not

expose

the

unit

to

rain

or

moisture.

eTo

avoid

electrical

shock,

do

not

open

the

cabinet.

Refer

servicing

to

qualified

personnel

only.

PRECAUTIONS

e@

Check

that

the

operating

voltage

for

your

unit

is

identical

with

that

of

your

local

power

supply.

@

Should

any

liquid

or

solid

object

fall

into

the

cabinet,

unplug

the

unit

and

have

it

checked

by

qualified

personnel

before

operating

it

any

further.

@

Unplug

the

unit

from

the

wall

outlet

if

it

is

not

to

be

used

for

an

extended

period

of

time.

To

disconnect

the

cord,

pull

it

out

by

grasping

the

plug.

Never

pull

it

out

by

the

cord.

NOTES

ON

INSTALLATION

@

Place

the

turntable

on

a

level

surface.

@

Avoid

placing

the

unit

near

electrical

appliances

(such

as

a

television,

hair

dryer,

or

fluorescent

lamp)

which

may

cause

hum

or

noise.

@

Avoid

any

vibration

such

as

from

speakers,

slamming

of

doors,

etc.

@

Keep

the

unit

away

from

direct

sunlight,

extremes

of

tempera-

ture,

or

excessive

dust

and

moisture.

@

Allow

10cm

(4inches)

clearance

behind

the

unit

so

that

the

cover

can

be

opened.

—

425mm

(1634inches)

|

-

=

=

We

2

425mm

(16%inches)

@

The

turntable

has

resilient

feet

that

isolate

the

mechanism

from

external

shock

and

vibration.

Use

them

in

locked

position,

but

when

placing

the

turntable

on

an

uneven

surface,

turn

each

foot

counterclockwise

until

the

unit

is

level.

Be

sure

not

to

pinch

or

remove

the

rubber.

Resilient

Foot

PARTS

IDENTIFICATION

The


below

shows

the

appearance

Shell

Stands

45-rpm

Adaptor

—

Center

Spindle——————

Stroboscope

Rubber

Mat

45-rpm

Button——-———

33-rpm

Button—-————

Neon

Lamp

4

z

Resilient

Foot

-

The

photograph

shows

the

PS-X6.

TURNTABLE

ASSEMBLY

Do

not

connect

the

power

cord

or

the

connecting

cords

until

after

finishing

the

assembly.

of

the

assembled

turntable.

Remove

all

packing

material

and

clean

the

cabinet.

®

ge

Eas

Ea

TaN

ei

ia

Magnetic

coating

Head

5

Tonearm

Drop-point

Adjustment

Hole

Lateral

Balancer

(fixed)

Counterweight

Tracking-force

Ring

Cueing

Lever

Anti-skating

Compensator

Arm

Rest

Shell

Finger

Lifter

Record

Size

Selector

Power

Switch

Start

“Stop

Switch

Repeat

Switch

@

Remove

the

red-painted

transit

screws.

Store

them

in

the

holes

on

the

label.

(These

screws

will

be

required

when

repack-

ing.)

@

Carefully

place

the

platter

on

the

motor

board

by

matching

the

center

hole

and

the

center

spindle.

@Do

not

touch

the

magnetic

coating

with

your

fingers

or

damage

the

magnetic

pick-up

head.

©

Place

the

rubber

mat

on

the

platter.

e@

When

handling

the

rubber

mat

of

the

PS-X7,

take

care

not

to

bend

it.

If

the

surface

of

the

mat

is

not

level,

place

it

on

a

Jevel

surface

until

it

becomes

level.

To

remove

the

dust

cover

Open

the

dust

cover

fully

and

slide

it

as

illustrated

while

holding

it

with

both

hands.

a

on

CARTRIDGE

INSTALLATION

A

cartridge

weighing

between

2.5and

9.5g

can

be

mounted

with

the

supplied

shell.

Heavier

cartridges

from

8

to

14.5

g

can

be

mounted

using

the

extra

weight

(supplied).

@

Select

the

most

suitable

length

of

cartridge

mounting

screws

according

to

the

height

of

your

cartridge.

(Three

pairs

of

screws

of

various

lengths

are

supplied.)

@

Install

the

cartridge

into

the

shell

with

the

supplied

mounting

screws

so

that

the

distance

between

the

shell

end

and

the

stylus

tip

is

49

mm

(1

15/16

inches).

ment

is

then

complete.

made

later.

The

temporary

overhang

adjust-

More

precise

adjustment

should

be

Fasten

the

screws

lightly

so

that

the

cartridge

can

slide

for

adjustment.

®

Connect

the

lead

wires

of

the

shell

to

the

corresponding

pins

on

the

cartridge.

Wires

Cartridge

pins

Whites

coe

vee

Sea

Ss

L

(left

channel

signal)

BlU@)..0.25

a

clatt

ase

idee

LE

or

G

(left

channel

ground)

Reding:

gates

Sa

et

nt

R

(right

channel

signal)

Green

.............

RE

or

G

(right

channel

ground)

@

Shell

stands

are

provided

on

the

base

of

the

turntable

for

extra

mounted

cartridges.

TONEARM

ASSEMBLY

AND

ADJUSTMENT

The

following

procedures

should

be

performed

on

a

level

surface.

Be

careful

not

to

damage

the

stylus

tip

while

making

adjust-

ments.

When

a

cartridge

is

replaced,

readjustments

are

required.

Preparation

@

Secure

the

Tonearm

to

the

Arm

Rest

and

lower

the

Cueing

Lever.

@

Plug

the

Shell

into

the

Tonearm

and

turn

the

Locking

Collar

counterclockwise

until

the

Shel!

is

firmly

locked.

©

Insert

and

turn

the

Counterweight

counterclockwise

several

turns.

(The

Tracking-force

Ring

turns

simultaneously.)

@

Remove

the

stylus

guard,

if

fitted.

Counterweight

hm

To

use

a

cartridge

weighing

between

8

-

14.5g,

add

the

supplied

extra

weight.

Be

sure

to

insert

the

extra

weight

fully

to

the

end.

Match

the

guide

pin

on

the

shell

ed

with

the

upper

slot

of

the

arm.

-

Longitudinal

balance

adjustment

*1

For

this

adjustment,

connect

the

power

cord

and

turn

on

the

POWER

Switch.

@

Set

the

Record

Size

Selector

to

the

MANUAL

position.

.

@

Touch

the

START/STOP

Switch.

The

turntable

will

start

rota-

ting.

After

several

rotations

of

the

turntable,

turn

off

the

POWER

Switch

and

at

the

same

time

stop

the

turntable

by

hand;

do

not

turn

off

the

START/STOP

Switch.

This

will

cause

the

Tone-

arm

Platform

to

lower

and

permit

a

more

positive

longitudinal

balance

adjustment.

©

Be

sure

that

the

Anti-skating

Compensator

is

set

at

“O”.

@

Release

the

Tonearm

from

the

Arm

Rest

and

set

the

Arm

Rest

as

illustrated.

Anti-skating

compensator

0

Pull

up

the

upper

portion

of

the

arm

rest

and

turn

it

clockwise

so

that

you

can

perform

the

following

adjustment

C7)

easily

©

Turn

the

Counterweight

as

required

until

the

Tonearm

is

in

a

horizontally

balanced

position.

(The

Tracking-force

Ring

turns

simultaneously.)

Release

your

fingers

and

check

the

balance.

Repeat

this

step

until

the

arm

balances.

Hold

the

tonearm

lightly

to

prevent

bumping

the

stylus

tip.

li

Position

the

Tonearm

above

the

cut-out

to

observe

the

balance.

Ye

x

Correct

balance

Ph

Move

the

weight

forward.

—__*

Move

the

weight

backward

©

While

holding

the

Counterweight

at

the

balanced

position,

separately

turn

the

Tracking-force

Ring

until

the

“O”

indication

meets

the

center

line

on

the

Tonearm.

Recheck

the

balance.

Do

not

move

the

counterweight.

Tracking-force

Ring

@

Pull

up

the

Arm

Rest

and

turn

it

counterclockwise

so

that

the

Arm

Rest

returns

to

its

original

position.

Secure

the

Tonearm

to

the

Arm

Rest

again.

Tracking-force

adjustment

*2

Turn

the

Counterweight

counterclockwise

so

that

the

recom-

mended

tracking-force

figure

for

your

cartridge

is

aligned

with

the

center

line

on

the

Tonearm.

The

maximum

tracking

force

available

is

3

grams.

Tracking-force

ring

will

turn

at

the

same

time

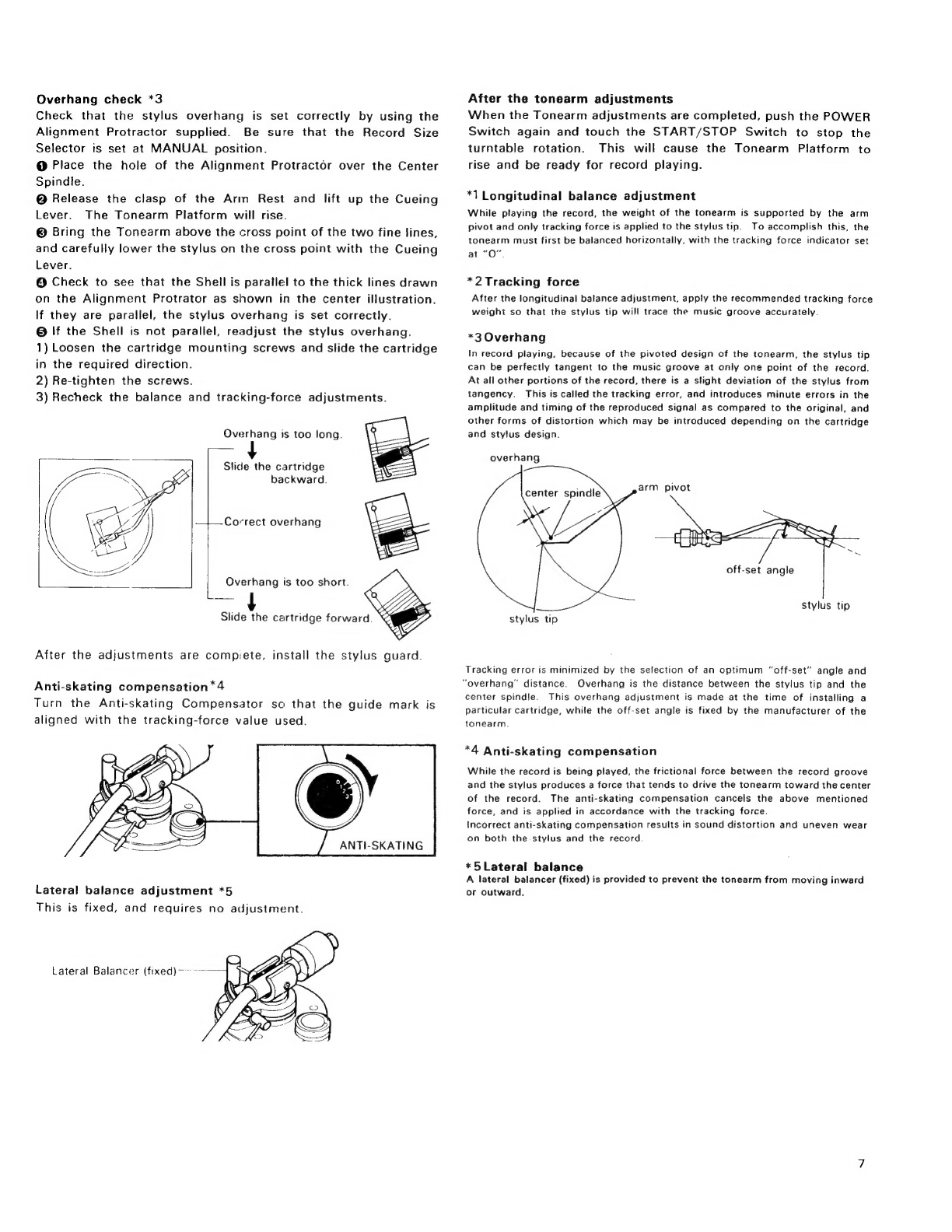

Overhang

check

*3

Check

that

the

stylus

overhang

is

set

correctly

by

using

the

Alignment

Protractor

supplied.

Be

sure

that

the

Record

Size

Selector

is

set

at

MANUAL

position.

@

Place

the

hole

of

the

Alignment

Protractor

over

the

Center

Spindle.

@

Release

the

clasp

of

the

Arm

Rest

and

lift

up

the

Cueing

Lever.

The

Tonearm

Platform

will

rise.

©

Bring

the

Tonearm

above

the

cross

point

of

the

two

fine

lines,

and

carefully

lower

the

stylus

on

the

cross

point

with

the

Cueing

Lever.

@

Check

to

see

that

the

Shell

is

parallel

to

the

thick

lines

drawn

on

the

Alignment

Protrator

as

shown

in

the

center

illustration.

lf

they

are

parallel,

the

stylus

overhang

is

set

correctly.

6

If

the

Shell

is

not

parallel,

readjust

the

stylus

overhang.

1)

Loosen

the

cartridge

mounting

screws

and

slide

the

cartridge

in

the

required

direction.

2)

Re-tighten

the

screws.

3)

Recheck

the

balance

and

tracking-force

adjustments.

Overhang

is

too

long.

Slide

the

cartridge

backward.

—t—Correct

overhang

Overhang

is

too

short.

Slide

the

cartridge

forward.

After

the

adjustments

are

compiete,

install

the

stylus

guard.

Anti-skating

compensation

*4

Turn

the

Anti-skating

Compensator

so

that

the

guide

mark

is

aligned

with

the

tracking-force

value

used.

Lateral

balance

adjustment

*5

This

is

fixed,

and

requires

no

adjustment.

Lateral

Balancer

(fixed)—~--

After

the

tonearm

adjustments

When

the

Tonearm

adjustments

are

completed,

push

the

POWER

Switch

again

and

touch

the

START/STOP

Switch

to

stop

the

turntable

rotation.

This

will

cause

the

Tonearm

Platform

to

rise

and

be

ready

for

record

playing.

*1

Longitudinal

balance

adjustment

While

playing

the

record,

the

weight

of

the

tonearm

is

supported

by

the

arm

pivot

and

only

tracking

force

is

applied

to

the

stylus

tip.

To

accomplish

this,

the

tonearm

must

first

be

balanced

horizontally.

with

the

tracking

force

indicator

set

at

"0".

*2

Tracking

force

After

the

longitudinal

balance

adjustment,

apply

the

recommended

tracking

force

weight

so

that

the

stylus

tip

will

trace

the

music

groove

accurately.

*3

Overhang

In

record

playing,

because

of

the

pivoted

design

of

the

tonearm,

the

stylus

tip

can

be

perfectly

tangent

to

the

music

groove

at

only

one

point

of

the

record.

At

all

other

portions

of

the

record,

there

is

a

slight

deviation

of

the

stylus

from

tangency.

This

is

called

the

tracking

error,

and

introduces

minute

errors

in

the

amplitude

and

timing

of

the

reproduced

signal

as

compared

to

the

original,

and

other

forms

of

distortion

which

may

be

introduced

depending

on

the

cartridge

and

stylus

design.

overhang

center

spindle

arm

ipIvot

off-set

angle

stylus

tip

stylus

tip

Tracking

error

is

minimized

by

the

selection

of

an

optimum

“off-set”

angle

and

“overhang”

distance.

Overhang

is

the

distance

between

the

stylus

tip

and

the

center

spindle.

This

overhang

adjustment

is

made

at

the

time

of

installing

a

particular

cartridge,

while

the

off-set

angle

is

fixed

by

the

manufacturer

of

the

tonearm.

*4

Anti-skating

compensation

While

the

record

is

being

played,

the

frictional

force

between

the

record

groove

and

the

stylus

produces

a

force

that

tends

to

drive

the

tonearm

toward

the

center

of

the

record.

The

anti-skating

compensation

cancels

the

above

mentioned

force,

and

is

applied

in

accordance

with

the

tracking

force.

Incorrect

anti-skating

compensation

results

in

sound

distortion

and

uneven

wear

on

both

the

stylus

and

the

record

*5

Lateral

balance

A

lateral

balancer

(fixed)

is

provided

to

prevent

the

tonearm

from

moving

inward

or

outward.

CONNECTIONS

@When

connecting

to

an

accessory

ac

outlet

on

the

amplifier

use

an

unswitched

type

outlet.

@

Check

that

the

phono

cord

and

power

cord

are

not

caught

under

any

foot

of

the

cabinet.

eLeave

a

little

slack

in

the

connecting

cord

to

allow

for

inad-

vertent

shock

or

vibration.

a

power

cord

phono

cord

to

phono

inputs

to

an

ac

outlet

PHONO

©

+

white...

to

L

AC

OUTLET

ground

wire

.

rear

view

of

amplifier

to

a

ground

terminal

RECORD

PLAYING

AUTOMATIC

PLAYING

Amplifier

setting

@Lower

the

amplifier

volume

and

set

the

input

selector

to

PHONO.

Turn

on

the

amplifier.

e@After

the

Tonearm

has

lowered

onto

the

record,

adjust

the

volume

and

tone

of

the

amplifier.

Player

Setting

@

Perform

the

following

preparatory

steps.

Place

a

record.

-

For

17cm

(7-inch)

records,

put

the

supplied

45-rpm

adaptor

over

the

center

spindle.

Lower

the

Cueing

Lever.

Remove

the

stylus

guard

and

release

the

clasp

of

the

Arm

Rest.

Push

the

POWER

Switch

Select

the

correct

position

of

the

Record

Size

Selector

according

to

the

record

size.

Push

either

the

"33"

or

“45”

-rpm

Button

according

to

the

record

speed.

@

Touch

the

two

metallic

strips

of

the

START/STOP

Switch.

The

Lamp

will

illuminate

and

play

will

begin

automatically.

When

the

Tonearm

reaches

the

end

of

the

record,

it

will

auto-

matically

rise

and

return

to

the

Arm

Rest,

and

the

turntable

will

stop.

START/STOP

REPEAT

-A}

Touch

the

two

metallic

strips.

NOTES

e@Turn

off

the

POWER

Switch

after

the

Tonearm

returns

fully

to

the

Arm

Rest.

If

the

POWER

Switch

is

turned

off

while

the

Tonearm

is

still

moving

in

the

return

operation,

the

unit

may

not

start

correctly

the

next

time.

@

Be

sure

to

secure

the

Tonearm

to

the

Arm

Rest

with

the

clasp

when

not

in

use.

This

insures

that

the

safety

device

will

function

to

prevent

the

Tonearm

from

moving

if

you

mistakenly

touch

the

START/STOP

Switch

with

no

record

on

the

platter.

e@lf

the

Lamp

goes

out

just

after

touching

the

START/STOP

Switch

to

start

the

Tonearm,

it

indicates

that

the

unit

had

been

in

the

return

mode

when

the

power

was

cut

off.

In

this

case,

touch

the

START/STOP

Switch

again,

and

the

Lamp

will

light

up

and

the

Tonearm

will

start.

TO

STOP

DURING

PLAY

Touch

the

START/STOP

Switch.

The

Start

Lamp

wil!

go

out,

and

the

Tonearm

will

return

to

the

Arm

Rest.

0

owALY

:

.

Touch

the

two

metallic

strips.

START/STOP

REPEAT

REPEAT

PLAYING

Touch

the

START/STOP

Switch

and

then

the

REPEAT

Switch.

The

Repeat

Lamp

will

illuminate

and

the

unit

will

repeat

the

same

record.

REPEAT

STAR

7

Touch

the

two

metallic

strips.

n~

To

stop

repeat

playing,

touch

the

REPEAT

Switch

again.

The

Repeat

Lamp

will

go

out,

and

after

the

record

is

played,

the

Tonearm

will

return

to

the

Arm

Rest.

MANUAL

PLAYING

(TO

START

PLAYING

PART-WAY

ON

THE

RECORD)

Perform

the

preparatory

steps,

except

that

for

the

Record

Size

Selector

setting,

as

shown

in

step

@

under

“Automatic

playing”.

Then

continue

with

the

following

steps:

@

Set

the

Record

Size

Selector

to

the

MANUAL

position.

@

Bring

the

Tonearm

to

the

position

you

desire

over

the

record.

©

Touch

the

START/STOP

Switch.

The

turntable

will

start

rotat-

ing,

the

Tonearm

will

lower

itself,

and

play

will

begin.

When

the

Tonearm

reaches

the

end

of

the

record,

it

will

automatically

rise

and

return

to

the

Arm

Rest,

and

the

turntable

will

stop.

NOTES

@lf

you

touch

the

REPEAT

Switch

in

manual

playing,

the

Repeat

Lamp

will

illuminate

but

the

repeat

function

will

not

operate.

After

paying,

the

Tonearm

will

return

automatically

to

the

Arm

Rest,

but the

turntable

will

continue

rotating.

In

this

case,

touch

the

START/STOP

Switch

to

stop

the

turntable.

@lf

you

bring

the

Tonearm

too

near

the

label

of

the

record

while

the

turntable

is

rotating,

the

Tonearm

may

return

to

the

Arm

Rest

as

a

result

of

having

activated

the

automatic

return

mecha-

nism.

CUEING

LEVER

Usually,

keep

the

fever

lowered.

To

lift

up

the

stylus

or

to

change

the

listening

point

during

playing,

lift

the

Cueing

Lever

up.

The

Tonearm

will

rise.

To

start

playing

again,

lower

the

Cueing

Lever

toward

you.

Cueing

Lever

STROBOSCOPE

AND

NEON

LAMP

The

Crystal

Lock

System

assures

precise

turntable

speed.

This

is

verified

by

viewing

the

neon

lamp

stroboscope

pattern,

which

will

appear

stationary

at

the

correct

speed.

The

upper

line

is

for

45

rpm

and

the

lower

for

33

1/3

rpm.

e

Always

view

the

stroboscope

with

the

light

of

the

neon

lamp

provided,

not

with

the

light

of

a

fluorescent

lamp.

This

is

be-

cause

the

neon

lamp

is

energized

by

a

120-Hz

pulse

from

the

built-in

crystal

oscillator

and

assures

precise

speed

indication

regardless

of

any

line-frequency

deviation.

SARS

>

>

&

t:

PS

:

33

14

-rpm

Neon

Lamp

TIPS

ON

RECORD

HANDLING

Before

playing

e@

Clean

the

stylus,

using

a

soft

brush

(stylus

brush,

artist’s

paint

brush,

etc).

Brush

the

stylus

from

back

to

front.

Never

attempt

to

clean

the

stylus

with

your

finger

tip.

e@For

routine

cleaning

of

records,

the

use

of

a

barely

damp

soft

cloth

(gauze,

etc.)

or

a

fluid

type

cleaner

will

be

effective.

If

a

spray

type

record

cleaner

is

used,

make

sure

that

the

cleaner

has

dried

completely

before

playing

the

records.

Playing

the

record

before

the

fluid

has

dried

may

damage

the

record.

It

is

a

good

idea

to

clean

the

record

again

before

putting

it

away.

@

Handle

a

record

by

its

edges

and

don’t

touch

the

music

grooves.

Finger

prints

on

the

record

surface

may

induce

an

accumulation

of

dust,

resulting

in

impaired

tone.

PSO

aE

NL

RN

AA

Malena

a

ad

Oa

Sa

oa

te

Phen

res

oon

ees

AA

gd

idl

a

aera

he

ue

When

record

playing

@

lt

is

recommended

that

you

reduce

the

amplifier

volume

before

you

lower

the

tonearm

onto

the

record.

e@While

the

turntable

is

energized,

don’t

attempt

to

stop

or

reverse

the

turntable

by

hand.

e@During

play,

be

sure

to

close

the

dust

cover.

Don’t

place

anything

on

the

dust

cover.

@

While

playing,

never

attempt

to

move

the

turntable

or

touch

the

tonearm.

After

playing

@

Avoid

exposing

records

to

any

source

of

heat,

such

as

direct

sunlight,

a

hot-air

duct,

etc.

Store

records

vertically

without

ap-

plying

any

pressure

or

inclining

to

either

side.

This

will

minimize

any

warpage.

@When

not

using

the

turntable,

close

the

dust

cover.

Other

precautions

@Don't

put

anything

but

records

on

a

turntable.

e@Don’t

place

anything

but

the

spare

cartridges

and

45-rpm

adaptor

on

the

turntable

deck.

TONEARM

DROP-POINT

ADJUSTMENT

At

the

factory,

the

tonearm

has

been

adjusted

to

have

the

correct

drop

point

in

the

automatic

playing

mode.

If

this

needs

to

be

readjusted,

proceed

as

follows.

@

Remove

the

rubber

cap

of

the

tonearm

drop-point

adjustment

hole

located

at

the

left

side

of

the

arm

base.

@

Insert

the

supplied

screwdriver

into

the

hole.

To

change

the

drop

point

inward...

Turn

the

screw

slightly

counterclockwise.

To

change

the

drop-point

outward

...

Turn

the

screw

slightly

clockwise.

@

Once

it

is

properly

adjusted

with

a

30cm

(12”)

record,

the

drop

point

will

be

correct

for

17

cm

(7”)

and

25cm

(10”)

records

as

well.

Rubber

cap

10

MAINTENANCE

@Clean

the

cabinet

and

dust

cover

periodically

with

a

soft

dry

cloth.

Do

not

use

solvents

such

as

alcohol,

benzine

or

thinner,

since

they

will

damage

the

finish.

@When

the

rubber

mat

becomes

dirty,

wipe

it

gently

with

a

soft

cloth

slightly

dampened

with

water.

@No

lubrication

is

required

for

this

turntable.

The

motor

shaft

is

factory

lubricated

for

the

life

of

the

turntable.

REPACKING

FOR

SHIPMENT

|

The

original

shipping

carton

and

packing

material

(which

we

asked

you

to

save)

is

the

idea!

container

for

use

in

shipping

the

unit

for

repair

work,

or

to

another

location.

To

secure

the

maximum

protection,

it

must

be

repacked

in

this

material

pre-

cisely

as

before.

The

proper

repacking

procedure

is

showh

in

the

illustration.

.

e@Clip

the

tonearm

to

the

arm

rest

and

bind

it

there

with

a

tape.

@Fasten

the

transit

screws

in

their

original

position

by

referring

to

the

illustration

of

“TURNTABLE

ASSEMBLY”

to

secure

the

inside

parts

to

the

cabinet.

Turn

the

screws

fully

clockwise.
