Sony VGN-AW Series Mode d’emploi

VGN-AWxx Series Hard Disk Drive

Replacement Instructions

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N 994660300 Rev. A 1/3

Step 1. Prepare the Computer.

CAUTION: Make sure the

computer is turned off, the lid is closed,

and the AC Adapter is disconnected.

Failure to do so can result in damage to

the computer.

Place the computer upside down on a

protected surface with the front edge

facing you.

Step 2. Remove the Battery Pack.

1. Slide the left battery tab to the

unlock position.

2. With your right thumb, slide the

right battery tab in the release

direction and hold.

3. Remove the battery by lifting the

side where the arrow is pointing.

Step 3. Locate the HDD Bay.

Place the computer on the protected

surface with the Hard Disk Drive (HDD)

Bay facing you as shown in the picture.

These easy instructions are intended to guide you through the replacement process. If you need additional

help, please call 1-866-651-7669 for technical support from 9:00 am to 11:00 pm EST.

9To avoid electric shock, please make sure product is turned off and AC Adaptor is disconnected

from the power source. Remove jewelry before you begin work to avoid scratching the surface of

your notebook computer.*

9Place your notebook computer on a clean, stable and covered surface to avoid damage to the

computer’s case.*

9Follow the ESD (Electrostatic Discharge) damage prevention instructions:

oHold parts by the edges, away from exposed circuitry when possible.

oDo not walk around excessively as this promotes static build-up.

9The appearance of the electronic components shown in the illustrations may be different from the

components shipped. This slight difference does not affect the accuracy of these instructions.

* Sony is not responsible for any loss of data associated with your computer or any dama

e caused by incorrect handlin

the computer under these procedures. The terms of your Sony limited warranty continue to apply.

IMPORTANT!

PLEASE READ BEFORE YOU START

HDD Ba

Push left tab in the unlock position

Lift to remove

VGN-AWxx Series Hard Disk Drive

Replacement Instructions

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N 994660300 Rev. A 2/3

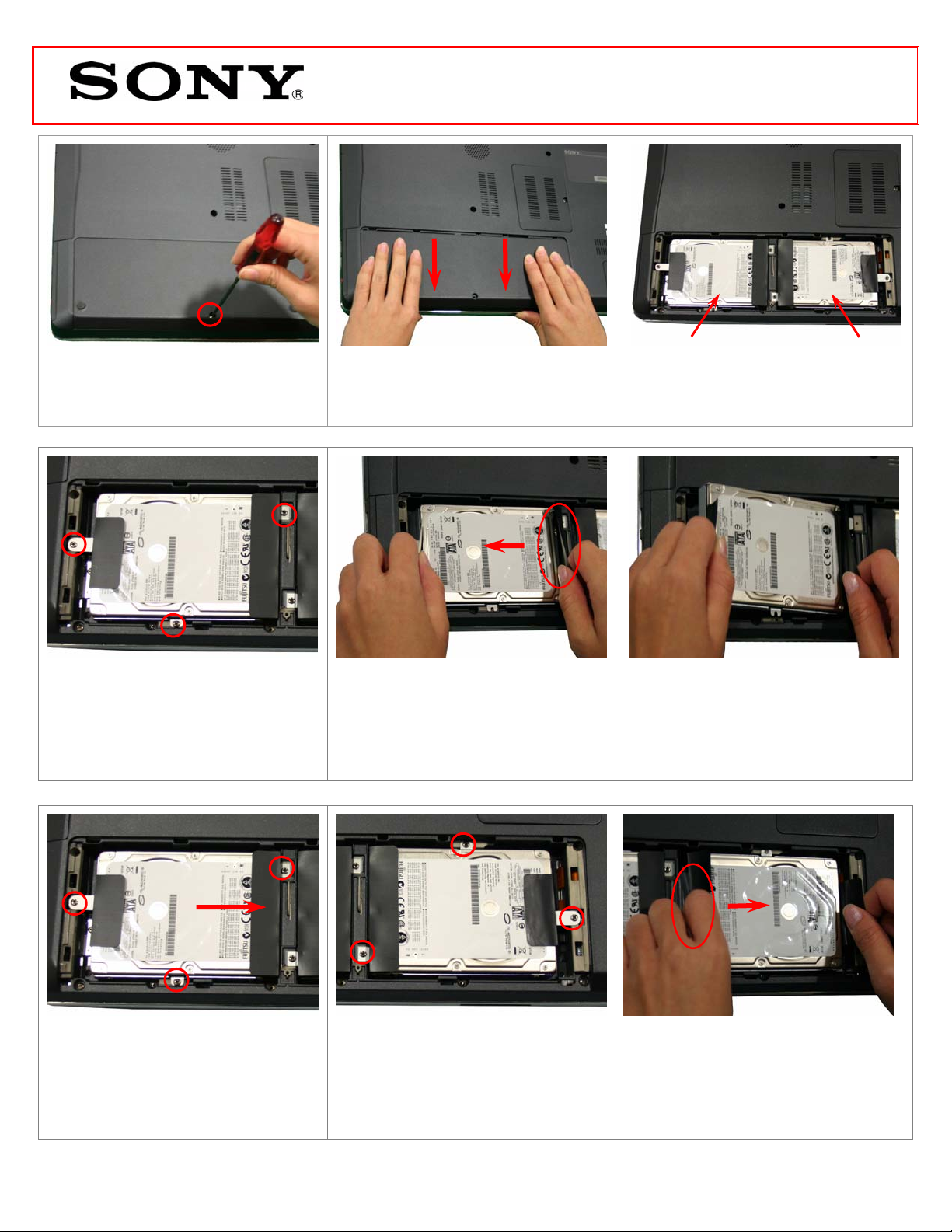

Step 5. Using the enclosed magnetic

screwdriver, remove the screw securing the

hard disk drive access cover.

Step 6. Remove the HDD access cover by

sliding it in the direction of the arrows

shown above.

Step 7. Locate the two HDD assemblies.

(HDD 1 Removal) Steps 8- 9

Step 8. Using the enclosed magnetic

screwdriver, remove the three (3) screws

securing the HDD 1 assembly.

Step 9. To remove the drive, detach the

HDD 1 from the connector in the direction

shown. Some force may be needed to

unlock the HDD from the connector. Lift the

drive by holding on the black plastic tabs to

remove it completely.

(HDD 1 Reinstallation) Steps 10-11

Step 10. Replace the old HDD 1 assembly

with the new one. Carefully place the HDD

assembly in the HDD bay.

Step 11. Verify that the new HDD 1

assembly is properly secured to the

connector. Reinstall the three (3) previously

removed screws to secure the HDD 1

assembly in place.

(HDD 2 Removal) Steps 12-13

Step 12. Using the enclosed magnetic

screwdriver, remove the three (3) screws

securing the HDD 2 assembly.

Step 13. To remove the drive, detach the

HDD 2 from the connector in the direction

shown. Some force may be needed to unlock

the HDD from the connector. Lift the drive by

holding on the black plastic tabs to remove it

completely.

HDD 1 HDD 2

VGN-AWxx Series Hard Disk Drive

Replacement Instructions

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N 994660300 Rev. A 3/3

(HDD 2 Reinstallation) Steps 14-15

Step 14. Replace the old HDD 2 assembly

with the new one. Carefully place the HDD

assembly in the HDD bay.

Step 15. Verify that the new HDD 2

assembly is properly secured to the

connector. Reinstall the three (3)

previously removed screws to secure the

HDD 2 assembly in place.

Step 16. Re-attach the HDD access cover by

sliding it in the direction of the arrows shown

above.

Step 18. Reinstall the battery pack and

reconnect the AC Adaptor.

Continue with the recovery process by

following the instructions described on the

back of the recovery disk’s case.

Return the old HDD assemblies to Sony

following the included shipping instructions.

Step 17. Using the enclosed magnetic

screwdriver, secure the HDD access cover

with the screw previously removed.
