Sony SDX-420C Manuel utilisateur

4-658-215-03(1)

2000 Sony Corporation

AIT Drive

SDX-420 Series

SDX-520 Series

User’s Guide

Contents

Introduction .......................................4

Product Features........................4

Precautions ................................5

Installation .........................................6

Jumper Setting...........................6

Option Switches (DIP Switch) ..7

Mounting Holes........................8

Remodeling from 5.25" Model

to 3.5" Model .......................10

Orientation...............................10

Operation .........................................11

Location of 3 LEDs .................11

LED Indication for

Drive Status .........................12

Drive Operation.......................13

Emergency Tape Removal

Procedure .............................14

Interface Implementation.................17

Supported ATA Commands ....17

Supported ATAPI Packet

Commands ...........................17

Specification ....................................18

Product Specifications.............18

Third Party Support Contacts

(In the USA) ...............................20

Sony Contacts ..................................22

This document contains proprietary

information which is protected by

document may be photocopied,

reproduced or translated to another

language without prior written consent

of Sony.

The information contained in this

document is subject to change without

notice.

SONY MAKES NO WARRANTY

OF ANY KIND WITH REGARD TO

THIS DOCUMENT.

Sony shall not be liable for error

contained herein, indirect, special,

incidental or consequential damages in

connection with the furnishing,

performance or use of this document.

VORSICHT

Diese Ausrüstung erfüllt die

Europäischen EMC-Bestimmungen für

die Verwendung in folgender /

folgenden Umgebung(en):

• Wohngegenden

• Gewerbegebiete

• Leichtindustriegebiete

(Diese Ausrüstung erfüllt die

Bestimmungen der Norm EN55022,

Klasse B.)

SDX-420/SDX-520 Tape Drive

The Sony SDX-420/SDX-520 series drive is a high capacity data storage

device using Advanced Intelligent tape (AIT) technology. The SDX-420

series/SDX-520 series drive achieves high data reliability through Read-

After-Write, an additional level of Error Correction Code, and other

features.

The Sony SDX-420 series/SDX-520 series drive stores data on tape using a

standard format called AIT (Advanced Intelligent Tape) and ALDC

formats.

Introduction

Product Features

* Assuming a 2.6 : 1 compression ratio.

(The compression ratio varies according to the type of data.)

• Supported Format : AIT-1 (SDX-420 series)

: AIT-1, AIT-2 (SDX-520 series)

• Burst Transfer Rate 66 MB/s Ultra DMA (mode 4)

• Large 10 MB Buffer Memory

• 3.5” Standard Height, 5.25” Half Height

• ATA/ATAPI-5 Interface

• Support Fixed Record Length Only

• Frame Rewrite Function

• Three levels of Error Correction Code (ECC)

• High Speed search (120 times normal Read/Write speed)

• Random Read, Append Write

Data Capacity

Transfer Rate

(sustained)

SDX-420 series SDX-520 series

35 GB uncompressed 50 GB uncompressed

(with AIT-1 230 m tape) (with AIT-2 230 m tape)

91 GB compressed*130 GB compressed*

(with AIT-1 230 m tape) (with AIT-2 230 m tape)

4 MB/s uncompressed 6 MB/s uncompressed

Precautions

Installation

Avoid placing the drive in a location subject to:

– high humidity

– high temperature

– mechanical shock and vibration

– direct sunlight

Operation

• Do not move the drive while it is operating. It may cause malfunction.

• Avoid exposing the drive to sudden changes from a low to high in

temperature. This may cause water condensation to collect inside the

drive. If the ambient temperature should suddenly rise while the drive is

turned on , wait at least one hour before turning on the drive. If you

attempt to operate the drive immediately after a sudden increase in

temperature, a malfunction may occur.

• Turning off the power to the drive while it is writing to tape may cause

the tape to become unreadable. All previously negotiated parameters will

be lost, whenever power to the drive is cycled.

Transportation

• Keep the original packing materials to facilitate transportation of the

drive.

• Always remove the tape before moving the drive. After removing the

drive from the computer, repack the drive into its original packing.

Installation

Jumper Setting

Master

Slave

Cable Select

No Connection

Jumpers Drive Setting

Master

Slave

Cable Select

IDE Interface Connector

Power Connector

4 3 2 1

5V GND GND 12V

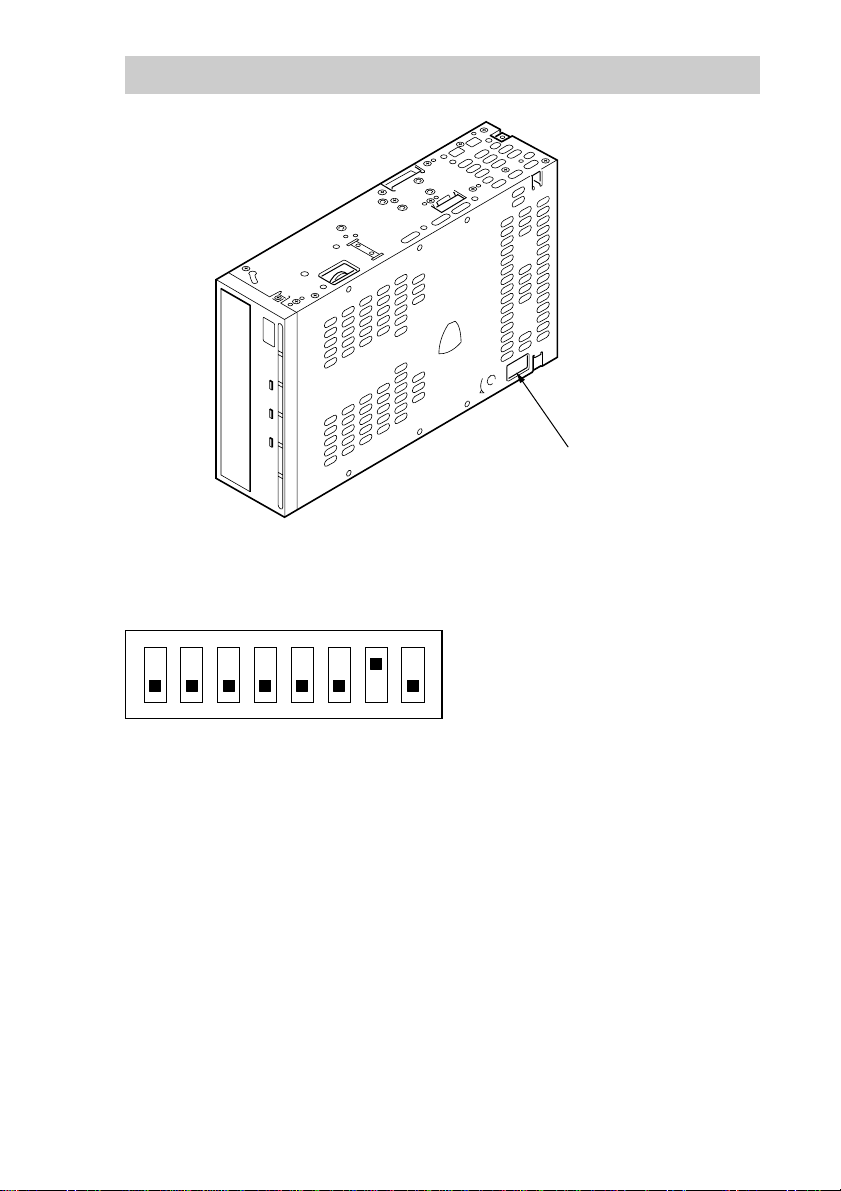

Option Switches (DIP Switch)

DIP Switch Positions

12345678

DIP Switch

1 Reserved (OFF)

2 Reserved (OFF)

3 Reserved (OFF)

4 Reserved (OFF)

5 Reserved (OFF)

6 Reserved (OFF)

7 DC Control (1) (ON)

8 DC Control (2) (OFF)

Data Compression Control DIP switch

Data compression can be selected by DIP switches. Data compression is

enabled while position 7 [DC Control (1)] is ON. Control by host can be

disabled when position 8 [DC Control (2)] is ON.

Mounting Holes

For 3.5" Standard Height (SDX-420C, SDX-520C)

6-M3 (depth

2.5 mm (0.10 in) max.)

70.0±0.3 mm

(2.76±0.01 in)

42.0±0.3 mm

(1.65±0.01 in)

31.0±0.3 mm

(1.22±0.01 in)

7.0±0.5 mm (0.28±0.02 in) 155.0±0.5 mm (6.10±0.02 in) 7.6±0.5 mm (0.30±0.02 in)

94.0±0.3 mm (3.70±0.01 in)

101.6±0.5 mm (4.00±0.02 in)

90.0±0.3 mm (3.54±0.01 in)

60.0±0.3 mm (2.36±0.01 in)

21.0±0.3 mm

(0.83±0.01 in)

5.0±0.3 mm

(0.20±0.01 in)

41.2±0.5 mm

(1.62±0.02 in)

3-M3 (depth

2.5 mm (0.10 in) max.)

95.5 mm (3.76 in) 8.45 mm (0.333 in)

5.53±0.5 mm

(0.218±0.02 in)

7.4±0.5 mm

(0.29±0.02 in)

For 5.25" Half Height (SDX-420C/R, SDX-520C/R)

(1.22±0.01 in)

31.0±0.3 mm (1.65±0.01 in)

42.0±0.3 mm

(2.76±0.01 in)

70.0±0.3 mm

(1.87±0.01 in)

47.5±0.3 mm

(1.87±0.01 in)

47.5±0.3 mm (3.12±0.01 in)

79.2±0.3 mm

(3.12±0.01 in)

79.2±0.3 mm

Cassette in ON point

The cartridge eject distance

(4±0.02 in)

101.6±0.5 mm

(0.61±0.02 in)

15.6±0.5 mm

(0.72±0.02 in)

18.4±0.5 mm

(1.41±0.02 in)

35.9±0.5 mm (0.72±0.02 in)

18.2±0.5 mm

(1.35±0.02 in)

34.3±0.5 mm

(3.7±0.01 in)

94.0±0.3 mm

(1.61±0.04 in)

41.0±1.0 mm

(1.83±0.06 in)

46.5±1.5 mm

(1.62±0.02 in)

41.2±0.5 mm

(6.1±0.02 in)

155.0±0.5 mm (0.3±0.02 in)

7.6±0.5 mm

(3.76 in)

95.5 mm

(5.75±0.02 in)

146±0.5 mm

(depth 0.10 in max.)

6-M3 (depth 2.5 mm max.)

(0.218±0.02 in)

5.53±0.5 mm

(0.333 in)

8.45 mm

(0.39±0.02 in)

9.9±0.5 mm

(0.86±0.02 in)

21.8±0.5 mm

(0.78±0.02 in)

19.7±0.5 mm

(2.26±0.04 in)

57.5±1 mm

(2.48±0.06 in)

63.0±1.5 mm The cartridge eject distance

Cassette in ON point

4-M3

(5.5±0.02 in)

139.6±0.5 mm

(0.28±0.02 in)

7±0.5 mm

(5.87±0.02 in)

149.0±0.5 mm

Remodeling from 5.25" Model to 3.5" Model

You can remodel the SDX-420C/R and the SDX-520C/R (5.25" model) to

the SDX-420C and the SDX-520C (3.5" model) yourself.

1Remove the 2 screws for each side rail.

2Take the side rail off.

Orientation

10°

10°10°10°

Side Rail (L)

Side Rail (R)
