RM-SC200.3-858-330-11.E

3-858-330-11(1)

Remote

Commander

Operating Instructions

RM-SC200

RM-SC200.3-858-330-11.E

WARNING

This equipment has been tested and found

to comply with the limits for a Class B

digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to

provide reasonable protection against

harmful interference in a residential

installation. This equipment generates, uses,

and can radiate radio frequency energy and,

if not installed and used in accordance with

the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does cause

harmful interference to radio or television

reception, which can be determined by

turning the equipment off and on, the user is

encouraged to try to correct the interference

by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the

equipment and receiver.

•Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced

radio/TV technician for help.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate

this equipment.

Installing the Batteries

Slide open the battery compartment and

install two size AA (R6) batteries matching

the ]and }on the batteries with the ]and

}on the battery compartment.

RM-SC200.3-858-330-11.E

Notes on the batteries

• Under normal conditions, batteries will

last up to three months. If the Remote

Commander does not operate properly,

the batteries might be worn out. When

replacing batteries, replace both of them

with new ones.

• Do not mix old batteries with new ones or

mix different types of batteries together.

• If you take a long time replacing the

batteries, or press any button during the

battery replacement, the setting may be

erased.

• If the electrolyte inside the battery should

leak, wipe the contaminated area of the

battery compartment with a cloth and

replace the old batteries with new ones.

To prevent the electrolyte from leaking,

remove the batteries when you plan to not

use the Commander for a long period of

time.

RM-SC200.3-858-330-11.E

About This Manual

This Remote Commander is designed for

operating the Sony S-Link compatible

audio/video components.

The recommended system

connection diagram

This manual assumes that you connect the

system as shown in the figure below.

Video

out

A/V signal

RF in

Antenna

TV out

S-Link/

CTRL S in

(See the note

on page 6.)

(See the note on

page 6.)

S-Link/

CTRL S out

S-Link/

CTRL S out

S-Link/

CTRL S out

TV in

monitor

out

Video in

A/V signal

A/V

Video signal

Tape

monitor in

Tape record out

audio in

MD Record out

audio in

Cable

box

DBS tuner

Receiver

Video in

Audio signal

S-Link/CTRL A1

Audio signal

Video

Antenna

S-Link/

CTRL S in

S-Link/

CTRL S out

RM-SC200.3-858-330-11.E

Continued

(See the note

on page 6.)

(See the note

on page 6.)

(See the note

on page 6.)

nk/

L S out

S-Link/

CTRL S out

S-Link/

CTRL S out

monitor

out

Video in

Video

out

Video

out

Tape

monitor out

Tape record in

audio out

MD record in

audio out

S-Link/CTRL A1

A/V signal

Video signal

Tape

monitor in

Tape record out

audio in

MD Record out

audio in

VCR

DVD player

TAPE deck

MD player/recorder

CD player

S-Link/CTRL A1

Video in

Audio signal

S-Link/CTRL A1

Audio signal

Antenna

S-Link/

CTRL S in

S-Link/

CTRL S in

RM-SC200.3-858-330-11.E

Setting up the

Commander

Before use, you need to set up the function

buttons (VCR 1, VCR 2, and DBS/CATV).

Setting up the VCR 1 and VCR

2 buttons

Assign the categories of your components to

the VCR 1 and VCR 2 buttons.

About This Manual

Notes

•When the audio/video components(VCR,

DVD player, and DBS tuner) are not

compatible with the S-Link system, switch

the input of the TV manually.

•Make sure to connect the audio

components to the receiver when the

components are not compatible with the S-

Link system.

•When the audio component (CD player,

MD player, or tape deck) has a

mechanical power switch, connect the

AC power cord of the audio component

to the switched AC outlet of the

receiver.

•Make sure that the power of the cable

box is always on.

•When the receiver is compatible with the

VisionTouch system, you do not have to

connect the S-Link/CTRL S in terminal of

the receiver to the TV.

1Make sure that the slide cover is closed.

2While pressing down the VCR 1 or VCR

2 button, press the SYSTEM OFF button

repeatedly.

Each time you press the SYSTEM OFF

button, the indication changes as follows;

nVTR 3 (for VHS VCR)

VTR 2 (for 8mm VCR)

VTR 1 (for ß VCR)

DVD (for Digital Video Disc player)

3Release the VCR 1 or VCR 2 button when

the category you want to assign appears.

Slide cover

TV VCR1 VCR2

TV OFF

DBS/CATV

TUNER CD MD

MUTING VOL JUMP/

SHIFT CH

TAPE

UNIT OFF

SYSTEM OFF

VCR2

SYSTEM OFF

VCR1

nnn

RM-SC200.3-858-330-11.E

Setting up the DBS/CATV

button

Assign your component type to the DBS*/

CATV.

DBS: Digital Satellite System Tuner.

1Make sure that the slide cover is closed.

2While holding down the DBS/CATV

button, press the SYSTEM OFF button

repeatedly.

Each time you press the SYSTEM OFF

button, the indication changes between

"DBS" (for DBS tuner) and "CATV" (for

cable box).

3Release the DBS/CATV button when the

component you want to assign appears.

TV VCR1 VCR2

TV OFF

DBS/CATV

TUNER CD MD

MUTING VOL JUMP/

SHIFT CH

TAPE

UNIT OFF

SYSTEM OFF

DBS/CATV

SYSTEM OFF

Slide cover

RM-SC200.3-858-330-11.E

Brand

Sony

RCA

Code No.

Cable box codes

Brand

Hamlin/Regal

Jerrold/G.I.

Oak

Panasonic

Pioneer

Scientific Atlanta

Tocom

Zenith

Code No.

22, 23,24,25,26

01, 02, 03, 04, 05, 06, 07, 08, 18

27, 28, 29

19, 20, 21

14, 15

09, 10, 11

16, 17

12, 13

Component code number

DBS tuner codes

If the code listed above does not work, try

the code from 31 to 41. There may be the

code that works for your component.

Note

The setting mode will be canceled if you do

not press any of the buttons within 10

seconds during the mode setting procedure.

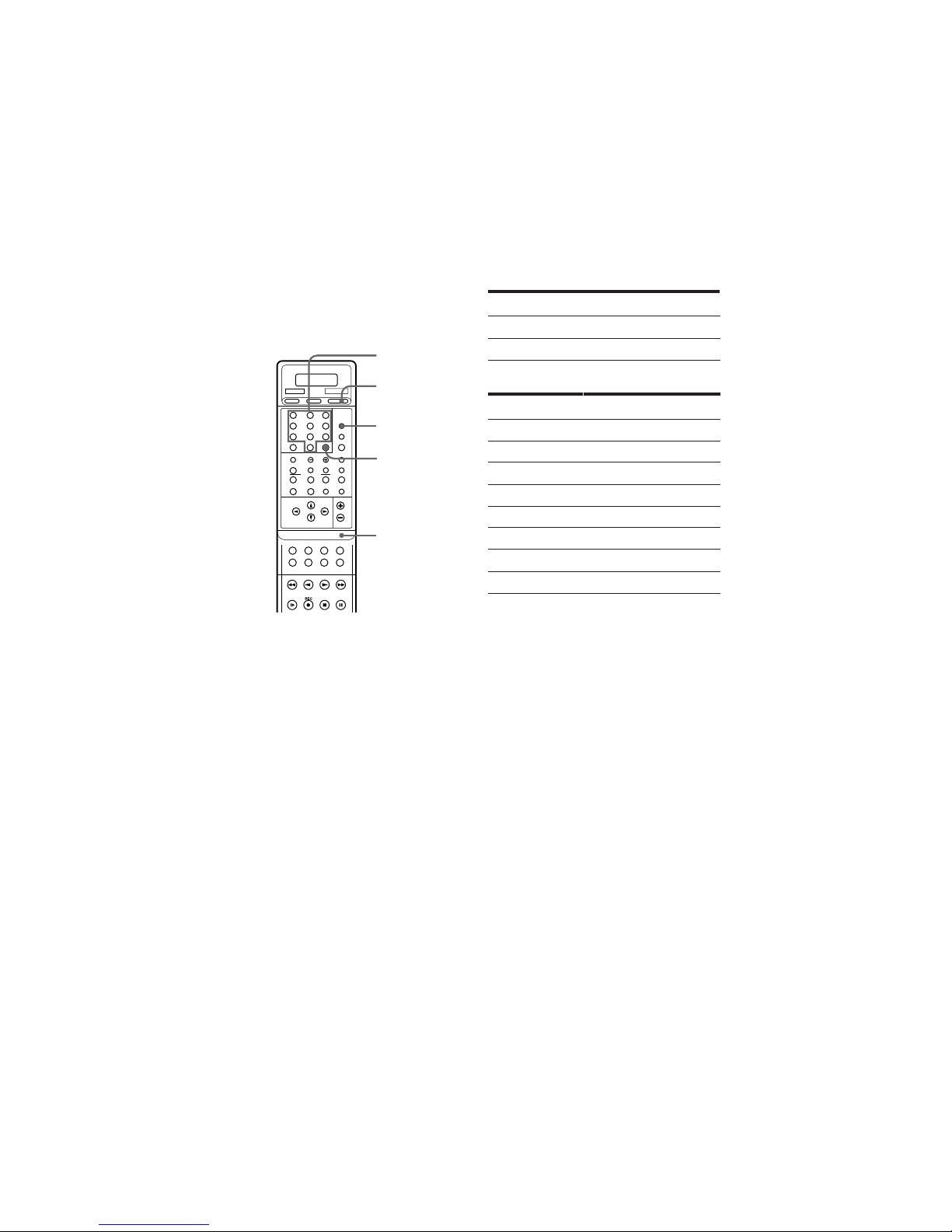

Setting the component code

number

When you operate the DBS tuner or cable

box, you need to set the component code

number.

INPUT

SELECT

DISPLAY

TV/VTR

PIP

WEEKLY

CLEAR

EXIT

VOL

PIP CHPIP OFF

DAILYONCEVCR Plus+

SOUND FIELD

EXE

GUIDE

MENU/PROG

MODEGENRE

ON/

OFF

ENTER

TV OFFUNIT OFF

SYSTEM OFF

TV VCR1 VCR2 DBS/CATV

TUNER CD MD TAPE

ENTER

SYSTEM OFF

INPUT SELECT

Numeric

buttons

Slide cover

1Open the slide cover.

2While pressing down the INPUT

SELECT button, press the SYSTEM OFF

button repeatedly.

Each time you press the SYSTEM OFF

button, the indication changes between

"DBS" and "CATV."

3Release the INPUT SELECT button when

the component you want appears.

4See "Component Code Number", and

find the number in double figures for

your component.

If more than one code number is listed,

use the number that's listed first to

complete the steps that follow.

5Enter the component's code number by

pressing the numeric buttons.

If you have made a mistake, enter the

number in double figures successively.

6Press the ENTER button.

RM-SC200.3-858-330-11.E

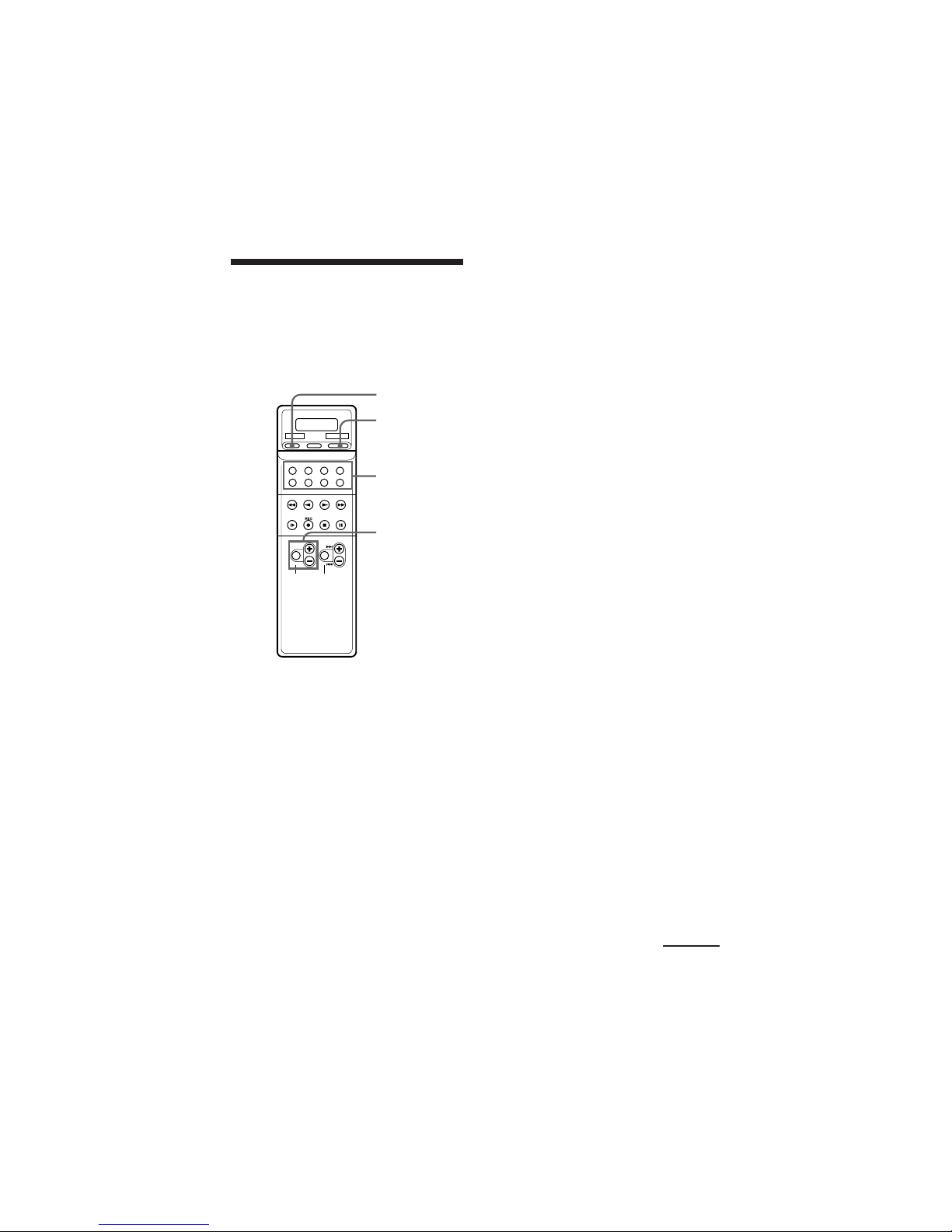

Using the Commander

The Commander allows you to control most

of your components' functions.

The button functions at any

time

Continued

TV VCR1 VCR2

TV OFF

DBS/CATV

TUNER CD MD

MUTING VOL JUMP/

SHIFT CH

TAPE

UNIT OFF

SYSTEM OFF

UNIT OFF

Function

buttons

Volume control

buttons

Turning on the components

Press the function button for each

component.

Note on VCR 1 and VCR 2 button

Press the VCR 1 or VCR 2 button. The

component turns on. When you press the ”,

or MENU/PROG button, the receiver input

switches to the component and the

component picture appears on the TV.

The function buttons except for the VCR 1

and VCR 2 button turn on each component

and switch the receiver input to the

components respectively.

When you turn on a cable box

When the power of the cable box is off, you

cannot power on the cable box with the

Commander. Make sure that the power of

the cable box is always on.

Turning off the entire system

Press the SYSTEM OFF button.

Turning off the components

Press the TV OFF button.

Other component

1Press the UNIT OFF button.

The “UNIT” indication appears and

“OFF” appears.

2Press the function button for each

component within five seconds.

Note

Hold down the UNIT OFF button and press

the desired function button; the respective

component will be on/off according to its

current on/off mode.

RM-SC200.3-858-330-11.E

Using the Commander

The operative buttons for

each component

For details, refer to the instructions manual

of each component.

The marked buttons function for respective

components.

VCR

TV VCR1 VCR2

TV OFF

DBS/CATV

TUNER CD MD

MUTING VOL JUMP/

SHIFT CH

TAPE

UNIT OFF

SYSTEM OFF

INPUT

SELECT

DISPLAY

TV/VTR

PIP

WEEKLY

CLEAR

EXIT

VOL

PIP CHPIP OFF

DAILYONCEVCR Plus+

SOUND FIELD

EXE

GUIDE

MENU/PROG

MODEGENRE

ON/

OFF

ENTER

TV OFFUNIT OFF

SYSTEM OFF

TV VCR1 VCR2 DBS/CATV

TUNER CD MD TAPE

When you

Start recording

Reviewing

Cueing

Press the buttons

simultaneously.

REC and ”

”and 0

”and )

INPUT

SELECT

DISPLAY

TV/VTR

PIP

WEEKLY

CLEAR

EXIT

VOL

PIP CHPIP OFF

DAILYONCEVCR Plus+

SOUND FIELD

EXE

GUIDE

MENU/PROG

MODEGENRE

ON/

OFF

ENTER

TV OFFUNIT OFF

SYSTEM OFF

TV VCR1 VCR2 DBS/CATV

TUNER CD MD TAPE

TV VCR1 VCR2

TV OFF

DBS/CATV

TUNER CD MD

MUTING VOL JUMP/

SHIFT CH

TAPE

UNIT OFF

SYSTEM OFF

Buttons for

the receiver

Buttons for

the TV

Buttons for

the receiver

Autres manuels pour RM-SC200 - S Link Remote

Table des matières

Autres manuels Sony Télécommande

Sony

Sony RM-X55M Manuel utilisateur

Sony

Sony RMF-TX910U Manuel utilisateur

Sony

Sony RM-X60M - Marine Remote Commander Manuel utilisateur

Sony

Sony RM-VZ950T Manuel utilisateur

Sony

Sony RM-V301 Manuel technique

Sony

Sony RM-V50T Manuel utilisateur

Sony

Sony RM-VL900T Manuel utilisateur

Sony

Sony RM-AX5000 Manuel utilisateur

Sony

Sony RMT-D7 Primary Manuel utilisateur

Sony

Sony RM-VL1400T Manuel utilisateur

Sony

Sony RMT-NWS20 Manuel utilisateur

Sony

Sony RM-AX4000A - Universal Remote Control Manuel utilisateur

Sony

Sony RM-EZ4 Manuel utilisateur

Sony

Sony Vaio VGP-BRMP10 Manuel utilisateur

Sony

Sony PlayStation CFI-ZMR1 Manuel utilisateur

Sony

Sony RMF-TX520E Manuel utilisateur

Sony

Sony RMF-TX100U Manuel utilisateur

Sony

Sony RM-NWS1 Manuel utilisateur

Sony

Sony BRAVIA RMF-TX600P Manuel utilisateur

Sony

Sony RM-S1AM Manuel utilisateur

Sony

Sony RM-AV2000 Operating Instructions (primary... Manuel utilisateur

Sony

Sony RM-PP401 Operating Instructions (primary... Manuel utilisateur

Sony

Sony RM-V310 Manuel utilisateur

Sony

Sony HomeShare RMN-U1 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
