Location and Function of Controls

Overview

BOverview

Location and Function of Controls

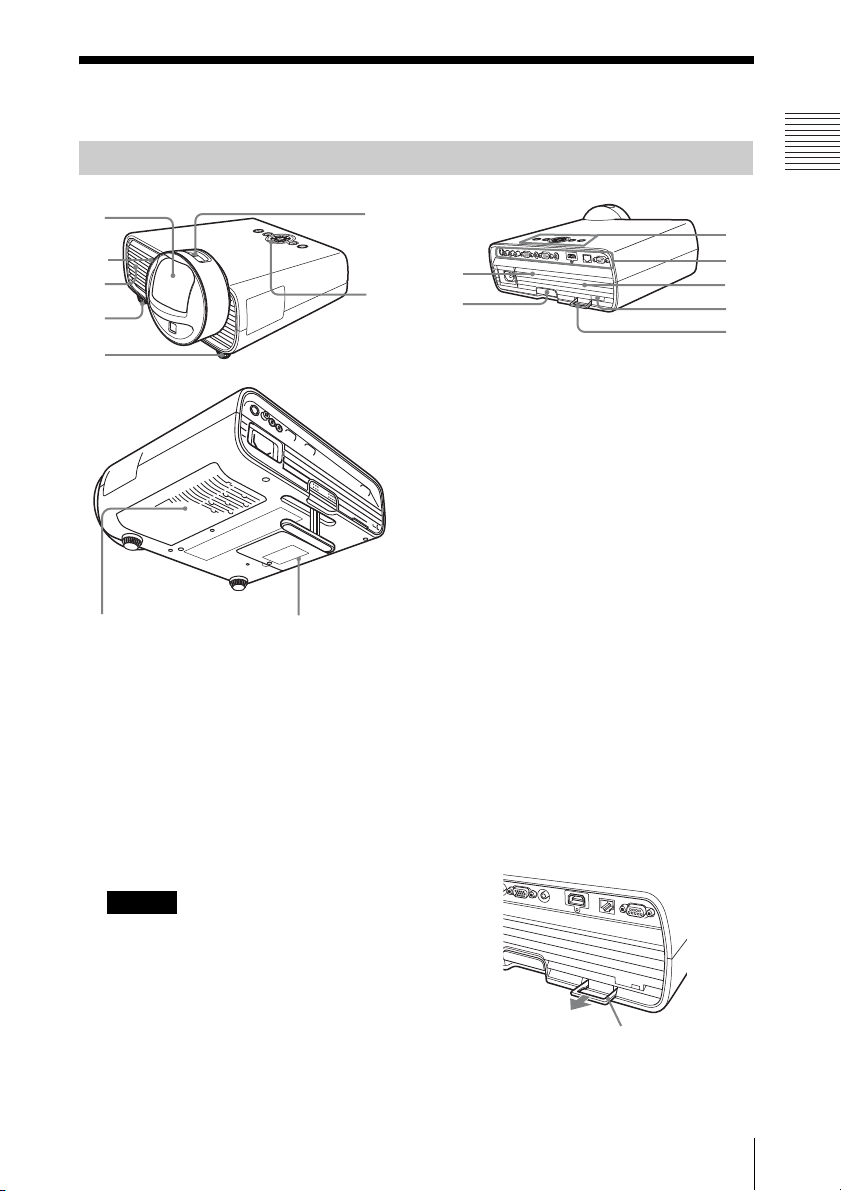

aProjection lens

bFocus ring (page 12)

cLamp cover (page 34)

dAir filter cover (page 36)/

Ventilation holes (intake)

eVentilation holes (intake)

fVentilation holes (exhaust)

Do not place anything near the ventilation

holes as this may cause internal heat

buildup. Do not place your hand near the

ventilation holes and the circumference as

this may cause injury.

gLAMP/COVER indicator

(page 30)

hControl panel (page 5)

iConnector panel (page 4)

jRemote control detector

kAdjuster (page 12)

lSpeaker

mSecurity lock

Connects to an optional security cable

manufactured by Kensington.

For details, visit Kensington’s web site.

http://www.kensington.com/

nSecurity bar

Connects to a commercially available

security chain or wire.

If it is difficult to pull out, pull out the

Security bar using a screwdriver.

Main unit

Caution

Security bar

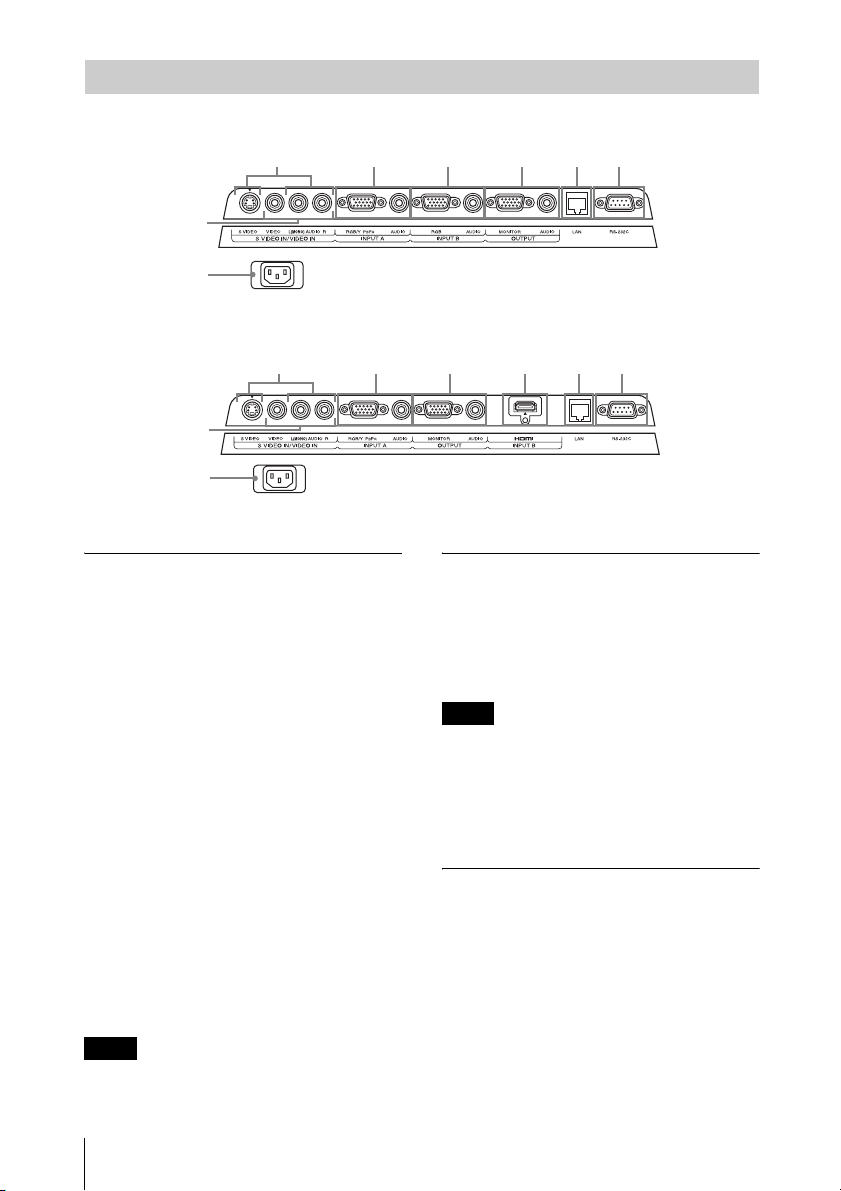

4Location and Function of Controls

VPL-SX125

VPL-SW125

Input (pages 7, 8)

aINPUT A

Video: RGB/YPBPRinput connector

(RGB/YPBPR)

Audio: Audio input connector (AUDIO)

bINPUT B (VPL-SX125 only)

Video: RGB input connector (RGB)

Audio: Audio input connector (AUDIO)

cINPUT B (VPL-SW125 only)

Video: HDMI input connector (HDMI)

Audio: HDMI input connector (HDMI)

dS VIDEO (S VIDEO IN)

Video: S video input connector

Audio: Audio input connector (L

[MONO] AUDIO/R)

eVIDEO (VIDEO IN)

Video: Video input connector

Audio: Audio input connector (L

[MONO] AUDIO/R)

The audio inputs of S VIDEO and VIDEO are

shared.

Output (page 10)

fOUTPUT

Video: Monitor output connector

(MONITOR)

Audio: Audio output connector

(AUDIO)

This connector outputs the projected image or

audio. The image is output as a computer signal

input from the RGB input connector (INPUT

A/INPUT B (INPUT B is available only for

VPL-SX125)) or a video signal input from the

YPBPRinput connector (INPUT A).

Others

gRS-232C connector

RS-232C compatible control connector.

Connects the computer’s RS-232C

connector and the RS-232C cross cables.

hLAN connector (page 27)

iAC IN (∼) socket

Connects the supplied AC power cord.

Connector Panel

2 6 8

6 3 8

Note

Location and Function of Controls

Overview

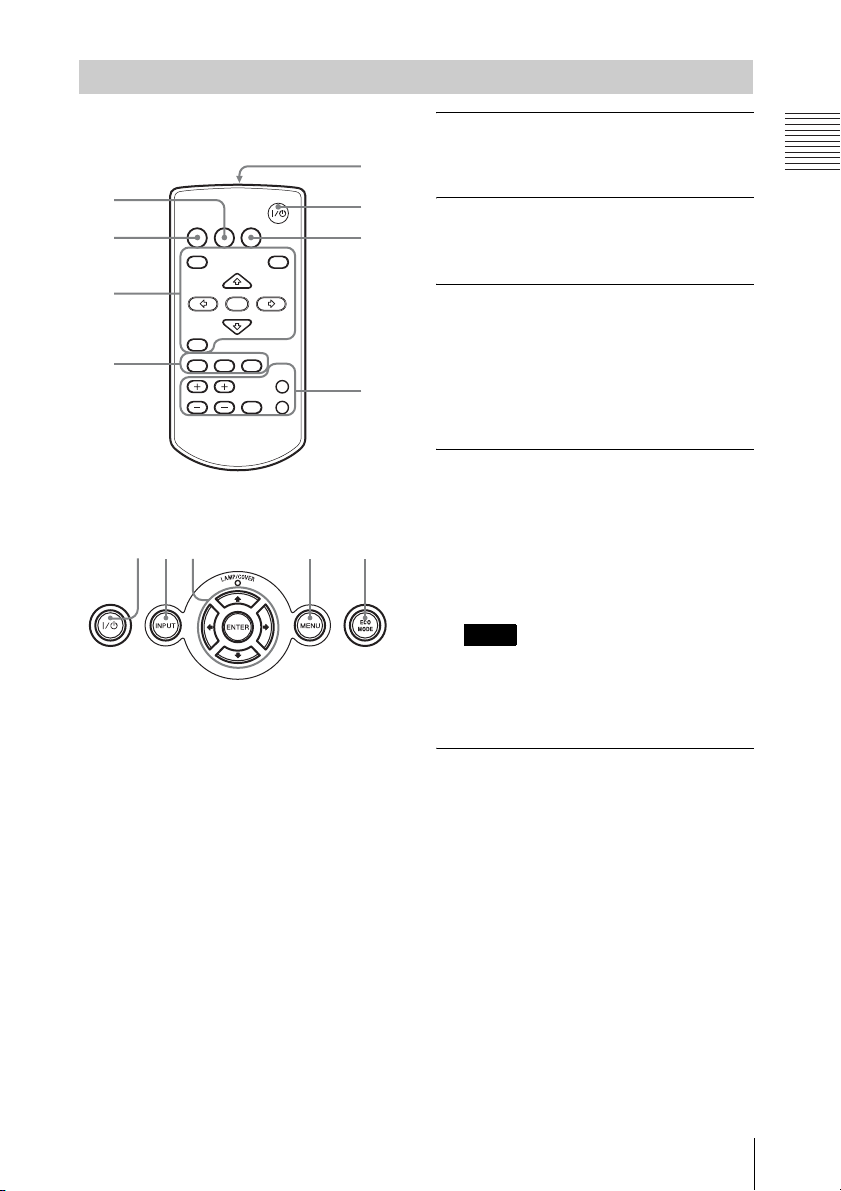

Remote Commander

Control Panel

aTurning on the power/Going to

standby mode

?/1(On/Standby) key

bSelecting an input signal

(page 11)

INPUT key

cOperating a menu (page 15)

MENU key

RESET key

ENTER /V/v/B/b(arrow) keys

RETURN key

This function is not provided in this

projector.

dAdjusting the image (page 12)

ASPECT key

KEYSTONE key

PATTERN key

This function is not provided in this

projector.

APA (Auto Pixel Alignment) key*

*Use this key when inputting a computer

signal via the RGB input connector

(INPUT A/INPUT B (INPUT B is

available only for VPL-SX125)).

eUsing various functions during

projecting

D ZOOM (Digital Zoom) +/– key*1

Enlarges a portion of the image while

projecting.

1Press the D ZOOM + key to display

the digital zoom icon on the projected

image.

2Press the V/v/B/bkeys to move the

digital zoom icon to the point on the

image you wish to enlarge.

3Press the D ZOOM + key or the D

ZOOM – key repeatedly to change the

enlargement ratio. The image can be

enlarged up to 4 times.

Press the RESET key to restore the

previous image.

Remote Commander and Control Panel

INPUT

APA ECO MODE

RETURN

ASPECT

D ZOOM

KEYSTONE

ENTER

VOLUME

PATTERN

FREEZE

PIC MUTING

AUDIO MUTING

RESET

123 3 6

Note

6Location and Function of Controls

PIC MUTING key

Cuts off the image. Press again to restore

the image.

AUDIO MUTING key

Mutes the audio output. Press again to

restore the previous volume.

VOLUME +/– key

For adjusting the volume output.

FREEZE key*2

Pauses a projected image. Press again to

restore the image.

*1: Use this key when inputting a

computer signal. But it may not be

used depending on the resolution of

the input signal.

*2: Use this key when inputting a

computer signal.

fSetting the energy–saving mode

easily

ECO MODE key

Energy-saving mode can be set easily.

Energy-saving mode consists of “Lamp

Mode,” “Power Saving Mode” and

“Standby Mode.”

1Press the ECO MODE key to display

the ECO Mode menu.

2Press the V/vkey or ECO MODE key

to select ECO or User mode.

ECO: Sets each mode to the optimum

energy-saving value.

Lamp Mode: Low

Power Saving Mode: Standby

Standby Mode: Low

(go to step 6)

User: Sets each item of the energy-

saving mode menu as you desire

(go to step 3).

3Select “User” then press the bkey.

The setting items appear.

4Press the V/vkey to select the item

then press the ENTER key.

5Press the V/vkey to select the setting

value.

6Press the ENTER key to restore the

User screen.

For details on ECO Mode settings, see

“Lamp Mode” (page 24) and “Standby

Mode*4” (page 24) on the INSTALL

SETTING menu and “Power Saving

Mode” (page 21) on the SET SETTING

menu.

Others

gInfrared transmitter

About Remote Commander operation

• Direct the Remote Commander toward the

remote control detector.

• The shorter the distance between the

Remote Commander and the projector is,

the wider the angle within which the

Remote Commander can control the

projector becomes.

• Make sure that nothing obstructs the

infrared beam between the Remote

Commander and the remote control

detector on the projector.

Notes

ECO

User

ECO Mode

Sel: Exit:

ECO Mode Menu

Lamp Mode Standard

Power Saving Mode Off

Standby Mode Low

User

Sel: Set: Exit:

Connecting the Projector

Preparation

BPreparation

Connecting the Projector

• Make sure all the equipment is powered off when connecting the projector.

• Use the proper cables for each connection.

• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or

cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

• For more information, refer also to the instruction manuals of the equipment you are connecting.

• Use a no-resistance audio cable.

Connection with a computer is explained for each input signal.

INPUT A/INPUT B (INPUT B is available only for VPL-SX125)

For connecting a computer with an RGB output connector.

It is recommended that you set the resolution of your computer to 1024 × 768 pixels (VPL-SX125)

or 1280 × 800 pixels (VPL-SW125) for the external monitor.

Notes

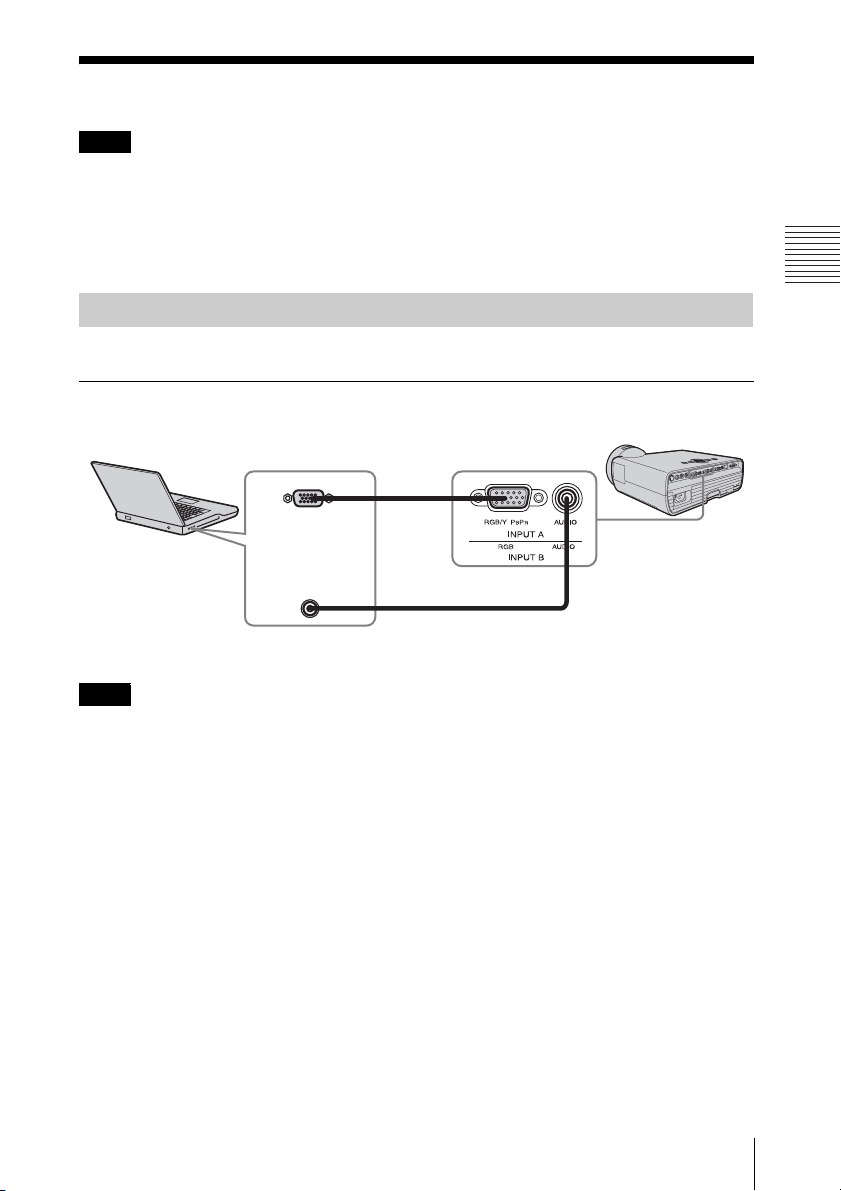

Connecting a Computer

Note

Mini D-sub 15-pin cable (supplied)

Audio cable (Stereo mini plug) (not supplied)

RGB output

connector

Audio output

connector

Computer

8Connecting the Projector

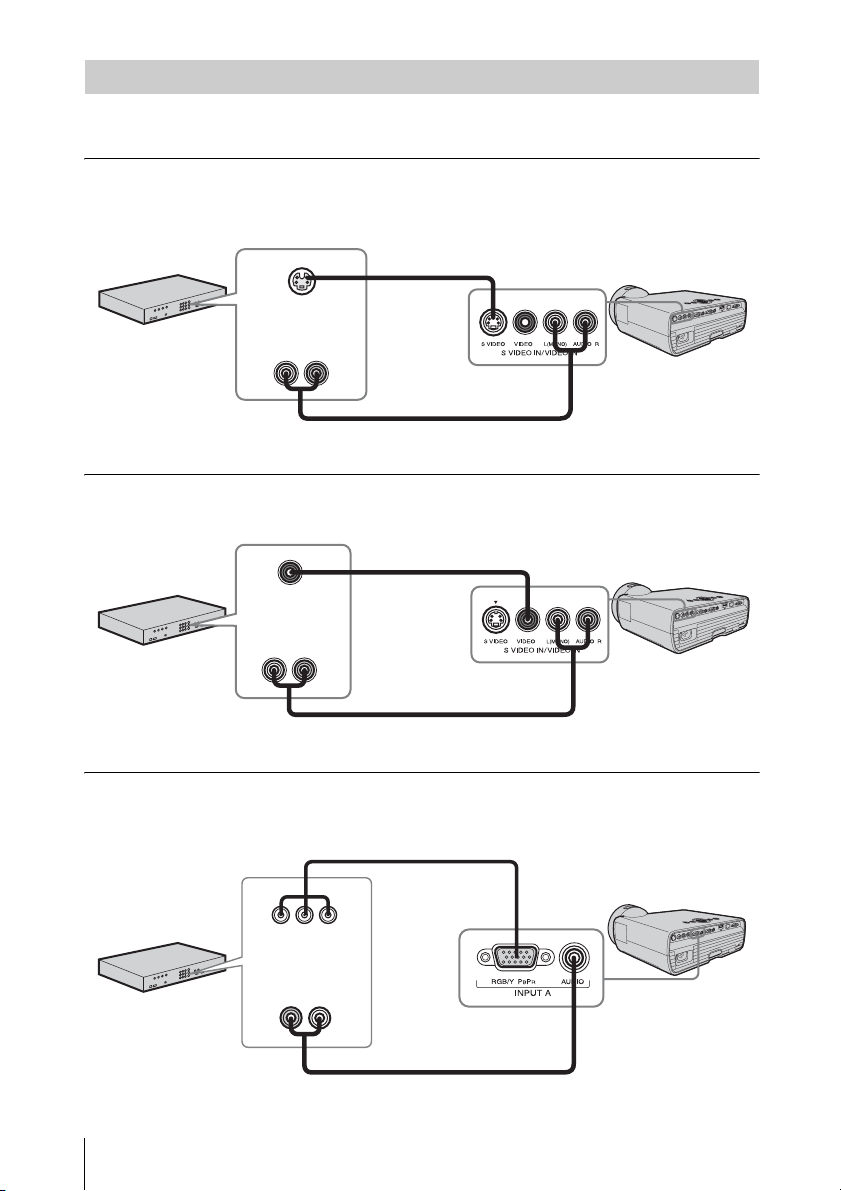

Connections with a VHS video deck, DVD player, or BD player are explained for each input

signal.

S VIDEO IN

For connecting video equipment with an S-video output connector.

VIDEO IN

For connecting video equipment with a video output connector.

INPUT A

For connecting video equipment with a YPBPRoutput connector.

Connecting a Video equipment

S video cable

(not supplied)

Audio cable (Phono plug × 2) (not supplied)

S video output

connector

Audio output

connector

Video equipment

Video cable (not supplied)

Audio cable (Phono plug × 2) (not supplied)

Video output

connector

Audio output

connector

Video equipment

Component – Mini D-sub 15-pin cable (not supplied)

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

Video equipment

YPBPRoutput

connector

Audio output

connector

Connecting the Projector

Preparation

INPUT B (VPL-SW125 only)

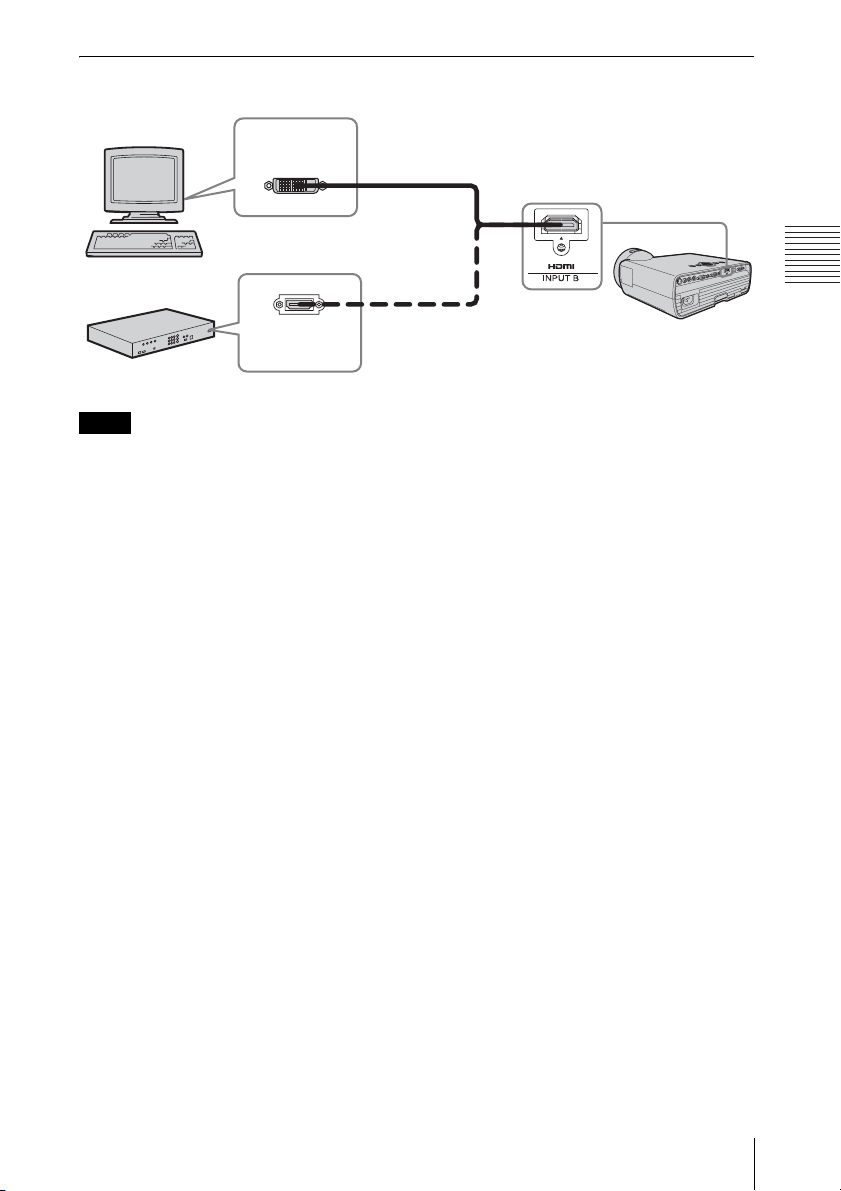

For connecting video equipment with an HDMI output connector.

• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal

or CEC (Consumer Electronics Control) Signal.

Notes

HDMI-DVI-D cable

(not supplied)

Computer

DVI-D output

connector

Video equipment

HDMI cable

(not supplied)

HDMI output

connector

10 Connecting the Projector

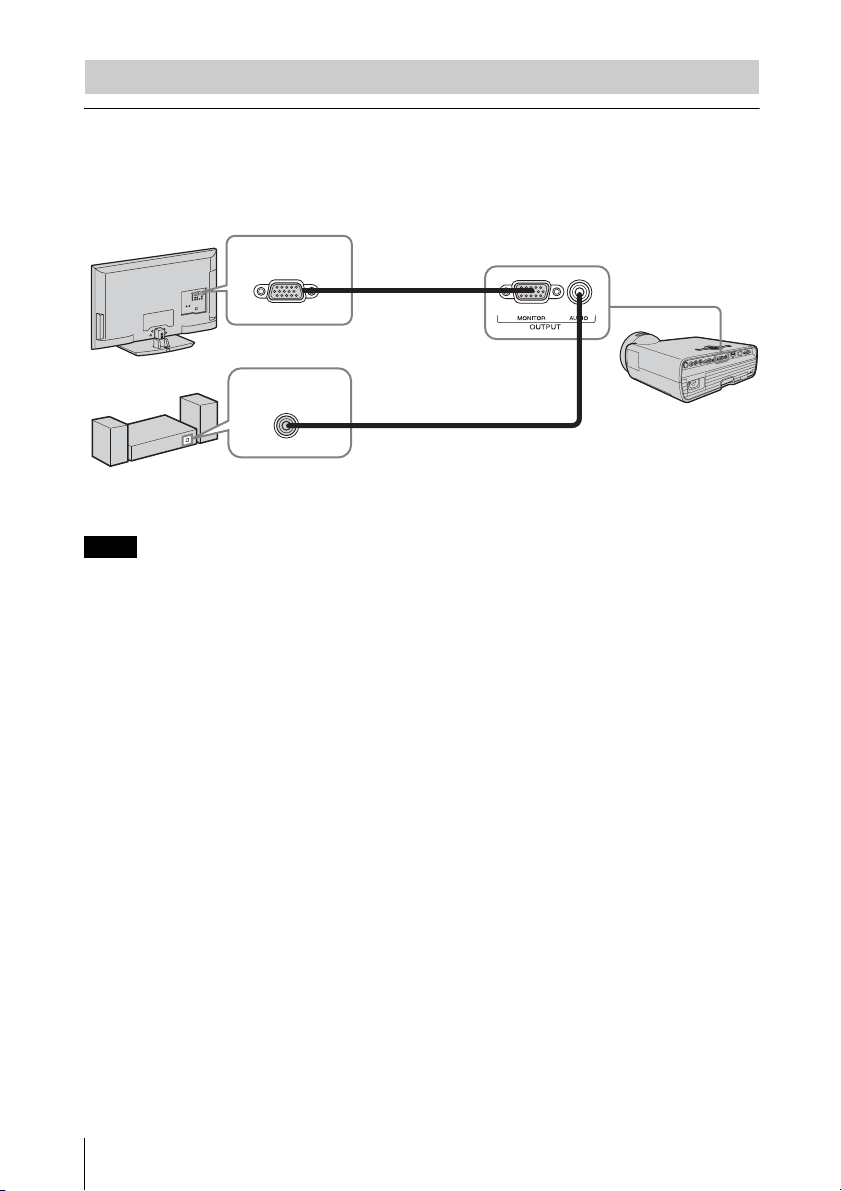

OUTPUT

Projected images and input audio can be output to display equipment such as a monitor and

audio equipment such as speakers with a built-in amplifier. When an audio cable is connected

to the audio output connector, no sound will be heard from the built-in speaker.

Projected images and audio can be output. The image is output only as a computer signal input from

the RGB input connector (INPUT A/INPUT B (INPUT B is available only for VPL-SX125)) or a

video signal input from the YPBPRinput connector (INPUT A).

Connecting an External Monitor and Audio Equipment

Note

Mini D-sub 15-pin

cable (supplied)

RGB input

connector

Display equipment

Audio input

connector

Audio cable

(stereo mini plug)

(not supplied)

Audio equipment

Autres manuels pour VPL-SW125

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony Projecteur

Sony

Sony VPL-SW635C Manuel de service

Sony

Sony VPL-EX246 Mode d’emploi

Sony

Sony VPLHW10 - BRAVIA - SXRD Projector Manuel utilisateur

Sony

Sony VPH-1272Q Manuel utilisateur

Sony

Sony KP-53S55 Manuel utilisateur

Sony

Sony VPL-VW675ES Manuel de service

Sony

Sony Superbright VPL-PX40 Manuel utilisateur

Sony

Sony VPL-HS50 Manuel utilisateur

Sony

Sony VPLHS20 - Cineza Digital Home Entertainment LCD... Manuel utilisateur

Sony

Sony Superlite VPL-DS100 Manuel utilisateur

Sony

Sony VPL-FX51 Manuel utilisateur

Sony

Sony VPL-VZ1000ESLA Manuel utilisateur

Sony

Sony VPLSW525 Manuel utilisateur

Sony

Sony VPL-EW130 Manuel utilisateur

Sony

Sony Superlite VPL-CX6 Manuel utilisateur

Sony

Sony KP-53V16 Manuel utilisateur

Sony

Sony VPL-VW11HT - Lcd Video Projector Manuel utilisateur

Sony

Sony VPL-DW120 Manuel utilisateur

Sony

Sony BRIGHTERA VPL-FH30 Manuel utilisateur

Sony

Sony VPL-CX235 Manuel utilisateur

Sony

Sony VPL-HW40ES Manuel utilisateur

Sony

Sony VPLFH36/B Manuel utilisateur

Sony

Sony VPLVW100 - Full HD Widescreen Projector Guide de l'utilisateur

Sony

Sony KP-46S55 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur

Epson

Epson PowerLite 810p Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuel utilisateur
