Sony MP-CL1A Guide de référence
MP-CL1 3-MP0-107-02
120
inches
80
inches
40
inches
3.45 m
1.15 m
2.3 m
Help Guide
MP-CL1A
© 2016 Sony Corporation
3-MP0-107-02
MP-CL1 3-MP0-107-02
Parts and Controls
CAUTION
Do not point the laser light directly at eyes or people, nor look into it. Doing so may
cause serious injuries such as loss of eyesight.
Strap hole
Micro USB jack
Use an AC power adaptor with a 1.5 A or
greater output to charge the projector.
(power) button
Press and hold the (power) button for
longer than 1 second to turn the power
on or off.
MP-CL1 3-MP0-107-02
Jog lever (−/ENTER/+)
Press the jog lever while at the ENTER position to display the menu. Slide it to + or
− to move to next or previous menu item, then press while at the ENTER position to
select the highlighted item.
Speaker
Built-in Wi-Fi antenna
HDMI/MHL IN jack
AUDIO OUT jack
Connect headphones or speakers to this jack.
USB OUT jack (for power supply)
Connect another device to this jack to charge it. The lamp lights up in green
while charging the device.
Ventilation holes
(charge) lamp
(power) lamp
Lens
Laser radiates from this aperture.
MP-CL1 3-MP0-107-02
Adjusting the volume
Slide the Jog Lever to + or − while the menu is not displayed to adjust the volume.
Checking the remaining battery power
Press and quickly release the button (within 1 second). The lamp blinks in
orange, showing the battery status. The lamp blinks in one of the following patterns
according to the remaining battery power.
(Once): 0% to 30% remaining
(Twice): 30% to 70% remaining
(Three times): 70% to 100% remaining
MP-CL1 3-MP0-107-02
Using the Menu
Navigating the Menu
Learn how to navigate through the menu here.
1Press the jog lever while at the ENTER
position.
The menu is projected.
2Slide the jog lever to + or − to move to the next or previous menu item.
3Press the jog lever while at the ENTER position with the desired menu
item highlighted.
One of the following is displayed according to the selected menu item.
MP-CL1 3-MP0-107-02
Values to choose from
Slide the jog lever to + or − to move to the next or
previous value, then press the lever while at the
ENTER position with the desired value highlighted.
Submenu
Slide the jog lever to + or − to move to the next
or previous submenu item, then press the lever
while at the ENTER position with the desired item
highlighted. The adjustment bar or another screen is
displayed according to the selected item.
MP-CL1 3-MP0-107-02
Adjustment bar
Slide the jog lever to + or − to change the value
shown in the bar, then press the lever while at the
ENTER position to confirm.
To exit the menu
Press and hold the jog lever for about 2 seconds while at the ENTER position.
MP-CL1 3-MP0-107-02
Description of the Menu Items
Close Exits the menu.
Input change Selects an input source from HDMI/MHL and screen mirroring
according to the connection method.
Keystone
Keystone
Preset 1/
Preset 2/
OFF
When using the lens cover stand (supplied) on a flat surface,
select [ Keystone Preset 1] or [ Keystone Preset 2] according to
the tilt of the projector.
Preset 1 Preset 2
The preset values can be customized by changing the settings in
[V keystone] and/or [ H keystone] below.
MP-CL1 3-MP0-107-02

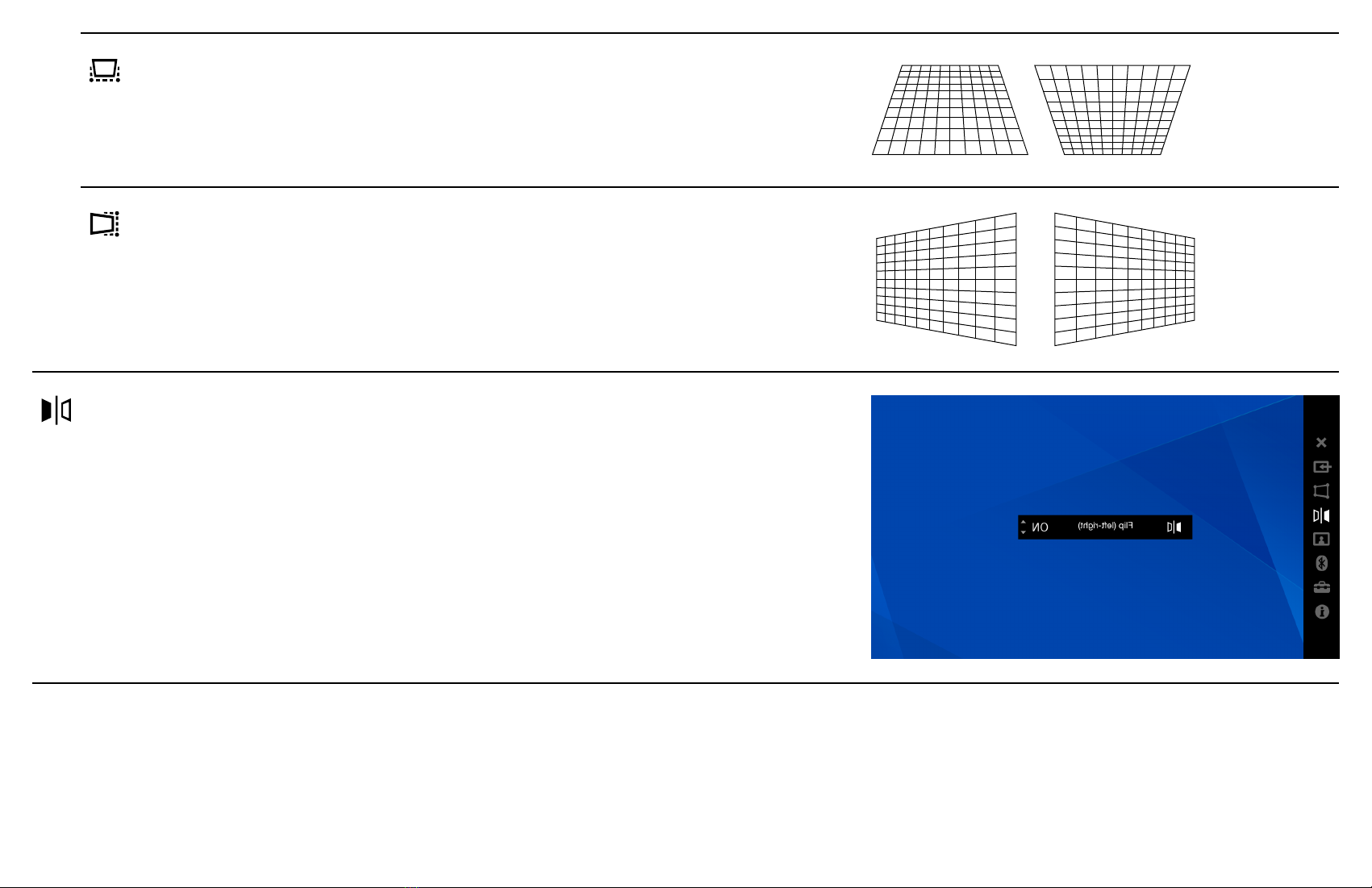

V keystone Corrects vertical distortion. The
value set here overwrites the
selected preset value.
H keystone Corrects horizontal distortion.
The value set here overwrites the
selected preset value.
Flip (left-right) Flips the image horizontally. Use
this mode for rear projection.
To flip the image back to normal,
select this menu again.
MP-CL1 3-MP0-107-02
Picture setting
Dynamic
mode
Enhances picture contrast and sharpness.
* Other items of the Picture setting are not available while [
Dynamic mode] is selected.
Contrast Adjusts the contrast of the projected image.
Hue Adjusts the color tones.
Saturation Adjusts the color intensity.
Bluetooth function
Bluetooth
function
ON/OFF
Turns on/off the Bluetooth function.
Device list Selects the device to connect with the projector from [Paired
devices] or [Available Devices].
